2007 Peugeot 407 C Owner's Manual

4
58

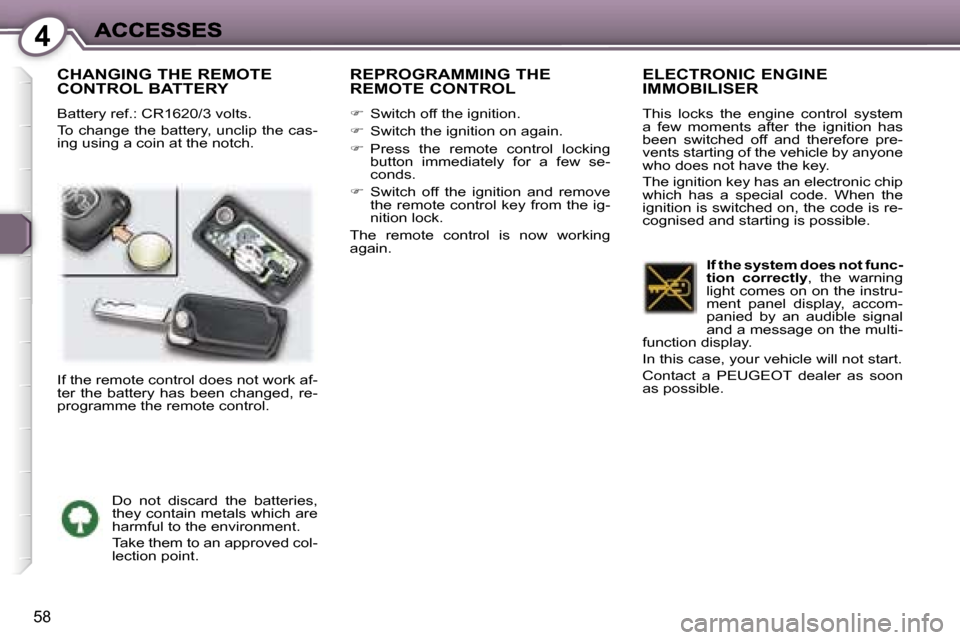

CHANGING THE REMOTE
CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the cas-ing using a coin at the notch.
REPROGRAMMING THE
REMOTE CONTROL
Switch off the ignition.
 Switch the ignition on again.
 Press the remote control locking button immediately for a few se-conds.
 Switch off the ignition and remove the remote control key from the ig-nition lock.
The remote control is now working again.
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system a few moments after the ignition has been switched off and therefore pre-vents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic chip which has a special code. When the ignition is switched on, the code is re-cognised and starting is possible.
Do not discard the batteries, they contain metals which are harmful to the environment.
Take them to an approved col-lection point.
If the system does not func-tion correctly,the warning light comes on on the instru-ment panel display, accom-panied by an audible signal and a message on the multi-function display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.If the remote control does not work af-ter the battery has been changed, re-programme the remote control.

4
59
Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the button of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reprogrammed.

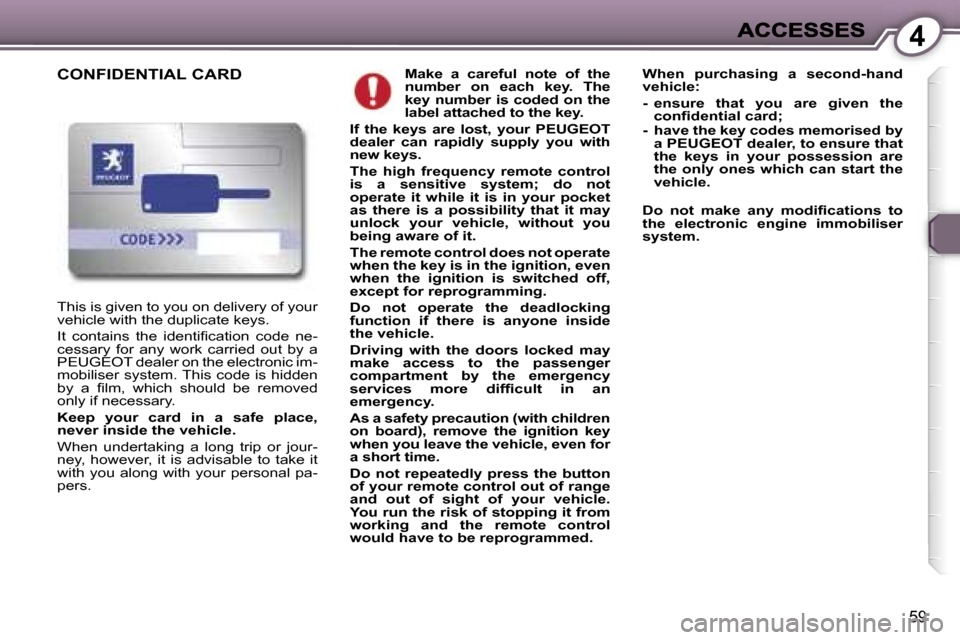

CONFIDENTIAL CARDWhen purchasing a second-hand vehicle:
- ensure that you are given the confidential card;- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code ne-cessary for any work carried out by a PEUGEOT dealer on the electronic im-mobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal pa-pers.

4
60

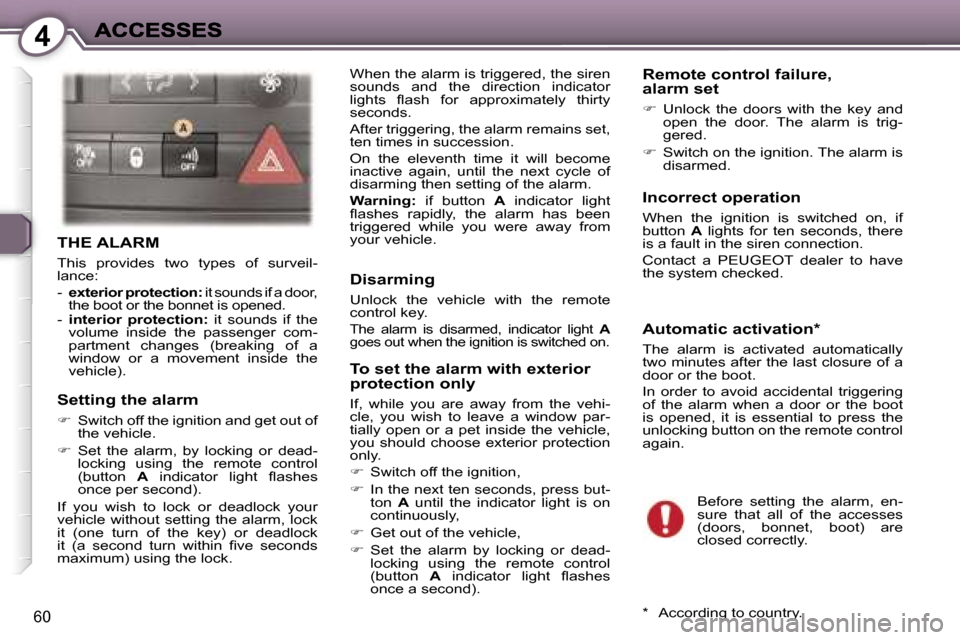

THE ALARM
This provides two types of surveil-lance:
- exterior protection: it sounds if a door, the boot or the bonnet is opened.- interior protection: it sounds if the volume inside the passenger com-partment changes (breaking of a window or a movement inside the vehicle).
When the alarm is triggered, the siren sounds and the direction indicator lights flash for approximately thirty seconds.
After triggering, the alarm remains set, ten times in succession.
On the eleventh time it will become inactive again, until the next cycle of disarming then setting of the alarm.
Warning: if button A indicator light flashes rapidly, the alarm has been triggered while you were away from your vehicle.
Incorrect operation
When the ignition is switched on, if button A lights for ten seconds, there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.
Remote control failure, alarm set
 Unlock the doors with the key and open the door. The alarm is trig-gered.
 Switch on the ignition. The alarm is disarmed.
* According to country.
Setting the alarm
 Switch off the ignition and get out of the vehicle.
 Set the alarm, by locking or dead-locking using the remote control (button A indicator light flashes once per second).
If you wish to lock or deadlock your vehicle without setting the alarm, lock it (one turn of the key) or deadlock it (a second turn within five seconds maximum) using the lock.
Automatic activation*
The alarm is activated automatically two minutes after the last closure of a door or the boot.
In order to avoid accidental triggering of the alarm when a door or the boot is opened, it is essential to press the unlocking button on the remote control again.
Before setting the alarm, en-sure that all of the accesses (doors, bonnet, boot) are closed correctly.
Disarming
Unlock the vehicle with the remote control key.
The alarm is disarmed, indicator light Agoes out when the ignition is switched on.
To set the alarm with exterior protection only
If, while you are away from the vehi-cle, you wish to leave a window par-tially open or a pet inside the vehicle, you should choose exterior protection only.
 Switch off the ignition,
 In the next ten seconds, press but-ton A until the indicator light is on continuously,
 Get out of the vehicle,
 Set the alarm by locking or dead-locking using the remote control (button A indicator light flashes once a second).

4
61

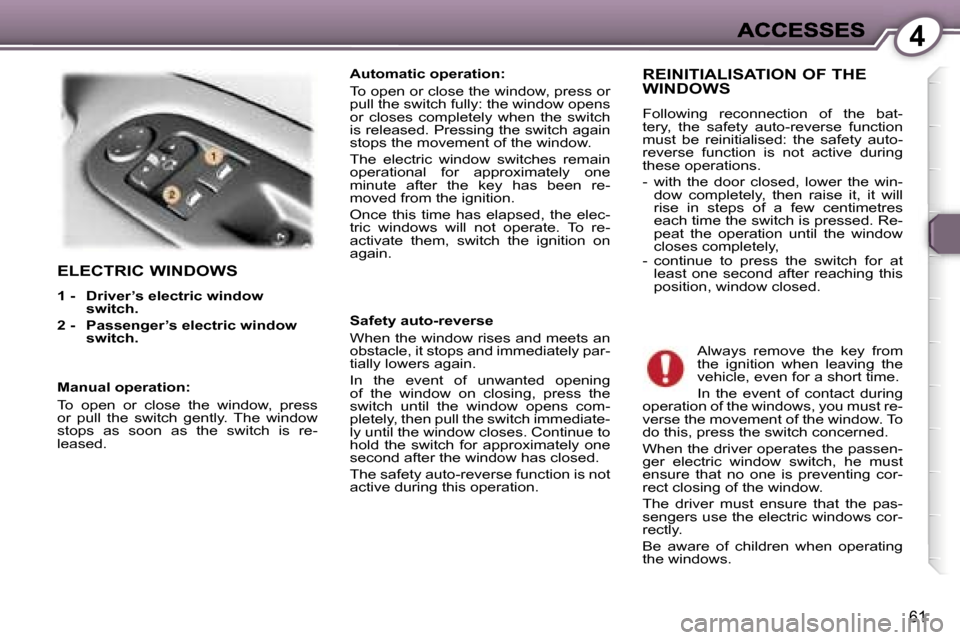

ELECTRIC WINDOWS
1 - Driver’s electric window switch.
2 - Passenger’selectric window switch.
Automatic operation:
To open or close the window, press or pull the switch fully: the window opens or closes completely when the switch is released. Pressing the switch again stops the movement of the window.
The electric window switches remain operational for approximately one minute after the key has been re-moved from the ignition.
Once this time has elapsed, the elec-tric windows will not operate. To re-activate them, switch the ignition on again.
Safety auto-reverse
When the window rises and meets an obstacle, it stops and immediately par-tially lowers again.
In the event of unwanted opening of the window on closing, press the switch until the window opens com-pletely, then pull the switch immediate-ly until the window closes. Continue to hold the switch for approximately one second after the window has closed.
The safety auto-reverse function is not active during this operation.
REINITIALISATION OF THE
WINDOWS
Following reconnection of the bat-tery, the safety auto-reverse function must be reinitialised: the safety auto-reverse function is not active during these operations.
- with the door closed, lower the win-dow completely, then raise it, it will rise in steps of a few centimetres each time the switch is pressed. Re-peat the operation until the window closes completely,- continue to press the switch for at least one second after reaching this position, window closed.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of contact during operation of the windows, you must re-verse the movement of the window. To do this, press the switch concerned.
When the driver operates the passen-ger electric window switch, he must ensure that no one is preventing cor-rect closing of the window.
The driver must ensure that the pas-sengers use the electric windows cor-rectly.
Be aware of children when operating the windows.
Manual operation:
To open or close the window, press or pull the switch gently. The window stops as soon as the switch is re-leased.

4
62

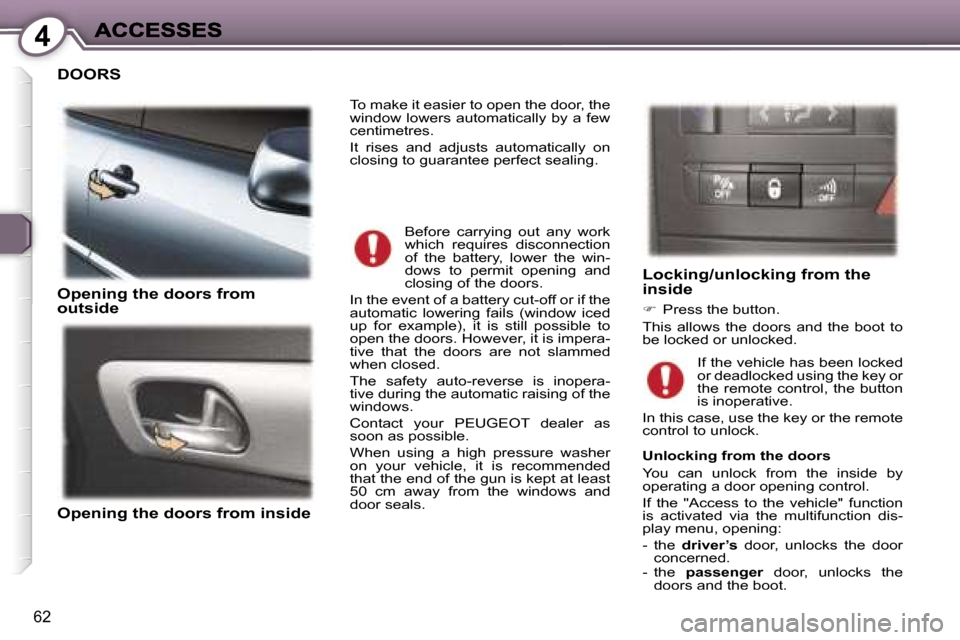

DOORS
Opening the doors from outside
Opening the doors from inside
Locking/unlocking from the inside
 Press the button.
This allows the doors and the boot to be locked or unlocked.
To make it easier to open the door, the window lowers automatically by a few centimetres.
It rises and adjusts automatically on closing to guarantee perfect sealing.
Before carrying out any work which requires disconnection of the battery, lower the win-dows to permit opening and closing of the doors.
In the event of a battery cut-off or if the automatic lowering fails (window iced up for example), it is still possible to open the doors. However, it is impera-tive that the doors are not slammed when closed.
The safety auto-reverse is inopera-tive during the automatic raising of the windows.
Contact your PEUGEOT dealer as soon as possible.
When using a high pressure washer on your vehicle, it is recommended that the end of the gun is kept at least 50 cm away from the windows and door seals.
If the vehicle has been locked or deadlocked using the key or the remote control, the button is inoperative.
In this case, use the key or the remote control to unlock.
Unlocking from the doors
You can unlock from the inside by operating a door opening control.
If the "Access to the vehicle" function is activated via the multifunction dis-play menu, opening:
- the driver’s door, unlocks the door concerned.- the passenger door, unlocks the passengerpassengerdoors and the boot.

4
63

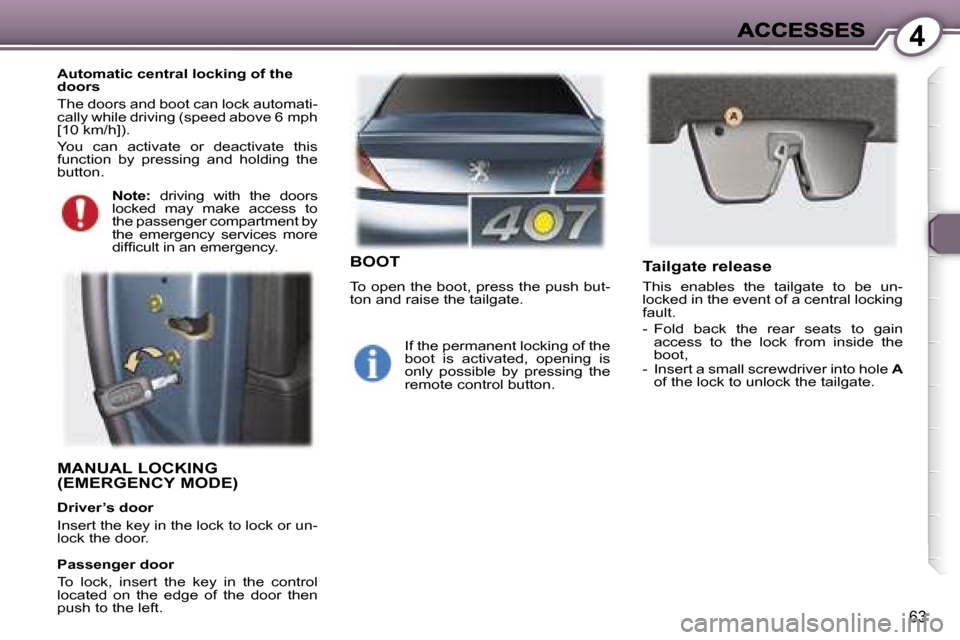

MANUAL LOCKING
(EMERGENCY MODE)
Driver’s door
Insert the key in the lock to lock or un-lock the door.
Automatic central locking of the doors
The doors and boot can lock automati-cally while driving (speed above 6 mph [10 km/h]).
You can activate or deactivate this function by pressing and holding the button.
BOOT
To open the boot, press the push but-ton and raise the tailgate.
Tailgate release
This enables the tailgate to be un-locked in the event of a central locking fault.
- Fold back the rear seats to gain access to the lockfrom inside the boot,- Insert a small screwdriver into hole Aof the lock to unlock the tailgate.
Note: driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
If the permanent locking of the boot is activated, opening is only possible by pressing the remote control button.
Passenger door
To lock, insert the key in the control located on the edge of the door then push to the left.

4
63
MANUAL LOCKING
(EMERGENCY MODE)
Driver’s door
Insert the key in the lock to lock or un-lock the door.
Automatic central locking of the doors
The doors and boot can lock automati-cally while driving (speed above 6 mph [10 km/h]).
You can activate or deactivate this function by pressing and holding the button.
BOOT
To open the boot, press the push but-ton and raise the tailgate.
Tailgate release
This enables the tailgate to be un-locked in the event of a central locking fault.
- Fold back the rear seats to gain access to the lockfrom inside the boot,- Insert a small screwdriver into hole Aof the lock to unlock the tailgate.
Note: driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
If the permanent locking of the boot is activated, opening is only possible by pressing the remote control button.
Passenger door
To lock, insert the key in the control located on the edge of the door then push to the left.

4
64

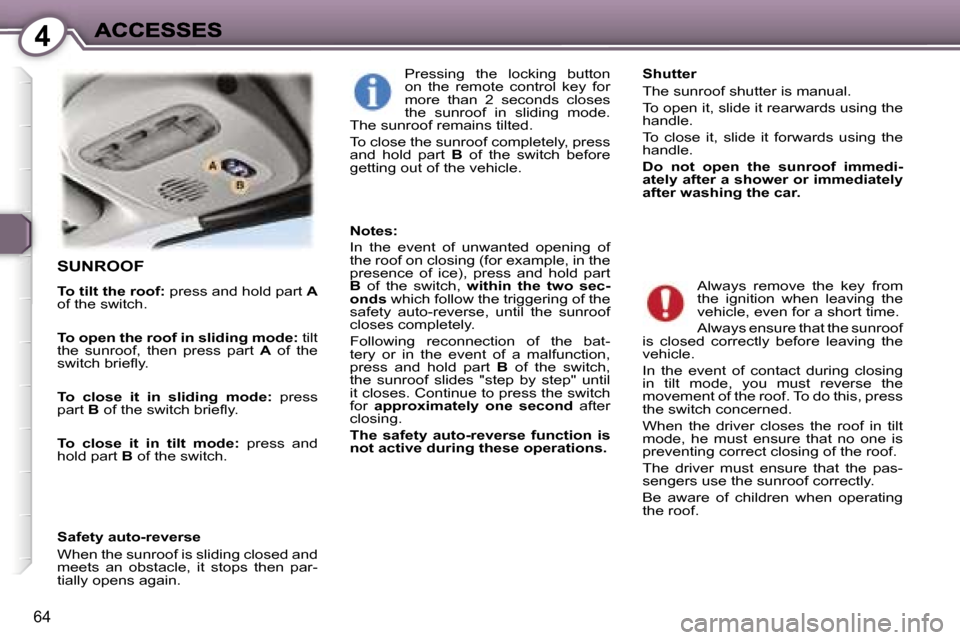

SUNROOF
To tilt the roof: press and hold part Aof the switch.
To open the roof in sliding mode: tilt the sunroof, then press part A of the switch briefly.
To close it in sliding mode: press part B of the switch briefly.
To close it in tilt mode: press and hold part B of the switch.
Safety auto-reverse
When the sunroof is sliding closed and meets an obstacle, it stops then par-tially opens again.
Pressing the locking button on the remote control key for more than 2 seconds closes the sunroof in sliding mode. The sunroof remains tilted.
To close the sunroof completely, press and hold part B of the switch before getting out of the vehicle.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
Always ensure that the sunroof is closed correctly before leaving the vehicle.
In the event of contact during closing in tilt mode, you must reverse the movement of the roof. To do this, press the switch concerned.
When the driver closes the roof in tilt mode, he must ensure that no one is preventing correct closing of the roof.
The driver must ensure that the pas-sengers use the sunroof correctly.
Be aware of children when operating the roof.
Notes:
In the event of unwanted opening of the roof on closing (for example, in the presence of ice), press and hold part B of the switch, within the two sec-onds which follow the triggering of the safety auto-reverse, until the sunroof closes completely.
Following reconnection of the bat-tery or in the event of a malfunction, press and hold part B of the switch, the sunroof slides "step by step" until it closes. Continue to press the switch for approximately one second after closing.
The safety auto-reverse function is not active during these operations.
Shutter
The sunroof shutter is manual.
To open it, slide it rearwards using the handle.
To close it, slide it forwards using the handle.
Do not open the sunroof immedi-ately after a shower or immediately after washing the car.
