2007 Peugeot 407 C Dag Owner's Manual

4ACCESSES
58

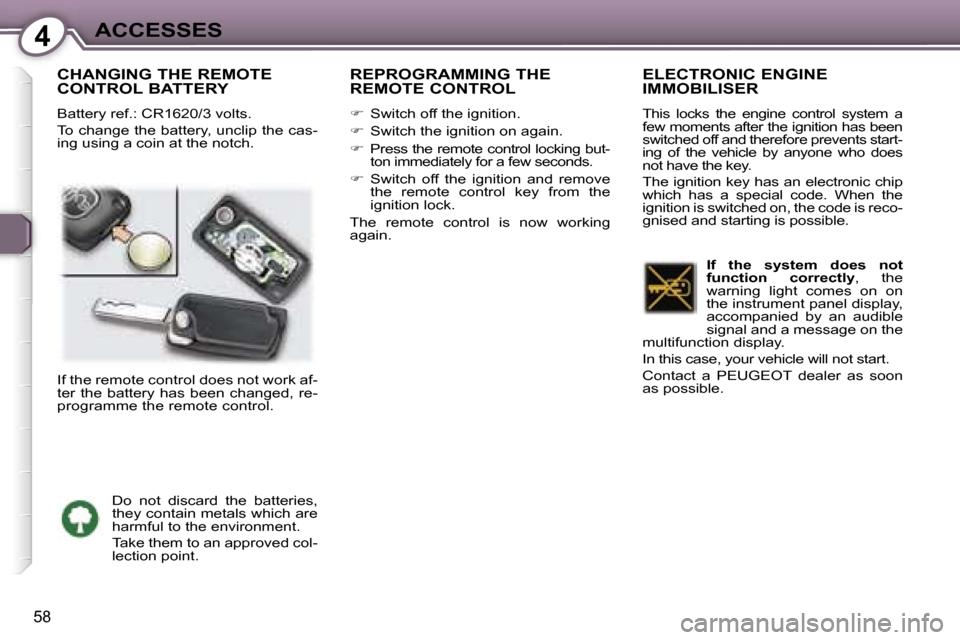

CHANGING THE REMOTE
CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the cas-
ing using a coin at the notch.
REPROGRAMMING THE
REMOTE CONTROL
 Switch off the ignition.
 Switch the ignition on again.
 Press the remote control locking but-
ton immediately for a few seconds.
 Switch off the ignition and remove
the remote control key from the
ignition lock.
The remote control is now working
again.
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system a
few moments after the ignition has been
switched off and therefore prevents start-
ing of the vehicle by anyone who does
not have the key.
The ignition key has an electronic chip
which has a special code. When the
ignition is switched on, the code is reco-
gnised and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point. If the system does not
function correctly
, the
warning light comes on on
the instrument panel display,
accompanied by an audible
signal and a message on the
multifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work af-
ter the battery has been changed, re-
programme the remote control.

4ACCESSES
59
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock your ve-
hicle, without you being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency servi-
ces more difficult in an emergency.
As a safety precaution (with children
on board), remove the ignition key
when you leave the vehicle, even for
a short time.
Do not repeatedly press the button
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would

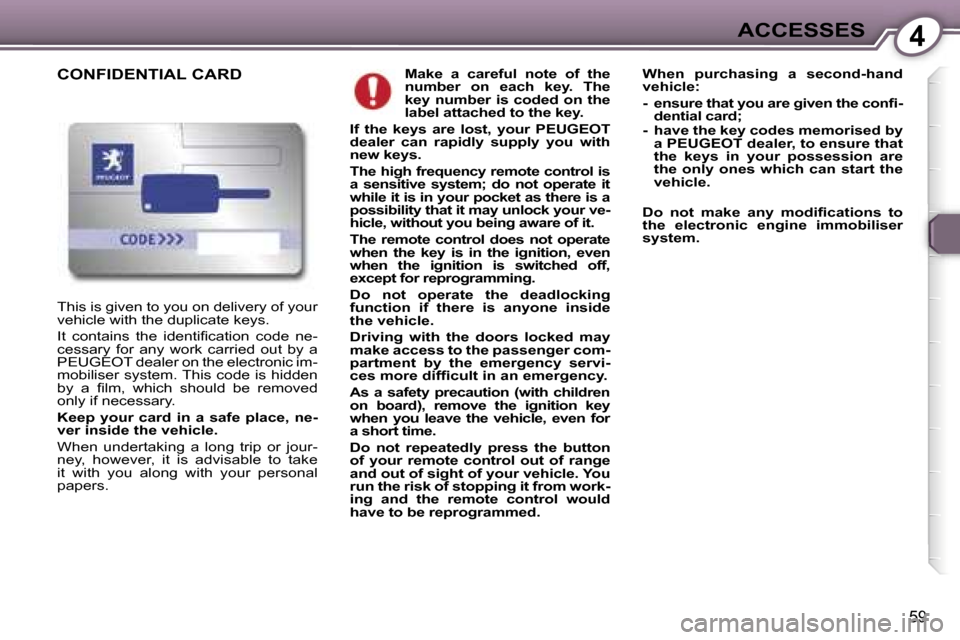

have to be reprogrammed.CONFIDENTIAL CARDWhen purchasing a second-hand
vehicle:
- ensure that you are given the confi- dential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Do not make any modifications to
the electronic engine immobiliser
system.
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code ne-
cessary for any work carried out by a
PEUGEOT dealer on the electronic im-
mobiliser system. This code is hidden
by a film, which should be removed
only if necessary.
Keep your card in a safe place, ne-
ver inside the vehicle.
When undertaking a long trip or jour-
ney, however, it is advisable to take
it with you along with your personal
papers.

4ACCESSES
60

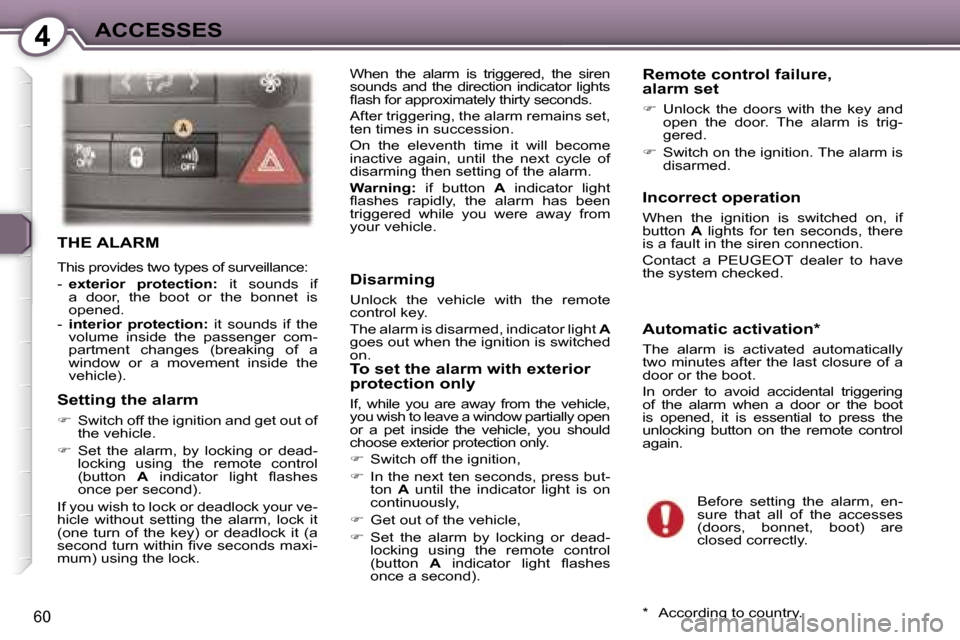

THE ALARM
This provides two types of surveillance:
- exterior protection: it sounds if
a door, the boot or the bonnet is
opened.
- interior protection: it sounds if the
volume inside the passenger com-
partment changes (breaking of a
window or a movement inside the
vehicle). When the alarm is triggered, the siren
sounds and the direction indicator lights
flash for approximately thirty seconds.
After triggering, the alarm remains set,
ten times in succession.
On the eleventh time it will become
inactive again, until the next cycle of
disarming then setting of the alarm.
Warning:
if button A indicator light
flashes rapidly, the alarm has been
triggered while you were away from
your vehicle.
Incorrect operation
When the ignition is switched on, if
button A lights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Remote control failure,
alarm set
 Unlock the doors with the key and
open the door. The alarm is trig-
gered.
 Switch on the ignition. The alarm is
disarmed.
* According to country.
Setting the alarm
 Switch off the ignition and get out of
the vehicle.
 Set the alarm, by locking or dead-
locking using the remote control
(button A indicator light flashes
once per second).
If you wish to lock or deadlock your ve-
hicle without setting the alarm, lock it
(one turn of the key) or deadlock it (a
second turn within five seconds maxi-
mum) using the lock.
Automatic activation*
The alarm is activated automatically
two minutes after the last closure of a
door or the boot.
In order to avoid accidental triggering
of the alarm when a door or the boot
is opened, it is essential to press the
unlocking button on the remote control
again.
Before setting the alarm, en-
sure that all of the accesses
(doors, bonnet, boot) are
closed correctly.
Disarming
Unlock the vehicle with the remote
control key.
The alarm is disarmed, indicator light A
goes out when the ignition is switched
on.
To set the alarm with exterior
protection only
If, while you are away from the vehicle,
you wish to leave a window partially open
or a pet inside the vehicle, you should
choose exterior protection only.
 Switch off the ignition,
 In the next ten seconds, press but-
ton A until the indicator light is on
continuously,
 Get out of the vehicle,
 Set the alarm by locking or dead-
locking using the remote control
(button A indicator light flashes
once a second).

4ACCESSES
61

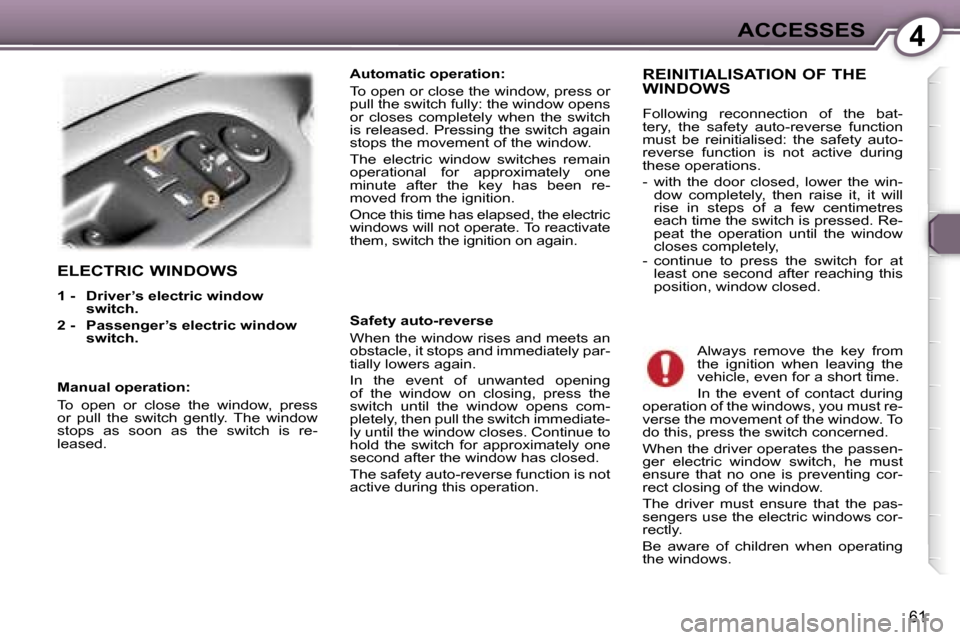

ELECTRIC WINDOWS
1 - Driver’s electric window switch.
2 - Passenger’s electric window
switch. Automatic operation:
To open or close the window, press or
pull the switch fully: the window opens
or closes completely when the switch
is released. Pressing the switch again
stops the movement of the window.
The electric window switches remain
operational for approximately one
minute after the key has been re-
moved from the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate
them, switch the ignition on again.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and immediately par-
tially lowers again.
In the event of unwanted opening
of the window on closing, press the
switch until the window opens com-
pletely, then pull the switch immediate-
ly until the window closes. Continue to
hold the switch for approximately one
second after the window has closed.
The safety auto-reverse function is not
active during this operation.
REINITIALISATION OF THE
WINDOWS
Following reconnection of the bat-
tery, the safety auto-reverse function
must be reinitialised: the safety auto-
reverse function is not active during
these operations.
- with the door closed, lower the win-
dow completely, then raise it, it will
rise in steps of a few centimetres
each time the switch is pressed. Re-
peat the operation until the window
closes completely,
- continue to press the switch for at least one second after reaching this
position, window closed.
Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
In the event of contact during
operation of the windows, you must re-
verse the movement of the window. To
do this, press the switch concerned.
When the driver operates the passen-
ger electric window switch, he must
ensure that no one is preventing cor-
rect closing of the window.
The driver must ensure that the pas-
sengers use the electric windows cor-
rectly.
Be aware of children when operating
the windows.
Manual operation:
To open or close the window, press
or pull the switch gently. The window
stops as soon as the switch is re-
leased.

4ACCESSES
62

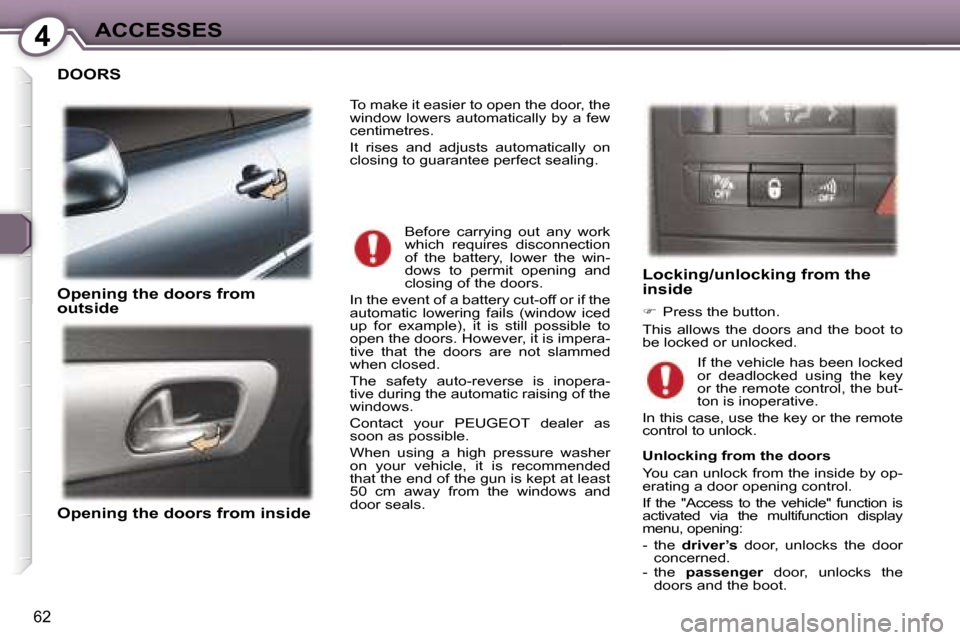

DOORS
Opening the doors from
outside
Opening the doors from inside
Locking/unlocking from the
inside
 Press the button.
This allows the doors and the boot to
be locked or unlocked.
To make it easier to open the door, the
window lowers automatically by a few
centimetres.
It rises and adjusts automatically on
closing to guarantee perfect sealing.
Before carrying out any work
which requires disconnection
of the battery, lower the win-
dows to permit opening and
closing of the doors.
In the event of a battery cut-off or if the
automatic lowering fails (window iced
up for example), it is still possible to
open the doors. However, it is impera-
tive that the doors are not slammed
when closed.
The safety auto-reverse is inopera-
tive during the automatic raising of the
windows.
Contact your PEUGEOT dealer as
soon as possible.
When using a high pressure washer
on your vehicle, it is recommended
that the end of the gun is kept at least
50 cm away from the windows and
door seals. If the vehicle has been locked
or deadlocked using the key
or the remote control, the but-
ton is inoperative.
In this case, use the key or the remote
control to unlock.
Unlocking from the doors
You can unlock from the inside by op-
erating a door opening control.
If the "Access to the vehicle" function is
activated via the multifunction display
menu, opening:
- the driver’s door, unlocks the door
concerned.
- the passenger door, unlocks the
doors and the boot.

4ACCESSES
63

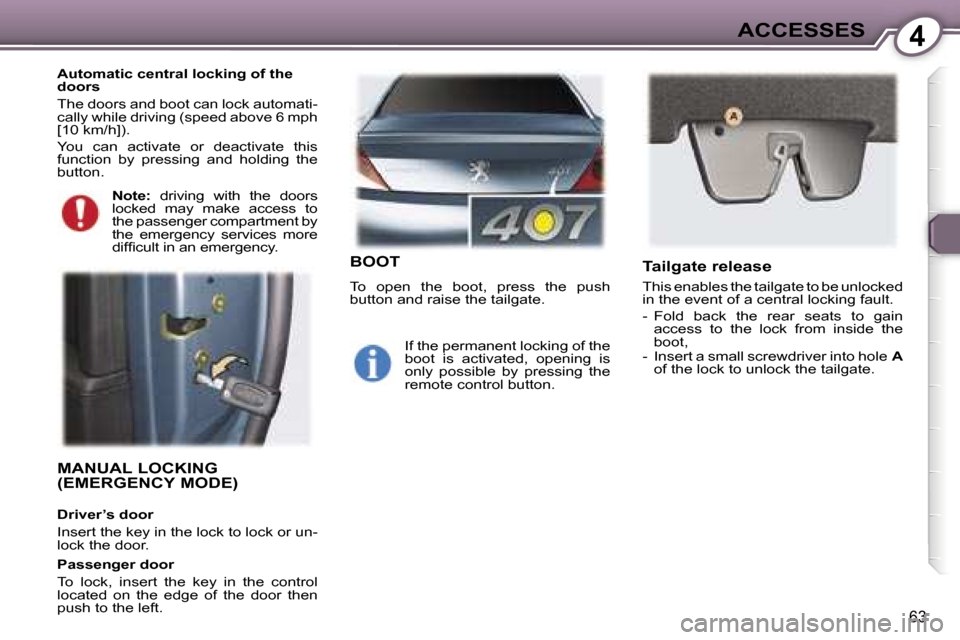

MANUAL LOCKING
(EMERGENCY MODE)
Driver’s door
Insert the key in the lock to lock or un-
lock the door.
Automatic central locking of the
doors
The doors and boot can lock automati-
cally while driving (speed above 6 mph
[10 km/h]).
You can activate or deactivate this
function by pressing and holding the
button.
BOOT
To open the boot, press the push
button and raise the tailgate.
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the lock from inside the
boot,
- Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Note:
driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
difficult in an emergency.
If the permanent locking of the
boot is activated, opening is
only possible by pressing the
remote control button.
Passenger door
To lock, insert the key in the control
located on the edge of the door then
push to the left.

4ACCESSES
63
MANUAL LOCKING
(EMERGENCY MODE)
Driver’s door
Insert the key in the lock to lock or un-
lock the door.
Automatic central locking of the
doors
The doors and boot can lock automati-
cally while driving (speed above 6 mph
[10 km/h]).
You can activate or deactivate this
function by pressing and holding the
button.
BOOT
To open the boot, press the push
button and raise the tailgate.
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the lock from inside the
boot,
- Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Note:
driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
difficult in an emergency.
If the permanent locking of the
boot is activated, opening is
only possible by pressing the
remote control button.
Passenger door
To lock, insert the key in the control
located on the edge of the door then
push to the left.

4ACCESSES
64

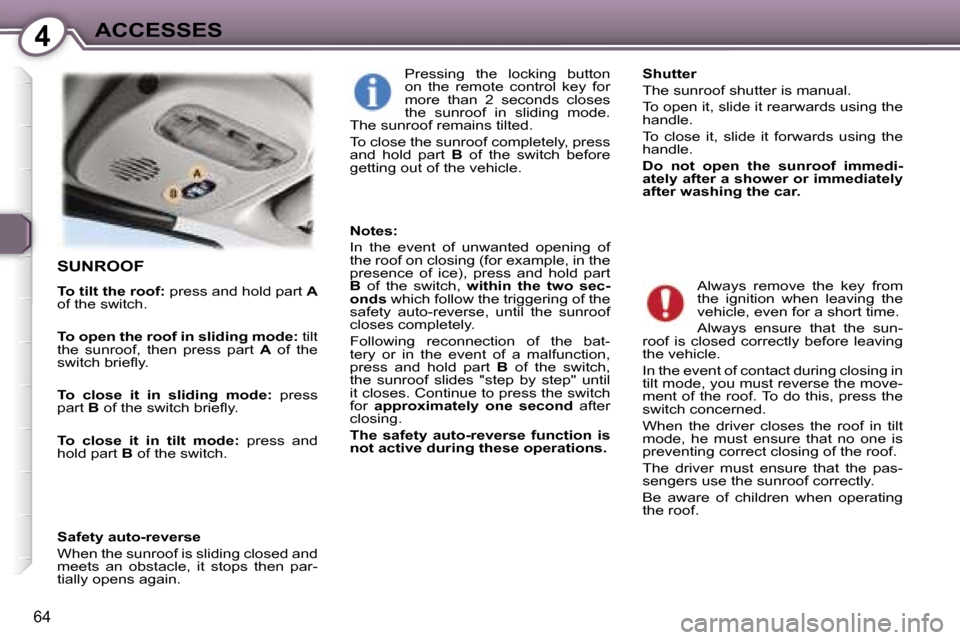

SUNROOF
To tilt the roof: press and hold part A
of the switch.
To open the roof in sliding mode: tilt
the sunroof, then press part A of the
switch briefly.
To close it in sliding mode: press
part B of the switch briefly.
To close it in tilt mode: press and
hold part B of the switch.
Safety auto-reverse
When the sunroof is sliding closed and
meets an obstacle, it stops then par-
tially opens again. Pressing the locking button
on the remote control key for
more than 2 seconds closes
the sunroof in sliding mode.
The sunroof remains tilted.
To close the sunroof completely, press
and hold part B of the switch before
getting out of the vehicle.
Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
Always ensure that the sun-
roof is closed correctly before leaving
the vehicle.
In the event of contact during closing in
tilt mode, you must reverse the move-
ment of the roof. To do this, press the
switch concerned.
When the driver closes the roof in tilt
mode, he must ensure that no one is
preventing correct closing of the roof.
The driver must ensure that the pas-
sengers use the sunroof correctly.
Be aware of children when operating
the roof.
Notes:

In the event of unwanted opening of
the roof on closing (for example, in the
presence of ice), press and hold part
B of the switch, within the two sec-
onds which follow the triggering of the
safety auto-reverse, until the sunroof
closes completely.
Following reconnection of the bat-
tery or in the event of a malfunction,
press and hold part B of the switch,
the sunroof slides "step by step" until
it closes. Continue to press the switch
for approximately one second after
closing.
The safety auto-reverse function is
not active during these operations. Shutter
The sunroof shutter is manual.
To open it, slide it rearwards using the
handle.
To close it, slide it forwards using the
handle.
Do not open the sunroof immedi-
ately after a shower or immediately
after washing the car.
