2007 Peugeot 307 Break Owner's Manual

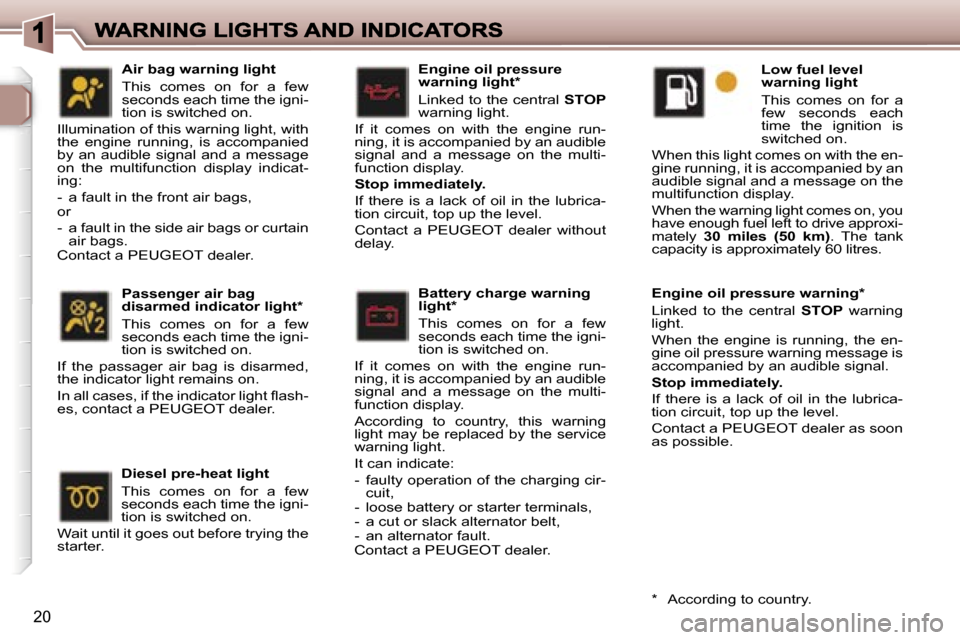

20
Engine oil pressure warning light*
Linked to the central STOPwarning light.
If it comes on with the engine run-ning, it is accompanied by an audible signal and a message on the multi-function display.
Stop immediately.
If there is a lack of oil in the lubrica-tion circuit, top up the level.
Contact a PEUGEOT dealer without delay.
Battery charge warning light*
This comes on for a few seconds each time the igni-tion is switched on.
If it comes on with the engine run-ning, it is accompanied by an audible signal and a message on the multi-function display.
According to country, this warning light may be replaced by the service warning light.
It can indicate:
- faulty operation of the charging cir-cuit,- loose battery or starter terminals,- a cut or slack alternator belt,- an alternator fault.Contact a PEUGEOT dealer.
Low fuel level warning light
This comes on for a few seconds each time the ignition is switched on.
When this light comes on with the en-gine running, it is accompanied by an audible signal and a message on the multifunction display.
When the warning light comes on, you have enough fuel left to drive approxi-mately 30 miles (50 km). The tank capacity is approximately 60 litres.
Passenger air bag disarmed indicator light*
This comes on for a few seconds each time the igni-tion is switched on.
If the passager air bag is disarmed, the indicator light remains on.
In all cases, if the indicator light flash-es, contact a PEUGEOT dealer.
Diesel pre-heat light
This comes on for a few seconds each time the igni-tion is switched on.
Wait until it goes out before trying the starter.
Engine oil pressure warning*
Linked to the central STOP warning light.
When the engine is running, the en-gine oil pressure warning message is accompanied by an audible signal.
Stop immediately.
If there is a lack of oil in the lubrica-tion circuit, top up the level.
Contact a PEUGEOT dealer as soon as possible.
* According to country.
Air bag warning light
This comes on for a few seconds each time the igni-tion is switched on.
Illumination of this warning light, with the engine running, is accompanied by an audible signal and a message on the multifunction display indicat-ing:
- a fault in the front air bags,or
- a fault in the side air bags or curtain air bags.Contact a PEUGEOT dealer.

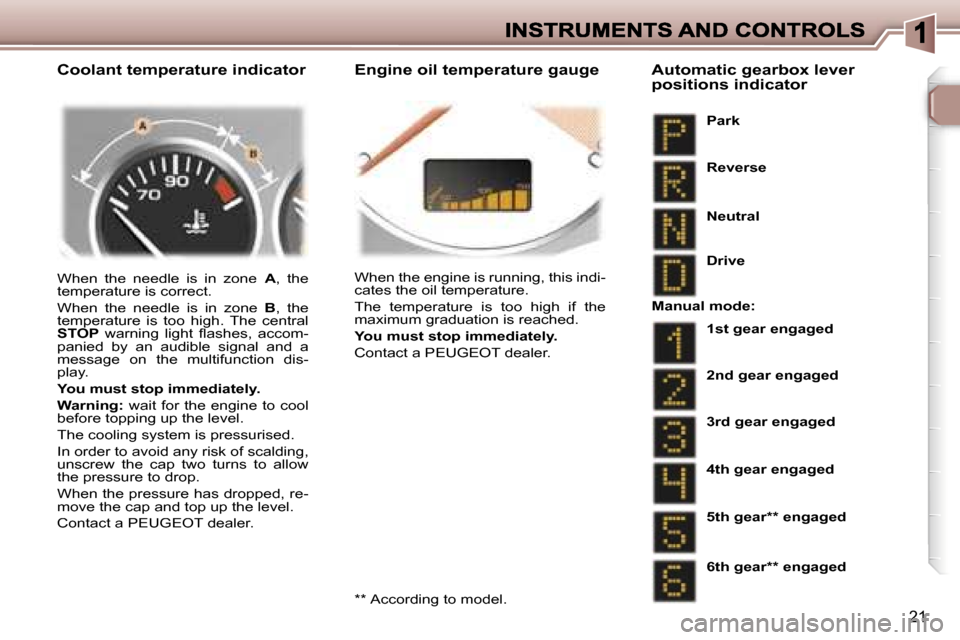

21
Coolant temperature indicator Engine oil temperature gauge
When the needle is in zoneA, the temperature is correct.
When the needle is in zone B,the temperature is too high. The central STOP warning light flashes,accom-panied by an audible signal and a message on the multifunction dis-play.
You must stop immediately.
Warning: wait for the engine to cool before topping up the level.
The cooling system is pressurised.
In order to avoid any risk of scalding, unscrew the cap two turns to allow the pressure to drop.
When the pressure has dropped, re-move the cap and top up the level.
Contact a PEUGEOT dealer.
When the engine is running, this indi-cates the oil temperature.
The temperature is too high if the maximum graduation is reached.
You must stop immediately.
Contact a PEUGEOT dealer.
Park
Automatic gearbox lever positions indicator
Reverse
Neutral
Drive
Manual mode:
1st gear engaged
2nd gear engaged
3rd gear engaged
4th gear engaged
5th gear** engaged
6th gear** engaged
** According to model.

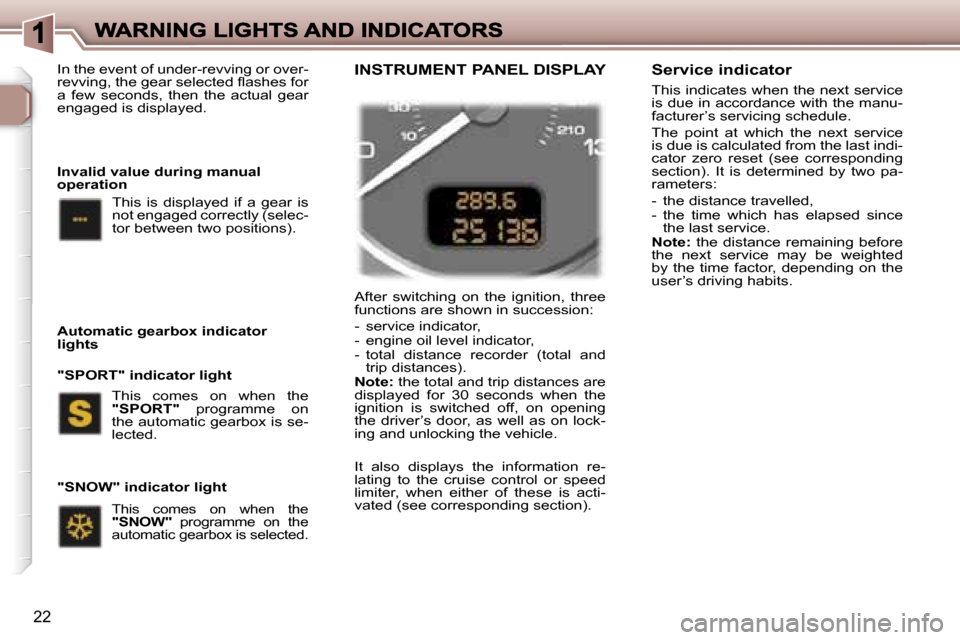

22
After switching on the ignition, three functions are shown in succession:
- service indicator,- engine oil level indicator,- total distance recorder (total and trip distances).Note: the total and trip distances are displayed for 30 seconds when the ignition is switched off, on opening the driver’s door, as well as on lock-ing and unlocking the vehicle.
It also displays the information re-lating to the cruise control or speed limiter, when either of these is acti-vated (see corresponding section).
Service indicator
This indicates when the next service is due in accordance with the manu-facturer’s servicing schedule.
The point at which the next service is due is calculated from the last indi-cator zero reset (see corresponding section). It is determined by two pa-rameters:
- the distance travelled,- the time which has elapsed since the last service.Note: the distance remaining before the next service may be weighted by the time factor, depending on the user’s driving habits.
INSTRUMENT PANEL DISPLAYIn the event of under-revving or over-revving, the gear selected flashes for a few seconds, then the actual gear engaged is displayed.
This comes on when the "SPORT" programme on the automatic gearbox is se-lected.
This comes on when the "SNOW" programme on the automatic gearbox is selected.
Automatic gearbox indicator lights
"SNOW" indicator light
This is displayed if a gear is not engaged correctly (selec-tor between two positions).
"SPORT" indicator light
Invalid value during manual operation

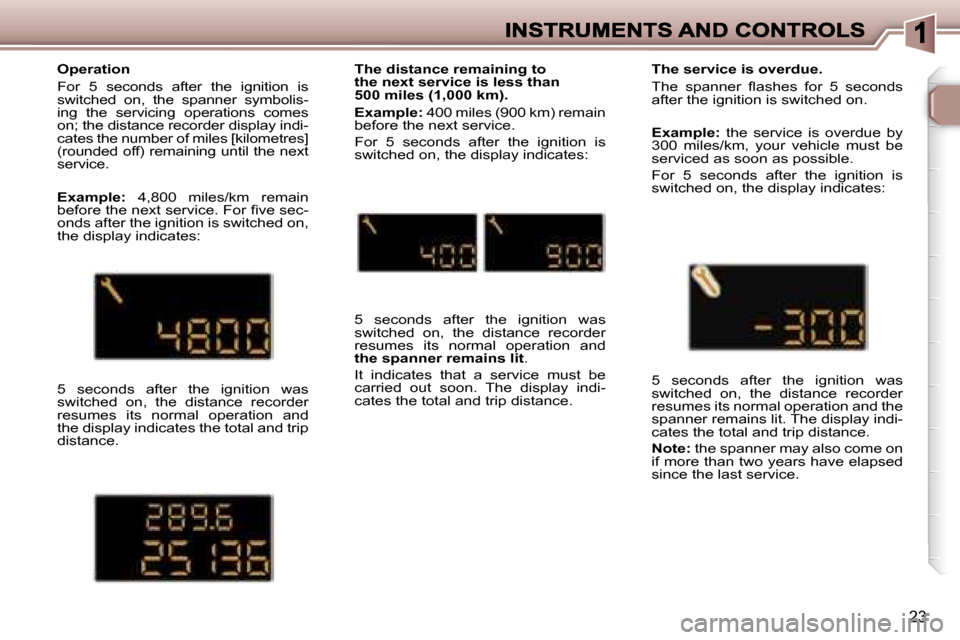

23
Operation
For 5 seconds after the ignition is switched on, the spanner symbolis-ing the servicing operations comes on; the distance recorder display indi-cates the number of miles [kilometres] (rounded off) remaining until the next service.
Example: 4,800 miles/km remain before the next service. For five sec-onds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the display indicates the total and trip distance.
The service is overdue.
The spanner flashes for 5 seconds after the ignition is switched on.
Example: the service is overdue by 300 miles/km, your vehicle must be serviced as soon as possible.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the spanner remains lit. The display indi-cates the total and trip distance.
Note: the spanner may also come on if more than two years have elapsed since the last service.
The distance remaining to the next service is less than 500 miles (1,000 km).
Example: 400 miles (900 km) remain before the next service.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the spanner remains lit.
It indicates that a service must be carried out soon. The display indi-cates the total and trip distance.

24
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is as follows:
 Switch off the ignition,
 Press and hold the trip recorder re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-lease the button; the spanner disap-pears.
Important: after this operation, if you wish to disconnect the battery, lock the vehicle and wait for at least five minutes, otherwise the zero re-set will not be registered.
Engine oil level indicator
When the ignition is switched on, the engine oil level is indicated for a few seconds, after the service information.
Oil level correct
Oil level gauge fault
Flashing of "OIL --" indicates a malfunc-tion of the engine oil level gauge.
Contact a PEUGEOT dealer.
The level read will only be correct if the vehicle is on level ground and the engine has been off for more than 15 minutes.
Flashing of "OIL", linked with the serv-ice warning light, accompanied by an audible signal and a message on the multifunction display, indicates a lack of oil which could damage the engine.
If the lack of oil is confirmed by a check using the dipstick, it is essen-tial that the level is topped up.
Lack of oil
Dipstick
There are 2 marks on the dipstick:
- never exceed level A,- in position B, top up the level via the oil filler cap, using the type of oil suit-ed to your engine.
A = max.
B = min.
Service indicator zero re-set

22
After switching on the ignition, three functions are shown in succession:
- service indicator,- engine oil level indicator,- total distance recorder (total and trip distances).Note: the total and trip distances are displayed for 30 seconds when the ignition is switched off, on opening the driver’s door, as well as on lock-ing and unlocking the vehicle.
It also displays the information re-lating to the cruise control or speed limiter, when either of these is acti-vated (see corresponding section).
Service indicator
This indicates when the next service is due in accordance with the manu-facturer’s servicing schedule.
The point at which the next service is due is calculated from the last indi-cator zero reset (see corresponding section). It is determined by two pa-rameters:
- the distance travelled,- the time which has elapsed since the last service.Note: the distance remaining before the next service may be weighted by the time factor, depending on the user’s driving habits.
INSTRUMENT PANEL DISPLAYIn the event of under-revving or over-revving, the gear selected flashes for a few seconds, then the actual gear engaged is displayed.
This comes on when the "SPORT" programme on the automatic gearbox is se-lected.
This comes on when the "SNOW" programme on the automatic gearbox is selected.
Automatic gearbox indicator lights
"SNOW" indicator light
This is displayed if a gear is not engaged correctly (selec-tor between two positions).
"SPORT" indicator light
Invalid value during manual operation

22
After switching on the ignition, three functions are shown in succession:
- service indicator,- engine oil level indicator,- total distance recorder (total and trip distances).Note: the total and trip distances are displayed for 30 seconds when the ignition is switched off, on opening the driver’s door, as well as on lock-ing and unlocking the vehicle.
It also displays the information re-lating to the cruise control or speed limiter, when either of these is acti-vated (see corresponding section).
Service indicator
This indicates when the next service is due in accordance with the manu-facturer’s servicing schedule.
The point at which the next service is due is calculated from the last indi-cator zero reset (see corresponding section). It is determined by two pa-rameters:
- the distance travelled,- the time which has elapsed since the last service.Note: the distance remaining before the next service may be weighted by the time factor, depending on the user’s driving habits.
INSTRUMENT PANEL DISPLAYIn the event of under-revving or over-revving, the gear selected flashes for a few seconds, then the actual gear engaged is displayed.
This comes on when the "SPORT" programme on the automatic gearbox is se-lected.
This comes on when the "SNOW" programme on the automatic gearbox is selected.
Automatic gearbox indicator lights
"SNOW" indicator light
This is displayed if a gear is not engaged correctly (selec-tor between two positions).
"SPORT" indicator light
Invalid value during manual operation

23
Operation
For 5 seconds after the ignition is switched on, the spanner symbolis-ing the servicing operations comes on; the distance recorder display indi-cates the number of miles [kilometres] (rounded off) remaining until the next service.
Example: 4,800 miles/km remain before the next service. For five sec-onds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the display indicates the total and trip distance.
The service is overdue.
The spanner flashes for 5 seconds after the ignition is switched on.
Example: the service is overdue by 300 miles/km, your vehicle must be serviced as soon as possible.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the spanner remains lit. The display indi-cates the total and trip distance.
Note: the spanner may also come on if more than two years have elapsed since the last service.
The distance remaining to the next service is less than 500 miles (1,000 km).
Example: 400 miles (900 km) remain before the next service.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the spanner remains lit.
It indicates that a service must be carried out soon. The display indi-cates the total and trip distance.
