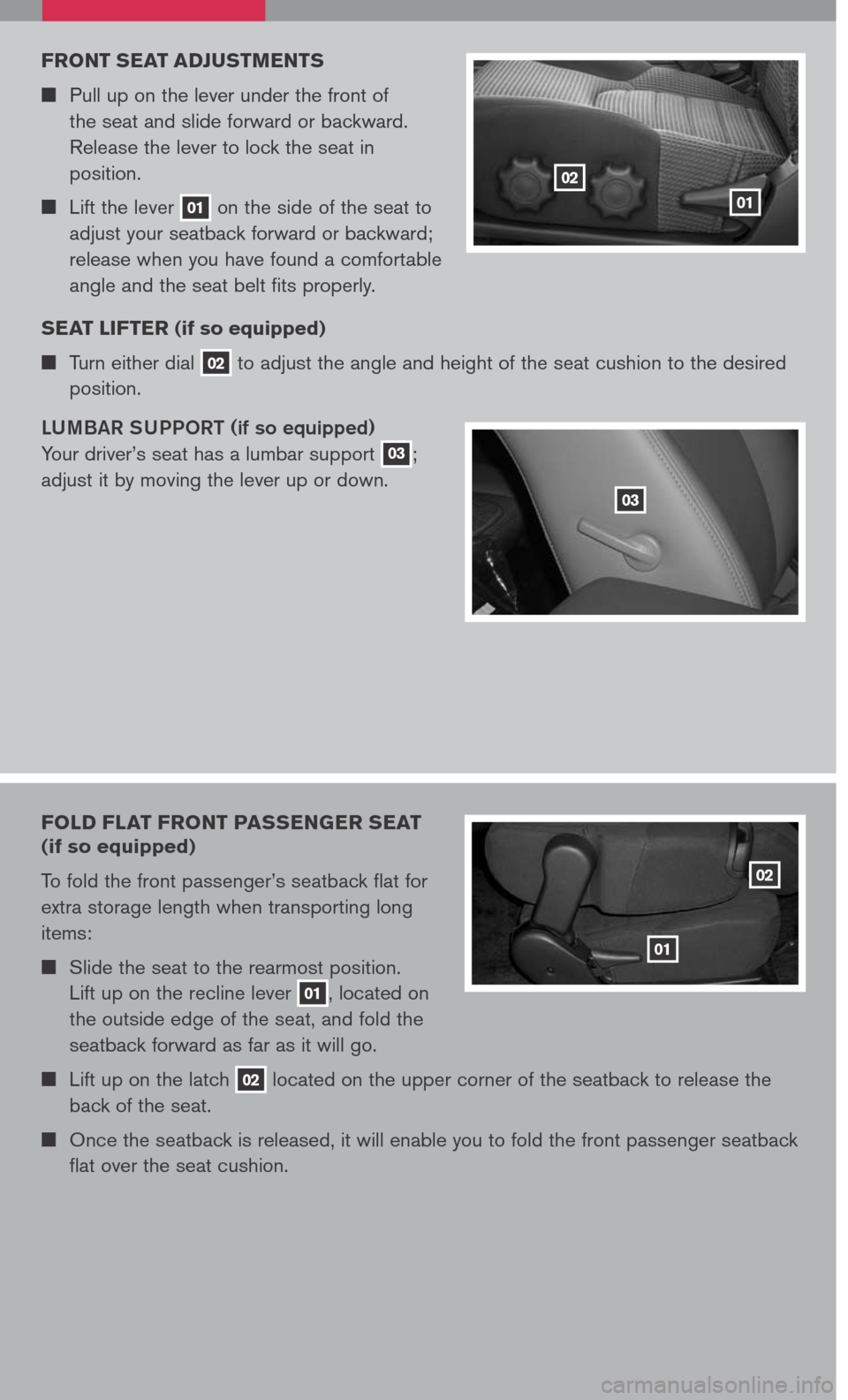

FRONT SEAT ADjUSTMENTS
Pull up on the lever under the front of
the seat and slide forward or backward.
Release the lever to lock the seat in
position.
Lift the lever 01 on the side of the seat to
adjust your seatback forward or backward;
release when you have found a comfortable
angle and the seat belt fits properly.
SEAT LIFTER (if so equipped)
Turn either dial 02 to adjust the angle and height of the seat cushion to the desired
position.
LUMBAR SUPPORT (if so equipped)
Your driver’s seat has a lumbar support 03;
adjust it by moving the lever up or down.
FOLD FLAT FRONT PASSENGER SEAT
(if so equipped)
To fold the front passenger’s seatback flat for
extra storage length when transporting long
items:
Slide the seat to the rearmost position.
Lift up on the recline lever 01, located on
the outside edge of the seat, and fold the
seatback forward as far as it will go.
Lift up on the latch 02 located on the upper corner of the seatback to release the
back of the seat.
Once the seatback is released, it will enable you to fold the front passenger seatback
flat over the seat cushion.
01
02
01
02
03
