2007 NISSAN VERSA warning

TIRE PRESSURE MONITORING SYSTEM (TPMS)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light illuminates, check the tire pressure in all four tires. To turn the low tire pressure warning light off, adjust the low tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label located in the driver’s door opening.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. After 60 seconds, the light will remain on. Have the system checked by a NISSAN dealer.
SEAT BELT WARNING LIGHT AND CHIME
 The light and chime remind you to fasten your seat belts. The light illuminates whenever the ignition key is turned to the ON or START position and remains illuminated until the driver’s seat belt is fastened. At the same time, the chime sounds for approximately 6 seconds unless the driver’s seat belt is securely fastened.
 The seat belt warning light may also illuminate if the front passenger’s seat belt is not fastened when the front passenger’s seat is occupied. For 7 seconds after the ignition switch is in the ON position, the system does not activate the warning light for the front passenger.
Refer to the Owner’s Manual for detailed information regarding seat belt usage.
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on the type of occupant or object detected in the front passenger seat by the occupant classification sensor, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
 When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
 When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.

XTRONIC CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) ™ (if so equipped)
 The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
 R (Reverse) speed, for CVT vehicles, is limited to 15 MPH (25 km/h).
STARTING THE ENGINE WITH CVT (Intelligent Key models only)
 Push the ignition knob in.
 Confirm the Intelligent Key warning light is illuminated green.
 Turn the ignition knob to start the engine.
TURNING THE ENGINE OFF WITH CVT (Intelligent Key models only)
 Shift transmission into P (Park).
 Turn ignition knob to LOCK position.
OVERDRIVE (O/D) OFF SWITCH
 Each time your vehicle is started, the transmission is automatically “reset” to Overdrive on.
 To turn Overdrive mode off, push the O/D OFF switch 01. The
LCN0030
O/DOFF light in the instrument panel will illuminate.
 Use the Overdrive off mode when you need improved engine braking.
The transmission in your Versa requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exact requirements of the new Xtronic CVT™.
6-SPEED MANUAL TRANSMISSION (if so equipped)
LOCK OUT
 In 6-speed manual transmission equipped vehicles, the shift lever is equipped with a Reverse lock-out feature that prevents accidental selection of Reverse (instead of 1st gear).
SHIFTING TO REVERSE
 Lift up on the collar just below the shift lever, then move it to the left and up into Reverse.
PUSH RELEASE BUTTON (Intelligent Key Models with Manual Transmission only)
 The ignition knob can only be turned to the LOCK position when the PUSH release button 01 has been pressed.
 The LCN0129
LOCK Intelligent Key lock warning light blinks and the buzzer sounds if the PUSH release button has not been pressed completely when the ignition knob is turned to
the LOCK position.
01
01

QR7E-0C11U1 Printing: October 2006 (02)

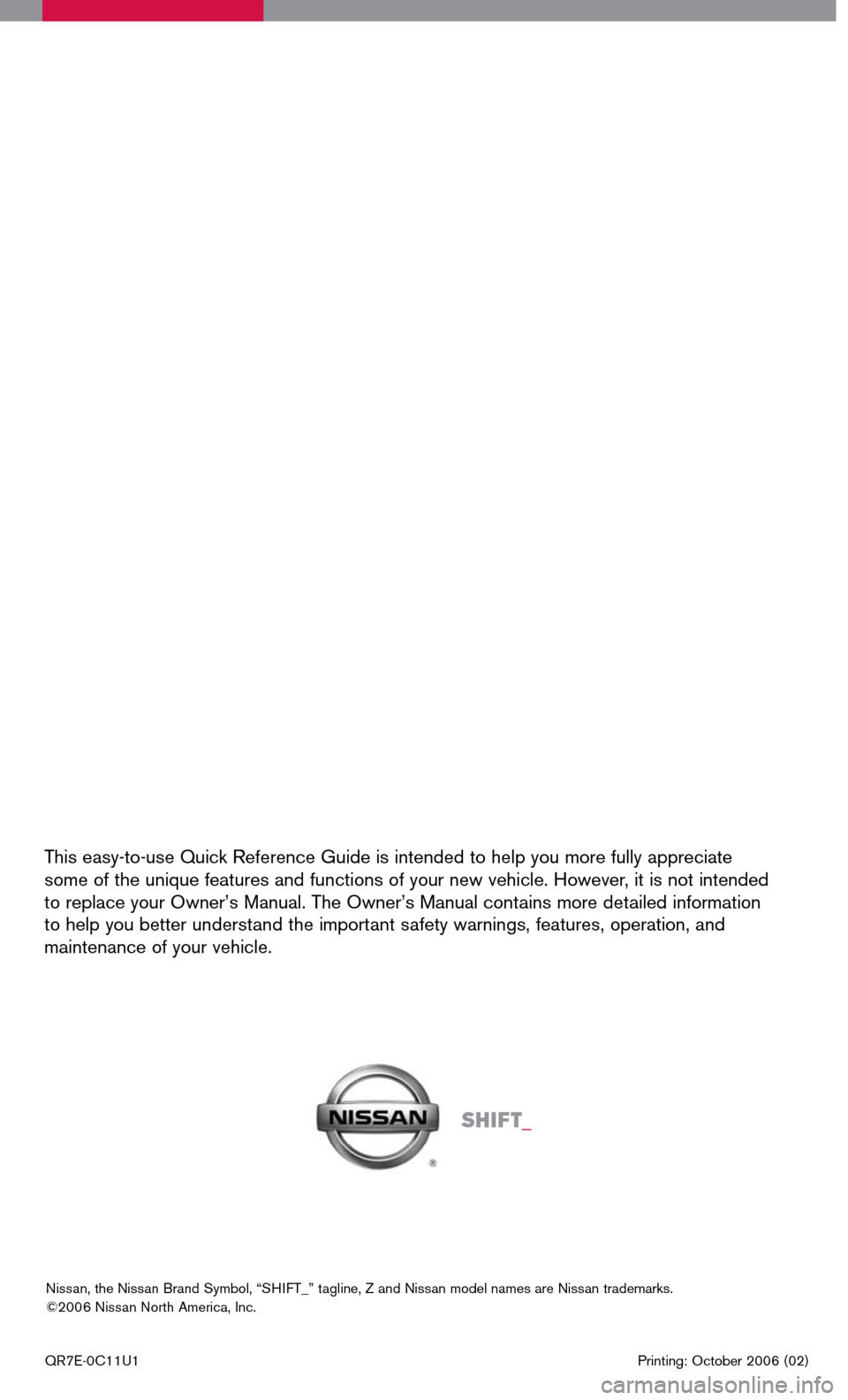

Nissan, the Nissan Brand Symbol, “SHIFT_” tagline, Z and Nissan model names are Nissan trademarks. ©2006 Nissan North America, Inc.
Sh ift_
This easy-to-use Quick Reference Guide is intended to help you more fully appreciate some of the unique features and functions of your new vehicle. However, it is not intended to replace your Owner’s Manual. The Owner’s Manual contains more detailed information to help you better understand the important safety warnings, features, operation, and maintenance of your vehicle.
