HEADLIGHT AND TURN SIGNAL CONTROLWINDSHIELD WIPER/WASHER SWITCHTIRE PRESSURE MONITORING SYSTEM (TPMS)
010203*See your Owner’s Manual for more information.
STEERING WHEEL SWITCHES FOR AUDIO CONTROLFOUR-WHEEL DRIVE (4WD) SHIFT SWITCH (BEHIND STEERING WHEEL)CARGO LAMP SWITCH (BEHIND STEERING WHEEL)
040506
ADJUSTABLE ACCELERATOR AND BRAKE PEDALREAR POWER WINDOW SWITCHCRUISE CONTROL
070809
STEERING WHEEL TILT ADJUSTMENT*HOOD RELEASE*REAR SONAR SYSTEM OFF SWITCH (BEHIND
STEERING WHEEL)
101112
AUDIO SYSTEMCONTROL PANEL DISPLAY
1314
FRONT-PASSENGER AIR BAG STATUS LIGHT
15
CLIMATE CONTROLS
16
E-LOCK SWITCH
17
11
09
04
03
01
06
02
05
1517
19
18
16
14
13
12
07
08
10
TOW MODE SWITCH
18
VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH*
19
Page 3 of 14

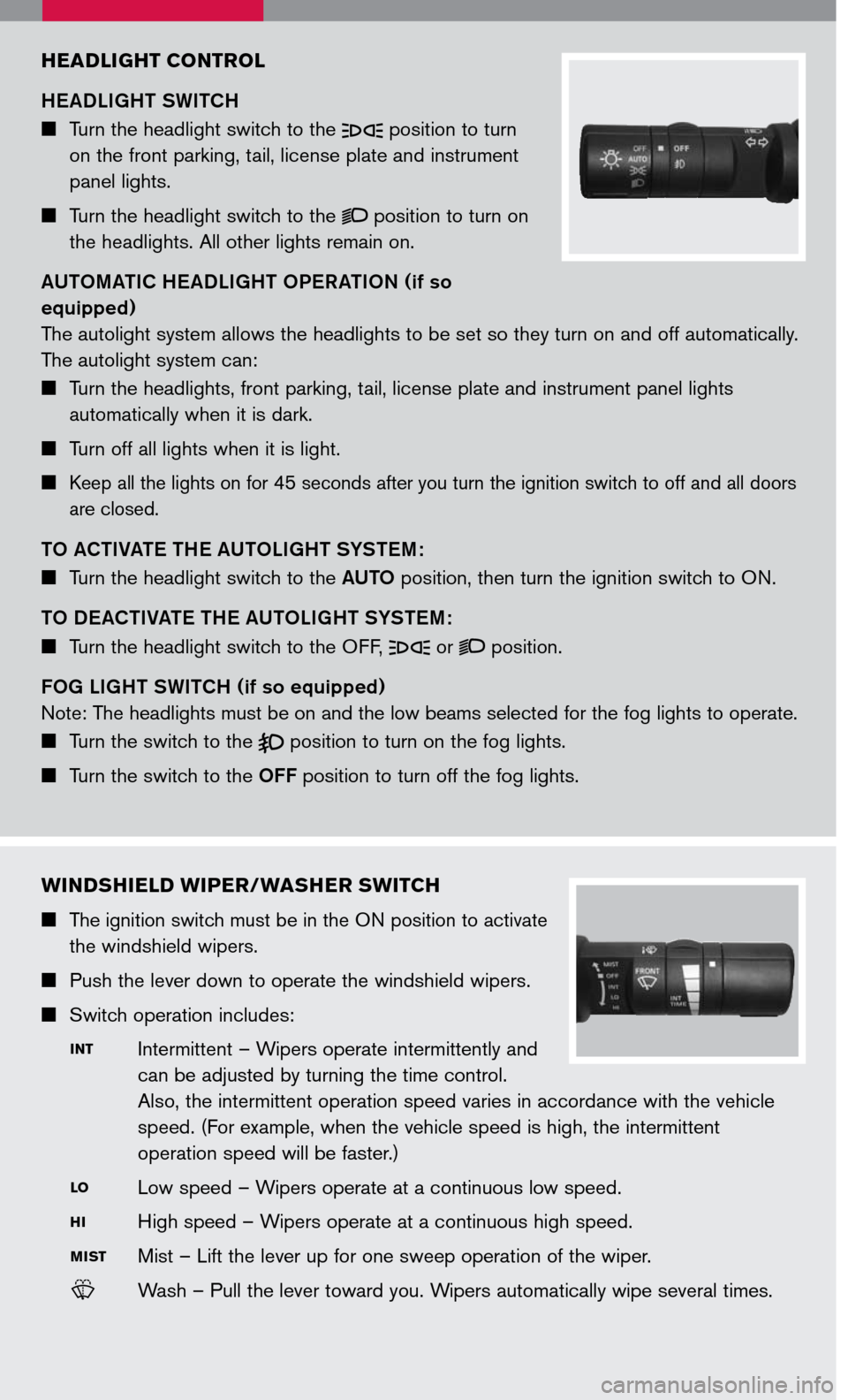

WINDSHIELD WIPER/WASHER SWITCH
The ignition switch must be in the ON position to activate
the windshield wipers.
Push the lever down to operate the windshield wipers.
Switch operation includes:
Intermittent – Wipers operate intermittently and
can be adjusted by turning the time control.
Also, the intermittent operation speed varies in accordance with the vehicle
speed. (For example, when the vehicle speed is high, the intermittent
operation speed will be faster.)
Low speed – Wipers operate at a continuous low speed.
High speed – Wipers operate at a continuous high speed.
Mist – Lift the lever up for one sweep operation of the wiper.
Wash – Pull the lever toward you. Wipers automatically wipe several times.
INT
LO
HI
MIST
LCN0042
HEADLIGHT CONTROL
HEADLIGHT SWITCH
Turn the headlight switch to the position to turn
on the front parking, tail, license plate and instrument
panel lights.
Turn the headlight switch to the position to turn on
the headlights. All other lights remain on.
AUTOMATIC HEADLIGHT OPERATION (if so
equipped)
The autolight system allows the headlights to be set so they turn on and off automatically.
The autolight system can:
Turn the headlights, front parking, tail, license plate and instrument panel lights
automatically when it is dark.
Turn off all lights when it is light.
Keep all the lights on for 45 seconds after you turn the ignition switch to off and all doors
are closed.
TO ACTIVATE THE AUTOLIGHT SYSTEM :
Turn the headlight switch to the AUTO position, then turn the ignition switch to ON.
TO DEACTIVATE THE AUTOLIGHT SYSTEM :
Turn the headlight switch to the OFF, or position.
FOG LIGHT SWITCH (if so equipped)
Note: The headlights must be on and the low beams selected for the fog lights to operate.
Turn the switch to the position to turn on the fog lights.
Turn the switch to the OFF position to turn off the fog lights.
Page 5 of 14

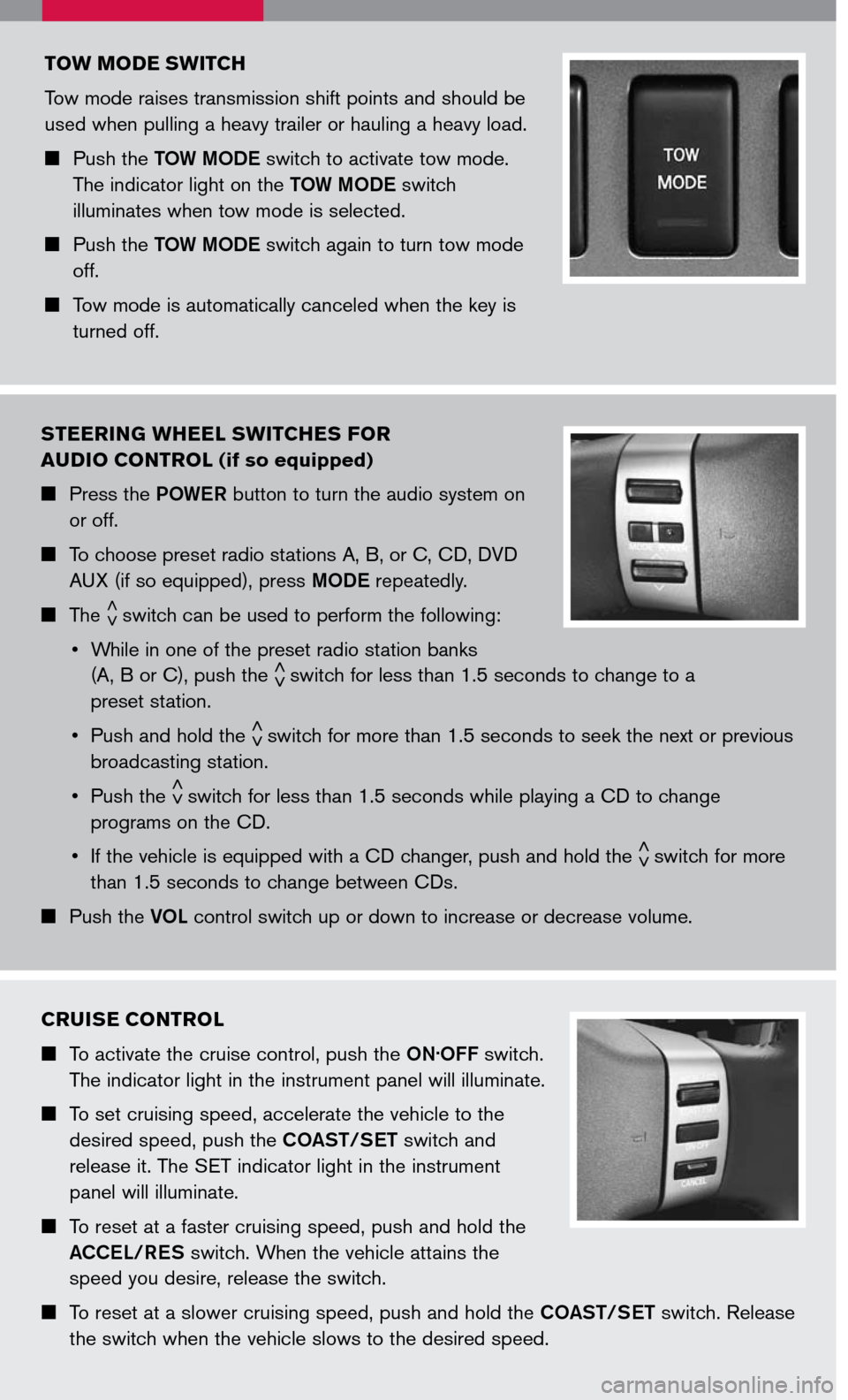

STEERING WHEEL SWITCHES FOR
AUDIO CONTROL (if so equipped)
Press the POWER button to turn the audio system on
or off.
To choose preset radio stations A, B, or C, CD, DVD
AUX (if so equipped), press MODE repeatedly.
The < >switch can be used to perform the following:
• While in one of the preset radio station banks
(A, B or C), push the < >switch for less than 1.5 seconds to change to a
preset station.
• Push and hold the < >switch for more than 1.5 seconds to seek the next or previous
broadcasting station.
• Push the < >switch for less than 1.5 seconds while playing a CD to change
programs on the CD.
• If the vehicle is equipped with a CD changer, push and hold the < >switch for more
than 1.5 seconds to change between CDs.
Push the VOL control switch up or down to increase or decrease volume.
TOW MODE SWITCH
Tow mode raises transmission shift points and should be
used when pulling a heavy trailer or hauling a heavy load.
Push the TOW MODE switch to activate tow mode.
The indicator light on the TOW MODE switch
illuminates when tow mode is selected.
Push the TOW MODE switch again to turn tow mode
off.
Tow mode is automatically canceled when the key is
turned off.
CRUISE CONTROL
To activate the cruise control, push the ON.OFF switch.
The indicator light in the instrument panel will illuminate.
To set cruising speed, accelerate the vehicle to the
desired speed, push the COAST/SET switch and
release it. The SET indicator light in the instrument
panel will illuminate.
To reset at a faster cruising speed, push and hold the
ACCEL/RES switch. When the vehicle attains the
speed you desire, release the switch.
To reset at a slower cruising speed, push and hold the COAST/SET switch. Release
the switch when the vehicle slows to the desired speed.
Page 11 of 14
REAR SONAR OFF SWITCH (if so equipped)
When backing up, this system will beep to alert you to obstacles
within 6 ft. of the rear bumper. The system beeps faster as the
vehicle gets closer to the obstacle. A continuous tone sounds when
an obstacle is less than 10 inches away from the bumper. Turn the
system off by pushing the rear sonar system OFF switch. Push the
switch again to enable the system. The system will automatically
reset the next time the ignition switch is turned on.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF Push the tilt switch to the UP position 01 to tilt the
sunroof up.
Push the tilt switch to the DOWN position 02 to tilt the sunroof down.
SLIDING THE SUNROOF Push the switch toward the OPEN position 03 to fully
open the sunroof.
Push the switch toward the CLOSE position 04 to fully close the sunroof.
Push the switch in any direction while the sunroof is sliding open or closed to stop the sunroof in the desired position.
01
02
03
04
ADJUSTABLE ACCELERATOR AND BRAKE PEDALS (if so
equipped)
The accelerator and brake pedals can be adjusted for your driving comfort.
Adjust the pedals when the automatic transmission lever is in P (Park).
Push 01 to move the position of the pedals forward.
Push 02 to move the position of the pedals backward.
01
02
MANUAL SHIFT MODE (if so equipped)
When the MANUAL SHIFT MODE button is pressed while driving, the transmission enters the manual shift
mode. Shift ranges can be selected manually. In the manual shift mode, the shift range is displayed on the position indicator in the meter. After pressing the
MANUAL SHIFT MODE button, the position indicator first displays M4 (4th).
W HEN SHIFTING UP
Move the selector lever to the + (up) side. (Shifts to higher range.)
W HEN SHIFTING DOWN
Move the selector lever to the – (down) side. (Shifts to lower range.)
Page 13 of 14

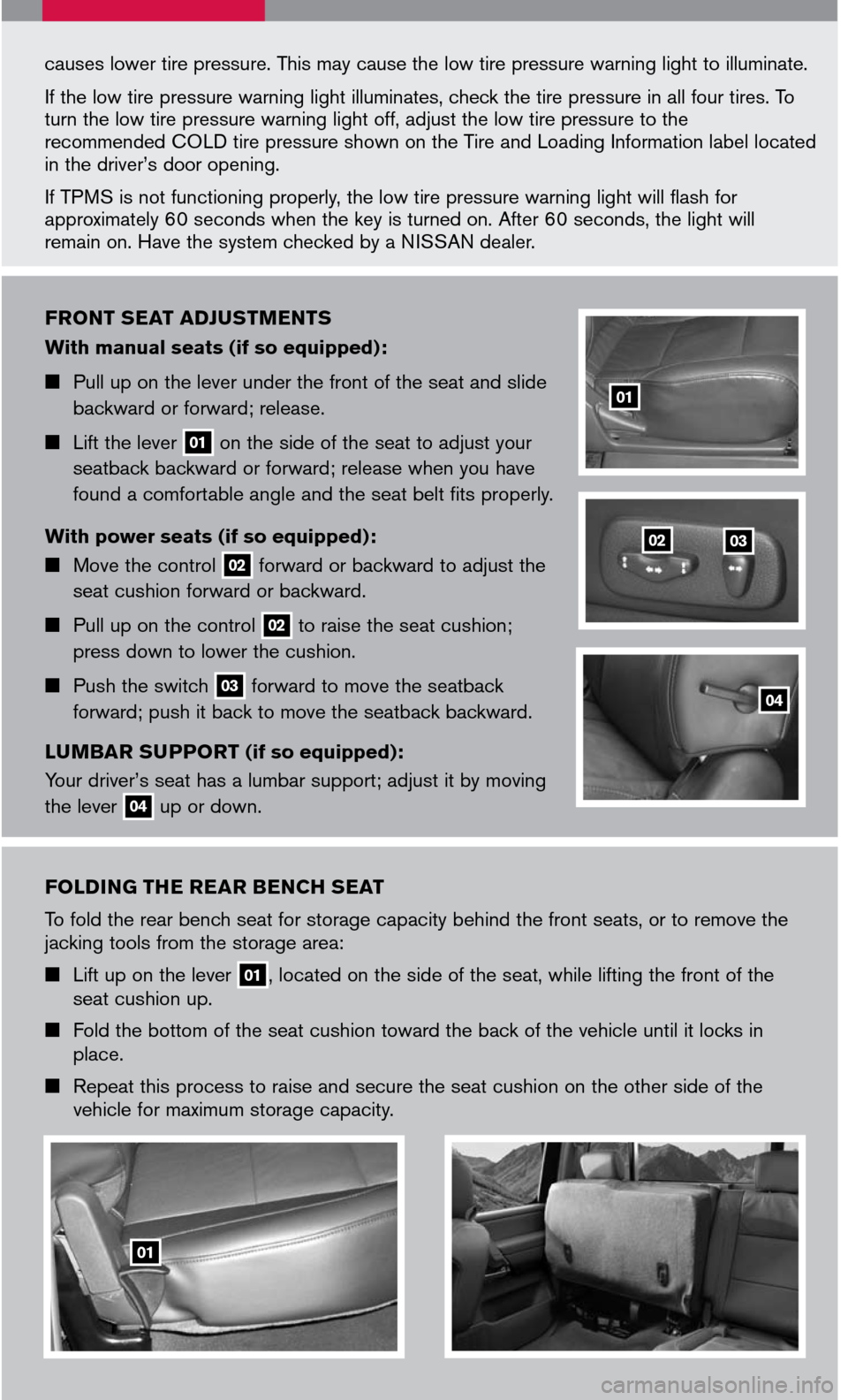

FOLDING THE REAR BENCH SEAT
To fold the rear bench seat for storage capacity behind the front seats, or to remove the jacking tools from the storage area:
Lift up on the lever 01, located on the side of the seat, while lifting the front of the seat cushion up.
Fold the bottom of the seat cushion toward the back of the vehicle until it locks in place.
Repeat this process to raise and secure the seat cushion on the other side of the vehicle for maximum storage capacity.
FRONT SEAT ADJUSTMENTS
With manual seats (if so equipped):
Pull up on the lever under the front of the seat and slide
backward or forward; release.
Lift the lever 01 on the side of the seat to adjust your
seatback backward or forward; release when you have
found a comfortable angle and the seat belt fits properly.
With power seats (if so equipped):
Move the control 02 forward or backward to adjust the
seat cushion forward or backward.
Pull up on the control 02 to raise the seat cushion;
press down to lower the cushion.
Push the switch 03 forward to move the seatback
forward; push it back to move the seatback backward.
LUMBAR SUPPORT (if so equipped):
Your driver’s seat has a lumbar support; adjust it by moving
the lever 04 up or down.
0302
01
04
causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light illuminates, check the tire pressure in all four tires. To turn the low tire pressure warning light off, adjust the low tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label located in the driver’s door opening.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. After 60 seconds, the light will remain on. Have the system checked by a NISSAN dealer.
01
Page 14 of 14
QR7E-0A60U0 Printing: August 2006 (11)
Nissan, the Nissan Brand Symbol, “SHIFT_” tagline, Z and Nissan model names are Nissan trademarks. ©2006 Nissan North America, Inc.
Sh ift_
This easy-to-use Quick Reference Guide is intended to help you more fully appreciate some of the unique features and functions of your new vehicle. However, it is not intended to replace your Owner’s Manual. The Owner’s Manual contains more detailed information to help you better understand the important safety warnings, features, operation, and maintenance of your vehicle.
notches, it will not be flush with the rail and cannot be properly tightened. The bolt in
the center of the cleat must be tightened hand tight (20 – 40 inch pounds).
Check the tightness of the tie-down cleat periodically during a trip to make sure the
center bolt has not become loose.
The channel end stoppers can be used to help prevent cargo from sliding or shifting
off the end of the truck bed. They must be installed so they are properly seated in the
detents in the channel.
Refer to your Owner’s Manual for loading limits and tie-down recommendations.
WIDE OPEN DOORS
(King Cab models only)
The wide open doors open 168 degrees
to allow access to the rear of the cab.
Open the driver’s or passenger’s door.
From the outside, pull the door handle toward
you.
From the inside, pull the inside door handle toward you. The door will unlock
automatically.
Open the door to the desired position.
Do not open the driver’s side wide open door while refueling or damage may result to the
fuel filler door or the wide open door.
