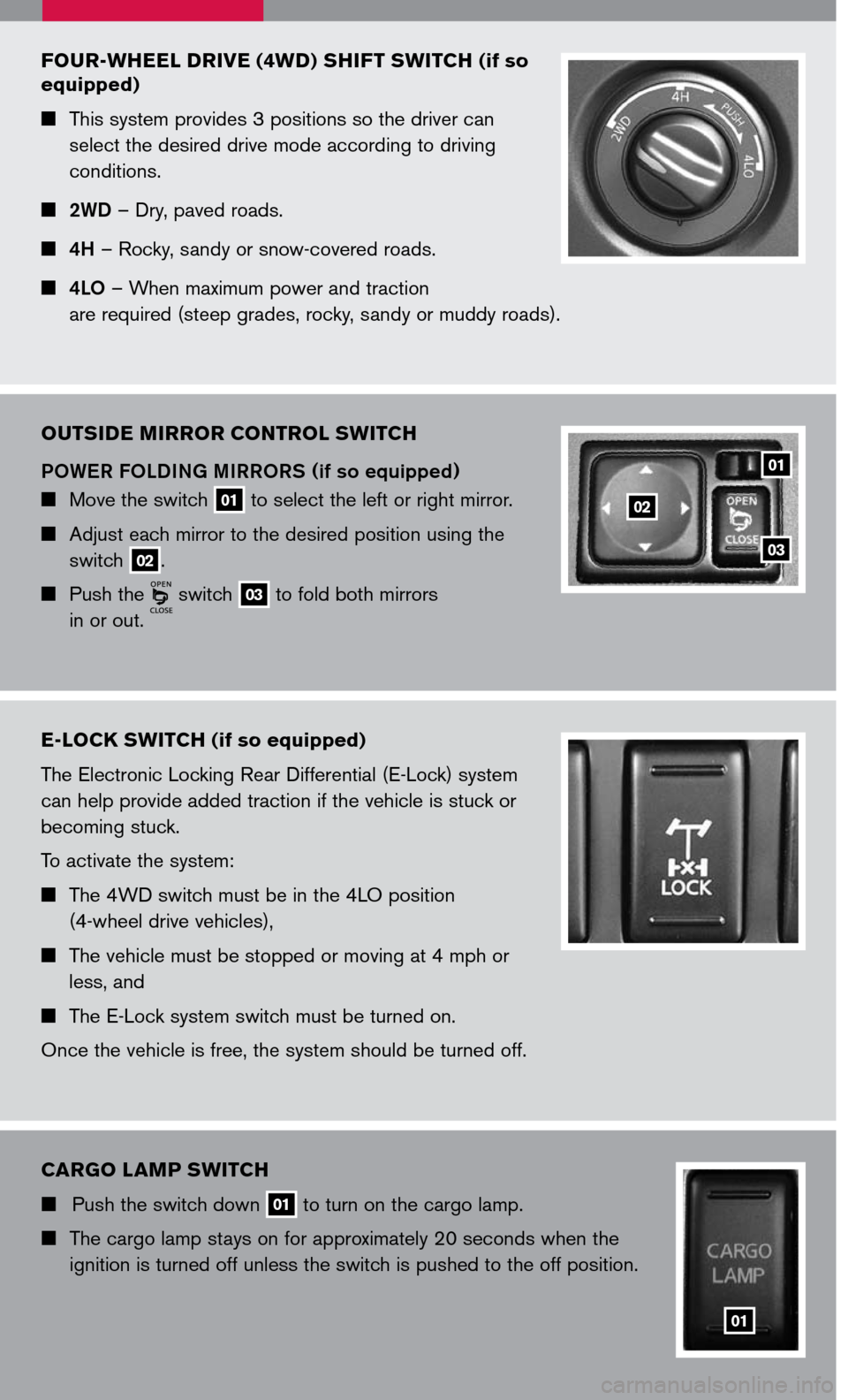

FOUR-WHEEL DRIVE (4WD) SHIFT SWITCH (if so
equipped)
This system provides 3 positions so the driver can
select the desired drive mode according to driving
conditions.
2WD – Dry, paved roads.
4H – Rocky, sandy or snow-covered roads.
4LO – When maximum power and traction
are required (steep grades, rocky, sandy or muddy roads).
OUTSIDE MIRROR CONTROL SWITCH
POWER FOLDING MIRRORS (if so equipped)
Move the switch 01 to select the left or right mirror.
Adjust each mirror to the desired position using the
switch 02.
Push the switch 03 to fold both mirrors
in or out.
E-LOCK SWITCH (if so equipped)
The Electronic Locking Rear Differential (E-Lock) system
can help provide added traction if the vehicle is stuck or
becoming stuck.
To activate the system:
The 4WD switch must be in the 4LO position
(4-wheel drive vehicles),
The vehicle must be stopped or moving at 4 mph or
less, and
The E-Lock system switch must be turned on.
Once the vehicle is free, the system should be turned off.
03
01
02
CARGO LAMP SWITCH
Push the switch down 01 to turn on the cargo lamp.
The cargo lamp stays on for approximately 20 seconds when the
ignition is turned off unless the switch is pushed to the off position.
01
