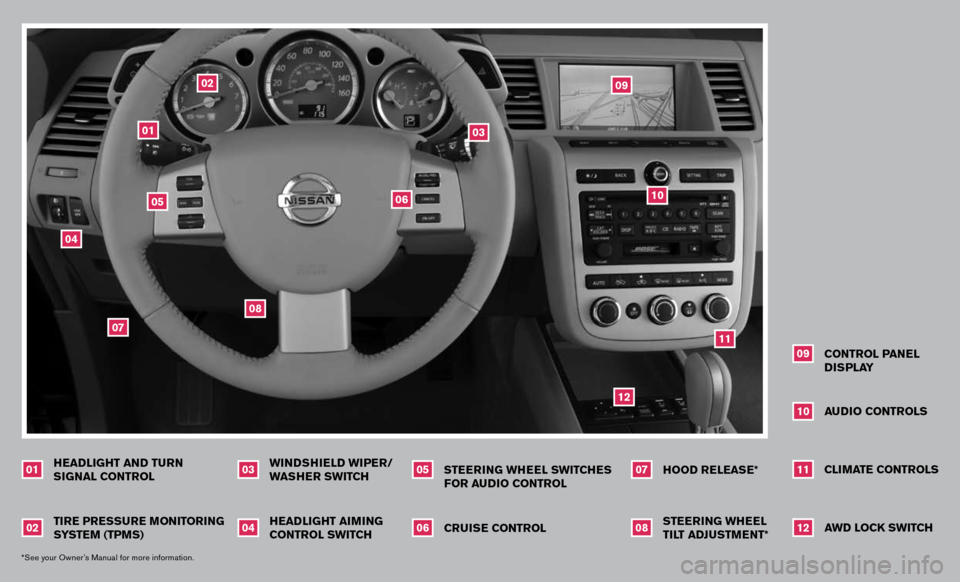

2007 NISSAN MURANO display

WINDSHIELD WIPER/WASHER SWITCH
TIRE PRESSURE MONITORING SYSTEM (TPMS)
HEADLIGHT
AND TURN
SIGNAL CONTROL
0102
03
*See your Owner’s Manual for more information.
CRUISE CONTROLSTEERING WHEEL SWITCHES FOR AUDIO CONTROL
HEADLIGHT AIMING CONTROL SWITCH
04
0506
CONTROL PANEL DISPLAY
STEERING WHEEL TILT ADJUSTMENT*HOOD RELEASE*
0708
09
AUDIO CONTROLS
10
04
05
07
06
01
11
03
12
10
09
02
08
CLIMATE CONTROLS
11
AWD LOCK SWITCH
12

REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS Press the LPD0150 button to lock all doors.
UNLOCK DOORS Press the
lpd0151
button once to unlock the driver’s door only. Press the button again within 5 seconds to unlock all doors.
USING THE PANIC ALARM Press and hold the button for longer than 0.5 seconds. The panic alarm will sound and headlights will stay on for 25 seconds. The panic alarm stops when it has run for 25 seconds or when any button is pressed on the keyfob.
HORN BEEP FEATURE The horn beep feature can be deactivated. Refer to the “Display screen, heater, air conditioner and audio systems” section in your Owner’s Manual for the procedure.
INTELLIGENT K EY SYSTEM
The Intelligent Key System allows you to lock or unlock your vehicle and start the engine.
NOTE: It is important to make sure the Intelligent Key is with you (that is, in your pocket or purse).
 The operating range of the door and trunk lock/unlock function is approximately 31 in (0.8 m).
 Locking the vehicle - Push any door handle Request Switch 01 once.
 Unlocking the vehicle - Push any door handle Request Switch 01 once. The corresponding door will unlock. Push the door handle Request Switch 01 again within 1 minute; all other doors will unlock.
STARTING THE ENGINE
 Push the ignition knob in.
 Confirm the Intelligent Key warning light is illuminated green.
 Turn the ignition knob to start the engine.
TURNING THE ENGINE OFF
 Shift transmission into P (Park).
 Turn ignition knob to LOCK position.
 An audible warning chime will sound when exiting the vehicle if the ignition knob is not completely turned to the OFF position.
01
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
 The Xtronic CVT™ does not produce a gear change
sensation like traditional automatic transmissions.
 The transmission in your Murano requires a special fluid available only at your NISSAN dealer. No other fluid will
meet the exact requirements of the new Xtronic CVT™.

CONTROL PANEL DISPLAY WITH
N AVIGATION S YSTEM (if so equipped)
TRIP BUTTON
When the TRIP button is pressed, the following
modes will display on the screen:
 Warning messages (if there are any)
 TRIP 1 (Elapsed Time, Driving Distance,
Average Speed)
 TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
 FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
 MAINTENANCE (Engine Oil, Tire Rotation)
 OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE O IL or TIRE R OTATION key using the joystick
and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the maintenance
interval, select the RESET key using the joystick and press the ENTER button.
CLOCK/SE T ADJUSTMENT

The clock on the display screen can be adjusted using the joystick and the following
procedure.

 Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
 Next select CLOCK to enter the CLOCK SETTINGS mode.
 Then select the HOURS or MINUTES key and hold the joystick left or right to adjust
the time. After the desired time is shown on the display screen, press the BACK
button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
MANUAL SHIFT MODE (if so equipped)
 When the shift selector lever is shifted from D (Drive) to the manual shift gate, the
transmission enters the manual shift mode.
 In the manual shift mode, shift range is displayed on the position indicator in the meter.
 When shifting up, move the shift selector lever to the + (up) side. (Shifts to higher range.)
 When shifting down, move the shift selector lever to the - (down) side. (Shifts to lower
range.)
 In manual shift mode, the transmission automatically shifts down to M1 (first) before
the vehicle comes to a stop. When accelerating again, it is necessary to shift up to the
desired range.
 When canceling the manual shift mode, return the shift selector lever to the D (Drive)
position. The transmission returns to the normal driving mode.

LOAD BUTTON
LOAD A SINGLE DISC - Press the LOAD button for less than 1.5 seconds. Select
the loading slot by pressing the CD insert select button (1-6), then insert the CD.
LOAD UP TO 6 DISCS - Press and hold the LOAD button for more than 1.5
seconds. The slot numbers (1-6) will illuminate on the display when CDs are
loaded into the changer.
SEEK /TRACK BUTTON
For radio, press to seek stations. For CD, press to select previous/next tracks.
STATION AND CD SELECT BUTTON

To store a radio station in a preset first select A, B, or C memory bank by press-
ing the PRESET A•B•C button and tuning to the desired FM, AM, or SAT* station.
Then press the desired station select button for at least 2 seconds. When the pre-
set indicator illuminates, a beep will sound, indicating memorization is complete.
To retrieve a previously set station, select the memory bank where the preset was
set, then press the corresponding station select button.
SCAN BUTTON
Press the SCAN button to tune from low to high frequencies and stop at each
broadcasting station for 5 seconds. If listening to a CD, each track will play for
about 10 seconds.
CAT FOLDER BUTTON CATEGORY (CAT)
When the CAT FOLDER button is pressed for more than 1.5 seconds during FM
(SAT*) mode, the PTY (PROGRAM TYPE) (if so equipped) name of the current
tuned station is displayed. Certain program types may include ROCK, COUNTRY,
JAZZ, CLASSICAL, etc.
MP3 PLAYBACK (if so equipped)
In addition to playing audio CDs, the audio system can play MP3 files recorded on
CD-ROM, CD-R, and CD-RW discs. Each disc can have a maximum of 8 folder
levels and 255 folders. A total of 512 MP3 files can be played back. During MP3
playback, some recorded ID3 tag information can be displayed by pressing the
DISP button. Use the CAT FOLDER button to navigate the MP3 files.
01
05
04
03
02
01
060708
11
12
0910
02
03
04
05

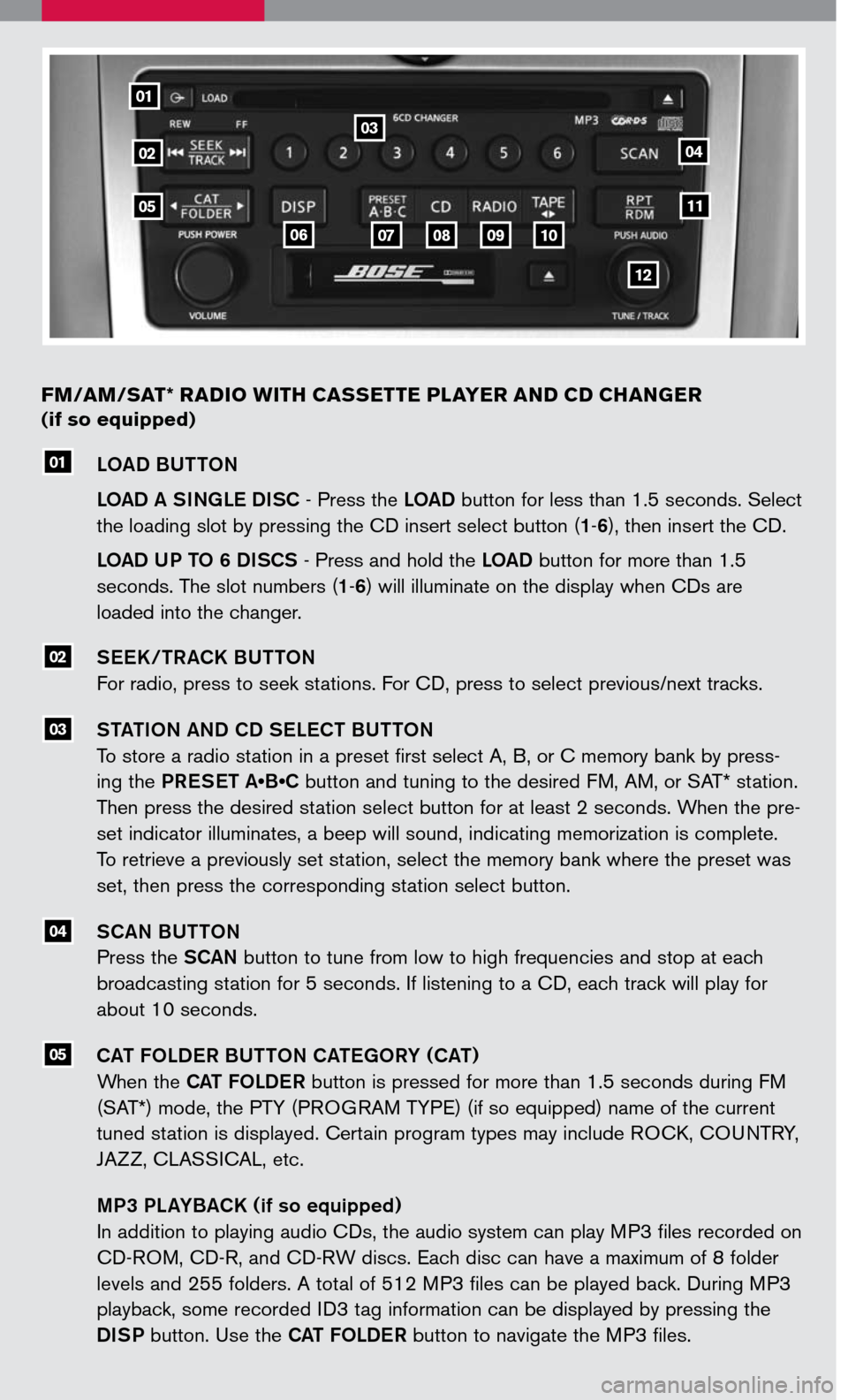

FM/AM/SAT* RADIO WITH CASSETTE PLAYER AND CD CHANGER
(if so equipped)

*SAT presets are only available on SAT equipped vehicles.

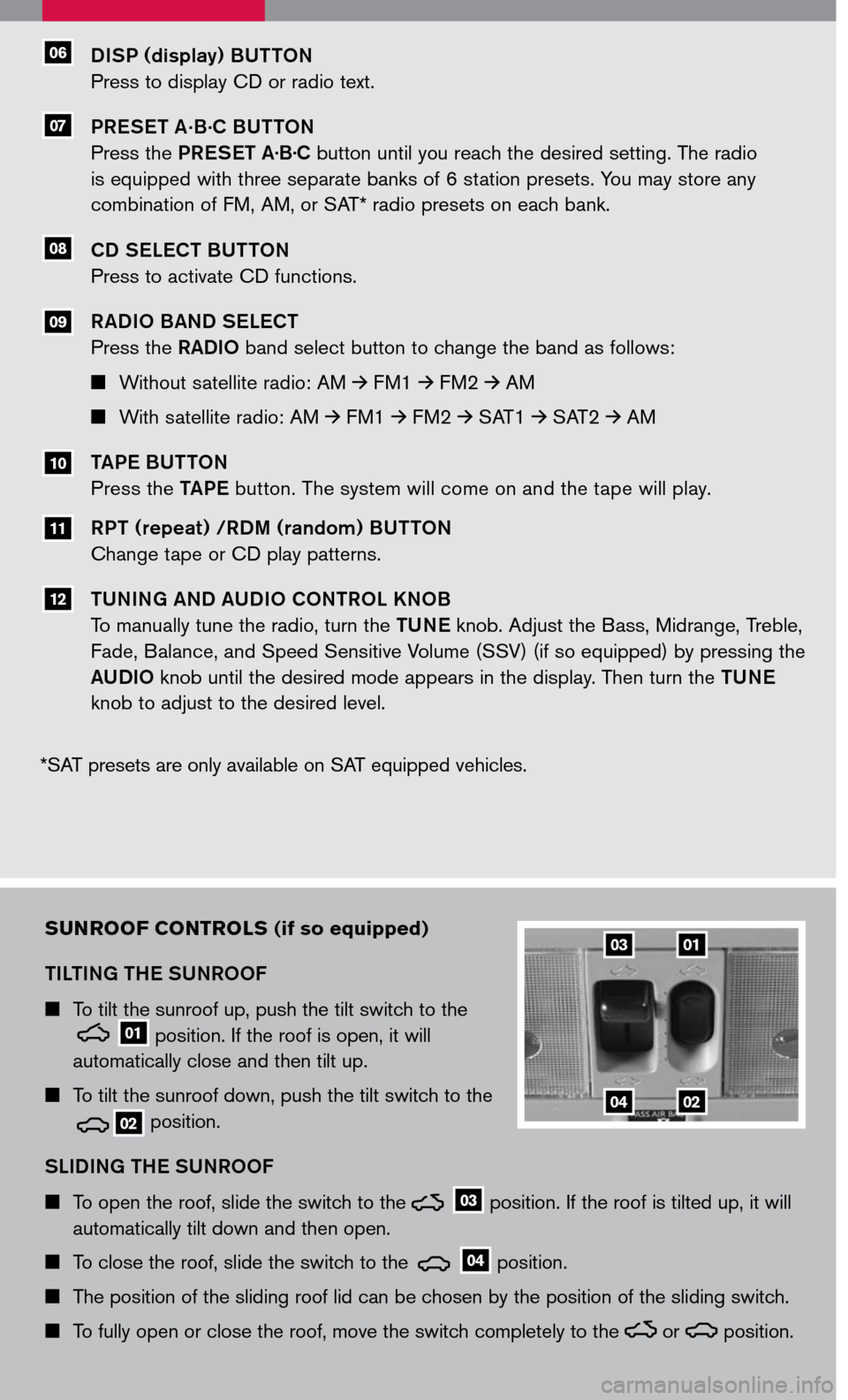

DISP (display) BUTTON
Press to display CD or radio text.
PRESET A.B.C BUTTON
Press the PRESET A.B.C button until you reach the desired setting. The radio
is equipped with three separate banks of 6 station presets. You may store any
combination of FM, AM, or SAT* radio presets on each bank.
CD SELECT BUTTON
Press to activate CD functions.
RADIO BAND SELECT
Press the RADIO band select button to change the band as follows:
 Without satellite radio: AM FM1 FM2 AM
 With satellite radio: AM FM1 FM2 SAT1 SAT2 AM
TAPE BUTTON
Press the TAPE button. The system will come on and the tape will play.
RPT (repeat) /RDM (random) BUTTON
Change tape or CD play patterns.
TUNING AND AUDIO CONTROL KNOB
To manually tune the radio, turn the TUNE knob. Adjust the Bass, Midrange, Treble,
Fade, Balance, and Speed Sensitive Volume (SSV) (if so equipped) by pressing the
AUDIO knob until the desired mode appears in the display. Then turn the TUNE
knob to adjust to the desired level.
11
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
 To tilt the sunroof up, push the tilt switch to the
01 position. If the roof is open, it will
automatically close and then tilt up.
 To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
 To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will
automatically tilt down and then open.
 To close the roof, slide the switch to the 04 position.
 The position of the sliding roof lid can be chosen by the position of the sliding switch.
 To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
12
10
09
08
07
06

FOLDING DOWN THE REAR SEATS
 To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
 Remove the head restraints and close the tonneau
sub cover (if so equipped).
 Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
 Pull up on the control 02 to raise the seat cushion; press down to lower the cushion.
SEAT RECLINING A DJUSTMENT
 Push the switch 03 forward to move the seatback forward; push it back to move the
seatback backward.
LUMBAR SUPPORT
(if so equipped for driver’s seat)
 Push each side of the switch 04 to adjust the lumbar support.
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
 With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
 To lock, close the fuel-filler door and lock the
driver’s door.
REAR VIEW MONITOR (if so equipped)
When the shift selector lever is moved to the R (Reverse)
position, the monitor display will automatically change to
show the area behind the vehicle.
The colored lines on the display screen indicate approximate
distances to objects.
 Red 1.5 feet
 Yellow 3 feet
 Green 7 and 10 feet
