in the passenger seat status. For example, if a
large adult who is sitting in the front passenger
seat exits the vehicle, the passenger air bag
status light will change from OFF to ON for a few
seconds and then to OFF. This is normal system
operation and does not indicate a malfunction.
If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light
, located in the meter and gauges
area, will blink. Have the system checked by a
NISSAN dealer.
Other supplemental front air bag
precautions
WARNING

Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause in-
jury if the supplemental front air bag
inflates.
Immediately after inflation, several
front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.

No unauthorized changes should be
made to any components or wiring of
the supplemental air bag system.
This is to prevent accidental inflation
of the supplemental air bag or dam-
age to the supplemental air bag sys-
tem.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the supplemental air
bag system.

Tampering with the supplemental
front air bag system may result in
serious personal injury. Tampering
includes changes to the steering
wheel and the instrument panel as-
sembly by placing material over the
steering wheel pad and above the
instrument panel or by installing ad-ditional trim material around the air
bag system.

Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing
material on the seat cushion or by
installing additional trim material,
such as seat covers, on the seat that
are not specifically designed to as-
sure proper air bag operation. Addi-
tionally, do not stow any objects un-
der the front passenger seat or the
seat cushion and seatback. Such ob-
jects may interfere with the proper
operation of the occupant classifica-
tion sensor (pressure sensor).

No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect
the supplemental front air bag sys-
tem. Tampering with the seat belt
system may result in serious per-
sonal injury.

Work on and around the supplemen-
Safety — seats, seat belts and supplemental restraint system
1-51


06.7.5/Z50-D/V5.0


differs, the warning light will either remain illumi-
nated or blink. See “Using all-wheel drive
(AWD)” in the “5. Starting and driving” section.
CAUTION

If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.

Do not drive on dry hard surface
roads in the LOCK mode.

If the AWD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Anti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. See “Brake system” in the “5. Starting
and driving” section.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.
WARNING

Your brake system may not be work-
ing properly if the warning light is on.
2-10
Instruments and controls


06.7.5/Z50-D/V5.0


Trouble-shooting examplesWhen it is difficult to turn the ignition
switch

Push the ignition switch and turn it to the left
and then to the right.

While gently turning the steering wheel to the
left or right, turn the ignition switch.OPERATION WITH INTELLIGENT
REMOTE KEYLESS ENTRY SYSTEMIt is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent
Key can operate at a distance of approximately
33 ft (10 m) from the vehicle. (The effective
distance depends upon the conditions around
the vehicle.)
As many as 4 Intelligent Key can be used with
one vehicle. For information concerning the pur-
chase and use of an additional Intelligent Key,
contact a NISSAN dealer.
The LOCK and UNLOCK buttons on the Intelli-
gent Key will not operate when:
the Intelligent Key is too far away from the
vehicle

the Intelligent Key battery runs down
After locking with the Intelligent remote keyless
entry function, pull the door handle to make sure
the doors are securely locked.
The operating range varies depending on the
environment. To securely operate the LOCK and
UNLOCK buttons on the Intelligent Key, ap-
proach the vehicle to about 3 ft (1 m) from the
door.
The panic alarm will not activate when the
mechanical key or the valet key is in the
ignition switch.
A
LOCK button
B
UNLOCK button
C
PANIC alarm
How to use remote keyless entry
systemSetting hazard indicator and horn
(buzzer) mode:
This vehicle is set in hazard indicator and horn
(buzzer) mode when you first receive the vehicle.
The hazard indicator and horn (buzzer)
mode also can be changed with vehicle
electronic systems on the monitor. See “4.
SPA1926
3-20
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the selected discs by the EJECT button,
push it for less than 1.5 seconds.
To eject all the discs, push the EJECT button for
more than 1.5 seconds.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it.
CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.1. Volume control switch
2. MODE select switch
3. POWER on/off switch
4. Memory change⋅Seek and APS switch
STEERING SWITCH FOR AUDIO
CONTROL (if so equipped)The audio system can be operated using the
controls on the steering wheel.POWER on/off switchWith the ignition switch turned to the ACC or
ON position, push the POWER on/off switch to
turn the audio system on or off.
SAA0451
SIC3172
Display screen, heater, air conditioner and audio systems
4-43


06.7.5/Z50-D/V5.0

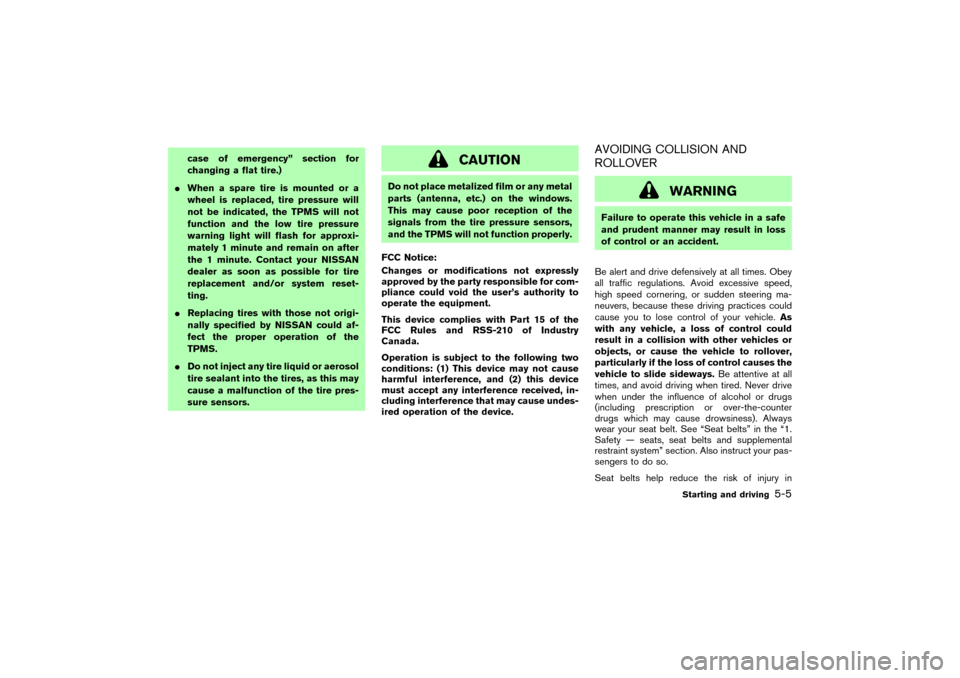

case of emergency” section for
changing a flat tire.)

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CAUTION
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.
FCC Notice:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle.As
with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways.Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt. See “Seat belts” in the “1.
Safety — seats, seat belts and supplemental
restraint system” section. Also instruct your pas-
sengers to do so.
Seat belts help reduce the risk of injury in
Starting and driving
5-5


06.7.5/Z50-D/V5.0

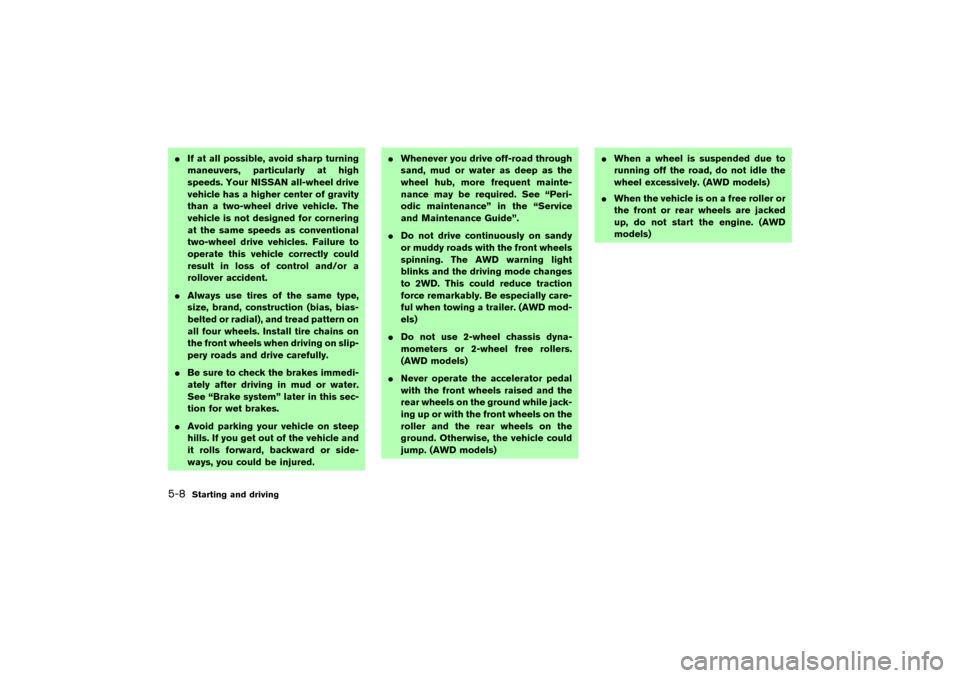

If at all possible, avoid sharp turning
maneuvers, particularly at high
speeds. Your NISSAN all-wheel drive
vehicle has a higher center of gravity
than a two-wheel drive vehicle. The
vehicle is not designed for cornering
at the same speeds as conventional
two-wheel drive vehicles. Failure to
operate this vehicle correctly could
result in loss of control and/or a
rollover accident.

Always use tires of the same type,
size, brand, construction (bias, bias-
belted or radial), and tread pattern on
all four wheels. Install tire chains on
the front wheels when driving on slip-
pery roads and drive carefully.

Be sure to check the brakes immedi-
ately after driving in mud or water.
See “Brake system” later in this sec-
tion for wet brakes.

Avoid parking your vehicle on steep
hills. If you get out of the vehicle and
it rolls forward, backward or side-
ways, you could be injured.
Whenever you drive off-road through
sand, mud or water as deep as the
wheel hub, more frequent mainte-
nance may be required. See “Peri-
odic maintenance” in the “Service
and Maintenance Guide”.

Do not drive continuously on sandy
or muddy roads with the front wheels
spinning. The AWD warning light
blinks and the driving mode changes
to 2WD. This could reduce traction
force remarkably. Be especially care-
ful when towing a trailer. (AWD mod-
els)

Do not use 2-wheel chassis dyna-
mometers or 2-wheel free rollers.
(AWD models)

Never operate the accelerator pedal
with the front wheels raised and the
rear wheels on the ground while jack-
ing up or with the front wheels on the
roller and the rear wheels on the
ground. Otherwise, the vehicle could
jump. (AWD models)
When a wheel is suspended due to
running off the road, do not idle the
wheel excessively. (AWD models)

When the vehicle is on a free roller or
the front or rear wheels are jacked
up, do not start the engine. (AWD
models)5-8
Starting and driving


06.7.5/Z50-D/V5.0


AWD
modeWheel drivenAWD LOCK
indicator
lightUse conditions
AUTODistribution of torque to the front and rear
wheels changes automatically, depending
on road conditions encountered
[100:0]↔[50:50].
This results in improved driving stability.*1Goes off.For driving on paved or slippery
roads
LOCK All-wheel drive*2, *3 AWD LOCK For driving on rough roads
*1: When the rotation difference between the front and rear wheels is large, the AWD mode may change from
AUTO to LOCK for a while, however, this is not a malfunction.
*2: LOCK mode will change to AUTO mode automatically when the vehicle is accelerated or the vehicle speed is
over approximately 10 km/h (6 MPH). The AWD LOCK indicator light does not go off.
LOCK mode will change to AUTO mode automatically when the vehicle has been driven for a high speed. The
AWD LOCK indicator light goes off.
*3: LOCK mode will automatically be cancelled when the ignition switch is turned to the OFF position.
If the AWD LOCK switch is operated while accelerating or decelerating, or if the ignition switch
is turned off, you may feel a jerk. This is normal.

The oil temperature of power train parts will increase if the vehicle is continuously operated under
conditions where the difference in rotation between the front and rear wheels is large (wheel slip),
such as when driving the vehicle on rough roads through sand, mud or freeing a stuck vehicle. In
these cases, the AWD warning light blinks rapidly and the AWD mode changes to 2WD condition
to protect the power train parts. If you stop driving with the engine idling and wait until the warning
light stops blinking, the AWD returns to the AUTO mode.

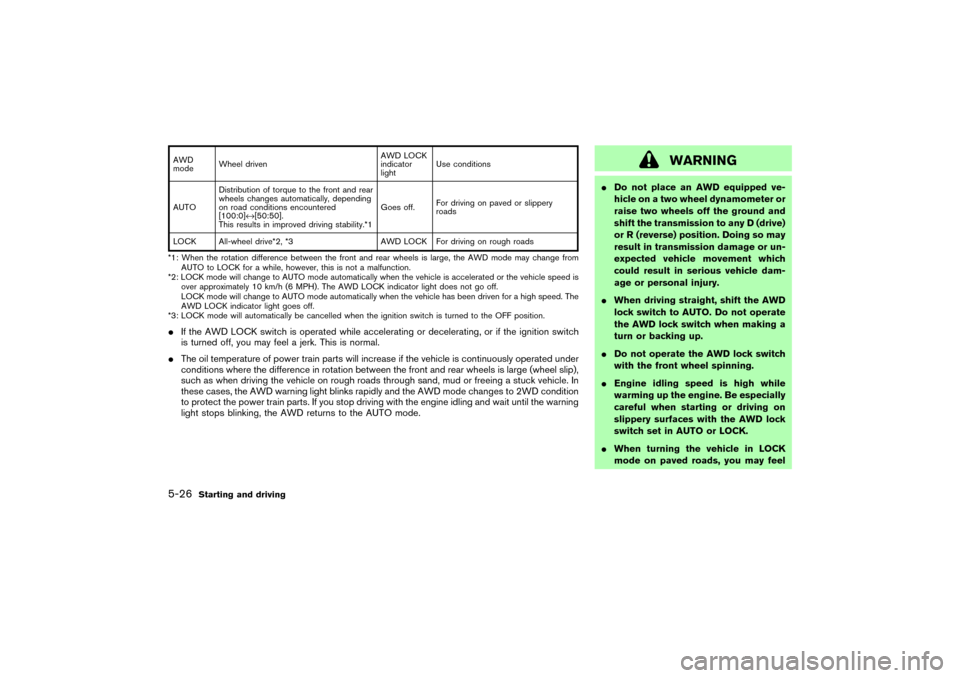

WARNING

Do not place an AWD equipped ve-
hicle on a two wheel dynamometer or
raise two wheels off the ground and
shift the transmission to any D (drive)
or R (reverse) position. Doing so may
result in transmission damage or un-
expected vehicle movement which
could result in serious vehicle dam-
age or personal injury.

When driving straight, shift the AWD
lock switch to AUTO. Do not operate
the AWD lock switch when making a
turn or backing up.

Do not operate the AWD lock switch
with the front wheel spinning.

Engine idling speed is high while
warming up the engine. Be especially
careful when starting or driving on
slippery surfaces with the AWD lock
switch set in AUTO or LOCK.

When turning the vehicle in LOCK
mode on paved roads, you may feel
5-26
Starting and driving


06.7.5/Z50-D/V5.0

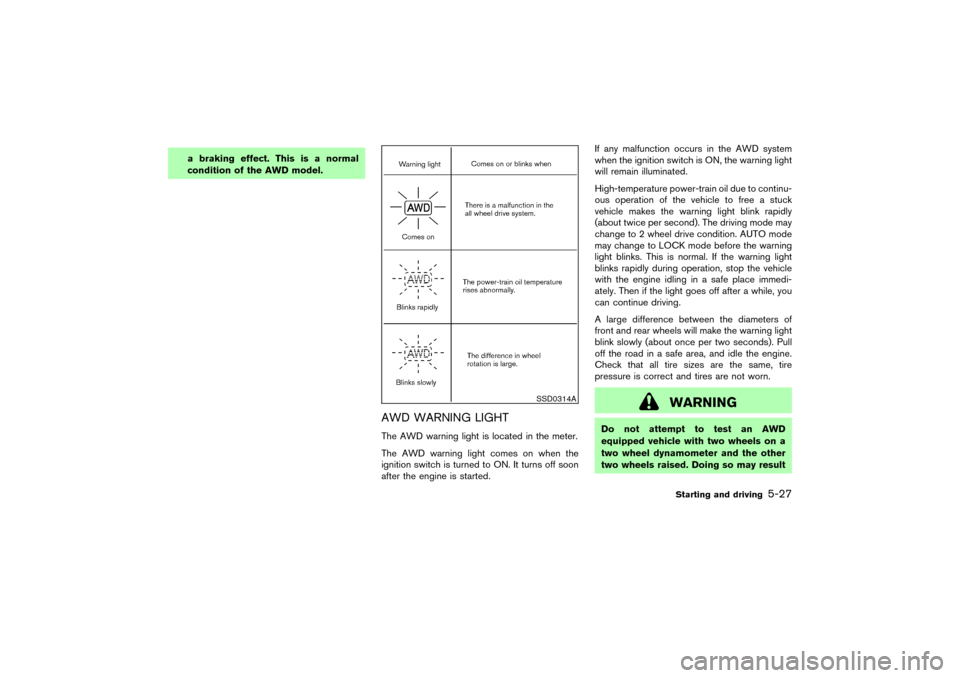

a braking effect. This is a normal
condition of the AWD model.
AWD WARNING LIGHTThe AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is turned to ON. It turns off soon
after the engine is started.If any malfunction occurs in the AWD system
when the ignition switch is ON, the warning light
will remain illuminated.
High-temperature power-train oil due to continu-
ous operation of the vehicle to free a stuck
vehicle makes the warning light blink rapidly
(about twice per second). The driving mode may
change to 2 wheel drive condition. AUTO mode
may change to LOCK mode before the warning
light blinks. This is normal. If the warning light
blinks rapidly during operation, stop the vehicle
with the engine idling in a safe place immedi-
ately. Then if the light goes off after a while, you
can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning light
blink slowly (about once per two seconds). Pull
off the road in a safe area, and idle the engine.
Check that all tire sizes are the same, tire
pressure is correct and tires are not worn.
WARNING
Do not attempt to test an AWD
equipped vehicle with two wheels on a
two wheel dynamometer and the other
two wheels raised. Doing so may result
SSD0314A
Starting and driving
5-27


06.7.5/Z50-D/V5.0
