2007 NISSAN MURANO Tire pressure display

The warning light goes off about 10 seconds
after the Intelligent Key is brought inside the
vehicle.
Low fuel warning light
This light comes on when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches E.
There will be a small reserve of fuel re-
maining in the tank when the fuel gauge
needle reaches E.
Low tire pressure warning light
Your vehicle is equipped with a tire pressure
monitoring system (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is turned ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. If you select
the tire pressure information (if so equipped) in
the display, the FLAT TIRE warning message will
be displayed. The tire pressure for each tire will
also be displayed.When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pres-
sure to the recommended COLD tire pressure
shown on the Tire and Loading Information label.
The low tire pressure warning light does not
automatically turn off when the tire pressure is
adjusted. After the tire is inflated to the recom-
mended pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure warning
light. Use a tire pressure gauge to check the tire
pressure.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section and the “6. In case of
emergency” section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
turned ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section.
WARNING

If the light does not illuminate with
the ignition switch turned ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.

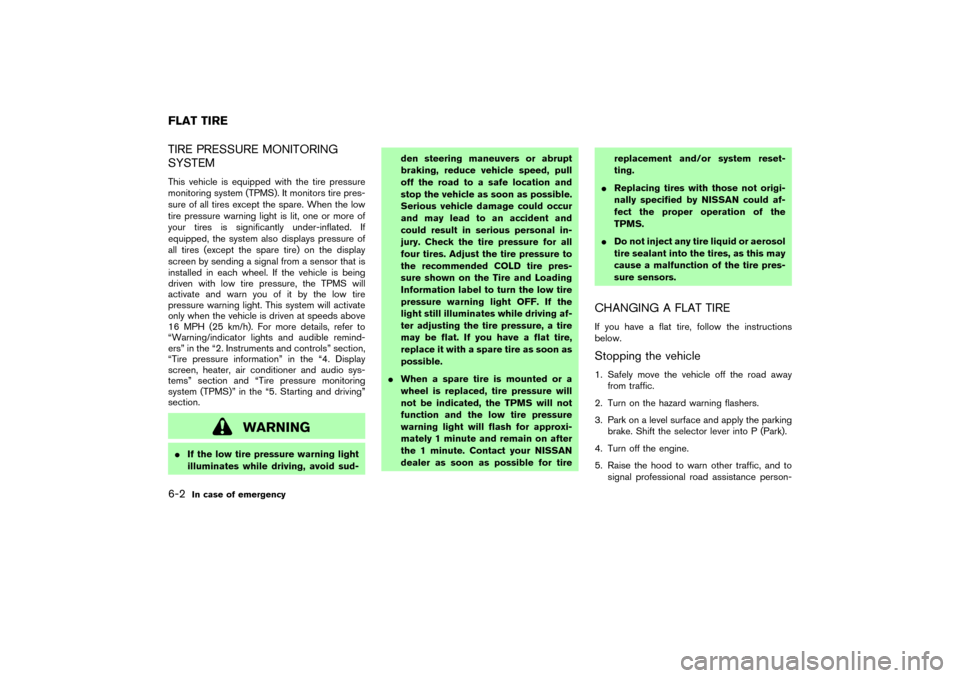

If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-
sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still comes on while driving after
adjusting the tire pressure, a tire may
be flat. If you have a flat tire, replace
it with a spare tire as soon as
possible.
2-12
Instruments and controls


06.7.5/Z50-D/V5.0


CLOCKThe digital clock displays time when the ignition
switch is in ACC or ON.
If the battery cable is disconnected, the
clock will not indicate the correct time.
Readjust the time.Adjusting the timeTo adjust the time, push the “H” or “M” button for
more than approximately 1.5 seconds. The time
indicator will flash.
Push theHbutton to adjust the hour.
Push theMbutton to adjust the minute.To finish the adjusting, push the “BACK” button
or the screen will return to normal after 10
seconds.
The clock can be adjusted on the setting display.
See the “HOW TO USE “SETTING” BUTTON”
later in this section.
HOW TO USE “E/M” BUTTONYou can change the unit as follows using the
“E/M” (English/Metric) button.
Unit: US — Mile, °F, MPG
Metric — km, °C, L/100 km
HOW TO USE “MAINT”
(Maintenance) BUTTONMaintenance and tire pressure information (if so
equipped) will be displayed when the “MAINT”
button is pushed.
To display the setting of the maintenance inter-
val, select the “Engine Oil” or “Tire Rotation” key
using the joystick and push the “ENTER” button.
To set the maintenance interval, select the
“Maintenance Schedule” key by using the joy-
stick and move the joystick to the right or left.
To reset the maintenance interval, select the
SAA1353
SAA1319
4-4
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


Tire pressure information (if so
equipped)Pressure indication in ** psi on the screen
indicates that the pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed randomly.
The order of tire pressure figures displayed on
the screen does not correspond with the actual
order of the tire position.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.
In case of low tire pressure, a message (FLATTIRE or CHECK ALL TIRE) is displayed on the
screen:
FLAT TIRE — Check All Tires.
WARNING

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the Tire Pressure
Monitoring System (TPMS) will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.
HOW TO USE “SETTING” BUTTONThe SETTINGS screen will appear when the
“SETTING” button is pushed.
SAA1321
SAA1355
4-6
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


“FUEL ECONOMY” informationAverage Fuel Economy and Distance to Empty
will be displayed for reference.
To reset, select the “Reset” key using the joy-
stick and push the “ENTER” button or push the
“TRIP” button for more than approximately 1.5
seconds.
“MAINTENANCE” informationYou can set the engine oil and the tire rotation
interval.
And the tire pressure will appear on the screen
(if the tire pressure system is equipped).
To display the setting of the maintenance inter-
val, select the “Engine Oil” or “Tire Rotation” key
using the joystick and push the “ENTER” button.To set the maintenance interval, select the
“Maintenance Schedule” key by using the joy-
stick and move the joystick to the right or left.
To reset the maintenance interval, select the
“Reset” key using the joystick and push the
“ENTER” button.
To display the MAINTENANCE NOTICE, auto-
matically when setting trip distance is reached,
select the “Display Maintenance Notification”
key and push the “ENTER” button.
SAA1318
SAA1319
SAA1320
Display screen, heater, air conditioner and audio systems
4-13


06.7.5/Z50-D/V5.0


MAINTENANCE NOTICEThe “MAINTENANCE NOTICE” screen (“EN-
GINE OIL” or “TIRE ROTATION”) will be auto-
matically displayed as shown when both of the
following conditions are met:

the vehicle is driven the set distance and the
ignition switch is turned OFF.

the ignition key is turned ON the next time the
vehicle will be driven.
To return to the previous display after the
“MAINTENANCE NOTICE” screen is displayed,
push the “BACK” button.The “MAINTENANCE NOTICE” screen displays
each time the key is turned ON until one of the
following conditions are met:

“RESET” is selected.

“Display Maintenance Notification” is set
OFF.

the maintenance interval is set again.
Tire pressure information (if so
equipped)To view “TIRE PRESSURE” information, push
the “TRIP” button repeatedly until the “MAINTE-
NANCE” screen is displayed. Select “TIRE
PRESSURE” using the joystick and push the
“ENTER” button.
Pressure indication in ** psi on the screen
indicates that the pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed randomly.
The order of tire pressure figures displayed on
the screen does not correspond with the actual
SAA1354
SAA1321
4-14
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


order of the tire position.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.
In case of low tire pressure, a message is
displayed on the screen:
FLAT TIRE — low tire air pressure.
WARNING

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.* — Refer to the separate Navigation System
Owner’s Manual.
HOW TO USE THE “SETTING”
BUTTONThe SETTINGS screen will appear when the
“SETTING” button is pushed.
“Display” settingsThe DISPLAY SETTINGS screen will appear
when selecting the “Display” key and pushing
the “ENTER” button.
Brightness/Contrast:
To adjust the brightness and contrast of the
screen, select the “Brightness/Contrast” key
and push the “ENTER” button. Then you can
adjust the brightness to Darker or Brighter, the
contrast to Lower or Higher using the joystick.
SAA1322
SAA1551
Display screen, heater, air conditioner and audio systems
4-15


06.7.5/Z50-D/V5.0


to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indica-
tor is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS to con-
tinue to function properly.Additional information
The TPMS does not monitor the tire pressure
of the spare tire.

The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a suddendrop in tire pressure (for example a flat tire
while driving).

The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and
the outside temperature. Low outside tem-
perature can lower the temperature of the air
inside the tire which can cause a lower tire
inflation pressure. This may cause the low tire
pressure warning light to illuminate. If the
warning light illuminates in low ambient tem-
perature, check the tire pressure for all four
tires.

You can also check the pressure of all tires
(except the spare tire) on the display screen.
The order of the tire pressure figures dis-
played on the screen does not correspond
with the actual order of the tire position. See
“Tire pressure information” in the “4. Display
screen, heater, air conditioner and audio sys-
tem” section.
For additional information, see “Low tire pres-sure warning light” in the “2. Instruments and
controls” section and “Tire pressure monitoring
system (TPMS)” in the “6. In case of emergency”
section.
WARNING

If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving af-
ter adjusting the tire pressure, a tire
may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible. (See “Flat tire” in the “In
5-4
Starting and driving


06.7.5/Z50-D/V5.0


TIRE PRESSURE MONITORING
SYSTEMThis vehicle is equipped with the tire pressure
monitoring system (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit, one or more of
your tires is significantly under-inflated. If
equipped, the system also displays pressure of
all tires (except the spare tire) on the display
screen by sending a signal from a sensor that is
installed in each wheel. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light. This system will activate
only when the vehicle is driven at speeds above
16 MPH (25 km/h). For more details, refer to
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section,
“Tire pressure information” in the “4. Display
screen, heater, air conditioner and audio sys-
tems” section and “Tire pressure monitoring
system (TPMS)” in the “5. Starting and driving”
section.
WARNING

If the low tire pressure warning light
illuminates while driving, avoid sud-den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving af-
ter adjusting the tire pressure, a tire
may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tirereplacement and/or system reset-
ting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking
brake. Shift the selector lever into P (Park).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to
signal professional road assistance person-
FLAT TIRE6-2
In case of emergency


06.7.5/Z50-D/V5.0
