2007 NISSAN MAXIMA Navigation Manual

NAV2753

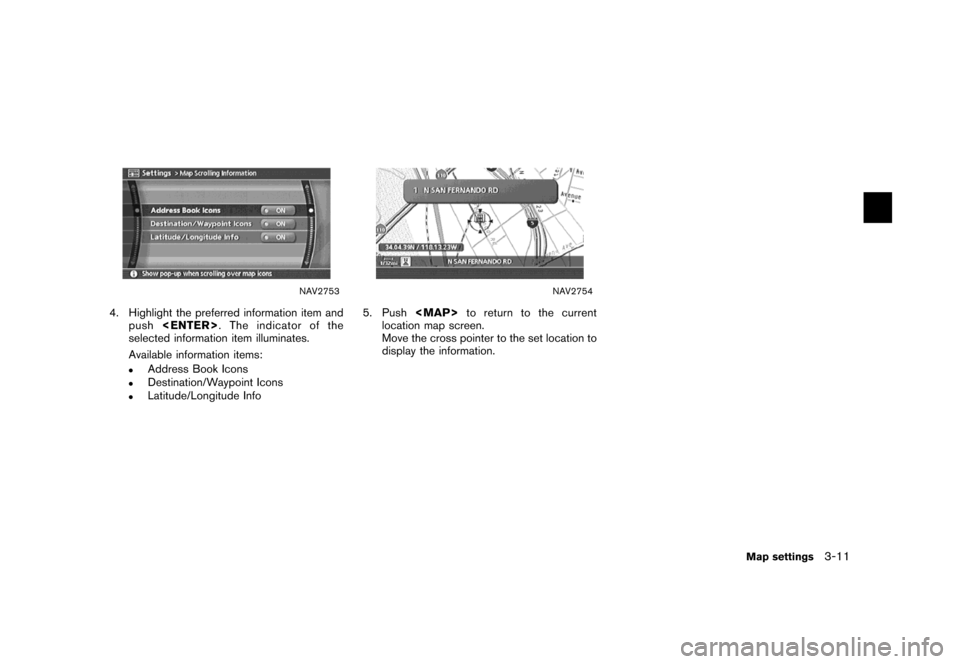

4. Highlight the preferred information item and
push. The indicator of the
selected information item illuminates.
Available information items:
.Address Book Icons.Destination/Waypoint Icons.Latitude/Longitude Info
NAV2754
5. Push

NAI0409
Push()or
() . A scale appears on the left side of the
screen.
To view the map in detail, push
(
).
To view a wider area, push
(
).
The scale will automatically disappear when
neither(
) nor
() has been pushed for
several seconds.
INFO:
Free zoom
Push and hold(
)or OUT>() to change the map scale in
smaller steps (free zoom) . Once the free zoom
has been utilized, push(
)or
() to change the map scale
in smaller steps.
CHANGING THE SCALE OF A MAP
3-12Map settings

MAP SCALE
The following scales are available depending on
the map view.
.In Plan View:
Widest (1/51,200,000) to the most detailed
(1/5,000)
.In Birdview
TM:
Widest (1/20,480,000) to the most detailed
(viewpoint height at 1/25,000)
Scale level of the Plan View display
Map scale Actual distance
1:51.2 million 400 miles (640 km)
1:5.12 million 32 miles (64 km)
1:1.28 million 8 miles (16 km)
1:320,000 2 miles (4 km)
1:160,000 1 mile (2 km)
1:80,000 1/2 mile (1 km)
1:40,000 1/4 mile (500 m)
1:20,000 1/8 mile (200 m)
1:10,000 1/16 mile (100 m)
1:5,0001/32 mile (50 m)

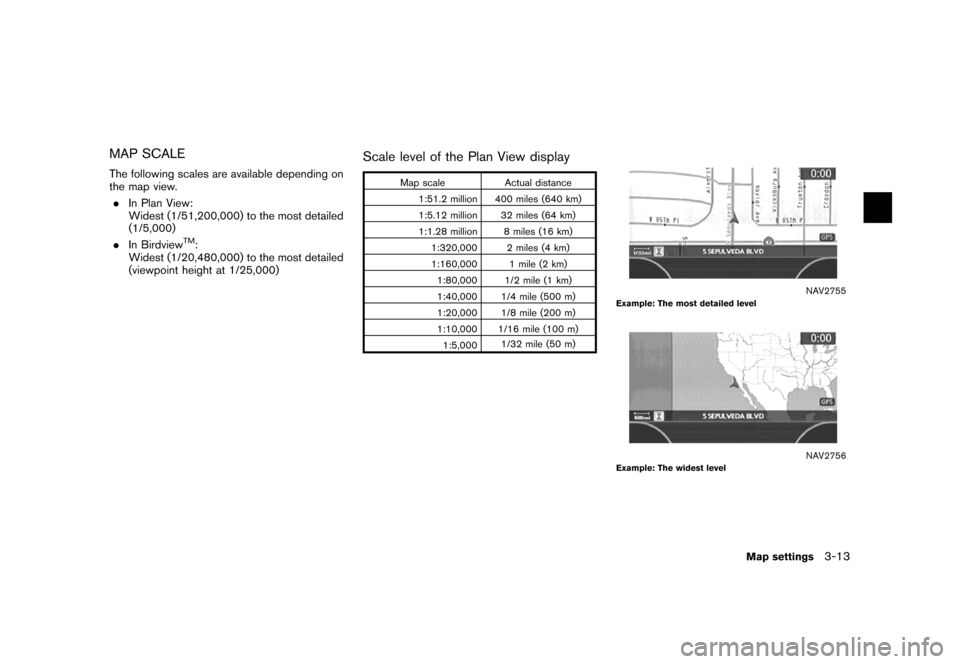

NAV2755Example: The most detailed level
NAV2756Example: The widest level
Map settings3-13

Scale level of the BirdviewTMdisplay
Map scale Distance between grids
1:20.48 million 160 miles (256 km)
1:5.12 million 32 miles (64 km)
1:2.56 million 16 miles (32 km)
1:1.28 million 8 miles (16 km)
1:640,000 4 miles (8 km)
1:320,000 2 miles (4 km)
1:160,000 1 mile (2 km)
1:80,000 1/2 mile (1 km)
1:40,000 1/4 mile (500 m)
1:25,0001/6 mile (250 m)

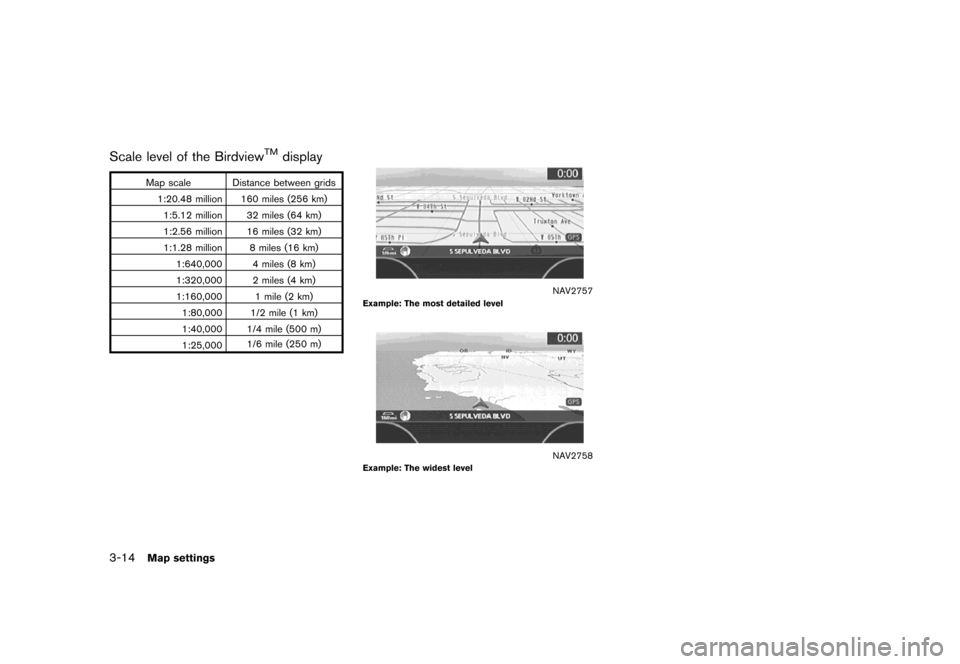

NAV2757Example: The most detailed level
NAV2758Example: The widest level
3-14Map settings

Other settings are also available for the map
screen, such as changing the map direction,
splitting the screen, etc.
SETTINGS OF HEADING/LONG
RANGE MAP VIEW
You can change the map direction (orientation)
in Plan View or change the position of the
vehicle icon to view a wider area in the traveling
direction.
These settings are available only in the Plan
View or Split (Plan View) mode.

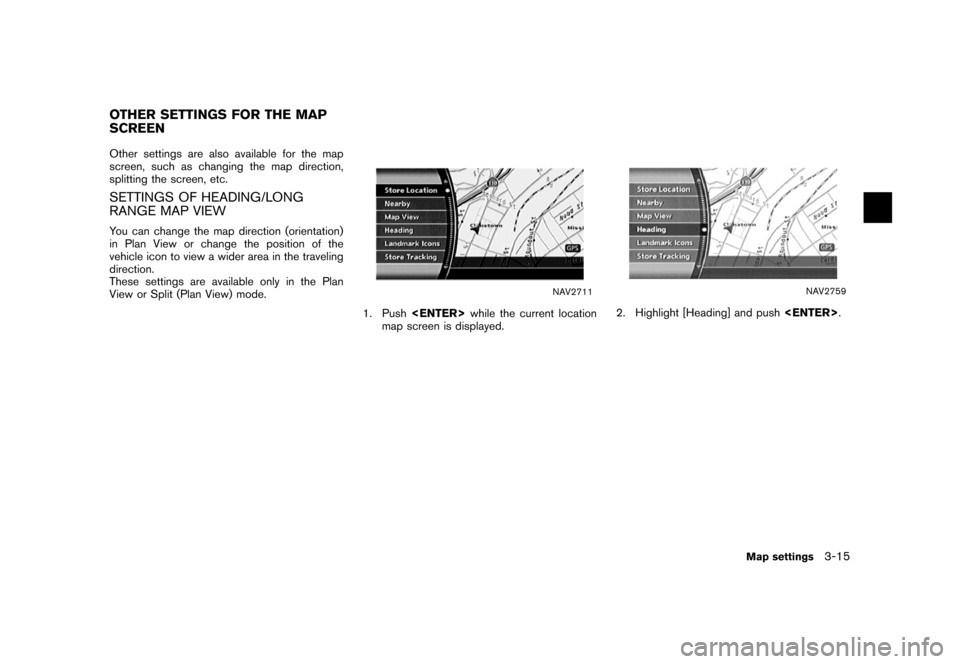

NAV2711
1. Pushwhile the current location
map screen is displayed.
NAV2759
2. Highlight [Heading] and push.
OTHER SETTINGS FOR THE MAP
SCREEN
Map settings3-15

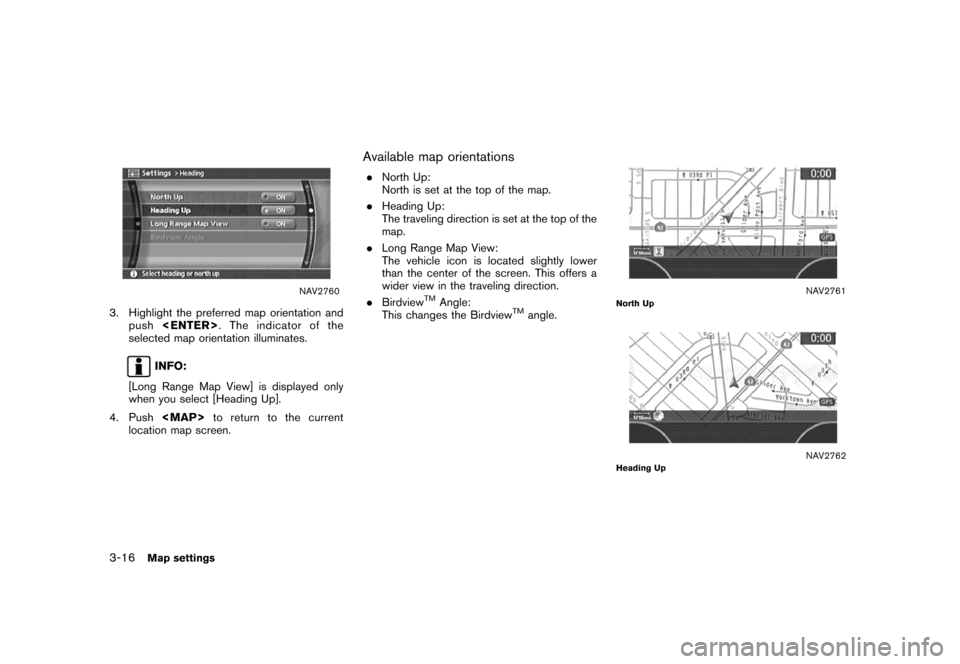

NAV2760
3. Highlight the preferred map orientation and
push. The indicator of the
selected map orientation illuminates.
INFO:
[Long Range Map View] is displayed only
when you select [Heading Up].
4. Push

NAV2763Long Range Map View
INFO:

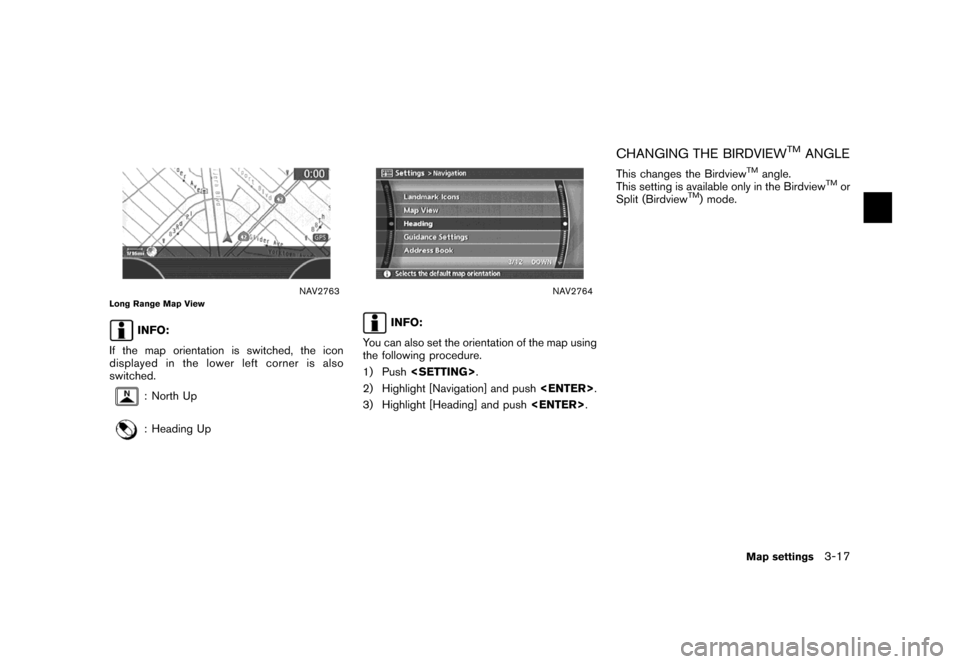

If the map orientation is switched, the icon
displayed in the lower left corner is also
switched.
: North Up
: Heading Up
NAV2764
INFO:
You can also set the orientation of the map using
the following procedure.
1) Push.
2) Highlight [Navigation] and push.
3) Highlight [Heading] and push.
CHANGING THE BIRDVIEWTMANGLE
This changes the BirdviewTMangle.
This setting is available only in the BirdviewTMor
Split (BirdviewTM) mode.
Map settings3-17

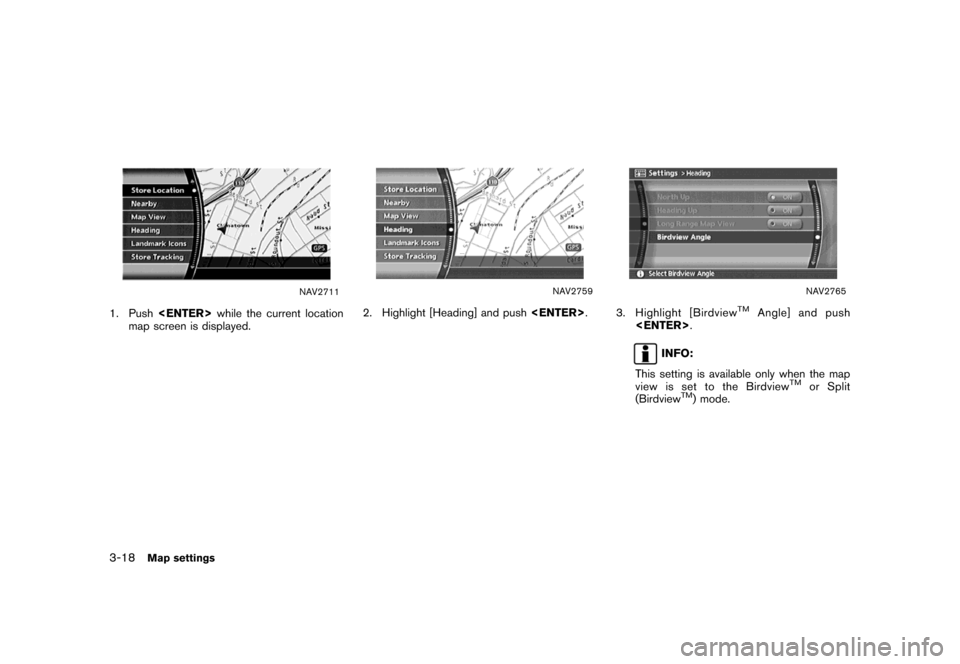

NAV2711
1. Pushwhile the current location
map screen is displayed.
NAV2759
2. Highlight [Heading] and push.
NAV2765
3. Highlight [BirdviewTMAngle] and push
.
INFO:
This setting is available only when the map
view is set to the Birdview
TMor Split
(BirdviewTM) mode.
3-18Map settings
