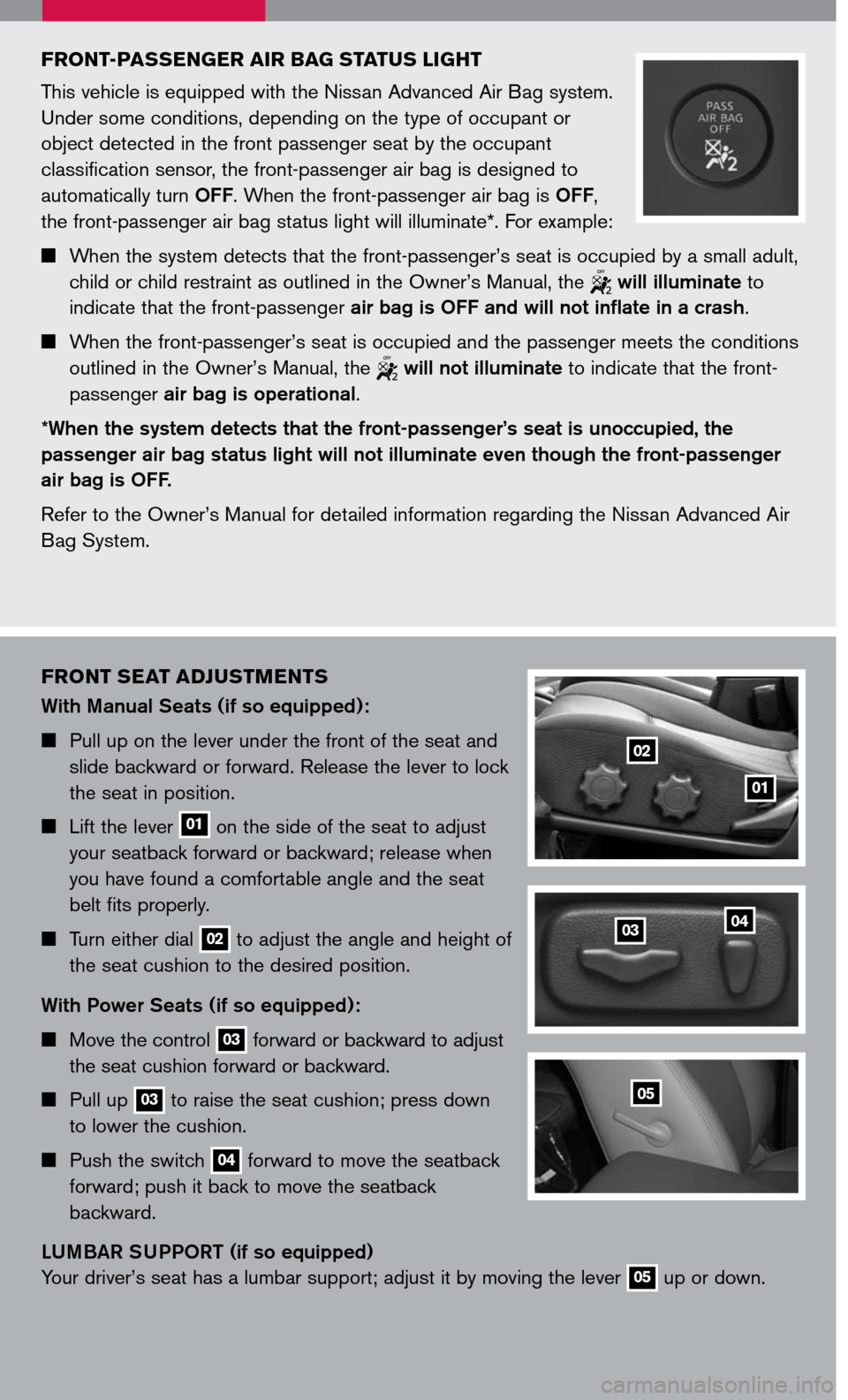

front seat adJust Ments
With Manual Seats (if so equipped):
Pull up on the lever under the front of the seat and
slide backward or forward. Release the lever to lock
the seat in position.
Lift the lever 01 on the side of the seat to adjust
your seatback forward or backward; release when
you have found a comfortable angle and the seat
belt fits properly.
Turn either dial 02 to adjust the angle and height of
the seat cushion to the desired position.
With Power Seats (if so equipped):
Move the control 03 forward or backward to adjust
the seat cushion forward or backward.
Pull up 03 to raise the seat cushion; press down
to lower the cushion.
Push the switch 04 forward to move the seatback
forward; push it back to move the seatback
backward.
LUMBAR SUPPORT (if so equipped)
Your driver’s seat has a lumbar support; adjust it by moving the lever 05 up or down.
01
02
0304
05
front -Passenger air Bag status light
This vehicle is equipped with the Nissan Advanced Air Bag system.
Under some conditions, depending on the type of occupant or
object detected in the front passenger seat by the occupant
classification sensor, the front-passenger air bag is designed to
automatically turn OFF. When the front-passenger air bag is OFF,
the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult,
child or child restraint as outlined in the Owner’s Manual, the will illuminate to
indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions
outlined in the Owner’s Manual, the will not illuminate to indicate that the front-
passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the
passenger air bag status light will not illuminate even though the front-passenger
air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air
Bag System.
