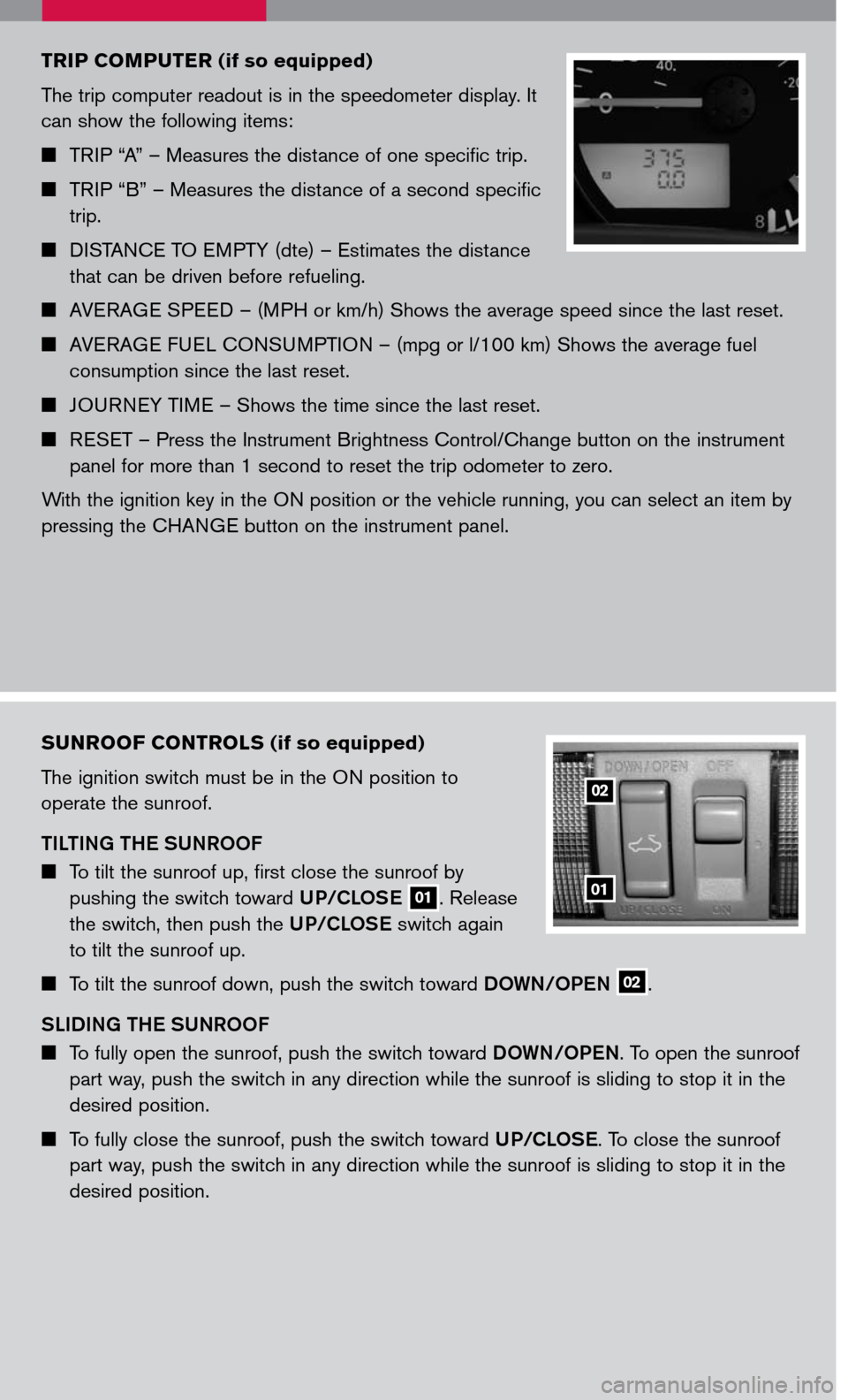

sunroof controls (if so equipped)
The ignition switch must be in the ON position to
operate the sunroof.
TILTING THE SUNROOF
To tilt the sunroof up, first close the sunroof by
pushing the switch toward UP/CLOSE 01. Release
the switch, then push the UP/CLOSE switch again
to tilt the sunroof up.
To tilt the sunroof down, push the switch toward DOWN/OPEN 02.
SLIDING THE SUNROOF
To fully open the sunroof, push the switch toward DOWN/OPEN. To open the sunroof
part way, push the switch in any direction while the sunroof is sliding to stop it in the
desired position.
To fully close the sunroof, push the switch toward UP/CLOSE. To close the sunroof
part way, push the switch in any direction while the sunroof is sliding to stop it in the
desired position.
01
02
triP co MP uter (if so equipped)
The trip computer readout is in the speedometer display. It
can show the following items:
TRIP “A” – Measures the distance of one specific trip.
TRIP “B” – Measures the distance of a second specific
trip.
DISTANCE TO EMPTY (dte) – Estimates the distance
that can be driven before refueling.
AVERAGE SPEED – (MPH or km/h) Shows the average speed since the last reset.
AVERAGE FUEL CONSUMPTION – (mpg or l/100 km) Shows the average fuel
consumption since the last reset.
JOURNEY TIME – Shows the time since the last reset.
RESET – Press the Instrument Brightness Control/Change button on the instrument
panel for more than 1 second to reset the trip odometer to zero.
With the ignition key in the ON position or the vehicle running, you can select an item by
pressing the CHANGE button on the instrument panel.
