WW-4
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z
FRONT WIPER AND WASHER SYSTEMPFP:28810

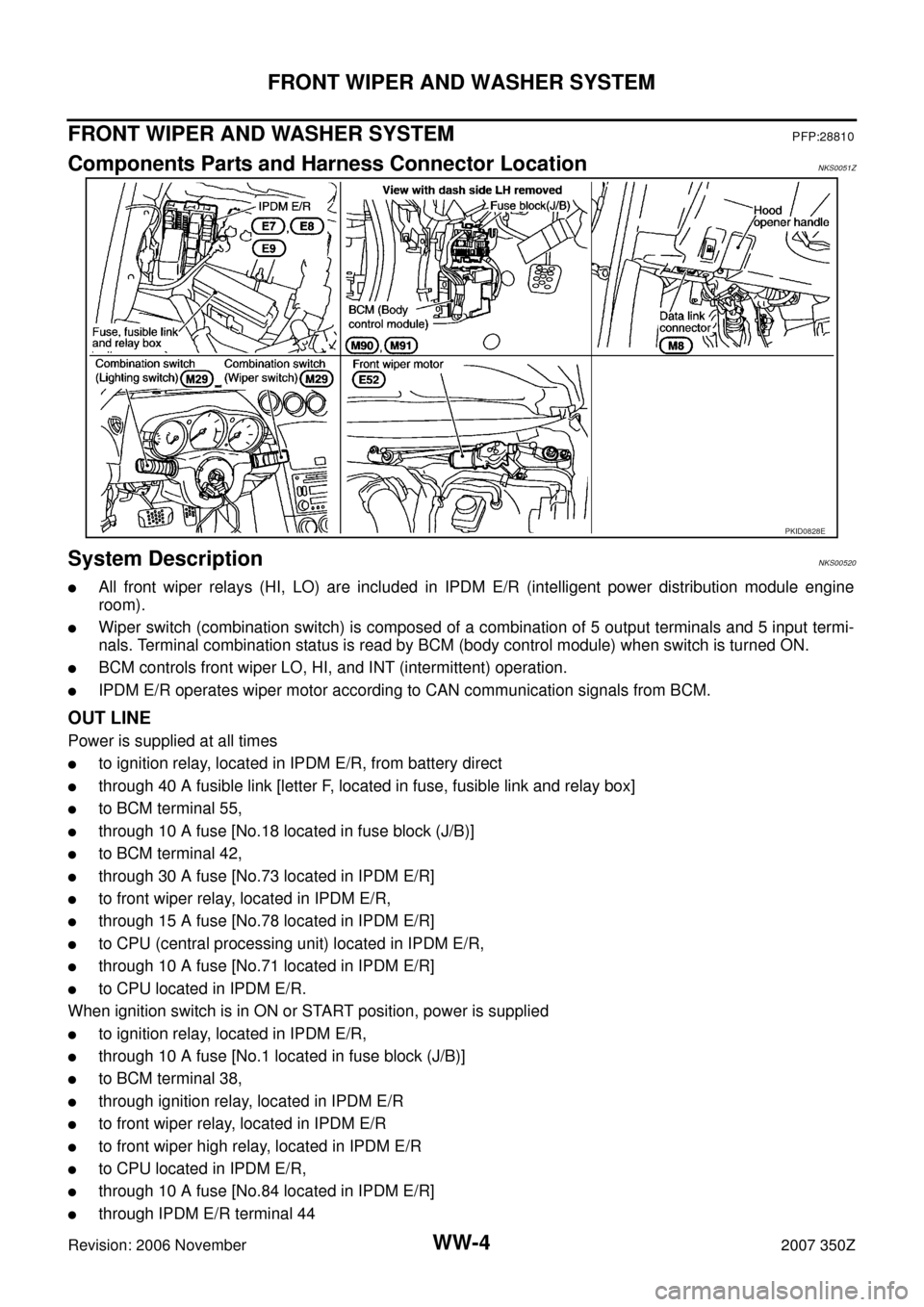

Components Parts and Harness Connector LocationNKS0051Z
System DescriptionNKS00520

All front wiper relays (HI, LO) are included in IPDM E/R (intelligent power distribution module engine
room).

Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM (body control module) when switch is turned ON.

BCM controls front wiper LO, HI, and INT (intermittent) operation.

IPDM E/R operates wiper motor according to CAN communication signals from BCM.
OUT LINE
Power is supplied at all times

to ignition relay, located in IPDM E/R, from battery direct

through 40 A fusible link [letter F, located in fuse, fusible link and relay box]

to BCM terminal 55,

through 10 A fuse [No.18 located in fuse block (J/B)]

to BCM terminal 42,

through 30 A fuse [No.73 located in IPDM E/R]

to front wiper relay, located in IPDM E/R,

through 15 A fuse [No.78 located in IPDM E/R]

to CPU (central processing unit) located in IPDM E/R,

through 10 A fuse [No.71 located in IPDM E/R]

to CPU located in IPDM E/R.
When ignition switch is in ON or START position, power is supplied

to ignition relay, located in IPDM E/R,

through 10 A fuse [No.1 located in fuse block (J/B)]

to BCM terminal 38,

through ignition relay, located in IPDM E/R

to front wiper relay, located in IPDM E/R

to front wiper high relay, located in IPDM E/R

to CPU located in IPDM E/R,

through 10 A fuse [No.84 located in IPDM E/R]

through IPDM E/R terminal 44
PKID0828E

FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 November2007 350Z

to front washer pump terminal 2.
Ground is supplied

to BCM terminal 52

through grounds M30 and M66,

to IPDM E/R terminals 38 and 60

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone),

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to combination switch terminal 12

through grounds M30 and M66.
LOW SPEED WIPER OPERATION
When the front wiper switch is in low position, BCM detects low speed wiper ON signal by BCM wiper switch
reading function.
BCM sends front wiper request signal (LOW) with CAN communication line

from BCM terminals 39 and 40

to IPDM E/R terminals 48 and 49.
When the IPDM E/R receives front wiper request signal (LOW), it turns ON front wiper relay, located in the
IPDM E/R, power is supplied

to front wiper motor terminal 3

through IPDM E/R terminal 21 and front wiper high relay and front wiper relay.
Ground is supplied

to front wiper motor terminal 4

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone),

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
With power and ground is supplied, front wiper motor operates at low speed.
HIGH SPEED WIPER OPERATION
When the front wiper switch is in high position, BCM detects high speed wiper ON signal by BCM wiper switch
reading function.
BCM sends front wiper request signal (HI) with CAN communication line

from BCM terminals 39 and 40

to IPDM E/R terminals 48 and 49.
When the IPDM E/R receives front wiper request signal (HI), it turns ON front wiper relay, located in IPDM E/
R, power is supplied

to front wiper motor terminal 2

through IPDM E/R terminal 31 and front wiper high relay and front wiper relay.
Ground is supplied

to front wiper motor terminal 4

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone),

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
With power and ground is supplied, front wiper motor operates at high speed.
INTERMITTENT OPERATION
Front wiper intermittent operation delay interval is determined from a combination of 3 switches (intermittent
operation dial position 1, 2, and 3) and vehicle speed signal.
After each intermittent operation delay interval, BCM sends front wiper request signal to IPDM E/R.

WW-18
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z
6. INSPECTION END
Preliminary CheckNKS00528
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to WW-11, "
Wiring Diagram — WIPER —" .
OK or NG
OK >> GO TO 2
NG >> If fuse is blown, be sure to eliminate the cause of malfunction before installing new fuse, Refer to
PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.

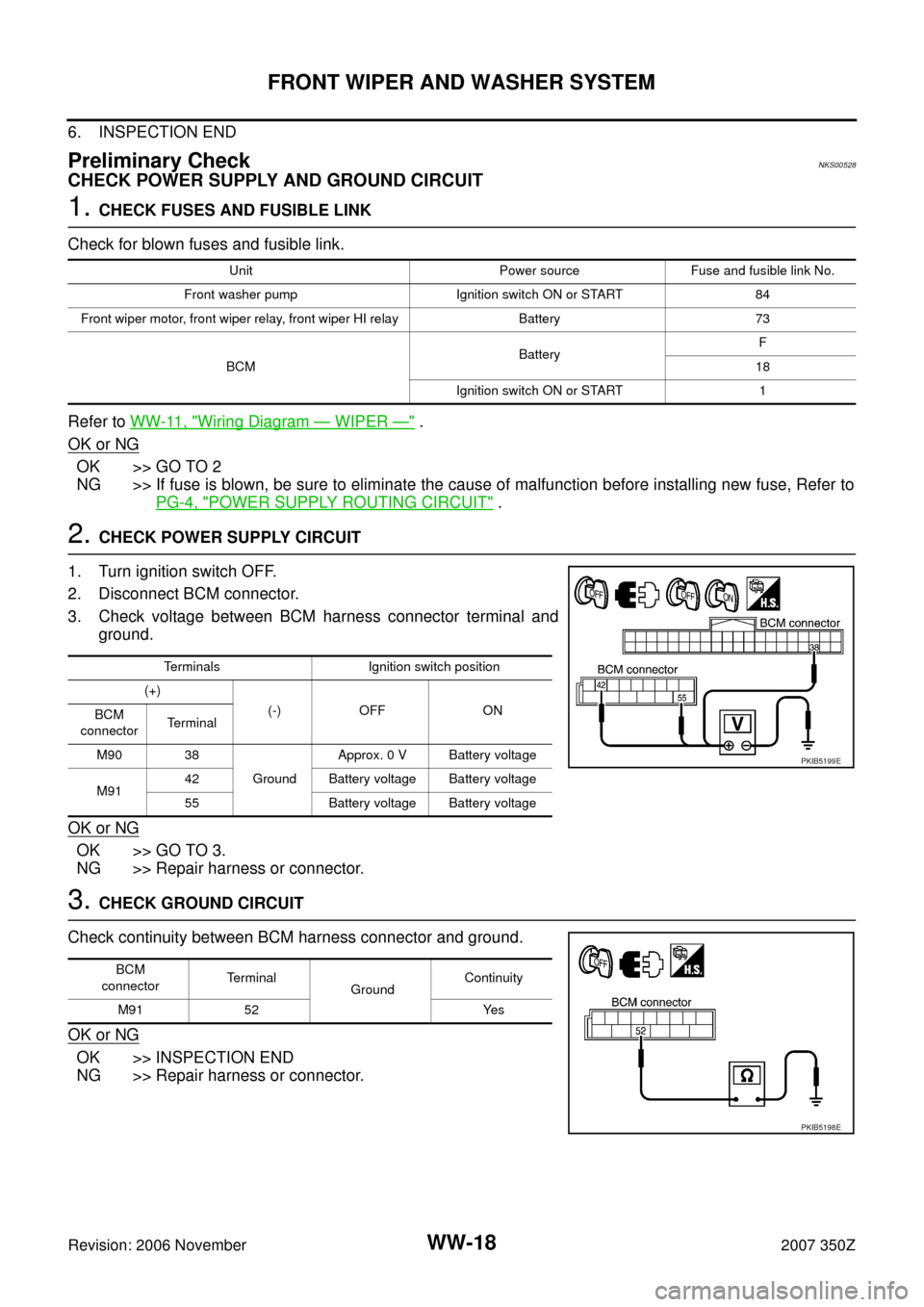

3. Check voltage between BCM harness connector terminal and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
Front washer pump Ignition switch ON or START 84
Front wiper motor, front wiper relay, front wiper HI relay Battery 73
BCMBatteryF
18
Ignition switch ON or START 1
Terminals Ignition switch position
(+)
(-) OFF ON
BCM
connectorTerminal
M90 38
GroundApprox. 0 V Battery voltage
M9142 Battery voltage Battery voltage
55 Battery voltage Battery voltage
PKIB5199E
BCM
connectorTe r m i n a l
GroundContinuity
M91 52 Yes
PKIB5198E

WW-20
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z
NOTE:
Coupe models
CONSULT-III Function (IPDM E/R)NKS0052A
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
DATA MONITOR
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may
not be correct.
ACTIVE TEST
Display Item List
Diagnosis Mode Description
SELF−DIAG RESULTS Refer to PG-18, "
SELF-DIAG RESULTS" .
DATA MONITOR The input/output data of IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST IPDM E/R sends a drive signal to electronic components to check their operation.
Item nameCONSULT-III
screen displayDisplay or unitMonitor item selection
Description
ALL
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
FR wiper request FR WIP REQ STOP/LOW/HI×× ×Signal status input from BCM
Wiper auto stop WIP AUTO STOP ACT P/STOP P×× ×Output status of IPDM E/R
Wiper protection WIP PROT OFF/Block×× ×Control status of IPDM E/R
Test item CONSULT-III screen display Description
Front wiper (HI, LO) output FR WIPERWith a certain operation (OFF, HI ON, LO ON), front wiper relay (and/or
front wiper high relay) can be operated.

WW-36
REAR WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z
REAR WIPER AND WASHER SYSTEMPFP:28710

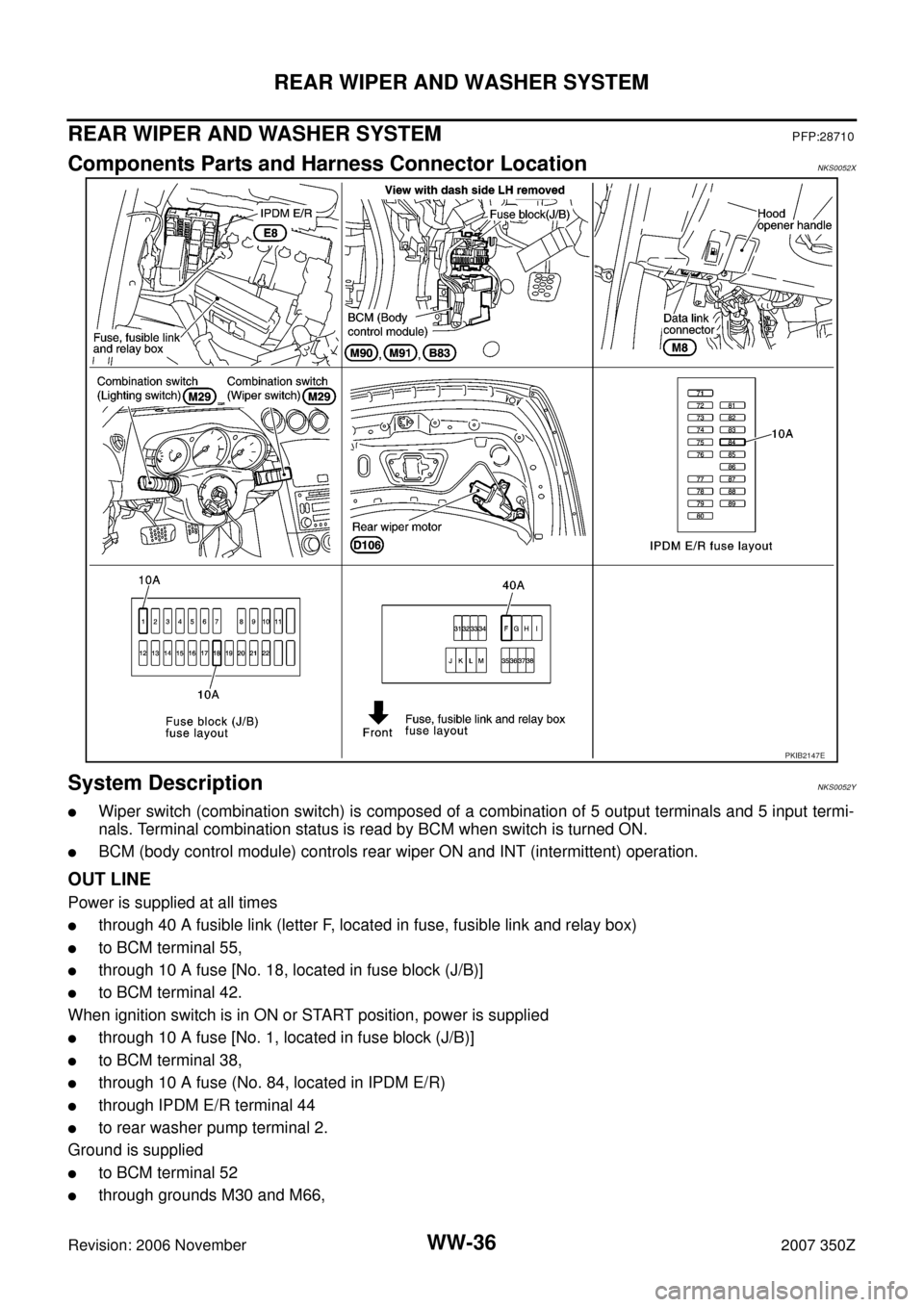

Components Parts and Harness Connector LocationNKS0052X
System DescriptionNKS0052Y

Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM when switch is turned ON.

BCM (body control module) controls rear wiper ON and INT (intermittent) operation.
OUT LINE
Power is supplied at all times

through 40 A fusible link (letter F, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10 A fuse [No. 18, located in fuse block (J/B)]

to BCM terminal 42.
When ignition switch is in ON or START position, power is supplied

through 10 A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10 A fuse (No. 84, located in IPDM E/R)

through IPDM E/R terminal 44

to rear washer pump terminal 2.
Ground is supplied

to BCM terminal 52

through grounds M30 and M66,
PKIB2147E
