2007 NISSAN 350Z fuse box

PG-2Revision: 2006 November2007 350Z STANDARDIZED RELAY .......................................... 83
Description .............................................................. 83
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 83
TYPE OF STANDARDIZED RELAYS .................. 83FUSE BLOCK - JUNCTION BOX (J/B) .................... 85
Terminal Arrangement ............................................. 85
FUSE, FUSIBLE LINK AND RELAY BOX ................ 86
Terminal Arrangement ............................................. 86

FUSE BLOCK - JUNCTION BOX (J/B)
PG-85
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z
FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350

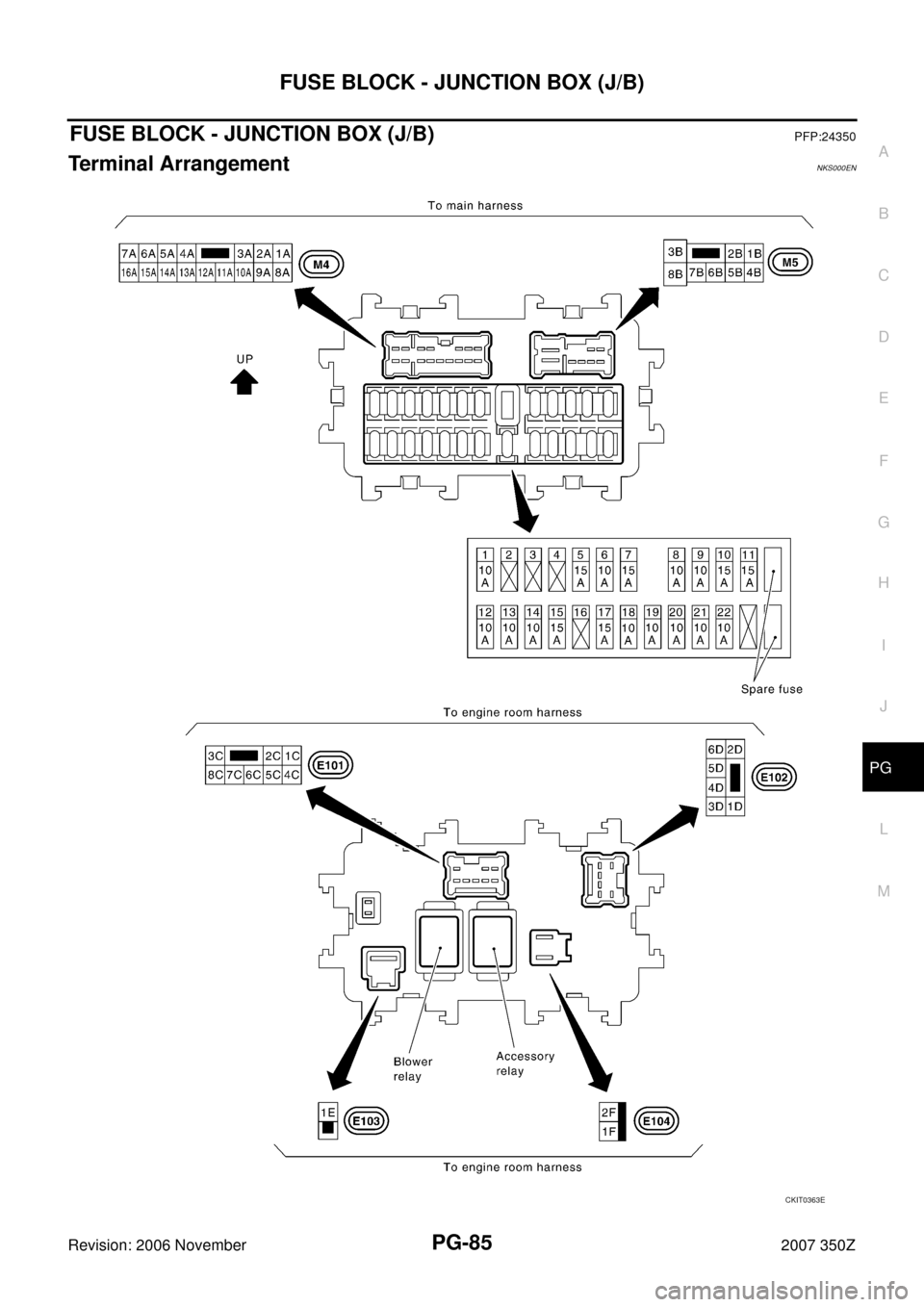

Terminal ArrangementNKS000EN
CKIT0363E

PG-86
FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2006 November2007 350Z
FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementNKS000EO
CKIT0877E
