STANDARDIZED RELAY
PG-83
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z
STANDARDIZED RELAY PFP:00011
Description NKS000EM

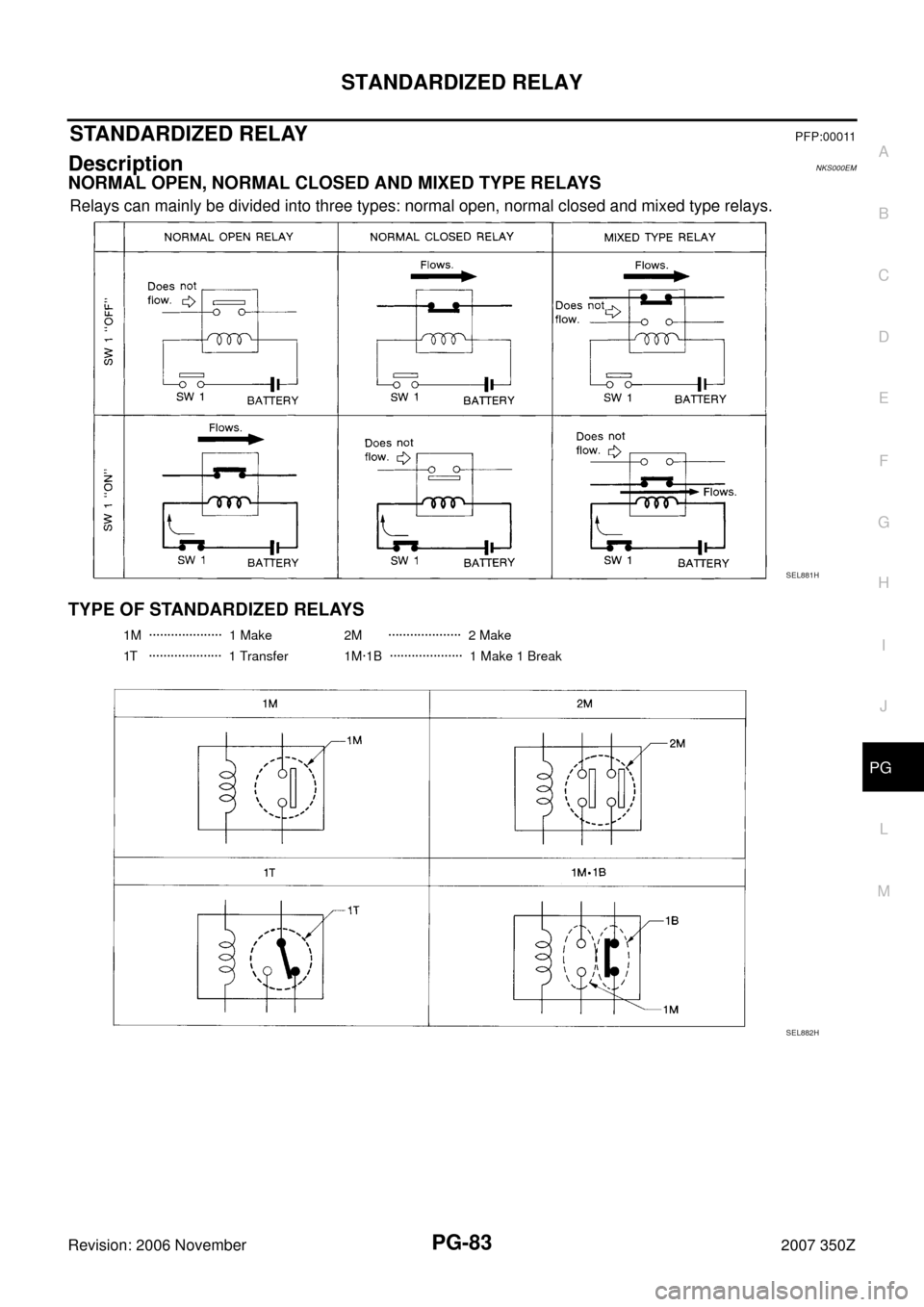

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H

PG-84
STANDARDIZED RELAY
Revision: 2006 November2007 350Z

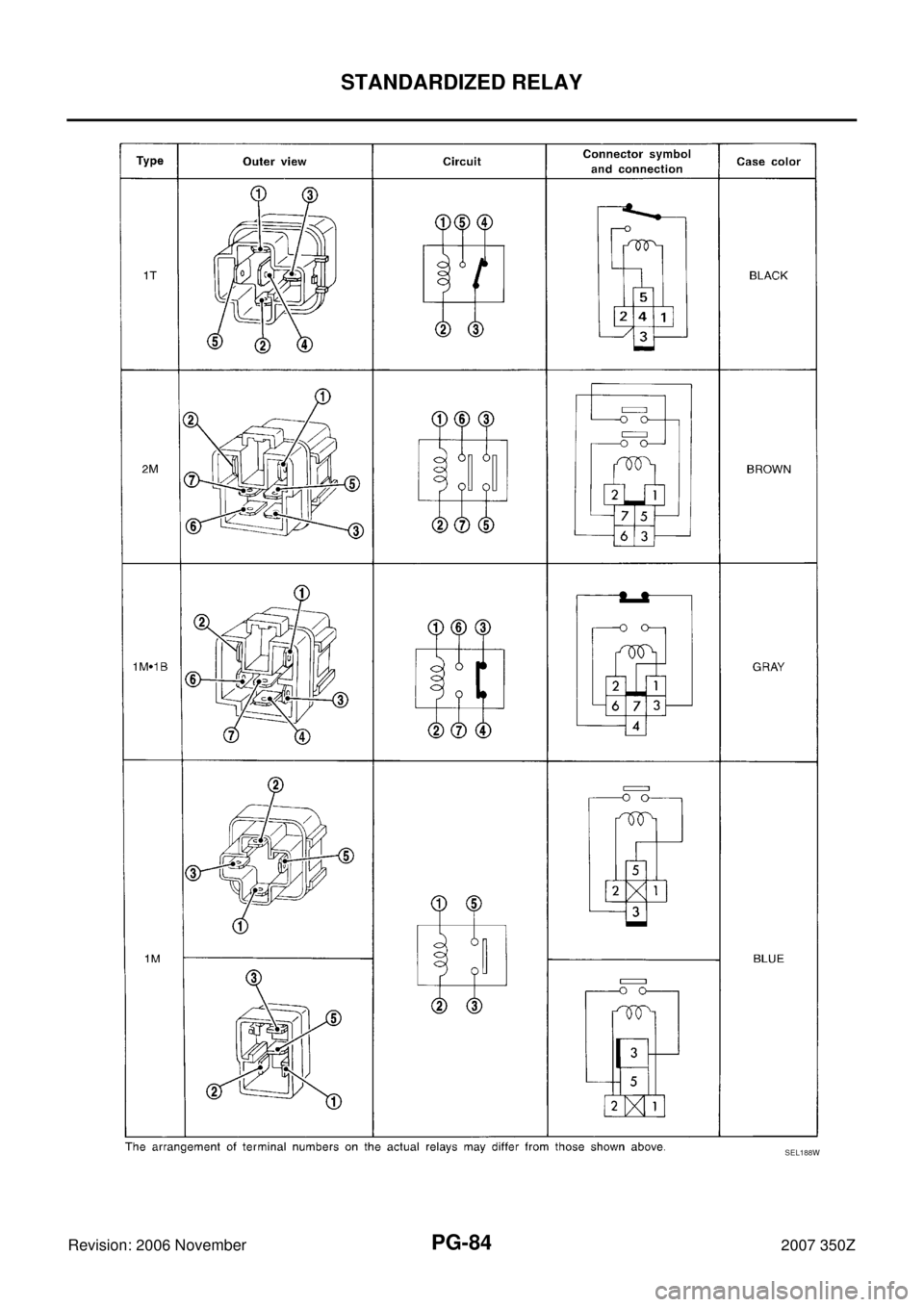

SEL188W

PG-86

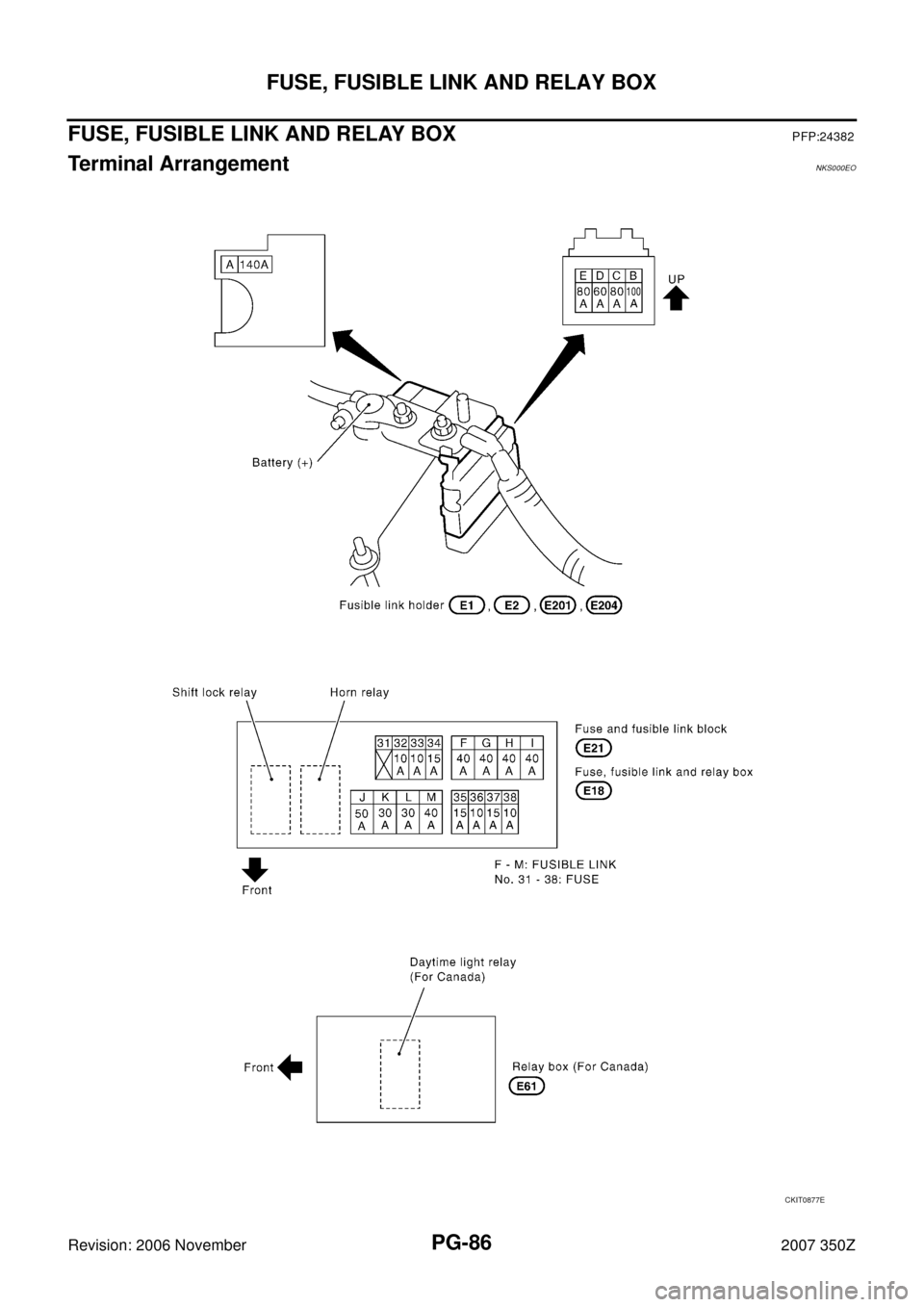

FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2006 November2007 350Z
FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementNKS000EO
CKIT0877E
