HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick
and push the ENTER button for operation.HOW TO USE “BACK” BUTTONThis button has two functions.
To return to the previous screen:
When this button is pushed during setup, setup
will be canceled, and the screen will return to the
previous screen.
To finish the set-up:
When this button is pushed after setup is com-
pleted, the settings will be renewed as directed,
and the screen will return to the map.
INFO:
When the “BACK” button must be pushed, (for
example, after the setup is finished) instructions
are given in the operation procedure of each
section in this manual. If the “BACK” button is
pushed when not finished with the setup, the
setting will be canceled, and the screen will
return to the previous screen.
SETTING UP THE START-UP
SCREENWhen you turn the ignition key to the ACC
position, the SYSTEM START-UP warning is
displayed on the screen. Read the warning and
select the “OK” key then push the “ENTER”
button.
If you do not push the ENTER button, this
system will not proceed to the next step display.
To proceed to the next step, refer to the separate
Navigation System Owner’s Manual.
HOW TO USE “INFO” BUTTONWhen the “INFO” button is pushed, the “Main-
tenance” screen will be displayed.Maintenance informationTo set the maintenance interval for the Engine
Oil or Oil Filter, choose an item using the joystick
and push the “ENTER” button.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil change interval. Use the same steps
SAA1290
Display screen, heater, air conditioner and audio systems
4-3


06.10.24/Z33-D/V5.0


Maintenance noticeThe “Maintenance Notice” screen (“ENGINE
OIL” or “OIL FILTER”) will be automatically
displayed as shown when both of the following
conditions are met:

the vehicle is driven the set distance and the
ignition switch is turned OFF.

the ignition switch is turned ON the next time
the vehicle will be driven.
To return to the previous display after the
“Maintenance Notice” screen is displayed,
push the “BACK” button.The “Maintenance Notice” screen displays
each time the ignition switch is turned ON until
one of the following conditions are met:

“Reset Distance” is selected.

“Interval Reminder” is set OFF.

the maintenance interval is set again.*: Refer to the separate Navigation System
Owner’s Manual.
HOW TO USE “SETTING” BUTTONThe “Settings” screen will appear when the
“SETTING” button is pushed.
SAA1332
SAA1292
Engine Oil
1
/Oil Filter
2
SAA1293
Display screen, heater, air conditioner and audio systems
4-5


06.10.24/Z33-D/V5.0


8 Maintenance and do-it-yourselfMaintenance requirements ................................................. 8-2
General maintenance ........................................................... 8-2
Explanation of general maintenance items ............... 8-2
Maintenance precautions ................................................... 8-5
Engine compartment check locations ............................. 8-7
Engine cooling system ........................................................ 8-8
Checking engine coolant level .................................... 8-8
Changing engine coolant ............................................. 8-9
Engine oil ................................................................................ 8-9
Checking engine oil level .............................................. 8-9
Changing engine oil and filter ................................... 8-10
Automatic transmission fluid ........................................... 8-12
Power steering fluid .......................................................... 8-12
Brake and clutch fluid ....................................................... 8-13
Brake fluid ....................................................................... 8-13
Clutch fluid ..................................................................... 8-13
Window washer fluid ........................................................ 8-14
Battery ................................................................................... 8-15
Jump starting ................................................................. 8-16
Drive belts ............................................................................ 8-16
Spark plugs ......................................................................... 8-17Replacing spark plugs ................................................ 8-17
Air cleaners .......................................................................... 8-18
Windshield wiper blades ................................................. 8-18
Cleaning ......................................................................... 8-18
Replacing ....................................................................... 8-19
Brakes ................................................................................... 8-20
Self-adjusting brakes .................................................. 8-20
Brake pad wear indicators ......................................... 8-20
Fuses ..................................................................................... 8-21
Engine compartment ................................................... 8-21
Passenger compartment ............................................ 8-23
Keyfobbattery replacement ............................................ 8-24
Lights ..................................................................................... 8-25
Headlights ...................................................................... 8-26
Exterior and interior lights .......................................... 8-27
Wheels and tires ................................................................ 8-29
Tire pressure ................................................................. 8-29
Tire labeling ..................................................................... 8-33
Types of tires ................................................................. 8-35
Tire chains ...................................................................... 8-36
Changing wheels and tires ........................................ 8-36


06.10.24/Z33-D/V5.0


When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.

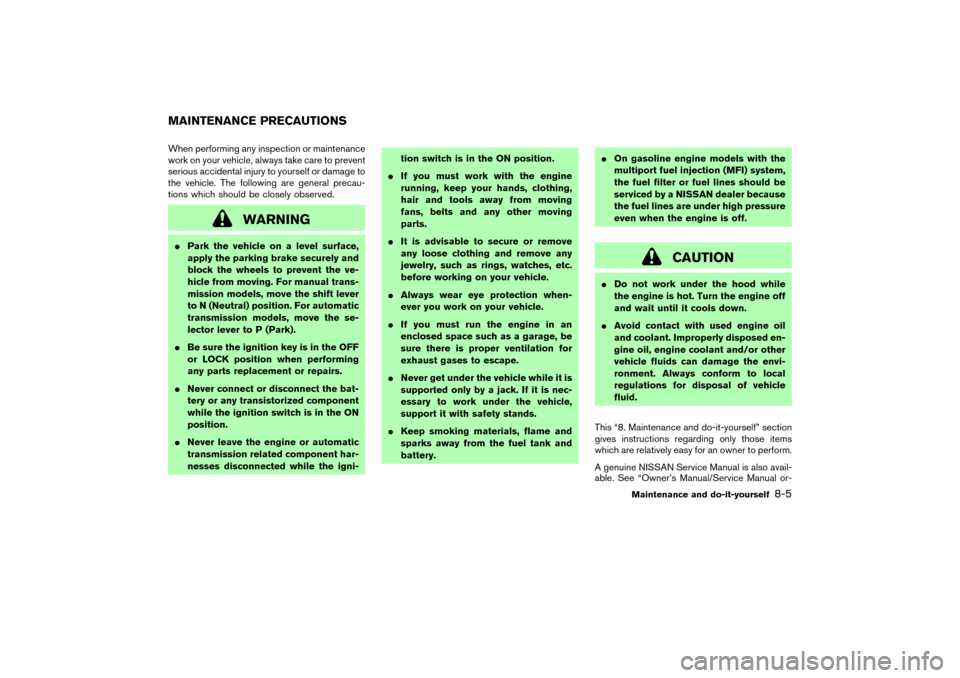

WARNING

Park the vehicle on a level surface,
apply the parking brake securely and
block the wheels to prevent the ve-
hicle from moving. For manual trans-
mission models, move the shift lever
to N(Neutral) position. For automatic
transmission models, move the se-
lector lever to P (Park).

Be sure the ignition key is in the OFF
or LOCK position when performing
any parts replacement or repairs.

Never connect or disconnect the bat-
tery or any transistorized component
while the ignition switch is in the ON
position.

Never leave the engine or automatic
transmission related component har-
nesses disconnected while the igni-tion switch is in the ONposition.

If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving
fans, belts and any other moving
parts.

It is advisable to secure or remove
any loose clothing and remove any
jewelry, such as rings, watches, etc.
before working on your vehicle.

Always wear eye protection when-
ever you work on your vehicle.

If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.

Never get under the vehicle while it is
supported only by a jack. If it is nec-
essary to work under the vehicle,
support it with safety stands.

Keep smoking materials, flame and
sparks away from the fuel tank and
battery.
On gasoline engine models with the
multiport fuel injection (MFI) system,
the fuel filter or fuel lines should be
serviced by a NISSAN dealer because
the fuel lines are under high pressure
even when the engine is off.
CAUTION

Do not work under the hood while
the engine is hot. Turn the engine off
and wait until it cools down.

Avoid contact with used engine oil
and coolant. Improperly disposed en-
gine oil, engine coolant and/or other
vehicle fluids can damage the envi-
ronment. Always conform to local
regulations for disposal of vehicle
fluid.
This “8. Maintenance and do-it-yourself” section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN Service Manual is also avail-
able. See “Owner’s Manual/Service Manual or-
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself
8-5


06.10.24/Z33-D/V5.0


To remove the filter from the air cleaner, pull off
the retainers
1
and pull the unit upward
2.
The filter element should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “NISSAN Service and Mainte-
nance Guide”. When replacing the filter, wipethe inside of the air cleaner housing and the
cover with a damp cloth.

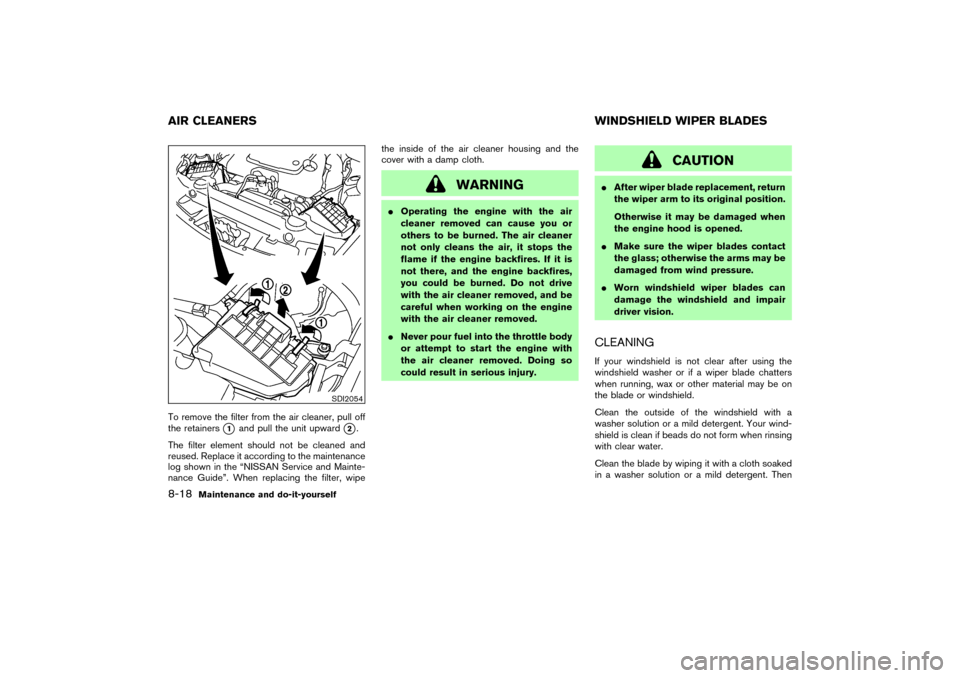

WARNING

Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it is
not there, and the engine backfires,
you could be burned. Do not drive
with the air cleaner removed, and be
careful when working on the engine
with the air cleaner removed.

Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
CAUTION

After wiper blade replacement, return
the wiper arm to its original position.
Otherwise it may be damaged when
the engine hood is opened.

Make sure the wiper blades contact
the glass; otherwise the arms may be
damaged from wind pressure.

Worn windshield wiper blades can
damage the windshield and impair
driver vision.CLEANINGIf your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when rinsing
with clear water.
Clean the blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Then
SDI2054
AIR CLEANERS WINDSHIELD WIPER BLADES8-18
Maintenance and do-it-yourself


06.10.24/Z33-D/V5.0


9 Technical and consumer informationCapacities and recommended fuel/lubricants .............. 9-2
Fuel recommendation .................................................... 9-3
Engine oil and oil filter recommendation .................. 9-5
Air conditioner system refrigerant and lubricant
recommendations ........................................................... 9-6
Specifications ........................................................................ 9-7
Engine ................................................................................. 9-7
Wheels and tires .............................................................. 9-8
Dimensions and weights ............................................... 9-8
When traveling or registering your vehicle in another
country ..................................................................................... 9-9
Vehicle identification ............................................................ 9-9
Vehicle identification number (VIN) plate ................. 9-9
Vehicle identification number (chassis number) ..... 9-9
Engine serial number ................................................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ................ 9-10
Emission control information label ........................... 9-10
Tire and loading information label ............................ 9-11
Air conditioner specification label ............................ 9-11
Installing front license plate ............................................. 9-12Vehicle loading information ............................................. 9-13
Terms ............................................................................... 9-13
Vehicle load capacity.................................................... 9-14
Loading tips .................................................................... 9-16
Measurement of weights ............................................. 9-16
Towing a trailer ................................................................... 9-17
Maximum load limits .................................................... 9-17
Towing safety ................................................................ 9-18
Flat towing............................................................................. 9-21
Automatic transmission ................................................ 9-22
Manual transmission ..................................................... 9-22
Uniform tire quality grading ............................................. 9-22
Emission control system warranty ................................. 9-23
Reporting safety defects (US only) ............................... 9-23
Readiness for inspection/maintenance (I/M) test
(US only) .............................................................................. 9-24
Event data recorders ......................................................... 9-25
Owner’s Manual/Service Manual order information ... 9-25
In the event of a collision ........................................... 9-26


06.10.24/Z33-D/V5.0


The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended
specifications US
measureImp
measureLiter
Fuel 20 gal 16-5/8 gal 76 Unleaded premium gasoline with an octane rating of at least 91 AKI (RON 96)*1
Engine oil (Drain and refill)*2
With oil filter change 5-1/8 qt 4-3/8 qt 4.9

Engine oil with API Certification Mark*3

Viscosity SAE 5W-30
Without oil filter change 4-5/8 qt 3-7/8 qt 4.4
Cooling system
With reservoir 9-1/2 qt 7-7/8 qt 9.0
50% Genuine NISSAN Long Life Antifreeze/Coolant or equivalent
50% Demineralized or distilled water
Reservoir 7/8 qt 3/5 qt 0.8
Automatic transmission fluid — — — Genuine NISSAN Matic J ATF*4
Manual transmission gear oil — — —Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or API GL-4, Viscosity
SAE 75W-85 or 75W-90
Differential gear oil — — —Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5, Viscosity SAE
80W-90*5
Power steering fluid (PSF)
Refill to the proper fluid level according to the instructions in
the “8. Maintenance and do-it-yourself” section.Genuine NISSAN PSF or equivalent*6
Brake and clutch fluidGenuine NISSAN Super Heavy Duty Brake Fluid*7 or equivalent DOT 3
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*8
Air conditioning system lubricants — — — NISSAN A/C System Oil Type S or exact equivalent
Windshield washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Anti-freeze or equivalent
*1: For additional information, see “Fuel recommendation” later in this section.
*2: For additional information, see “Engine oil” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*3: For additional information, see “Engine oil and oil filter recommendation” later in this section.
*4:Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and automatic transmission
durability, and may damage the automatic transmission, which is not covered by the NISSAN new vehicle limited warranty.
*5: For hot areas, viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
*6: DEXRON
TMVI or equivalent ATF may also be used. For Canada, NISSAN Automatic Transmission Fluid (ATF) is available.
*7: Available in mainland US through a NISSAN dealer.
*8: For additional information, see “Vehicle identification” in this section for air conditioner specification label.
CAPACITIES AND
RECOMMENDED FUEL/
LUBRICANTS9-2
Technical and consumer information


06.10.24/Z33-D/V5.0


oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes:

repeated short distance driving at cold out-
side temperatures

driving in dusty conditions

extensive idling

towing a trailer

stop and go commuting
Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONER SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONSThe air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
NISSAN A/C System Oil Type S or the
exact equivalents.
CAUTION
The use of any other refrigerant or lubri-
cant will cause severe damage to the air
conditioning system and will require the
replacement of all air conditioner sys-
tem components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air conditioner
system service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.Contact a NISSAN dealer when servicing your
air conditioner system.
9-6
Technical and consumer information


06.10.24/Z33-D/V5.0
