2007 NISSAN 350Z change time

LT-54
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
6. CHECK HEADLAMP GROUND
Check continuity between front combination lamp (RH and LH) har-
ness connector and ground.
OK or NG
OK >> Check headlamp harness, connector and bulb.
NG >> Repair harness or connector.
Headlamp Does Not Change To High Beam (One Side)NKS004XQ
1. CHECK HEADLAMP INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH or LH connector.
3. Turn ignition switch ON.
4. Lighting switch is turned HIGH BEAM position.
5. Check voltage between front combination lamp RH or LH har-
ness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector and
front combination lamp RH or LH harness connector.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-26, "Removal and Installation of IPDM E/R" .
NG >> Repair harness or connector.
Front combination lamp
connectorTerminal
Ground Continuity
RH E24 4
Ye s
LH E40 4
PKIA4907E
Terminals
Voltage
(Approx.) (+)
(-)
Front combination lamp
connectorTerminal
RH E24 3
Ground Battery voltage
LH E40 3
PKIA4575E
Terminals
Continuity IPDM E/R Front combination lamp
Connector Terminal Connector Terminal
RH
E727 E24 3
Ye s
LH 28 E40 3
PKIA4574E

LT-104
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 November2007 350Z

to BCM terminal 42.
With ignition switch in ON or START position, power is supplied

to CPU located in IPDM E/R,

through 10A fuse [No.1, located in fuse block (J/B)]

to BCM terminal 38.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through grounds M30 and M66,

to IPDM E/R terminals 38 and 60

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position, the BCM receives input signal requesting the parking,
license plate, side marker and tail lamps to illuminate. This input is communicated to the IPDM E/R through
the CAN communication lines. The CPU located in the IPDM E/R controls the tail lamp relay coil and daytime
light relay
* coil. These relay, when energized, directs power to parking, license plate, side marker and tail
lamps, which when energized, directs power

through IPDM E/R terminal 22 (USA models)

through daytime light relay terminal 5 (Canada models)

to front combination lamp LH terminals 6

to front combination lamp RH terminals 6

to rear combination lamp LH terminals 2

to rear combination lamp RH terminals 2

to license plate lamp LH terminal 2, and

to license plate lamp RH terminal 2.
Ground is supplied at all times

to front combination lamp LH terminal 8, and

to front combination lamp RH terminal 8

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to rear combination lamp LH terminals 3

to rear combination lamp RH terminals 3

to license plate lamp LH terminal 1, and

to license plate lamp RH terminal 1

through grounds B5, B6, D105 and T14 (Coupe models)

through grounds B5, B6 and T14 (Roadster models).
With power and ground supplied, parking, license plate side marker and tail lamps illuminate.
NOTE:
Daytime light relay*: Canada models
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the parking, license, side marker and tail lamps remain illuminated for 5 minutes, then the
headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-III.

LT-128
INTERIOR ROOM LAMP
Revision: 2006 November2007 350Z
INTERIOR ROOM LAMPPFP:26410

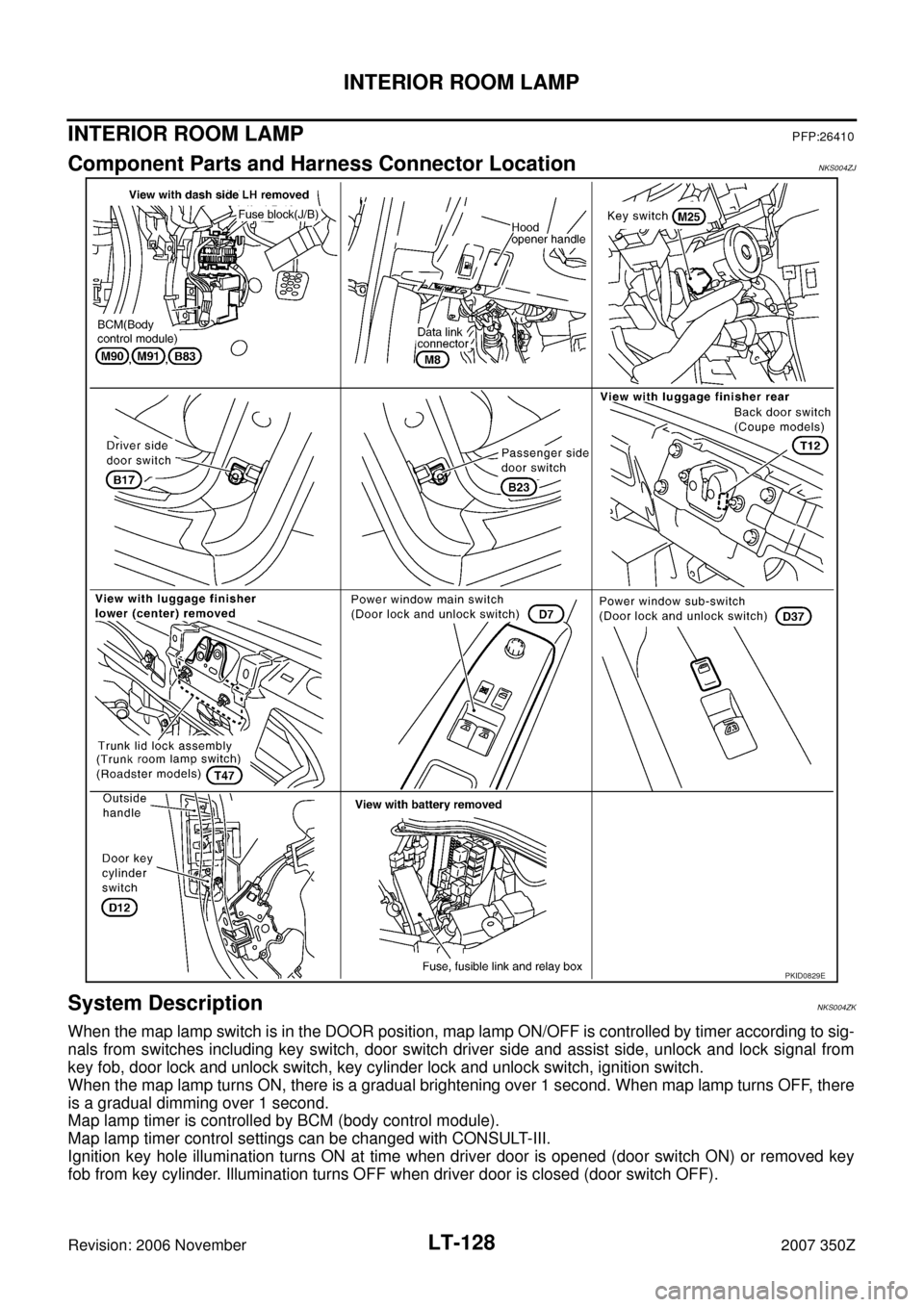

Component Parts and Harness Connector LocationNKS004ZJ
System DescriptionNKS004ZK
When the map lamp switch is in the DOOR position, map lamp ON/OFF is controlled by timer according to sig-
nals from switches including key switch, door switch driver side and assist side, unlock and lock signal from
key fob, door lock and unlock switch, key cylinder lock and unlock switch, ignition switch.
When the map lamp turns ON, there is a gradual brightening over 1 second. When map lamp turns OFF, there
is a gradual dimming over 1 second.
Map lamp timer is controlled by BCM (body control module).
Map lamp timer control settings can be changed with CONSULT-III.
Ignition key hole illumination turns ON at time when driver door is opened (door switch ON) or removed key
fob from key cylinder. Illumination turns OFF when driver door is closed (door switch OFF).
PKID0829E

INTERIOR ROOM LAMP
LT-131
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
When driver door opens → closes, and key is not inserted in key switch (key switch OFF), BCM terminal 62
changes between 0V (door open) → 5V (door closed). BCM determines that conditions for spot lamp opera-
tion are met and turns interior lamp ON for 30 seconds.
Timer control is canceled under the following conditions.

Driver door is locked (When locked key fob or power window main switch (door lock and unlock switch,
door key cylinder switch).

Driver door is opened (driver door switch turns ON).

Ignition switch ON.
INTERIOR LAMP BATTERY SAVER CONTROL
If the room lamp remains illuminated by door switch open signal, or if room lamp switch is in the ON position
for more than 30 minutes after the ignition switch is turned to the OFF position, BCM will automatically turn off
map lamp, luggage room lamp (Coupe models), trunk room lamp (Roadster models) and vanity mirror lamp.
After lamps turn OFF by battery saver system, the lamps illuminate again when

signal from key fob, door lock and unlock switch, or key cylinder is locked or unlocked,

door is opened or closed,

key is removed from ignition key cylinder or inserted in ignition key cylinder.
Interior lamp battery saver control period can be changed by the function setting of CONSULT-III.

INTERIOR ROOM LAMP
LT-143
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
CONSULT-III Function (BCM)NKS004ZQ
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
WORK SUPPORT
Display Item List
Reference between “MODE” and “TIME” for “TURN ON/OFF”
DATA MONITOR
Display Item List
NOTE:
This item is displayed, but cannot be monitored.BCM diagnosis part Diagnosis mode Description
INT LAMPWORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending driving signal to them.
Item Description CONSULT-III
SET I/L D−UNLCK INTCONThe 30 seconds glowing function interior room lamps and ignition keyhole illumi-
nation can be selected when driver door is released (unlocked). ON/OFF
ROOM LAMP ON TIME SETThe time in order to escalate illumination can be adjusted when interior room
lamps and ignition keyhole illumination is turned on.MODE 1 – 7
ROOM LAMP OFF TIME SETThe time in order to diminish illumination can be adjusted when interior room
lamps and ignition keyhole illumination is turned off.MODE 1 – 7
MODE 1 2 3 4 5 6 7
Time (sec.) 0.5 1 2 3 4 5 0
Monitor item Contents
IGN ON SW “ON/OFF” Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from ignition switch signal.
KEY ON SW “ON/OFF” Displays “Key inserted (ON)/key removed (OFF)” status judged from key switch signal.
DOOR SW - DR “ON/OFF”Displays status of driver door as judged from driver door switch signal. (Door is open: ON/Door
is closed: OFF)
DOOR SW - AS “ON/OFF”Displays “Door open (ON)/Door closed (OFF)” status, determined from passenger door switch
signal.
DOOR SW - RR
NOTE“OFF” —
DOOR SW - RL
NOTE“OFF” —
BACK DOOR SW “ON/OFF”

Displays status of back door as judged from back door switch signal. (Coupe models)

Displays status of rear trunk hood as judged from trunk lamp switch signal. (Roadster mod-
els)
KEY CYL LK - SW “ON/OFF” Displays “Door locked (ON) status, determined from key cylinder lock switch in driver door.
KEY CYL UN - SW “ON/OFF” Displays “Door unlocked (OFF) status, determined from key cylinder lock switch in driver door.
CDL LOCK SW “ON/OFF”Displays “Door locked (ON)/Door unlocked (OFF) status, determined from locking detection
switch in driver door.
CDL UNLOCK SW “ON/OFF”Displays “Door unlocked (OFF)” status, determined from locking detection switch in passenger
door.
KEYLESS LOCK “ON/OFF” Displays “Locked (ON)/Other (OFF)” status, determined from lock signal.
KEYLESS UNLOCK “ON/OFF” Displays “Unlocked (ON)/Other (OFF)” status, determined from unlock signal.

LT-158
ILLUMINATION
Revision: 2006 November2007 350Z
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST or 2ND position, and the ignition switch is turned
from ON or ACC to OFF, battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position after illumination lamps are turned off by
battery saver control, and illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-III.
CAN Communication System DescriptionNKS004ZZ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS00500
Refer to LAN-48, "CAN System Specification Chart" .
