2007 NISSAN 350Z engine

SERVICE INFORMATION FOR ELECTRICAL INCIDENT
GI-27
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
How to Perform Efficient Diagnosis for an Electrical IncidentNAS0000M
WORK FLOW
INCIDENT SIMULATION TESTS
Introduction
Sometimes the symptom is not present when the vehicle is brought in for service. If possible, re-create the
conditions present at the time of the incident. Doing so may help avoid a No Trouble Found Diagnosis. The fol-
lowing section illustrates ways to simulate the conditions/environment under which the owner experiences an
electrical incident.
The section is broken into the six following topics:

Vehicle vibration

Heat sensitive
SGI838
STEP DESCRIPTION
STEP 1Get detailed information about the conditions and the environment when the incident occurred.
The following are key pieces of information required to make a good analysis:
WHATVehicle Model, Engine, Transmission/Transaxle and the System (i.e. Radio).
WHENDate, Time of Day, Weather Conditions, Frequency.
WHERERoad Conditions, Altitude and Traffic Situation.
HOWSystem Symptoms, Operating Conditions (Other Components Interaction).
Service History and if any After Market Accessories have been installed.
STEP 2Operate the system, road test if necessary.
Verify the parameter of the incident.
If the problem cannot be duplicated, refer to “Incident Simulation Tests”.
STEP 3Get the proper diagnosis materials together including:

Power Supply Routing

System Operation Descriptions

Applicable Service Manual Sections

Check for any Service Bulletins
Identify where to begin diagnosis based upon your knowledge of the system operation and the customer comments.
STEP 4Inspect the system for mechanical binding, loose connectors or wiring damage.
Determine which circuits and components are involved and diagnose using the Power Supply Routing and Harness
Layouts.
STEP 5 Repair or replace the incident circuit or component.
STEP 6Operate the system in all modes. Verify the system works properly under all conditions. Make sure you have not inad-
vertently created a new incident during your diagnosis or repair steps.

GI-28
SERVICE INFORMATION FOR ELECTRICAL INCIDENT
Revision: 2006 November2007 350Z

Freezing

Water intrusion

Electrical load

Cold or hot start up
Get a thorough description of the incident from the customer. It is important for simulating the conditions of the
problem.
Vehicle Vibration
The problem may occur or become worse while driving on a rough road or when engine is vibrating (idle with
A/C on). In such a case, you will want to check for a vibration related condition. Refer to the following illustra-
tion.
CONNECTORS & HARNESS
Determine which connectors and wiring harness would affect the electrical system you are inspecting. Gently
shake each connector and harness while monitoring the system for the incident you are trying to duplicate.
This test may indicate a loose or poor electrical connection.
HINT
Connectors can be exposed to moisture. It is possible to get a thin film of corrosion on the connector termi-
nals. A visual inspection may not reveal this without disconnecting the connector. If the problem occurs inter-
mittently, perhaps the problem is caused by corrosion. It is a good idea to disconnect, inspect and clean the
terminals on related connectors in the system.
SENSORS & RELAYS
Gently apply a slight vibration to sensors and relays in the system you are inspecting.
This test may indicate a loose or poorly mounted sensor or relay.
ENGINE COMPARTMENT
There are several reasons a vehicle or engine vibration could cause an electrical complaint. Some of the
things to check for are:

Connectors not fully seated.

Wiring harness not long enough and is being stressed due to engine vibrations or rocking.

Wires laying across brackets or moving components.

Loose, dirty or corroded ground wires.

Wires routed too close to hot components.
To inspect components under the hood, start by verifying the integrity of ground connections. (Refer to Ground
Inspection described later.) First check that the system is properly grounded. Then check for loose connection
by gently shaking the wiring or components as previously explained. Using the wiring diagrams inspect the
wiring for continuity.
BEHIND THE INSTRUMENT PANEL
An improperly routed or improperly clamped harness can become pinched during accessory installation. Vehi-
cle vibration can aggravate a harness which is routed along a bracket or near a screw.
SGI839

GI-36
CONSULT-III/GST CHECKING SYSTEM
Revision: 2006 November2007 350Z
CONSULT-III/GST CHECKING SYSTEMPFP:00000
DescriptionNAS000A4

When CONSULT-III/GST is connected with a data link connector
(A) equipped on the vehicle side, it will communicate with the
control unit equipped in the vehicle and then enable various
kinds of diagnostic tests.

Refer to CONSULT-III operation manual for more information.
Function and System Application NAS0000P
x: Applicable
*: Nissan Anti-Theft System (Nissan Vehicle Immobilizer System)
1 : Instrument driver lower panel
SAIA1557E
Diagnostic test
modeFunction
ENGINE
A/T
ABS (Including TCS)
ABS (Including VDC)
AIR BAG
BCM
METER A/C AMP
NATS(NVIS) *
AIR PRESSURE MONITOR
IPDM E/R
Work supportThis mode enables a technician to adjust some devices faster
and more accurately by following the indications on CONSULT-
II.x- -x- x - - x -
Self-diagnostic
resultsSelf-diagnostic results can be read and erased quickly. x x x x x x x x x x
Trouble diagnostic
recordCurrent self-diagnostic results and all trouble diagnostic
records previously stored can be read.----x-----
Data monitor Input/Output data in the ECU can be read. x x x x - x x - x x
CAN diagnosis
support monitorThe condition of CAN communication line can be read. x x x x - x x - - x
Active testDiagnostic Test Mode in which CONSULT-II drives some actua-
tors apart from the ECUs and also shifts some parameters in a
specified range.x-xx-x- - -x
DTC & SRT confir-
mationThe results of SRT (System Readiness Test) and the self-diag-
nosis status/result can be confirmed.x---------
DTC work supportThis mode enables a technician to monitor the status/results of
self-diagnosis performed by the ECU.-x--------
ECU (ECM/TCM)
part numberECU (ECM/TCM) part number can be read. x x x x - - - - x -
ECU discriminated
No.Classification number of a replacement ECU can be read to
prevent an incorrect ECU from being installed.----x-----
Function testThis mode can show results of self-diagnosis of ECU with
either ‘OK’ or ‘NG’. For engines, more practical tests regarding
sensors/switches and/or actuators are available.xxxxx-----
Control unit initial-
izationAll registered ignition key IDs in NATS components can be ini-
tialized and new IDs can be registered.---- - - -x - -

LIFTING POINT
GI-39
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
LIFTING POINTPFP:00000
Commercial Service Tools NAS0000U
CAUTION:

Every time the vehicle is lifted up, maintain the complete vehicle curb condition.

Since the vehicle's center of gravity changes when removing main parts on the front side (engine,
transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission
jack or equivalent.

Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle,
suspension, etc.), support a jack up point on the front side garage jack with a mission jack or
equivalent.

Be careful not to smash or do not do anything that would affect piping parts.
Garage Jack and Safety Stand NAS0000V
WARNING:

Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes,
tubes, etc. under the vehicle.

Never get under the vehicle while it is supported only by the jack. Always use safety stands when
you have to get under the vehicle.

Place wheel chocks at both front and back of the wheels on the ground.
Tool name Description
Board on attachment
Safety stand attachment
S-NT001
S-NT002

GI-46
IDENTIFICATION INFORMATION
Revision: 2006 November2007 350Z
IDENTIFICATION INFORMATIONPFP:00010
Model VariationNAS00012
Prefix and suffix designations:
Body Engine TransmissionDestination
USA Canada
Coupe
VQ35HRRE5R05A (5A/T)GLTALSN-EUA GLTALTN-ENA
GLTALTN-EUA GLTALVN-ENA
GLTALVN-EUA —
FS6R31A (6M/T)GLTALRY-EUA GLTALTY-ENA
GLTALSY-EUA GLTALVY-ENA
GLTALTY-EUA —
GLTALUY-EUA —
GLTALVY-EUA —
RoadsterRE5R05A (5A/T)2LTALSN-EUA 2LTALTN-ENA
2LTALTN-EUA 2LTALVN-ENA
2LTALVN-EUA —
FS6R31A (6M/T)2LTALSY-EUA 2LTALTY-ENA
2LTALTY-EUA 2LTALVY-ENA
2LTALVY-EUA —
SAIA1551E

GI-48
IDENTIFICATION INFORMATION
Revision: 2006 November2007 350Z

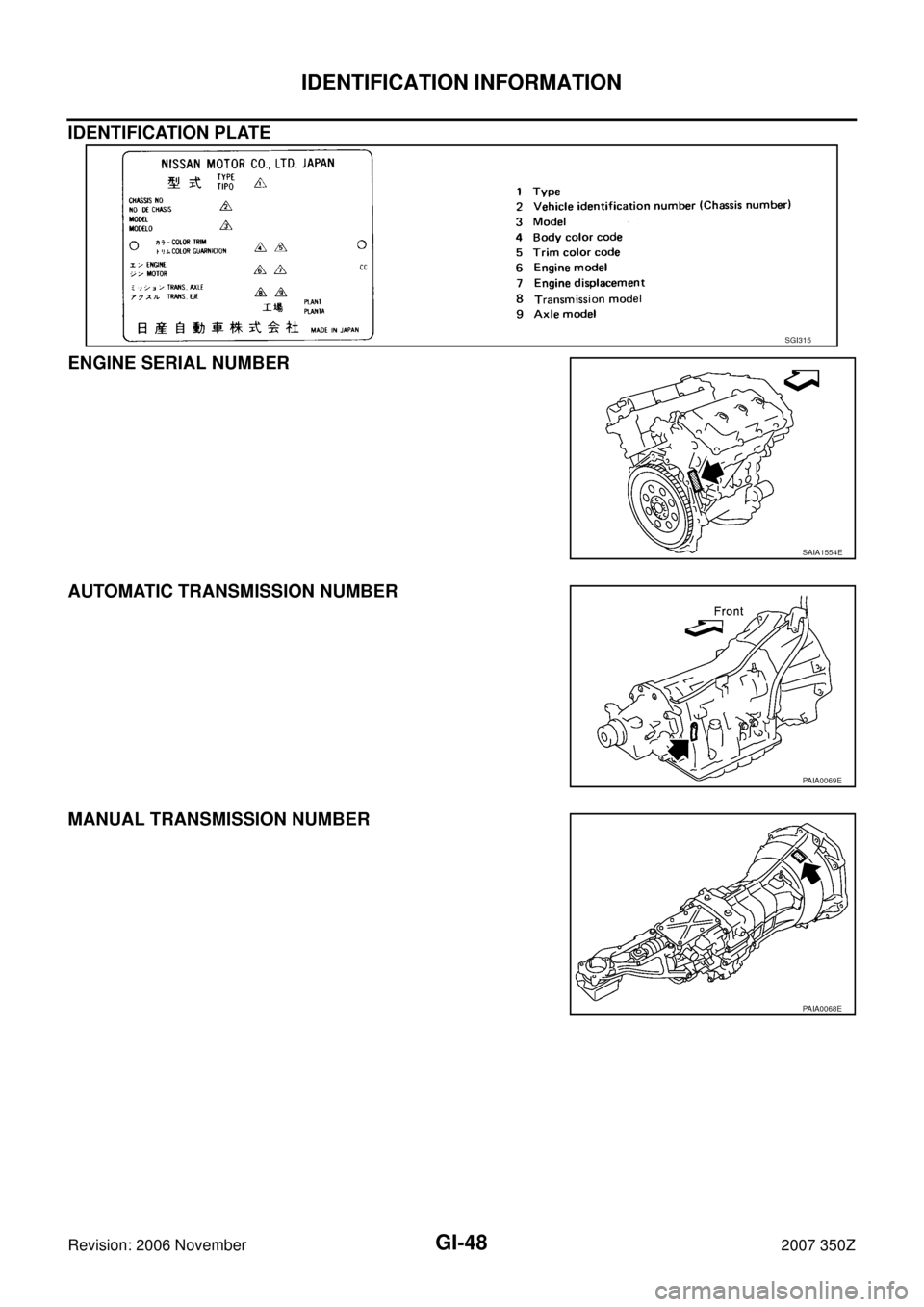

IDENTIFICATION PLATE
ENGINE SERIAL NUMBER
AUTOMATIC TRANSMISSION NUMBER
MANUAL TRANSMISSION NUMBER
SGI315
SAIA1554E
PAIA0069E
PAIA0068E

GI-50
TERMINOLOGY
Revision: 2006 November2007 350Z
TERMINOLOGYPFP:00011
SAE J1930 Terminology List NAS00017
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM
Air cleaner ACL Air cleaner
Barometric pressure BARO ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC ***
Data link connector for CONSULT-II DLC for CONSULT-II Diagnostic connector for CONSULT-II
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memoryEEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speed
Erasable programmable read only memory EPROM ***
Evaporative emission canister EVAP canister Canister
Evaporative emission system EVAP system Canister control solenoid valve
Exhaust gas recirculation valve EGR valve EGR valve

TERMINOLOGY
GI-51
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2006 November2007 350Z
Exhaust gas recirculation control-BPT
valveEGRC-BPT valve BPT valve
Exhaust gas recirculation control-solenoid
valveEGRC-solenoid valve EGR control solenoid valve
Exhaust gas recirculation temperature sen-
sor
EGRT sensor Exhaust gas temperature sensor
EGR temperature sensor
Flash electrically erasable programmable
read only memoryFEEPROM ***
Flash erasable programmable read only
memoryFEPROM ***
Flexible fuel sensor FFS ***
Flexible fuel system FF system ***
Fuel pressure regulator *** Pressure regulator
Fuel pressure regulator control solenoid
valve*** PRVR control solenoid valve
Fuel trim FT ***
Heated Oxygen sensor HO2S Exhaust gas sensor
Idle air control system IAC system Idle speed control
Idle air control valve-air regulator IACV-air regulator Air regulator
Idle air control valve-auxiliary air control
valveIACV-AAC valve Auxiliary air control (AAC) valve
Idle air control valve-FICD solenoid valve IACV-FICD solenoid valve FICD solenoid valve
Idle air control valve-idle up control sole-
noid valveIACV-idle up control solenoid valve Idle up control solenoid valve
Idle speed control-FI pot ISC-FI pot FI pot
Idle speed control system ISC system ***
Ignition control IC ***
Ignition control module ICM ***
Indirect fuel injection system IFI system ***
Intake air IA Air
Intake air temperature sensor IAT sensor Air temperature sensor
Knock *** Detonation
Knock sensor KS Detonation sensor
Malfunction indicator lamp MIL Check engine light
Manifold absolute pressure MAP ***
Manifold absolute pressure sensor MAPS ***
Manifold differential pressure MDP ***
Manifold differential pressure sensor MDPS ***
Manifold surface temperature MST ***
Manifold surface temperature sensor MSTS ***
Manifold vacuum zone MVZ ***
Manifold vacuum zone sensor MVZS ***
Mass air flow sensor MAFS Air flow meter
Mixture control solenoid valve MC solenoid valve Air-fuel ratio control solenoid valve
Multiport fuel injection System MFI system Fuel injection controlNEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM
