EXHAUST SYSTEM
PREPARATION ........................................................... 2
Commercial Service Tools ........................................ 2
EXHAUST SYSTEM ................................................... 3Checking Exhaust System ........................................ 3
Removal and Installation .......................................... 3
REMOVAL ............................................................. 4
INSTALLATION ..................................................... 4
INSPECTION AFTER INSTALLATION .................. 5
EXHAUST SYSTEM
EX-3
C
D
E
F
G
H
I
J
K
L
MA
EX
Revision: 2006 November2007 350Z

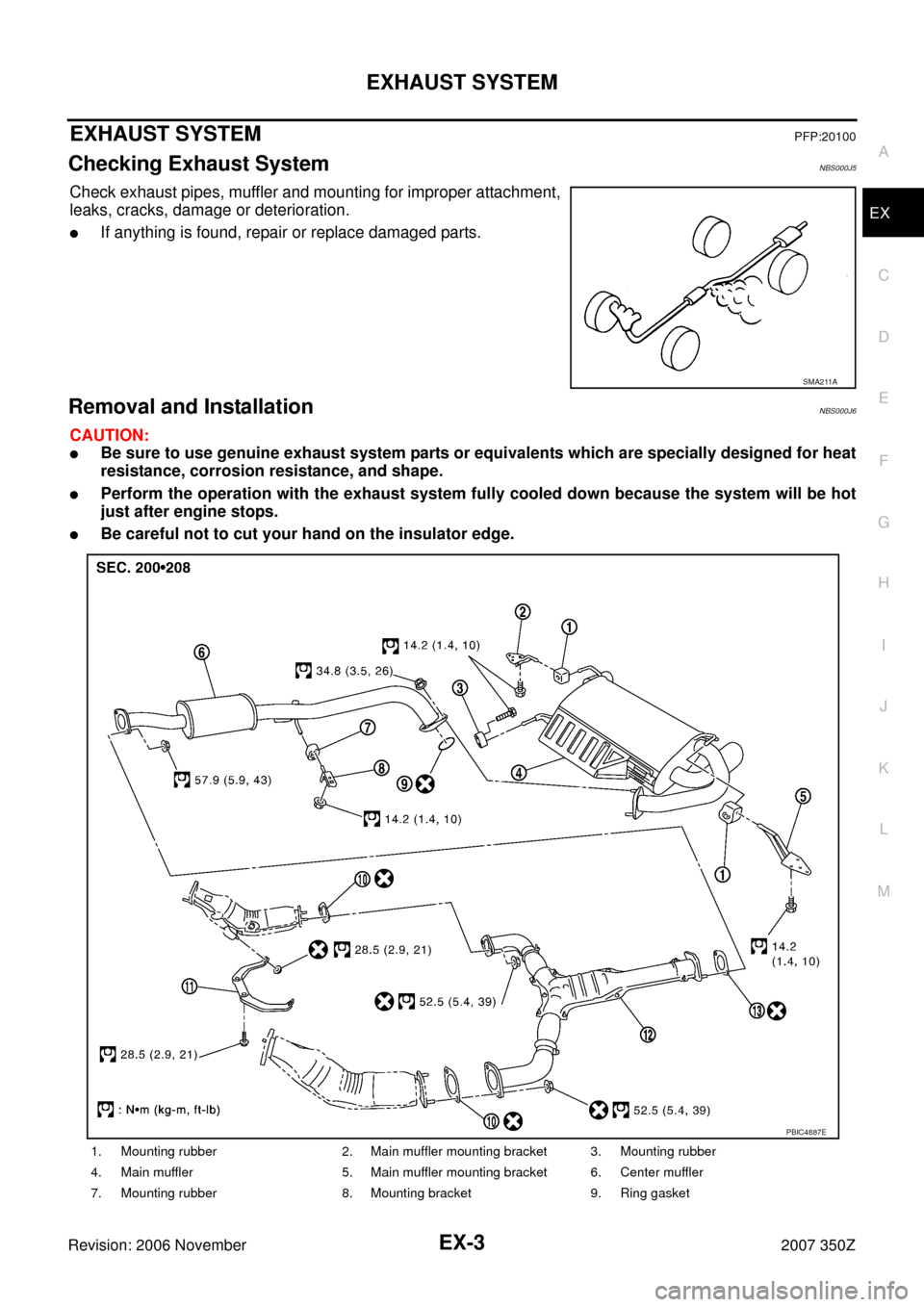

EXHAUST SYSTEMPFP:20100
Checking Exhaust SystemNBS000J5
Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
If anything is found, repair or replace damaged parts.
Removal and InstallationNBS000J6
CAUTION:
Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat
resistance, corrosion resistance, and shape.
Perform the operation with the exhaust system fully cooled down because the system will be hot
just after engine stops.
Be careful not to cut your hand on the insulator edge.
SMA211A
1. Mounting rubber 2. Main muffler mounting bracket 3. Mounting rubber
4. Main muffler 5. Main muffler mounting bracket 6. Center muffler
7. Mounting rubber 8. Mounting bracket 9. Ring gasket
PBIC4887E
EXHAUST SYSTEM
EX-5
C
D
E
F
G
H
I
J
K
L
MA
EX
Revision: 2006 November2007 350Z
INSPECTION AFTER INSTALLATION
Make sure that clearance between tail tube and bumper is even.
With engine running, check exhaust tube joints for gas leakage and unusual noises.
Make sure that mounting brackets and mounting rubbers are installed properly and free from undue
stress. Improper installation could result in excessive noise and vibration.
