2007 NISSAN 350Z engine

DTC P1217 ENGINE OVER TEMPERATURE
EC-547
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

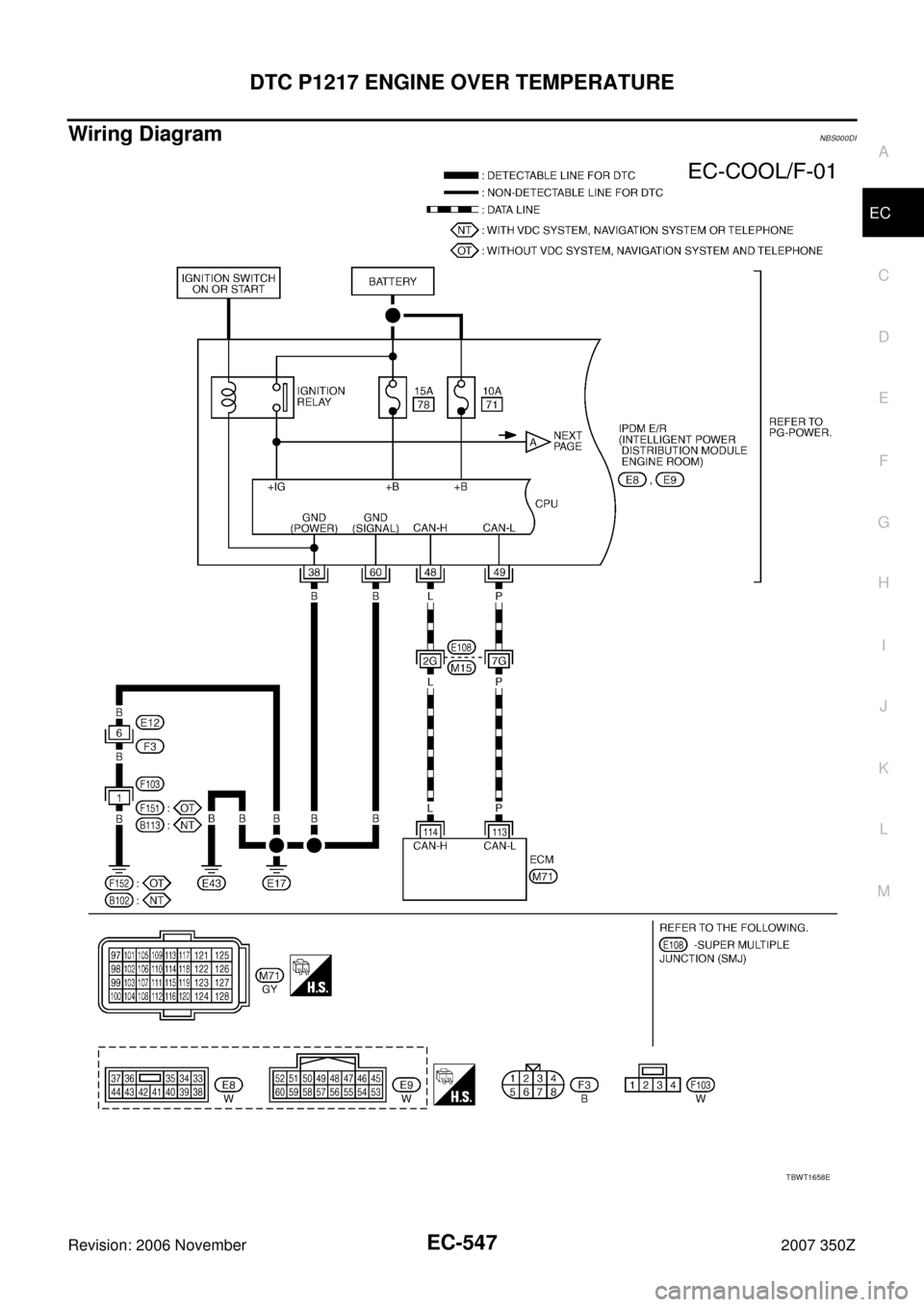

Wiring DiagramNBS000DI
TBWT1658E

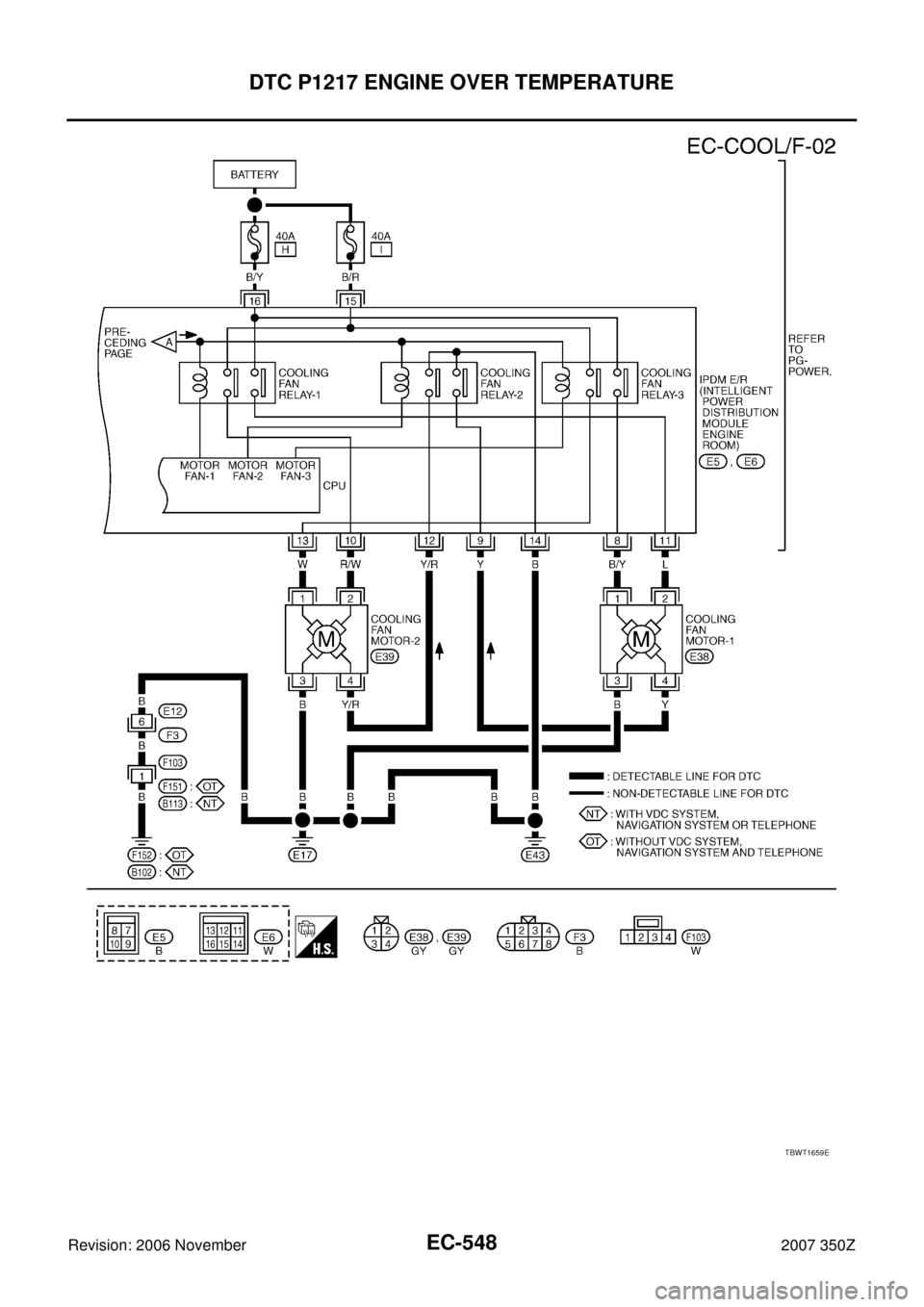

EC-548
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 November2007 350Z
TBWT1659E

DTC P1217 ENGINE OVER TEMPERATURE
EC-549
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS000DJ
1. INSPECTION START
Do you have CONSULT-III?
Ye s o r N o
Ye s > > G O T O 2 .
No >> GO TO 4.
2. CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-III
1. Start engine and let it idle.
2. Select “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III and touch “LOW” on the CONSULT-
III screen.
3. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 3.
NG >> Check cooling fan low speed control circuit. (Go to EC-551, "
PROCEDURE A" .)
3. CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-III
1. Touch “HIGH” on the CONSULT-III screen.
2. Make sure that cooling fans-1 and -2 operate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-554, "
PROCEDURE B" .)
4. CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-III
1. Start engine and let it idle.
2. Turn air conditioner switch ON.
3. Turn blower fan switch ON.
4. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go to EC-
551, "PROCEDURE A" .)
SEC163BA

EC-550
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 November2007 350Z
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-III
1. Turn ignition switch OFF.
2. Turn air conditioner switch and blower fan switch OFF.
3. Disconnect engine coolant temperature sensor harness connector.
4. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
5. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
554, "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Refer to CO-10, "
LEAK CHECK" .
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak.

Hose

Radiator

Water pump
7. CHECK RADIATOR CAP
Refer to CO-15, "
Checking Radiator Cap" .
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
8. CHECK THERMOSTAT
Refer to CO-26, "
WATER INLET AND THERMOSTAT ASSEMBLY" .
OK or NG
OK >> GO TO 9.
NG >> Replace thermostat
9. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-228, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace engine coolant temperature sensor.
10. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-555, "
Main 12 Causes of Overheating" .
>>INSPECTION END
MEC475B

DTC P1217 ENGINE OVER TEMPERATURE
EC-551
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
PROCEDURE A
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E6.
3. Check voltage between IPDM E/R terminals 15, 16 and ground
with CONSULT-III or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

40A fusible links

Harness for open or short between IPDM E/R and battery
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB1924E

EC-552
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 November2007 350Z
3. CHECK COOLING FAN MOTORS CIRCUIT
1. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
2. Disconnect all IPDM E/R harness connectors.
3. Check harness continuity between the following;
cooling fan motor-1 terminal 2 and IPDM E/R terminal 11,
cooling fan motor-1 terminal 3 and ground,
IPDM E/R terminal 38, 60 and ground,
Refer to wiring diagram.
4. Check harness continuity between the following;
cooling fan motor-2 terminal 2 and IPDM E/R terminal 10,
cooling fan motor-2 terminal 3 and ground.
Refer to wiring diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connector E12, F3

Harness connectors F103, B113 (Models with VDC system, navigation system or telephone) or F151
(Models wiithout VDC system, navigation system and telephone)

Harness for open or short between cooling fan motors-1, 2 and IPDM E/R

Harness for open or short between cooling fan motors-1, 2 and ground

Harness for open or short between IPDM E/R and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK COOLING FAN MOTORS
Refer to EC-556, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning cooling fan motors.
1. Cooling fan motor-1 2. Cooling fan motor-2
:Vehicle front
Continuity should exist.
Continuity should exist.
PBIB3509E

DTC P1217 ENGINE OVER TEMPERATURE
EC-553
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
6. CHECK INTERMITTENT INCIDENT
Perform EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-16, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connector.

EC-554
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 November2007 350Z
PROCEDURE B
1. CHECK COOLING FAN MOTORS CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Disconnect all IPDM E/R harness connectors.
4. Check harness continuity between the following;
cooling fan motor-1 terminal 1 and IPDM E/R terminal 8,
cooling fan motor-1 terminal 4 and IPDM E/R terminal 9,
IPDM E/R terminal 14 and ground,
Refer to wiring diagram.
5. Also check harness connector for short to ground or short to power.
6. Check harness continuity between the following;
cooling fan motor-2 terminal 1 and IPDM E/R terminal 13,
cooling fan motor-2 terminal 4 and IPDM E/R terminal 12,
Refer to wiring diagram.
7. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness for open or short between cooling fan motors-1, 2 and IPDM E/R

Harness for open or short between IPDM E/R and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK COOLING FAN MOTORS
Refer to EC-556, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace malfunctioning cooling fan motors.
1. Cooling fan motor-1 2. Cooling fan motor-2
:Vehicle front
Continuity should exist.
Continuity should exist.
PBIB3509E
