COMBINATION METERS
DI-5
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
TACHOMETER

ECM provides engine speed signal to unified meter and A/C amp. with CAN communication line.

Unified meter and A/C amp. transmits engine speed signal to combination meter with communication line.

Combination meter indicates the engine speed according to engine speed signal.
WATER TEMPERATURE GAUGE

ECM provides engine coolant temperature signal to unified meter and A/C amp. with CAN communication
line.

Unified meter and A/C amp. transmits engine coolant temperature signal to combination meter with com-
munication line.

Combination meter indicates the engine coolant temperature according to engine coolant temperature
signal.
FUEL GAUGE

Unified meter and A/C amp. reads a resistor signal from fuel level sensor.
Signal is supplied
–from unified meter and A/C amp. terminal 36
–through fuel level sensor unit and fuel pump (main) terminals 5 and 2, and
–through fuel level sensor unit (sub) terminals 2 and 1
–to unified meter and A/C amp. terminal 28.

Unified meter and A/C amp. provides a fuel level signal to combination meter with communication line.

Combination meter indicates the approximate fuel level according to fuel level signal.
ODO/TRIP METER

VDC/TCS/ABS control unit [with VDC] or ABS actuator and electric unit (control unit) [without VDC] pro-
vides a vehicle speed signal to the unified meter and A/C amp. with CAN communication line.

Unified meter and A/C amp. converts the vehicle speed signal to the 8-pulse signal, and outputs the vehi-
cle speed signal (8-pulse) to combination meter.

Combination meter uses the vehicle speed signal (8-pulse) to calculate the mileage, and displays it.
PKIB7631E
PKIB7632E

DI-6
COMBINATION METERS
Revision: 2006 November2007 350Z
How to Change The Display
Pressing the odo/trip meter switch toggles the display mode in the following order.

The odo/trip meter display mode toggling and trip display resetting can be identified by the time elapsed
from pressing the odo/trip meter switch to releasing it.

When resetting with “trip A” displayed, only “trip A” is reset. (The “trip B” functions in the same way.)
NOTE:
The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter is
erased when the battery cable is disconnected.
ILLUMINATION CONTROL
Daytime Mode
When ignition switch is turned ON, combination meter and triple meter illumination is turned ON by unified
meter control unit.
Nighttime Mode

Unified meter control unit is transferred to nighttime mode, with ignition switch turned ON and position
light request signal from BCM with CAN communication.

When in nighttime mode, trip computer switch, and illumination control switch illumination turns ON by
unified meter control unit. Each illumination is controlled by unified meter control unit.

Each illumination can be adjusted to 16 step by illumination con-
trol switch in nighttime mode.
NOTE:
For further details of illumination circuit, refer to LT- 1 5 6 , "
ILLUMINA-
TION" .
PKIC4659E
SKIA7096E

COMBINATION METERS
DI-7
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
SHIFT-UP INDICATOR

Shift-up indicator can be used when shifting up at a constant
engine speed from any gear while driving. It becomes a guide
for shift-up timing.

Shift-up indicator flashes approximately 500 rpm before reach-
ing the engine speed set. It illuminates when reaching the
engine speed set.
Shift-up engine speed can be set by the shift-up indicator setting
mode on trip computer. Refer to DI-29, "
Shift-up Indicator Setting
Mode" .
NOTE:

There may be a time lag between the shift-up indicator illumina-
tion and the tachometer indication.

If the battery cable is disconnected, the set engine speed becomes 7,000 rpm.
FA I L - S A F E
Combination meter performs fail-safe operation when unified meter and A/C amp. communication is malunc-
tion.
PKIA2097E
Function Fail-safe operation
Speedometer Return to zero
Tachometer
Reset to zero Fuel gauge
Water temperature gauge
Illumination control Combination meter illumination Change to nighttime mode
Odo/trip meter Integrate in response to 8-pulse input
A/T indicator The display turns OFF
Meter buzzer The meter buzzer turns OFF
Warning lamp/indicator lampABS warning lamp
The lamp turns ON VDC OFF indicator lamp
TCS OFF indicator lamp
SLIP indicator lamp
Brake warning lamp
Tire pressure warning lamp
A/T CHECK lamp
The lamp turns OFF Oil pressure warning lamp
Door warning lamp
High beam indicator lamp
Turn signal indicator lamp
Malfunction indicator lamp
CRUISE indicator lamp
SET indicator lamp

COMBINATION METERS
DI-15
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
Self-Diagnosis Mode of Combination MeterNKS0005Z
SELF-DIAGNOSIS FUNCTION

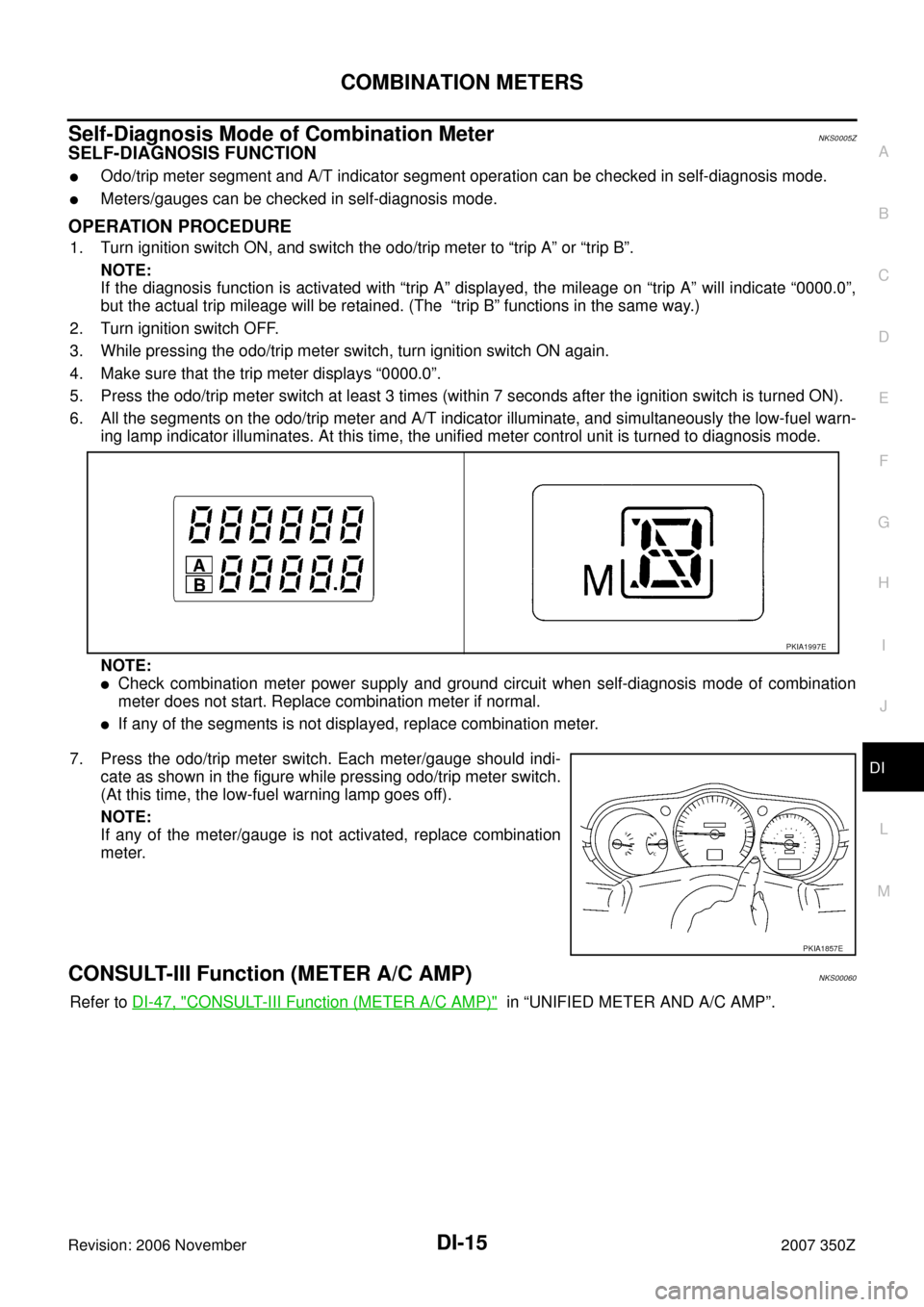

Odo/trip meter segment and A/T indicator segment operation can be checked in self-diagnosis mode.

Meters/gauges can be checked in self-diagnosis mode.
OPERATION PROCEDURE
1. Turn ignition switch ON, and switch the odo/trip meter to “trip A” or “trip B”.
NOTE:
If the diagnosis function is activated with “trip A” displayed, the mileage on “trip A” will indicate “0000.0”,
but the actual trip mileage will be retained. (The “trip B” functions in the same way.)
2. Turn ignition switch OFF.
3. While pressing the odo/trip meter switch, turn ignition switch ON again.
4. Make sure that the trip meter displays “0000.0”.
5. Press the odo/trip meter switch at least 3 times (within 7 seconds after the ignition switch is turned ON).
6. All the segments on the odo/trip meter and A/T indicator illuminate, and simultaneously the low-fuel warn-
ing lamp indicator illuminates. At this time, the unified meter control unit is turned to diagnosis mode.
NOTE:

Check combination meter power supply and ground circuit when self-diagnosis mode of combination
meter does not start. Replace combination meter if normal.

If any of the segments is not displayed, replace combination meter.
7. Press the odo/trip meter switch. Each meter/gauge should indi-
cate as shown in the figure while pressing odo/trip meter switch.
(At this time, the low-fuel warning lamp goes off).
NOTE:
If any of the meter/gauge is not activated, replace combination
meter.
CONSULT-III Function (METER A/C AMP)NKS00060
Refer to DI-47, "CONSULT-III Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
PKIA1997E
PKIA1857E

TRIPLE METERS
DI-27
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
TRIP COMPUTER
Function
When the ignition switch is turned ON, the display scrolls all the modes. And then shows the mode chosen
before the ignition switch is turned OFF.

Trip computer is operated by the trip computer switch.

Trip computer receives a switch signal from combination meter
through the unified meter and A/C amp. with communication
line.
The mode of the trip computer is the following.

Vehicle speed

Ambient air temperature

DTE (distance to empty)

Average fuel consumption

Average vehicle speed

Trip time

Trip distance

St op watc h

Shift-up indicator setting mode
How to Change/ Reset the Displayed Mode

The displayed mode can be selected in the following order by momentarily pressing the trip computer
mode switch.
–Vehicle speed → Ambient air temperature → DTE → Average fuel consumption and average vehicle
speed → Trip time and trip distance → Stopwatch → Shift-up indicator setting

Holding the trip computer setting switch for more than 1 second resets the displayed mode (Average fuel
consumption, average vehicle speed, trip time, trip distance or stopwatch).
NOTE:
When the ambient air temperature warning, the tire pressure warning, and the DTE warning, match warning
conditions at the same time, the display automatically displays the ambient air temperature warning.
Vehicle Speed

Trip computer receives vehicle speed signal from combination meter through the unified meter and A/C
amp. with communication line.

Trip computer displays the vehicle speed according to vehicle speed signal.
Ambient Air Temperature

Unified meter and A/C amp. reads ambient air temperature signal from ambient air temperature sensor.
Signal is supplied
–from unified meter and A/C amp. terminal 39
–through ambient sensor terminal 1 and 2
–to unified meter and A/C amp. terminal 49.

Trip computer receives ambient air temperature signal from the unified meter and A/C amp. with commu-
nication line.

Trip computer displays ambient air temperature according to ambient air temperature signal.
NOTE:

Indication range is between −30 and 55 °C (−22 and 131 °F).

When ambient air temperature is less than −30 °C (−22 °F) or more than 55 °C (131 °F), the display
shows “--”.

When ambient air temperature is less than 3 °C (37 °F) continuously, the display shows “ICY” as warning.
At more than 4 °C (39 °F) the display stops showing “ICY”.
PKIA2098E

DI-28
TRIPLE METERS
Revision: 2006 November2007 350Z
DTE (Distance to Empty)

Unified meter and A/C amp. uses following signals to calculate the DTE signal.
–Fuel remaining signal (from the fuel level sensor unit)
–Fuel consumption signal (from ECM)
–Vehicle speed signal [from VDC/TCS/ABS control unit or ABS actuator and electric unit (control unit)]

Trip computer receives DTE signal from the unified meter and A/C amp. with communication line.

Trip computer displays the DTE according to DTE signal.

The indication is refreshed every 30 seconds.
NOTE:

When fuel remaining is less than approx. 10 (10-5/8 US qt, 8-3/4 Imp qt), the display shows “dte” blink
as a warning. And the fuel remaining is less than approx. 8 (8-1/2 US qt, 7 Imp qt), the display shows “-
---”.

When the battery cable is disconnected and reconnected, the display shows “----” for 30 seconds.
Average Fuel Consumption

Unified meter and A/C amp. uses following signals to calculate the average fuel consumption signal.
–Fuel consumption signal (from ECM)
–Vehicle speed signal [from VDC/TCS/ABS control unit or ABS actuator and electric unit (control unit)]

Trip computer receives the average fuel consumption signal from the unified meter and A/C amp. with
communication line.

Trip computer displays the average fuel consumption according to the average fuel consumption signal.

The indication is refreshed every 30 seconds.
NOTE:
If the average fuel consumption is reset, the average vehicle speed is reset at the same time. While driving
about 1/3 miles (500 m) or for 80 seconds after resetting, the display shows “----”.
Average Vehicle Speed

Unified meter and A/C amp. uses following signals to calculate the average vehicle speed signal.
–Trip distance signal
–Trip time signal

Trip computer receives the average vehicle speed signal from the unified meter and A/C amp. with com-
munication line.

Trip computer displays the average vehicle speed according the average vehicle speed signal.

The indication shows refreshed every 30 seconds.
NOTE:
If the average vehicle speed is reset, the average fuel consumption will be reset at the same time. After reset-
ting, the display will show “----” for 30 seconds.
Trip Time

Unified meter and A/C amp. calculates the time during ignition switch ON.

Trip computer receives the trip time signal from the unified meter and A/C amp. with communication line.

Trip computer displays trip time according to the trip time signal.
NOTE:
If trip time is reset, trip distance is reset at the same time.
Trip Distance

Unified meter and A/C amp. uses following signals to calculate the average fuel consumption signal.
–Trip time signal
–Vehicle speed signal from VDC/TCS/ABS control unit or ABS actuator and electric unit (control unit)

Trip computer receives the trip distance signal from the unified meter and A/C amp. with communication
line.

Trip computer displays the trip distance according to the trip distance signal.
NOTE:
If trip distance is reset, trip time will be reset at the same time.

TRIPLE METERS
DI-29
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
Stopwatch
Trip computer displays stopwatch.
NOTE:

After 100 hours, the time will start from the reset display again.

Even if the display is switched to the other mode while the time is starting, the stopwatch continues to
advance until the time in the stopwatch mode is stopped.

When the ignition switch is turned OFF, the stopwatch is reset.
Shift-up Indicator Setting Mode
NOTE:
The range of engine speed is 2,000 - 8,000 rpm (when exceeding 8,000 rpm returns to 2,000 rpm).
FA I L - S A F E
Triple meter performs fail-safe operation when unified meter and A/C amp. communication is malfunctioning.
Trip computer setting switchPress and hold
(for more than 1 sec.)Press
(for less than 1 sec.)
Setting engine speed Increase setting engine speed by 500 rpm. Increase setting engine speed by 100 rpm.
Function Fail-safe operation
Trip computerVehicle speed indication Displays “---”
Outside air temperature indication Displays “--”
DTE (Distance to empty) indication
Displays “----” Average fuel consumption indication
Average vehicle speed indication
Trip distance indication
Trip time indication Displays “--:--”
Illumination control Triple meter illumination Change to nighttime mode.

DI-38
TRIPLE METERS
Revision: 2006 November2007 350Z
Self-Diagnosis Mode of Triple MeterNKS0006L
SELF-DIAGNOSIS FUNCTION
Triple meter operation can be checked with self-diagnosis mode of combination meter.
OPERATION PROCEDURE
1. While pressing the odo/trip meter switch, turn ignition switch ON.
2. Make sure that the trip meter displays “0000.0”.
3. Press the odo/trip meter switch at least 3 times (within 7 seconds after the ignition switch is turned ON).
4. All the segments on the trip computer illuminate. At this time, the triple meter is turned to self-diagnosis
mode.
NOTE:
If any of the segments is not displayed, replace triple meter.
5. Press the odo/trip meter switch. voltmeter and oil pressure
gauge should indicate as shown in the figure while pressing odo/
trip meter switch.
NOTE:
If voltmeter or oil pressure gauge is not activated, replace triple
meter.
CONSULT-III Function (METER A/C AMP)NKS0006M
Refer to DI-47, "CONSULT-III Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
SKIA8981E
PKIA1942E
