2007 MINI COOPER CONVERTIBLE traction control

18
INDICATOR AND WARNING LAMPSRed: have it checked soon
Airbags
+
There is a malfunction in the airbag
system. Have the system checked
as soon as possible.
More information on page77.
Brake pads
The brake pads have reached the
minimum safe limit for lining wear.
Have the brake pads replaced immediately.
More information on page99.
Yellow: have it checked soon
Antilock Brake System (ABS)
+
The ABS has failed. Conventional
braking efficiency is available. Have
the system checked as soon as possible.
More information on page72.
Canadian models display this
warning lamp.
Automatic Stability Control plus
Traction ASC/Dynamic Stability
Control DSC
+
Indicator lamp flashes:
System active: drive and brake forces are
regulated.
Indicator lamp lights up continuously:
ASC/DSC has been deactivated at the but-
ton or is malfunctioning.
If there is a malfunction: have the system
checked as soon as possible.
More information on page72.
Engine
+
The exhaust emissions have deteri-
orated.
Have the vehicle checked as soon as possi-
ble.
Canadian models display this
warning lamp.
Engine electronics
* +
The engine electronics are mal-
functioning. You can continue to
drive with reduced engine output or engine
speed. Have the vehicle checked as soon as
possible.

55
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
PARKING BRAKE MANUAL TRANSMISSIONforce. Keep your thumb pressed against the
release button while pulling the lever up
carefully.
Otherwise, excessive force could lead to
overbraking and loss of traction, i.e. fish-
tailing, at the rear axle.<
To avoid corrosion and one-sided
braking, apply the parking brake
lightly from time to time when coasting to
a standstill, for instance at a traffic light,
provided that it is safe to do so. The brake
lamps do not come on when the parking
brake is engaged.<
6-speed transmission*
When shifting into 5th or 6th gear,
press the gearshift lever to the right.
Otherwise, the engine could be damaged
by accidentally engaging 3rd or 4th gear.<
Reverse gearBefore selecting reverse gear, ensure the
vehicle is stationary; then, fully depress the
clutch and pause briefly before moving the
gearshift lever into position.
5-speed transmission:
Press the gearshift lever to the right and to
the back.
6-speed transmission:
Press the gearshift lever towards the left.
Thereby overcome the slight resistance and
press forward.

72
DRIVING STABILITY CONTROL SYSTEMSYour MINI or MINI Convertible is equipped
with a series of systems that help maintain
driving stability even in adverse driving sit-
uations.Antilock Brake System (ABS)ABS keeps the wheels from locking during
braking. Steering stability is maintained
even during full brake applications. In this
way, active safety is enhanced.
ABS is operational each time the engine is
started. Braking safely, refer to page99.Cornering Brake Control CBCDriving stability and steering characteris-
tics are further enhanced while braking in
turns or during a lane change.Electronic Brake Force Distribution
(EBD)The system controls brake-force applica-
tion at the rear wheels in order to obtain
increased stability in the vehicle's braking
response.All Season traction Control (ASC)*ASC prevents slip at the drive wheels while
starting off and accelerating the vehicle.
ASC also recognizes unstable vehicle condi-tions, such as fishtailing or nose-diving. In
these cases, and subject to physical limits,
ASC helps to keep the vehicle on a steady
course by reducing engine speed and by
applying brakes at individual wheels. This
system optimizes driving stability and trac-
tion, especially when just starting off,
when accelerating or when cornering.
The ASC is operational each time you start
the engine. It integrates the Antilock Brake
System (ABS) and Electronic Brake Force
Distribution (EBD).
The laws of physics cannot be
repealed, even with ASC. An appropri-
ate driving style always remains the
responsibility of the driver. Avoid using the
additional safety margin provided by the
system as an excuse for taking unnecessary
risks.
Do not make any modifications to the ASC
system. Allow only authorized technicians
to perform service procedures on the
ASC.<
Dynamic Stability Control (DSC)*DSC prevents slip at the drive wheels while
starting off and accelerating the vehicle.
DSC also recognizes unstable vehicle condi-
tions, such as fishtailing or nose-diving. In
these cases, and subject to physical limits,
DSC helps to keep the vehicle on a steady
course by reducing engine speed and by
applying brakes at individual wheels.
The DSC is operational every time you start
the engine. It integrates All Season traction
Control (ASC).
The laws of physics cannot be
repealed, even with DSC. An appro-
priate driving style always remains the
responsibility of the driver. Avoid using the
additional safety margin provided by the
system as an excuse for taking unnecessary
risks.
Do not make any modifications to the DSC
system. Allow only authorized technicians
to perform service procedures on the
DSC.<

108
TIRE CODINGKnowing the tire code on the tire's sidewall
makes it easier for you to choose and iden-
tify the correct tires.Tire sizee.g. 205/45 R 17 84 V
Nominal width in mm
Cross-sectional
ratio in %
Radial belt construction
Rim diameter in inches
Load index,
not on ZR tires
Speed code letter,
in front of the R on ZR tires
Speed code letters:
Q = up to 100 mph / 160 km/h
T = up to 118 mph / 190 km/h
H = up to 131 mph / 210 km/h
V = up to 150 mph / 240 km/h
W= up to 167mph/ 270km/hTire Identification NumberTires with DOT codes meet the guidelines
of the US Department of Transportation.DOT code:
e.g. DOT xxxx xxx 3506
Manufacturer's code
for tire make
Tire size and
tire version
Tire age
Tire ageThe tire's date of manufacture is included
in the tire coding:
DOT...3506 means that the tire was manu-
factured in the 35th week of the year 2006.
The manufacturer of your MINI recom-
mends replacing all tires after 6 years at
the latest, even if a tire service life of
10 years is possible.Uniform Tire Quality GradingQuality grades can be found where applica-
ble on the tire sidewall between tread
shoulder and maximum section width.
For example:
Treadwear 200 Traction AA
Temperature A
DOT quality gradesTread wear
Traction AA A B C
Temperature A B C
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades. ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course.
For example, a tire graded 150 would wear
one and one-half, 1γ, times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences in
road characteristics and climate.

109
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
TIRE CODING TIRE CONDITION Traction The traction grades, from highest to low-
est, are AA, A, B, and C.
Those grades represent the tire‘s ability to
stop on wet pavement as measured under
controlled conditions on specified govern-
ment test surfaces of asphalt and concrete.
A tire marked C may have poor traction per-
formance.
The traction grade assigned to this
tire is based on straight-ahead brak-
ing traction tests, and does not include
acceleration, cornering, hydroplaning, or
peak traction characteristics. B and C, representing the tire's resistance
to the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor lab-
oratory test wheel.
Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure. The grade C
corresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the labora-
tory test wheel than the minimum required
by law.
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive loading,
either separately or in combination, can
cause heat buildup and possible tire fail-
ure. lar symbol containing the letters RSC on
the side of the tire, refer to page111.M+SWinter and all-season tires.
These have better winter performance
properties than summer tires.
Inspect your tires frequently for tread wear,
signs of damage and for foreign objects
lodged in the tread. Check the tread depth.Tire treadTread depth should not be allowed to go
below 1/8 in/3 mm even though in Europe,
for example, the legally specified minimum
tread depth is only 1/16 in/1.6 mm.
Below 1/8 in/3 mm tread depth, there is a
very high danger of hydroplaning at higher
speeds, even with only small amounts of
water on the road.
At tread depths below approx. 1/6 in/
4 mm, the ability of winter tires to cope
with winter driving conditions decreases
perceptibly. For safety reasons, new tires
should be mounted.

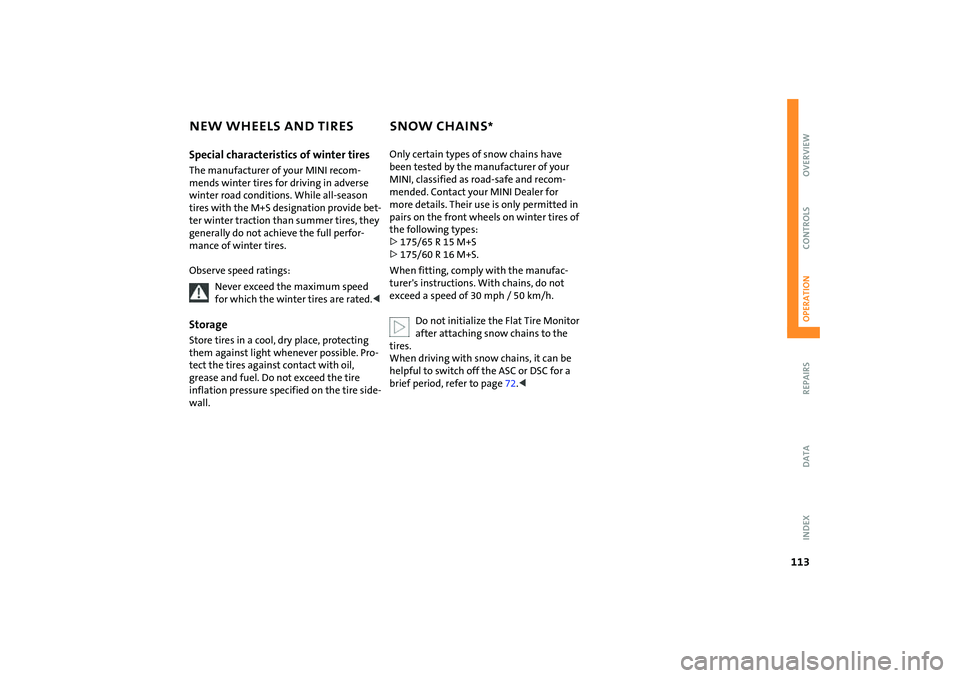

113
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
NEW WHEELS AND TIRES SNOW CHAINS
*
Special characteristics of winter tires
The manufacturer of your MINI recom-
mends winter tires for driving in adverse
winter road conditions. While all-season
tires with the M+S designation provide bet-
ter winter traction than summer tires, they
generally do not achieve the full perfor-
mance of winter tires.
Observe speed ratings:
Never exceed the maximum speed
for which the winter tires are rated. them against light whenever possible. Pro-
tect the tires against contact with oil,
grease and fuel. Do not exceed the tire
inflation pressure specified on the tire side-
wall.
Only certain types of snow chains have
been tested by the manufacturer of your
MINI, classified as road-safe and recom-
mended. Contact your MINI Dealer for
more details. Their use is only permitted in
pairs on the front wheels on winter tires of
the following types:
>175/65 R 15 M+S
>175/60 R 16 M+S.
When fitting, comply with the manufac-
turer's instructions. With chains, do not
exceed a speed of 30 mph / 50 km/h.
Do not initialize the Flat Tire Monitor
after attaching snow chains to the
tires.
When driving with snow chains, it can be
helpful to switch off the ASC or DSC for a
brief period, refer to page72.<

EVERYTHING FROM A TO Z
156
A
ABS Antilock Brake System72
indicator lamp17,18
Accessories, refer to Your
individual vehicle6
Activated-charcoal filter84
Adjusting interior
temperature80,83
Air circulation, refer to
Recirculated air mode80,83
Air conditioning system79
Air distribution
air conditioning system80
automatic climate control83
individual84
manual80
Air outlets, refer to
Ventilation81,84
Air pressure, refer to Tire
inflation pressure104
Air volume
air conditioning system80
automatic climate control83
Airbags76
passenger airbag status
lamp77
safe seating position42
warning lamp18
AKI, refer to Fuel quality101 All Season traction Control
(ASC)72
indicator lamps17,18
All-season tires, refer to Winter
tires113
Antenna123
Antifreeze
coolant118
washer fluid64
Antilock Brake System (ABS)72
indicator lamp17,18
Anti-theft system24
Approved axle load, refer to
Weights151,152
Approved engine oils118
Approved gross vehicle weight,
refer to Weights151,152
Armrest, refer to Center
armrest86
ASC All Season traction
Control72
indicator lamps17,18
Assistant systems, refer to
All Season traction Control
(ASC)72
Dynamic Stability Control
(DSC)72
AUTO program, refer to
Automatic air distribution83 Automatic
air distribution83
air volume83
cruise control65
Automatic car washes122
Automatic climate control82
Automatic transmission with
Steptronic
ignition53
indicator lamp57
interlock53
selector lever lock56
shiftlock56
towing144
tow-starting145
Aux-In socket85
Average consumption71
setting units71
Average speed71

setting units71
Axle loads, refer to
Weights151,152
B
Backrests, refer to
Adjusting seats44
Backup lamp
bulb replacement131
Bar, towing144
Base plate for telephone or
mobile phone86 Battery140
charging140
disposal140
indicator lamp16
jump-starting142
power failure140
Battery care69,121
Being towed144
Belts, refer to Safety belts46
Beverage holders86
Black ice, refer to Temperature
warning70
Blower
air conditioning system80
automatic climate control83
Blower, refer to Air volume80
Blowers, refer to Draft-free
ventilation81,84
Bonnet114
indicator lamp17
Bottle holders, refer to
Beverage holders86
Brake discs
brake system99
break-in procedures98
Brake fluid120
level120

warning lamp16
Brake lamps, bulb
replacement131

EVERYTHING FROM A TO Z
164
Replacement of tires
changing tires133
new wheels and tires112
Reporting safety defects9
Reserve indicator light, refer to
Fuel gauge67,68
Reservoir for washer fluid64
Reservoir, washing systems64
Restraint systems
for children50
refer to Safety belts46
Retaining straps94
Reverse
automatic transmission with
Steptronic56
manual transmission55
Rod antenna123
Roller sun blind34
Roof load, refer to
Weights151,152
Roof-mounted luggage rack95
Rope, refer to Towing and Tow-
starting144
RSC Runflat System
Component, refer to
Run-Flat Tires111
Runflat System Component
RSC, refer to Run-Flat
Tires111 Run-Flat Tires111
puncture110
replacing112
tire inflation pressure105
winter tires112
S
Safety belt height
adjustment46
Safety belts46
care124
height adjustment46
indicator lamp17,
46
reminder46
safe seating position42
Safety lock buttons, doors,
refer to Locking28
Safety systems, refer to
Airbags76
All Season traction Control
(ASC)72
Antilock Brake System
(ABS)72
Brake system72
Dynamic Stability Control
(DSC)72
Safety tires, refer to
Run-Flat Tires111
Seat adjustment43
Seat heating47 Seat-belt tensioner, refer to
Safety belts47
Seats
heating47
safe seating position42
Securing loads, refer to Loading
cargo92
Securing the load94
Securing the vehicle
from inside28
from outside26
Selector lever positions,
automatic transmission with
Steptronic56
Selector lever shiftlock, refer to
Shiftlock56
Selector lever, automatic
transmission with
Steptronic56
Service and Warranty
Information Booklet for US
models, Warranty and
Service Guide Booklet for
Canadian models121
Service interval display69,121
Shift paddles58
Shifting gears in the automatic
transmission with
Steptronic58
Shiftlock, refer to Range
selection56
Side airbags76
Side turn signal indicators, bulb
replacement131
Signal horn, refer to Horn12
Sitting safely42
with airbags42
with head restraints42
with safety belt42
Slipstream deflector, refer to
Wind deflector40
Smoker's equipment package,
refer to Ashtray86
Snow chains113
Socket 12 V87
Socket for
onboard diagnostics122
Socket in the luggage
compartment87
Space-saver spare tire
changing tires133
inflation pressure105
Spare key24
Spare tire, refer to Space-saver
spare tire133
Special oils, refer to Specified
engine oils118
Special wash program122
Specified oils118
