2007 Mercury Mariner Hybrid jump start

2. Connect the other end of the positive (+) cable to the positive (+)
terminal of the assisting battery.
3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
+–+–
+–+–
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
242

2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
243

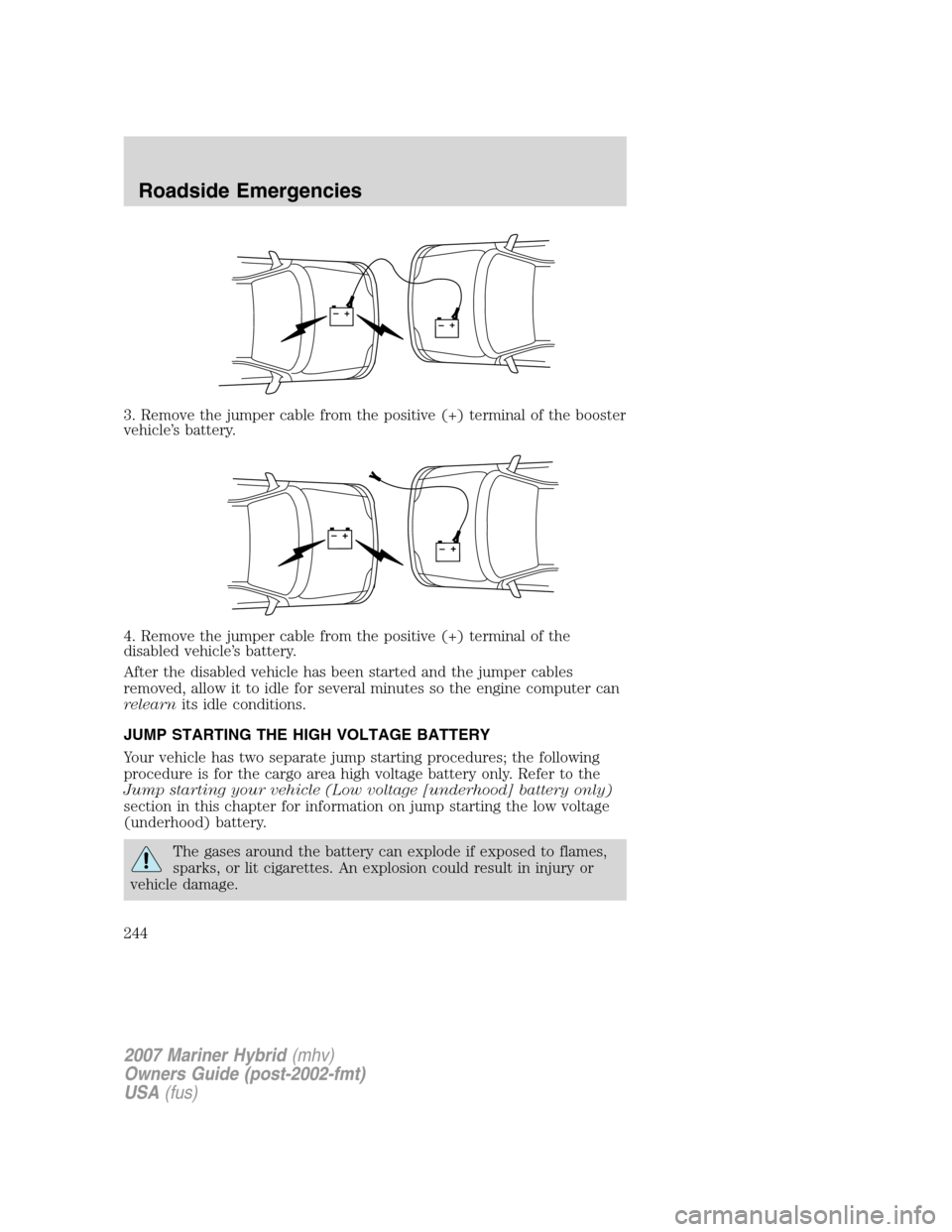

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
JUMP STARTING THE HIGH VOLTAGE BATTERY
Your vehicle has two separate jump starting procedures; the following
procedure is for the cargo area high voltage battery only. Refer to the
Jump starting your vehicle (Low voltage [underhood] battery only)
section in this chapter for information on jump starting the low voltage
(underhood) battery.
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
+–+–
+–+–
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
244

The high voltage battery contains potassium hydroxide (a strong
alkaline electrolyte) which can burn skin, eyes and clothing, if
contacted.
Do not attempt to push-start your vehicle. This vehicle does not
have push-start capability.
If you attempt to start your vehicle and the engine cranks but does not
start, the high voltage battery may need to be jump started.
The Service Soon (yellow wrench)
light in the instrument cluster may
also be illuminated and the message
center may display a message.
To jump start the high voltage
battery, turn the ignition to OFF,
open the access panel in the driver
side foot well and press the jump
start button momentarily. After
pressing the button, you should wait
eight minutes before attempting to
start the engine, otherwise the high
voltage battery may not receive
sufficient charge to start the engine.
The high voltage battery will use
voltage from the low voltage
(underhood) battery to charge itself.
When the button is pressed, the indicator light on the button will
illuminate. After eight minutes has passed, the indicator light will flash
rapidly for two minutes. Turn the ignition to RUN. You may now attempt
to start the engine.If you attempt to start the engine before the
eight minutes passes, the jump starting procedure will stop and
will have to be restarted if the engine does not start.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
245

If the engine still does not start after the first complete high voltage
jump start, a second jump start procedure can be attempted after a
two-minute period (indicated by the button light changing from a rapid
flash to no illumination). This jump start procedure can only be done
twice before the low voltage (underhood) battery becomes discharged
and must also be jump started.
If the jump start button is pressed, but the indicator on the button
flashes slowly, the low voltage (underhood) battery may not have enough
energy to charge the high voltage battery. If this occurs, refer to the
Jump starting your vehicle (Low voltage [underhood] battery only)
section in this chapter for information on jump starting the low voltage
(underhood) battery. You may perform another high voltage battery jump
start by pressing the jump start button after having connected the
jumper cables and starting the booster vehicle.
Once the engine is started, the jumper cables should be removed as
described in theJump starting your vehicle (Low voltage
[underhood] battery only)section.
