2007 Mercury Mariner Hybrid brake

Replacing high-mount brake lamp bulbs
To remove the lamp assembly:
1. Remove the two screws and move
the lamp assembly away from the
liftgate.
2. Remove the bulb holder from the
lamp assembly by depressing the
snaps.
3. Pull the bulb straight out of the
socket and push in the new bulb.
To complete installation, follow the
removal procedure in reverse order.
Replacing foglamp bulbs
For bulb replacement, see your authorized dealer.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
81

3. Press the SET ACC control and
release it.
4. Take your foot off the accelerator
pedal.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
Disengaging speed control
To disengage the speed control:
•Depress the brake pedal.
Disengaging the speed control will not erase previous set speed.
Resuming a set speed
Press the RSM (resume) control and
release it. This will automatically
return the vehicle to the previously
set speed. The RSM control will not
work if the vehicle speed is not
faster than 30 mph (48 km/h).
R
S
M
CST
SET
ACC
R
S
M
CST
SET
ACC
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
89

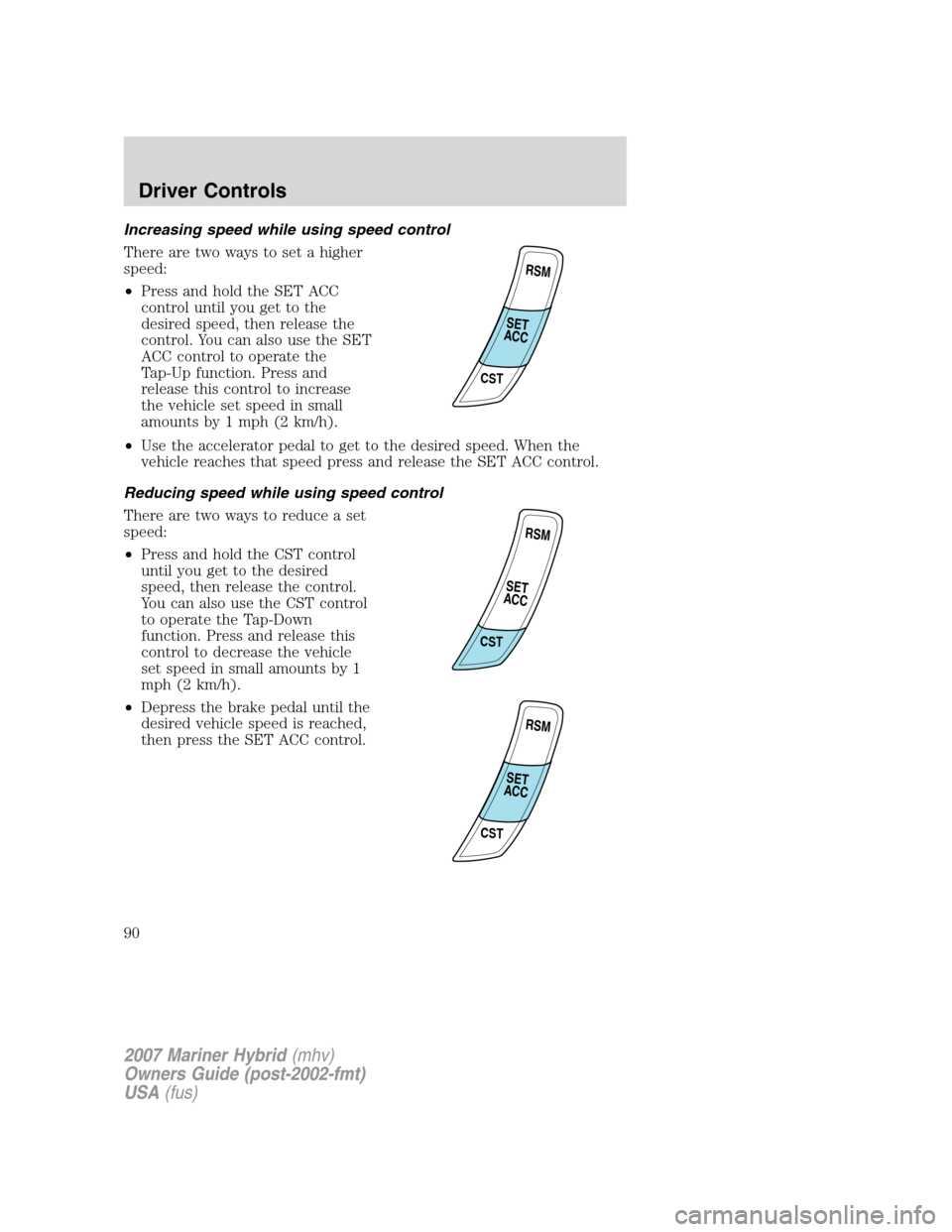

Increasing speed while using speed control
There are two ways to set a higher
speed:
•Press and hold the SET ACC
control until you get to the
desired speed, then release the
control. You can also use the SET
ACC control to operate the
Tap-Up function. Press and
release this control to increase
the vehicle set speed in small
amounts by 1 mph (2 km/h).
•Use the accelerator pedal to get to the desired speed. When the
vehicle reaches that speed press and release the SET ACC control.
Reducing speed while using speed control
There are two ways to reduce a set
speed:
•Press and hold the CST control
until you get to the desired
speed, then release the control.
You can also use the CST control
to operate the Tap-Down
function. Press and release this
control to decrease the vehicle
set speed in small amounts by 1
mph (2 km/h).
•Depress the brake pedal until the
desired vehicle speed is reached,
then press the SET ACC control.
R
S
M
CST
SET
ACC
R
S
M
CST
SET
ACC
R
S
M
CST
SET
ACC
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
90

Instantaneous fuel economy (if equipped)
Press INFO until the menu displays
“INSTANT ECON”. This will display
your fuel economy as a Bar Graph
ranging from “L” poor economy to
“H” excellent economy.
Your vehicle must be moving to
calculate instantaneous fuel economy. When your vehicle is not moving,
this function shows “L”, one or no bars illuminated. Instantaneous fuel
economy cannot be reset.
High Voltage Battery Status
Select this function from the INFO
menu for the state of charge of the
high voltage battery. For a low
battery “ELEC ENERGY AVAIL
LOW” will be displayed and for
normal operation “ELEC ENERGY AVAIL NORMAL” will be displayed.
System check
Selecting this function from the
INFO menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either
an OK message or a warning
message for four seconds.
Pressing the SET control cycles the message center through each of the
systems being monitored. If you don’t press any button, the system will
cycle itself.
The sequence of the system check report is as follows:
1. Oil Change Reminder
2. HEV Hazard
3. HEV Caution
4. Charging System
5. Brake Fluid Level
6. Tire Pressure Monitoring System
7. Door Ajar Status
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
94

The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
SET control and clearing the warning message.
Warning messages that have been reset are divided into two categories:
•They will reappear on the display ten minutes from the reset.
•They will not reappear until an ignition LOCK-RUN cycle has been
completed if the fault condition still exists.
This acts as a reminder that these warning conditions still exist within
the vehicle.
Warnings Status
Stop safely now Warning cannot be reset
High engine temperature
High motor temperature
Hood ajar
Driver door ajar
Passenger door ajar
Rear left door ajar
Rear right door ajar
Service soon Warning returns after 10 minutes if
condition still exist
Park brake on
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
96

Warnings Status
Liftgate ajar Warning returns after the ignition key
is turned from LOCK to RUN.
Service emission sys
Check fuel cap
Low brake fluid
Service brake system
Regen disabled
Performance reduced
Low tire pressure
Tire pressure monitor fault
Tire pressure sensor fault
Check left headlamp
Check right headlamp
Check left high beam
Check right high beam
Check left turn lamps
Check right turn lamps
Check brake lamps
Engine oil change soon
Engine oil change now
reminder
Low fuel
Service pwr steering
Service4X4
Turn signal on (if equipped) Will reset after the ignition key is
turned from LOCK to RUN.
Speed control on
4X4 locked temporarily Temporary alert
4X4 disabled temporarily
4X4 auto restored
STOP SAFELY NOW.Displayed when the Master electrical hazard
warning lamp is illuminated indicating a Hybrid component failure. If this
warning occurs, the vehicle will soon shutdown without further warning,
stop the vehicle as soon as safely possible and contact your authorized
dealer as soon as possible.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
97

HIGH ENGINE TEMPERATURE.Displayed when the engine coolant
is overheating. Engine coolant temperature warning lamp will illuminate
indicating coolant temperature is high. Stop the vehicle as soon as safely
possible, turn off the engine and let it cool. Check the coolant and
coolant level. Refer toEngine coolantin theMaintenance and
Specificationschapter. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
Never remove the coolant reservoir cap while the engine is
running or hot.
HIGH MOTOR TEMPERATURE.Displayed when the motor
electronics are overheating. Stop the vehicle as soon as safely possible,
turn off the engine and let it cool. Refer toEngine coolant and
motor/electronics coolantin theMaintenance and Specifications
chapter. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
PERFORMANCE REDUCED.Displayed when the vehicle performance
is reduced due to failsafe cooling.
HOOD AJAR.Displayed when the hood is not completely closed.
DRIVER DOOR AJAR.Displayed when the driver door is not
completely closed.
PASSENGER DOOR AJAR.Displayed when the passenger door is not
completely closed.
REAR LEFT DOOR AJAR.Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR.Displayed when the rear right door is not
completely closed.
LIFTGATE AJAR.Displayed when the liftgate or liftgate glass is not
completely closed. Press SET to reset display.
SERVICE SOON.Displayed when service lamp (yellow wrench ) is
activated. If the warning or indicator light stays on or continues to come
on, contact your authorized dealer as soon as possible.
PARK BRAKE ON.Displayed when the park brake is on. If the warning
and indicator light stays on after the park brake is off, contact your
authorized dealer as soon as possible.
SERVICE EMISSION SYS.Displayed when the vehicle has detected a
malfunction. If the warning stays on or continues to come on, contact
your authorized dealer as soon as possible.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
98

CHECK FUEL CAP.Displayed when the fuel filler cap is not properly
installed. Check the fuel filler cap for proper installation. Refer toFuel
filler capin theMaintenance and Specificationschapter.
SERVICE BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
REGEN DISABLED.Indicates the regenerative braking system is
disabled at this moment. Please see your authorized dealer if this
warning remains present over several days.
SERVICE PWR STEERING.Displayed when the power steering system
is not operating properly. If this warning and the
service soon
indicator light stays on or continues to come on, contact your authorized
dealer for service as soon as possible.
LOW TIRE PRESSURE.Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInflating Your Tiresin the
Tires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT.Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT.Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring Systemin theTires,
Wheels and Loadingchapter. If the warning stays on or continues to
come on, have the system inspected by your authorized dealer
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT HIGH BEAMS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
LOW FUEL.Displayed as an early reminder of a low fuel condition. The
function will display “LOW FUEL LEVEL” and sound a tone for one
second when you have low fuel level indicated on the fuel gauge.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
99
