2007 MERCEDES-BENZ SLR CLASS technical data

386 Technical data
Electrical system
Mercedes-Benz SLR McLarenMercedes-Benz SLR McLaren 722 Edition
Generator (alternator)14 V/150 A14 V/150 A
Starter motor12 V/1.7 kW12 V/1.7 kW
Battery
Starter battery12 V/35 Ah12 V/35 Ah
Battery for electrical consumers12 V/70 Ah12 V/70 Ah
Spark plugsNGK ILFR6ANGK ILFR6A
Electrode gap0.031 in (0.8 mm)0.031 in (0.8 mm)
Tightening torque18 – 22 lb-ft (25 – 30 Nm)18 – 22 lb-ft (25 – 30 Nm)

387 Technical data
Main dimensions
Main dimensions
Mercedes-Benz SLR McLarenMercedes-Benz SLR McLaren 722 Edition
Overall vehicle length183.3 in (4656 mm)183.3 in (4656 mm)
Overall vehicle width75.1 in (1908 mm)75.1 in (1908 mm)
Overall vehicle width
(doors open - widest point)111.7 in (2838 mm)111.7 in (2838 mm)
Overall vehicle height49.6 in (1261 mm)49.3 in (1251 mm)
Overall vehicle height
(doors open - highest point)80.5 in (2045 mm)80.1 in (2035 mm)
Wheelbase106.3 in (2700 mm)106.3 in (2700 mm)
Track, front64.5 in (1638 mm)64.5 in (1638 mm)
Track, rear61.8 in (1569 mm)61.8 in (1569 mm)

388 Technical data
Weights
Mercedes-Benz SLR McLarenMercedes-Benz SLR McLaren 722 Edition
Trunk load max.220 lb (100 kg)220 lb (100 kg)

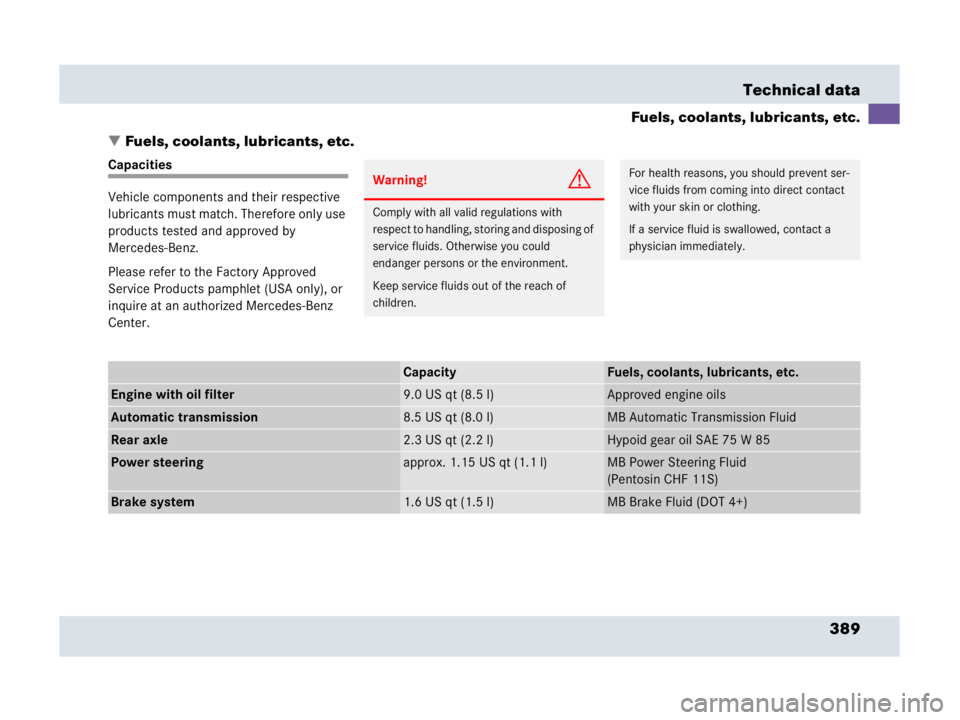

389 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Center.
Warning!G
Comply with all valid regulations with
respect to handling, storing and disposing of
service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent ser-
vice fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
CapacityFuels, coolants, lubricants, etc.
Engine with oil filter9.0 US qt (8.5 l)Approved engine oils
Automatic transmission8.5 US qt (8.0 l)MB Automatic Transmission Fluid
Rear axle2.3 US qt (2.2 l)Hypoid gear oil SAE 75 W 85
Power steeringapprox. 1.15 US qt (1.1 l)MB Power Steering Fluid
(Pentosin CHF 11S)
Brake system1.6 US qt (1.5 l)MB Brake Fluid (DOT 4+)

390 Technical data
Fuels, coolants, lubricants, etc.
CapacityFuels, coolants, lubricants, etc.
Cooling systemapprox. 10.6 US qt (10.0 l)MB 325.0 Anticorrosion/Antifreeze
Low temperature cooling system
Mercedes-Benz SLR McLaren
Mercedes-Benz SLR McLaren 722 Edition
approx. 5.3 US qt (5.0 l)
approx. 6.3 US qt (6.0 l)MB 325.0 Anticorrosion/Antifreeze
MB 325.0 Anticorrosion/Antifreeze
Fuel tank
including a reserve of25.6 US gal (97.0 l)
3.2 US gal (12.0 l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Air conditioning systemR-134a refrigerant and special PAG lubricant
oil (never R-12)
Windshield washer and headlamp cleaning
system7.4 US qt (7 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing or MB Windshield Washer Concentrate “MB SummerFit” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 397).

391 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System. For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet
(USA only), or contact an authorized
Mercedes-Benz Center.Engine oil additivesAir conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.
!Using engine oils and oil filters of
specification other than those expressly re-
quired for the Maintenance System, or changing
of oil and oil filter at change intervals longer than
those called for by the Maintenance System will
result in engine or emission control system dam-
age not covered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System recommen-
dations for scheduled oil changes. Failure to do
so will result in engine or emission control sys-
tem damage not covered by the Mercedes-Benz
Limited Warranty.
!Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from blending
oil additives are not covered by the
Mercedes-Benz Limited Warranty.
!Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the system
will occur.

392 Technical data
Fuels, coolants, lubricants, etc.
Brake fluid
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Center will
provide you with additional information.Premium unleaded gasoline
Warning!G
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere. Under extremely strenuous
operating conditions, this moisture content
can lead to the formation of bubbles in the
system, thus reducing the system’s
efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Mainte-
nance Booklet for replacement interval.
Warning!G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
personal injury.
Never allow sparks, flame or smoking
materials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and skin or cloth contact,
extinguish all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors can damage your
health.
!To maintain the engine’s durability and per-
formance, premium unleaded gasoline must be
used. If premium unleaded is not available and
low octane fuel is used, follow these precau-
tions:

Have the fuel tank only partially filled with
unleaded regular gasoline and fill up with
premium unleaded gasoline as soon as
possible.

Avoid full throttle driving and abrupt acceler-
ation.

Do not exceed an engine speed of 3000 rpm
if the vehicle is loaded with a light load such
as two persons and no luggage.

Do not exceed 2/3 of maximum accelerator
pedal position if the vehicle is fully loaded or
operating in mountainous terrain.

393 Technical data
Fuels, coolants, lubricants, etc.
Fuel requirements
Only use premium unleaded fuel:

The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research Octane Number
(RON) and the Motor Octane Number
(MON): (RON+MON)/2. This is also
known as the ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains
10% ethanol and 90% unleaded gasoline,
can be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Gasoline additives
A major concern among engine
manufacturers is carbon build-up caused
by gasoline. Mercedes-Benz recommends
only the use of quality gasoline containing
additives that prevent the build up of
carbon deposits.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to
engine performance problems such as:

Warm-up hesitation

Unstable idle

Knocking/pinging

Misfire

Power lossIn areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to Factory
Approved Service Products pamphlet
(USA only) or contact an authorized
Mercedes-Benz Center for a listing of
approved product(s). Follow directions on
product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary cost and
may be harmful to engine operation.
!Damage or malfunction resulting from poor
fuel quality or from blending additional fuel
additives other than those tested and approved
by us for use on Mercedes-Benz vehicles are not
covered by the Mercedes-Benz Limited
Warranty.
For a listing of approved products, refer to the
Factory Approved Service Products pamphlet
(USA only) or contact an authorized
Mercedes-Benz Center.
