ContentsOperation......................................... 257
The first 1000 miles (1500 km) ......... 258
Driving instructions ............................ 259
Drive sensibly – save fuel ............. 259
Drinking and driving ..................... 259
Pedals .......................................... 259
Power assistance ......................... 260
Brakes .......................................... 260
Driving off..................................... 262
Parking ......................................... 263
Tires ............................................. 263
Hydroplaning ................................ 264
Tire traction .................................. 265
Tire speed rating .......................... 265
Winter driving instructions ........... 266
Standing water ............................. 267
Passenger compartment .............. 268
Driving abroad .............................. 268
Control and operation of radio
transmitters.................................. 268
Catalytic converter ....................... 269
Emission control........................... 269
Coolant temperature .................... 270At the gas station .............................. 271
Refueling ...................................... 271
Check regularly and before a
long trip........................................ 272
Engine compartment ......................... 274
Hood ............................................ 274
Engine oil ..................................... 275
Transmission fluid level ................ 279
Oil level in the ABC system .......... 279
Coolant ........................................ 280
Battery ......................................... 281
Windshield washer system and
headlamp cleaning system ........... 282
Tires and wheels ................................ 283
Important guidelines .................... 283
Tire care and maintenance ........... 284
Direction of rotation ..................... 286
Loading the vehicle ...................... 286
Recommended tire inflation
pressure ....................................... 291
Checking tire inflation pressure ... 292
MOExtended system* .................. 301
Tire labeling.................................. 302
Load identification ....................... 306
DOT, Tire Identification Number
(TIN) ............................................. 307Maximum tire load ....................... 308
Maximum tire inflation pressure .. 309
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 309
Tire ply material ........................... 311
Tire and loading terminology........ 312
Rotating tires ............................... 315
Winter driving .................................... 316
Winter tires .................................. 316
Block heater (Canada only) .......... 317
Snow chains................................. 318
Maintenance...................................... 319
Maintenance service indicator
message ...................................... 319
Calling up the maintenance
service indicator display .............. 320
Resetting the maintenance
service indicator .......................... 321
Vehicle care....................................... 322
Cleaning and care of the vehicle .. 322

Contents
Practical hints................................. 331
What to do if … .................................. 332
Lamps in the instrument cluster .. 332
Air bag off indicator lamp ............. 345
Vehicle status messages in the
multifunction display .................... 347
Where will I find ...? ........................... 388
First aid kit ................................... 388
Vehicle tool kit, jack, and spare
wheel ........................................... 388
Locking/unlocking in an
emergency ......................................... 391
Unlocking the vehicle ................... 391
Locking the vehicle ...................... 393
Lowering the load assist manually 394
Replacing SmartKey batteries ........... 395
Replacing bulbs ................................. 397
Bulbs ............................................ 397
Replacing bulbs for front lamps ... 399
Replacing bulbs for rear lamps..... 402
Replacing wiper blades ...................... 403
Placing wiper arms in vertical
position ........................................ 403
Removing wiper blades ................ 404
Installing wiper blades................. 404Flat tire ............................................... 405
Preparing the vehicle .................... 405
Mounting the spare wheel ............ 405
MOExtended system* ................... 413
Batteries ............................................. 414
Disconnecting the batteries .......... 416
Removing the batteries ................. 417
Charging and reinstalling
batteries ....................................... 417
Reconnecting the batteries ........... 418
Jump starting ...................................... 419
Towing the vehicle .............................. 421
Installing towing eye bolt .............. 423
Fuses .................................................. 424
Fuse boxes in engine
compartment ................................ 425
Fuse box in passenger
compartment ................................ 426
Fuse in trunk ................................. 426
Emergency engine shut-down ....... 426
Technical data.................................. 427
Parts service ...................................... 428
Warranty coverage ............................. 429
Loss of Service and Warranty
Information Booklet ...................... 429
Identification labels ............................ 430
Layout of poly-V-belt drive.................. 432
SL 550 .......................................... 432
SL 55 AMG ................................... 432
SL 600, SL 65 AMG ...................... 432
Engine ................................................ 433
Rims and tires .................................... 435
Same size tires ............................. 436
Mixed size tires ............................. 437
MOExtended tires* ....................... 439
Spare wheel .................................. 440
Electrical system ................................ 441
Main dimensions ................................ 442
Weights .............................................. 443

73 Safety and Security
Occupant safety
Both driver and the passenger should al-
ways use the 5/ indicator lamp as
an indication of whether or not the passen-
ger is properly positioned.i
If the seat, including the trim cover and
cushion needs to be serviced in any way, take
the vehicle to an authorized Mercedes-Benz
Center.
Only seat accessories approved by
Mercedes-Benz may be used.
Warning!
G
If the 5/ indicator lamp illuminates
when an adult or someone larger than a
small individual is in the passenger seat,
have the passenger re-position himself or
herself in the seat until the 5/ indi-
cator lamp goes out.
More information about air bag display
messages (
page 356).
In the event of a collision, the air bag control
unit will not allow passenger front air bag
deployment when the OCS classified the
passenger seat occupant as being up to or
less than the weight of a typical
12-month-old child in a standard child
restraint or if the passenger seat is sensed
as being empty.
When the OCS senses that the passenger
seat occupant is classified as being up to or
less than the weight of a typical
12-month-old child in a standard child
restraint, the 5/ indicator lamp will
illuminate when the engine is started and
remain illuminated, indicating that the pas-
senger front air bag is deactivated.
When the OCS senses that the passenger
seat is classified as being empty, the
5/ indicator lamp will illuminate
when the engine is started and remain
illuminated, indicating that the passenger
front air bag is deactivated.


97 Safety and Security
Anti-theft systems
The alarm system will also be triggered
when

someone attempts to raise the vehicle


unlocking and opening the driver’s
door with the mechanical key


someone opens a door from the inside


someone opens the trunk lid with the
emergency release buttonArming the alarm system
The alarm system is armed after locking
the vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps flash
three times to indicate that the alarm sys-
tem is activated. The indicator lamp in the
central locking switch (
page 31) begins
to flash after arming the alarm system.
Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps flash
once to indicate that the alarm system is
disarmed.Canceling the alarm
To cancel the alarm:
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press theŒor‹button on the
SmartKey.
With KEYLESS-GO*

Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft. (1 m) of the vehicle.
or

Press the KEYLESS-GO start/stop but-
ton (
page 40).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
i
If the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 245) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.
i
If the turn signal lamps do not flash three
times, a door or the trunk lid may not be properly
closed.
Close the respective element and lock the vehi-
cle again.
i
The alarm system will rearm automatically
again after approximately 40 seconds if no door
was opened.

98 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle. Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms automatical-
ly.
Disabling tow-away alarm
To prevent triggering the tow-away alarm,
disable the tow-away alarm feature before
towing the vehicle, or when parking on a
surface subject to movement, such as a
ferry or auto train.
The button is located on the center con-
sole between the driver’s seat and the pas-
senger seat.1Tow-away alarm off button
2Indicator lamp

Switch off the ignition and remove the
SmartKey from the starter switch.
i
If the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 245) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.
i
You cannot disarm the tow-away alarm
when the ignition is switched on.

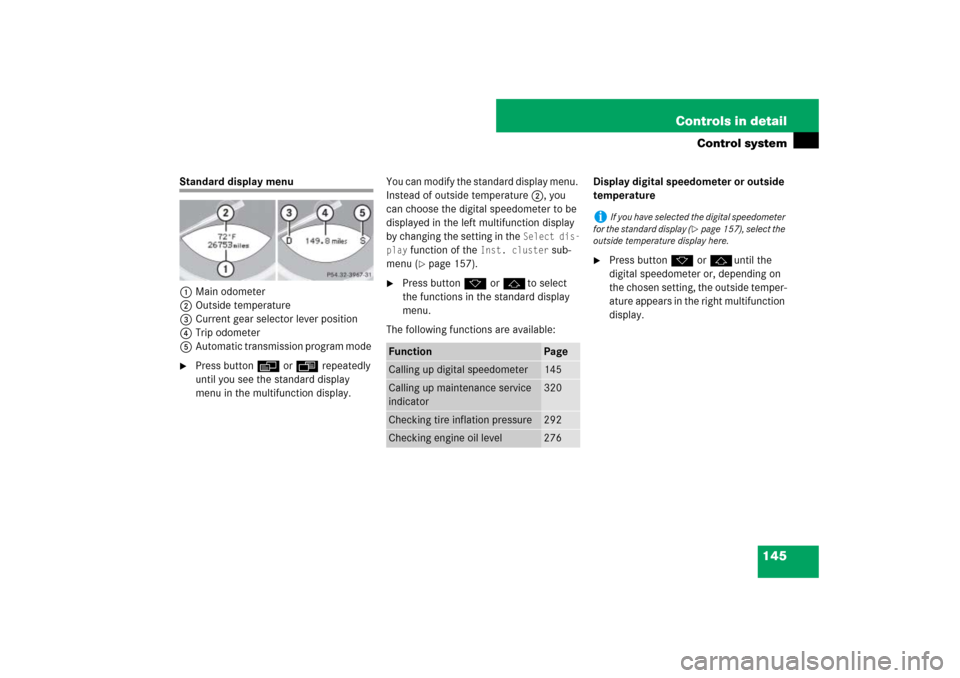

143 Controls in detail
Control system
Menus, submenus and functions
Table continued on next page.
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Standard display
AMG
1
AUDIO
NAV
Distronic*
(page 145)
(page 146)
(page 149)
(page 151)
(page 151)
Commands/submenus
Digital speedome-
ter/Outside tempera-
ture
Engine oil temperature
Selecting radio station
Show route guidance
instructions, current
direction traveled
Calling up settings
Calling up maintenance
service indicator
Vehicle supply voltage
Selecting satellite radio
station
(USA only)
Checking tire inflation
pressure*
RACETIMER
Operating CD player
Checking engine oil lev-
el
Overall analysisLap analysis
1AMG vehicles only.

145 Controls in detail
Control system
Standard display menu
1Main odometer
2Outside temperature
3Current gear selector lever position
4Trip odometer
5Automatic transmission program mode
Press button è or ÿ repeatedly
until you see the standard display
menu in the multifunction display.You can modify the standard display menu.
Instead of outside temperature 2, you
can choose the digital speedometer to be
displayed in the left multifunction display
by changing the setting in the
Select dis-
play
function of the
Inst. cluster
sub-
menu (
page 157).

Press button k or jto select
the functions in the standard display
menu.
The following functions are available:Display digital speedometer or outside
temperature

Press button k or juntil the
digital speedometer or, depending on
the chosen setting, the outside temper-
ature appears in the right multifunction
display.
Function
Page
Calling up digital speedometer
145
Calling up maintenance service
indicator
320
Checking tire inflation pressure
292
Checking engine oil level
276
i
If you have selected the digital speedometer
for the standard display (
page 157), select the
outside temperature display here.

245 Controls in detail
Useful features
than 10 seconds or do not come on). The
message TeleAid malfunction – Visit workshop appears for approximately 10 seconds in
the multifunction display.Emergency calls
An emergency call is initiated
automatically following an accident in
which the emergency tensioning devices
(ETDs) or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 246) for instruc-
tions on initiating an emergency call man-
ually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call

appears in the multifunction display and
the audio system is muted. When the con-
nection is established, the message
Call connected
appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the ve-
hicle (determined by the GPS satellite loca-
tion system), vehicle model, identification
number and color are generated.A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to deter-
mine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if


it has been activated and is operational
Activation requires a subscription for
monitoring services, connection and
cellular air time.


the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button, and/or in
the Information button do not come on dur-
ing the system self-check, or if any of these
indicators remain illuminated continuously
in red and/or the message
TeleAid
malfunction – Visit workshop
is dis-
played in the multifunction display after the
system self-check, a malfunction in the sys-
tem has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as ex-
pected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
i
Location of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.
