2007 MERCEDES-BENZ S550 B class

Sommer\ Corporate\ Media\ AG
Bild in der Größe
215x70 mm einfügen
Operator’s Manual
S-Class
Order No. 6515 2186 13 Part No. 221 584 13 81 USA Edition A 2007
Ê6/t-qJË2215841381
Operator’s Manual S-Class

Contents
Introduction....................................... 13
Product information ............................. 13
Operator’s Manual ............................... 14
Service and warranty information .. 14
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 15
Maintenance .................................. 15
Roadside Assistance ...................... 16
Change of address or ownership.... 16
Operating your vehicle outside
the USA or Canada......................... 16
Where to find it .................................... 17
Symbols ............................................... 18
Operating safety .................................. 19
Proper use of the vehicle ............... 19
Problems with your vehicle .................. 20
Reporting safety defects...................... 21
Reporting safety defects ................ 21
Vehicle data recording ......................... 22
Information regarding electronic
recording devices ........................... 22
At a glance.......................................... 23
Exterior view ......................................... 24
Cockpit ................................................. 26
Instrument cluster ................................ 28
Control systems ................................... 30
Center console ..................................... 32
Upper part ...................................... 32
Lower part ...................................... 33
Automatic climate control .................... 34
Overview ......................................... 34
Automatic climate control panel,
front ................................................ 36
Overhead control panel ........................ 37
Driver’s door control panel ................... 38
Rear door control panel ........................ 39
Storage compartments ......................... 40
Rear passenger compartment .............. 42
Safety and Security........................... 43
Occupant safety ................................... 44
Air bags .......................................... 45
Occupant Classification System ..... 50
Seat belts ....................................... 55
Luxury active head restraints
(S 600 only) .................................... 59
Preventive occupant safety
(PRE-SAFE
®) ................................... 60
Children in the vehicle .................... 61
Override switch for rear
passenger compartment................. 67
Panic alarm .......................................... 68
Activating........................................ 68
Deactivating.................................... 68
Driving safety systems ......................... 69
ABS ................................................. 69
Adaptive Brake ............................... 70
Adaptive Brake Lights
(S 600 and USA only) ..................... 70
BAS ................................................. 71
BAS Plus* ....................................... 71
EBP ................................................. 71
ESP
®............................................... 72

44 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (
page 55)


Child restraints (
page 61)


Lower anchors and tethers for children
(LATCH) (
page 64)
Additional protection potential provide


Supplemental Restraint System (SRS)
with

Air bags (
page 45)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD)
for seat belts (
page 58)


Seat belt force limiter (
page 58)


Preventive occupant safety
(PRE-SAFE
®) (page 60)Air bag system components with


The front passenger front air bag off in-
dicator lamp (
page 53)


Front passenger seat with Occupant
Classification System (OCS)
(page 50)
As independent systems, their protective
functions work in conjunction with each
other.
The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The =indicator lamp in the instrument
cluster (page 28) comes on when the
ignition is switched on and goes out no lat-
er than a few seconds after the engine has
been started.The SRS components are in operational
readiness when the =indicator lamp is
not lit when the engine is running.
A malfunction in the system has been
detected if the =indicator lamp:


fails to go out not later than approxi-
mately 4 seconds after the engine was
started


does not come on at all


comes on after the engine was started
or while driving
i
For information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 61).
Warning!
G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with in-
terconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.

49 Safety and Security
Occupant safety

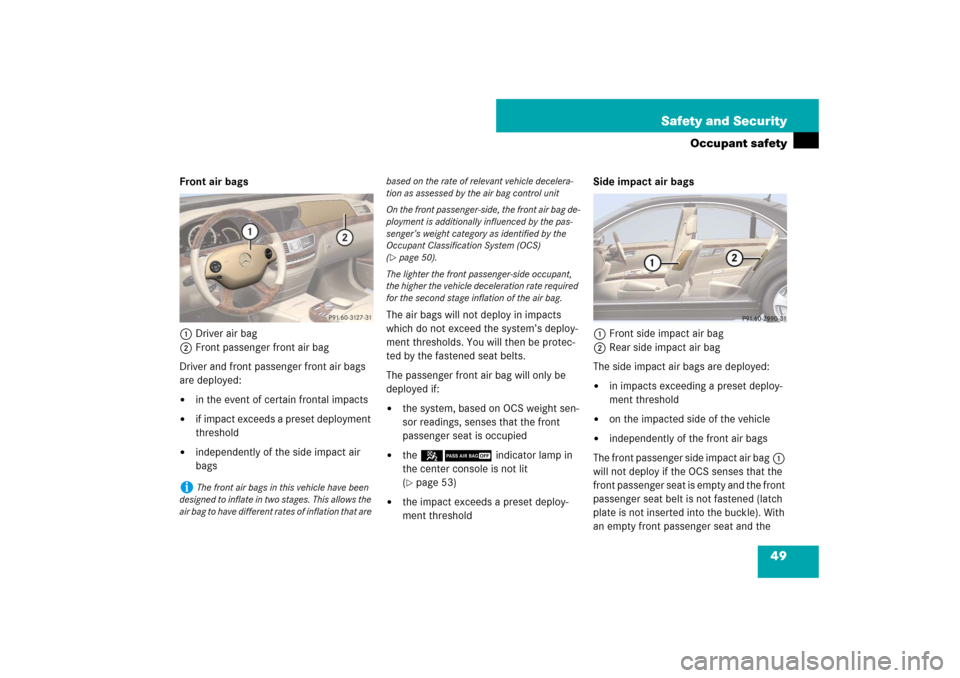

Front air bags
1Driver air bag
2Front passenger front air bag
Driver and front passenger front air bags
are deployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the side impact air
bagsThe air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protec-
ted by the fastened seat belts.
The passenger front air bag will only be
deployed if:


the system, based on OCS weight sen-
sor readings, senses that the front
passenger seat is occupied


the 59indicator lamp in
the center console is not lit
(page 53)


the impact exceeds a preset deploy-
ment thresholdSide impact air bags
1Front side impact air bag
2Rear side impact air bag
The side impact air bags are deployed:


in impacts exceeding a preset deploy-
ment threshold


on the impacted side of the vehicle


independently of the front air bags
The front passenger side impact air bag1
will not deploy if the OCS senses that the
front passenger seat is empty and the front
passenger seat belt is not fastened (latch
plate is not inserted into the buckle). With
an empty front passenger seat and the
i
The front air bags in this vehicle have been
designed to inflate in two stages. This allows the
air bag to have different rates of inflation that are
based on the rate of relevant vehicle decelera-
tion as assessed by the air bag control unit
On the front passenger-side, the front air bag de-
ployment is additionally influenced by the pas-
senger’s weight category as identified by the
Occupant Classification System (OCS)
(page 50).
The lighter the front passenger-side occupant,
the higher the vehicle deceleration rate required
for the second stage inflation of the air bag.

50 Safety and SecurityOccupant safetyseat belt fastened (latch plate properly in-
serted into buckle) the front passenger
side impact air bag will deploy regardless
of the empty seat.
The side impact air bags are not deployed
in impacts which do not exceed the sys-
tem’s deployment threshold.

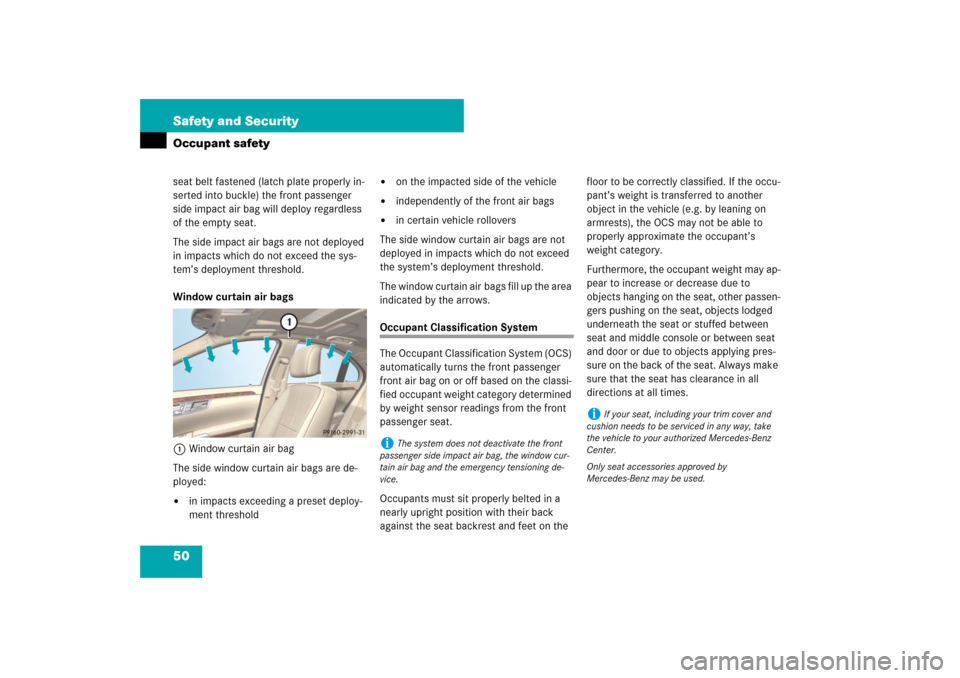

Window curtain air bags
1Window curtain air bag
The side window curtain air bags are de-
ployed:

in impacts exceeding a preset deploy-
ment threshold


on the impacted side of the vehicle


independently of the front air bags


in certain vehicle rollovers
The side window curtain air bags are not
deployed in impacts which do not exceed
the system’s deployment threshold.
The window curtain air bags fill up the area
indicated by the arrows.
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
nearly upright position with their back
against the seat backrest and feet on the floor to be correctly classified. If the occu-
pant’s weight is transferred to another
object in the vehicle (e.g. by leaning on
armrests), the OCS may not be able to
properly approximate the occupant’s
weight category.
Furthermore, the occupant weight may ap-
pear to increase or decrease due to
objects hanging on the seat, other passen-
gers pushing on the seat, objects lodged
underneath the seat or stuffed between
seat and middle console or between seat
and door or due to objects applying pres-
sure on the back of the seat. Always make
sure that the seat has clearance in all
directions at all times.i
The system does not deactivate the front
passenger side impact air bag, the window cur-
tain air bag and the emergency tensioning de-
vice.
i
If your seat, including your trim cover and
cushion needs to be serviced in any way, take
the vehicle to your authorized Mercedes-Benz
Center.
Only seat accessories approved by
Mercedes-Benz may be used.

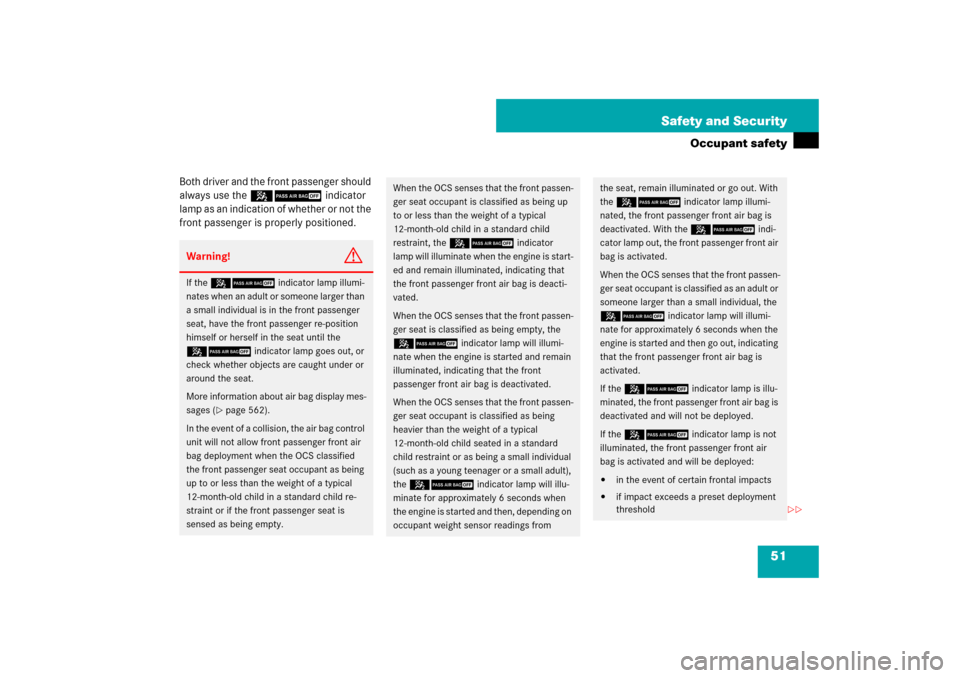

51 Safety and Security
Occupant safety
Both driver and the front passenger should
always use the 59indicator
lamp as an indication of whether or not the
front passenger is properly positioned.Warning!
G
If the 59indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
59indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display mes-
sages (
page 562).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is start-
ed and remain illuminated, indicating that
the front passenger front air bag is deacti-
vated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings from
the seat, remain illuminated or go out. With
the 59indicator lamp illumi-
nated, the front passenger front air bag is
deactivated. With the 59 indi-
cator lamp out, the front passenger front air
bag is activated.
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold

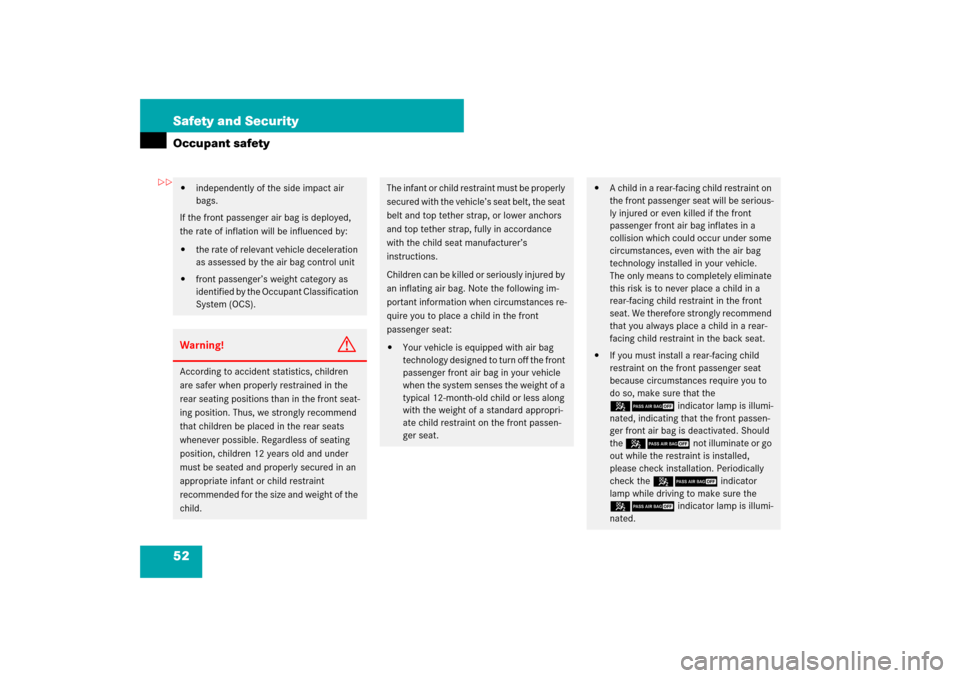

52 Safety and SecurityOccupant safety

independently of the side impact air
bags.
If the front passenger air bag is deployed,
the rate of inflation will be influenced by:


the rate of relevant vehicle deceleration
as assessed by the air bag control unit


front passenger’s weight category as
identified by the Occupant Classification
System (OCS).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.


A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front
passenger front air bag inflates in a
collision which could occur under some
circumstances, even with the air bag
technology installed in your vehicle.
The only means to completely eliminate
this risk is to never place a child in a
rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a rear-
facing child restraint in the back seat.


If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
59 indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the 59not illuminate or go
out while the restraint is installed,
please check installation. Periodically
check the 59indicator
lamp while driving to make sure the
59indicator lamp is illumi-
nated.


53 Safety and Security
Occupant safety

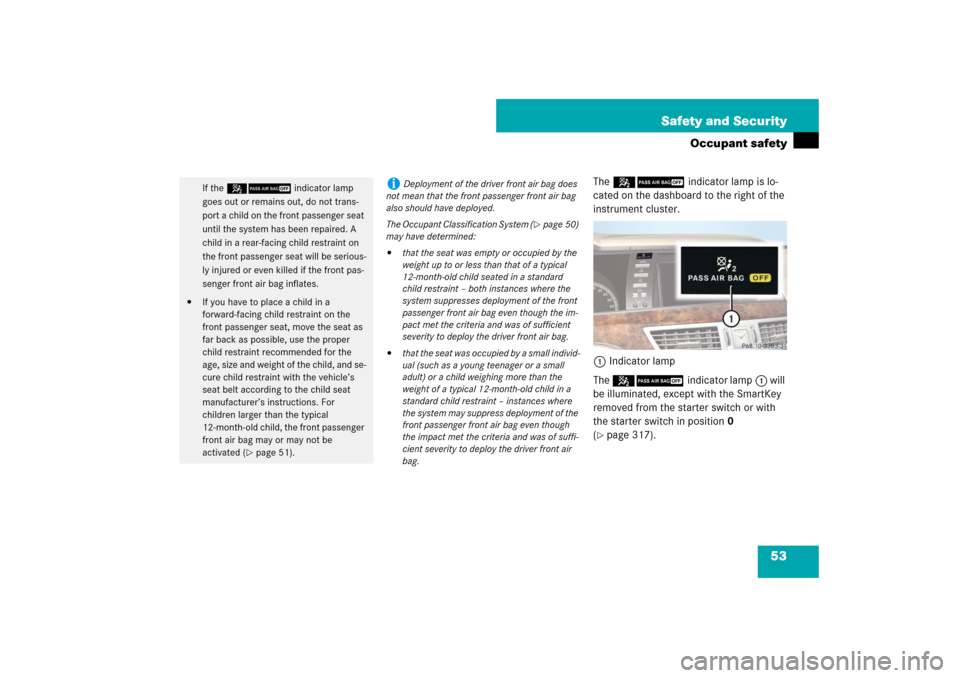

The 59 indicator lamp is lo-
cated on the dashboard to the right of the
instrument cluster.
1Indicator lamp
The 59indicator lamp1 will
be illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0
(page 317).
If the 59indicator lamp
goes out or remains out, do not trans-
port a child on the front passenger seat
until the system has been repaired. A
child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 51).
i
Deployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 50)
may have determined:


that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag.


that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag.
