2007 MERCEDES-BENZ S CLASS steering wheel adjustment

ContentsStarter switch positions ..................... 315
SmartKey ..................................... 315
SmartKey with KEYLESS-GO*....... 316
Seats.................................................. 318
Seat adjustment ........................... 318
Seat heating* ............................... 322
Seat ventilation* .......................... 323
Head restraints............................. 324
Multicontour seats*, rear ............. 327
Easy-entry/exit feature ................ 328
Steering wheel ................................... 330
Steering wheel adjustment........... 330
Heated steering wheel* ............... 331
Mirrors ............................................... 332
Interior rear view mirror ............... 332
Exterior rear view mirrors ............. 332
Power folding exterior rear view
mirrors ......................................... 333
Auto-dimming rear view mirrors ... 334
Activating exterior rear view
mirror parking position ................. 335
Memory function................................ 336
Storing positions into memory ..... 337
Recalling positions from memory . 337
Storing exterior rear view mirror
parking position ........................... 338Fastening the seat belts .................... 339
Proper use of seat belts ............... 341
Seat belt height adjustment ......... 341
Lighting.............................................. 342
Exterior lamp switch..................... 342
Combination switch ..................... 346
Corner-illuminating lamps ............ 347
Hazard warning flasher ................ 348
Interior lighting............................. 348
Courtesy lighting .......................... 350
Door entry lamps ......................... 350
Trunk lamp ................................... 350
Windshield wipers.............................. 351
Switching on/off windshield
wipers .......................................... 351
Intermittent wiping....................... 352
Single wipe................................... 352
Wiping with windshield washer
fluid .............................................. 352
Power windows.................................. 353
Opening and closing power
windows ....................................... 353
Rear side window sunshades* ..... 355
Summer opening feature.............. 355
Convenience closing feature ........ 356Driving and parking ........................... 359
Starting the engine ...................... 359
Driving off .................................... 361
Turn signals.................................. 362
Problems while driving ................. 362
Parking......................................... 363
Turning off the engine .................. 365
Releasing seat belts ..................... 366
Automatic transmission..................... 367
Gear selector lever....................... 367
Shifting procedure ....................... 369
Automatic transmission positions 370
Gear ranges ................................. 372
Driving tips................................... 373
Automatic shift program .............. 374
Steering wheel gearshift control .. 375
Emergency operation
(Limp-Home Mode) ...................... 377
Instrument cluster ............................. 378
Adjusting instrument cluster and
COMAND display illumination ...... 378
Coolant temperature gauge ......... 378
Tachometer.................................. 379
Outside temperature indicator ..... 379
Fuel gauge ................................... 379

27 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals


Windshield wipers


High beam


Cornering lamps
362
351
346
347
2
Lever for

Cruise control


DISTRONIC Plus*
380
385
3
Horn
4
Multifunction steering wheel
242
5
Instrument cluster
28
6
Steering wheel gearshift con-
trol
375
7
Gear selector lever for
automatic transmission
359
Item
Page
8
Control panel with

Front passenger front
air bag indicator lamp


Vehicle level control
switch


Electronic Stability Pro-
gram (ESP
®) switch


Parktronic*/Park Assist*
deactivation switch


Swivel COMAND display


COMAND/instrument
cluster illumination
53
401,
403
73
408,
408
81
378
9
COMAND display
79
a
Overhead control panel
37
b
Automatic climate control
Center console, upper part
424
32
Item
Page
c
Glove box lock
448
d
Cover of compartment with

CD changer


PCMCIA card slot
107
108
e
Center console, lower part
33
f
Starter switch
KEYLESS-GO* start/stop but-
ton
315
316
g
Steering wheel adjustment
Heated steering wheel*
330
331
h
Headlamp washer button
346
j
Parking brake
364
k
Hood lock release
492
l
Door control panel
39
m
Night View Assist*
420
n
Exterior lamp switch
342

38 At a glanceDriver’s door control panel
Item
Page
1
Inside door handle
312
2
Central unlocking switch
312
3
Central locking switch
312
4
Memory function (for storing
seat, exterior mirror, and
steering wheel settings)
336
5
Selector button for front
passenger seat
321
6
Seat heating
Seat ventilation*
322
323
7
Seat adjustment
318
Item
Page
8
Exterior rear view mirrors ad-
justment
Mirror folding function
332
333
9
Switches for opening/ closing
side windows
Switches for opening/ closing
rear door window sunshades*
353
355
a
Remote trunk opening/clos-
ing* switch
436
b
Override switch for rear pas-
senger compartment
67

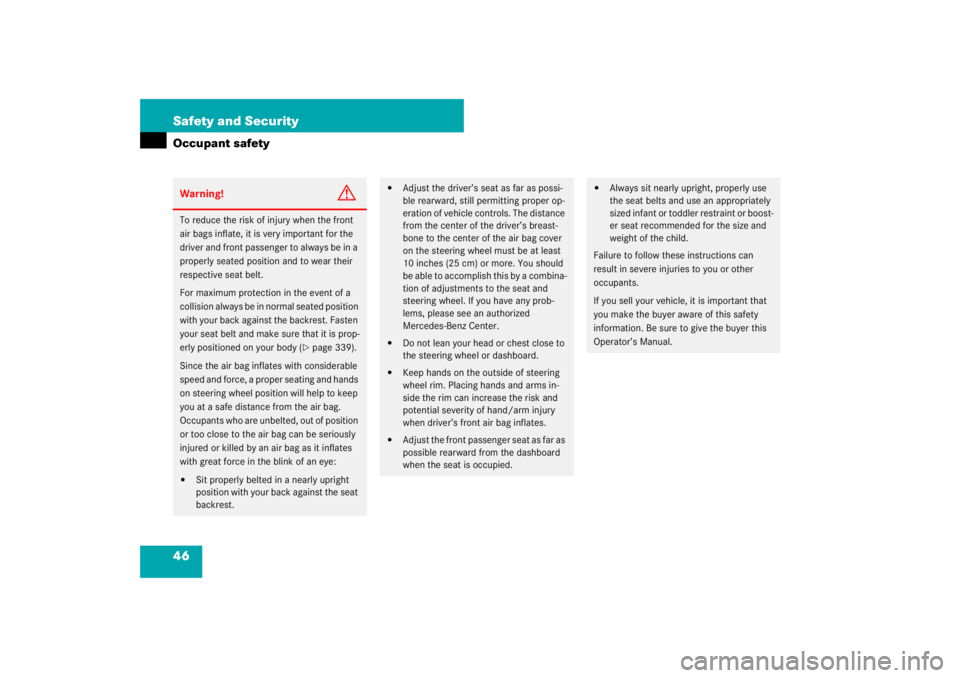

46 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belt.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body (
page 339).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Always sit nearly upright, properly use
the seat belts and use an appropriately
sized infant or toddler restraint or boost-
er seat recommended for the size and
weight of the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.

224 Control systemsCOMAND vehicle menuActivating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature
(page 328).
The following settings are available for the
easy-entry/exit feature:

Select “Vehicle”.
The main area is active.

Selecting “Easy Entry/Exit Feature”
menu: Slide omp or rotate ymz.

Confirming selection: Press n.
or

Select “Vehicle”
“Vehicle”
“Easy
Entry/Exit Feature”.

Confirming selection: Press n.
A selection list appears.
The current setting is indicated by a
dotR.
i
The components and operating principles of
COMAND can be found on (
page 79).
OFF
The easy-entry/exit
feature is deactivated.
Steering Column
& Seat
Both the steering col-
umn and the driver’s
seat are moved.
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and driver’s seat when the easy-en-
try/exit feature is activated.
To cancel seat/steering wheel movement,
do one of the following:

Press seat adjustment switch
(page 319).


Move steering column stalk
(page 330).


Press one of the memory position but-
tons or the memory button M
(page 337).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

319 Controls in detailSeats
Front power seat adjustmentExample driver’s door1Head restraint height (
page 324)
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft adjustment
6Seat backrest tilt

Switch on the ignition (
page 315).
or

Open the respective door.

Seat height: Press the switch up or
down in the direction of arrow2.

Seat cushion tilt: Press the switch up
or down in the direction of
arrow3until your upper legs are
lightly supported.

Seat cushion depth: Press the switch
forward or backward in the direction of
arrow4 until your legs are supported
comfortably.

Seat fore and aft adjustment: Press
the switch forward or backward in the
direction of arrow5.
Adjust the seat to a comfortable seat-
ing position that still allows you to
reach the accelerator/brake pedal
safely. The position should be as far to
the rear as possible, consistent with
ability to properly operate controls.

Seat backrest tilt: Press the switch
forward or backward in the direction of
arrow6 until your arms are slightly
angled when holding the steering
wheel.
i
If PRE-SAFE
® has been activated, the front
passenger’s seat and/or electrically adjustable
rear seats* will be moved to a more favorable
seat position.
i
The memory function (
page 336) lets you
store the settings for the seat positions together
with the settings for the steering wheel and the
exterior rear view mirrors.
!
When moving the seat, make sure there are
no items in the footwell or behind the seats. Oth-
erwise you could damage the seats.
i
Depending on the set height of the head re-
straint, the seat fore and aft position is automat-
ically pre-set.
i
To ensure a maximum range of movement
for seat adjustment, various adjustment func-
tions also involve other indirect adjustments be-
ing made.

328 Controls in detailSeats
Selecting a seat: Press rocker
switch1 or7 forward or backward.
The indicator lamp on the selected but-
ton lights up for a short while.
Gentle massage

Switching on: Press rocker switch2
forward.

Switching off: Pull rocker switch2
backward.
Vigorous massage

Switching on: Press rocker switch3
forward.

Switching off: Pull rocker switch3
backward.
Position of backrest curvature

Moving upward: Press rocker
switch4 forward.

Moving downward: Pull rocker
switch4 backward.Lumbar region support

Selecting greater curvature: Press
rocker switch5 forward.

Selecting less curvature: Pull rocker
switch5 backward.
Side bolster adjustment

Reducing width: Press rocker
switch6 forward.

Increasing width: Pull rocker
switch6 backward.
Easy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the driver’s seat is in its
maximum rearward position and the steer-
ing wheel is in its uppermost position.
The easy-entry/exit feature can be activat-
ed or deactivated in the “Vehicle” menu of
the COMAND system (
page 224).
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and driver’s seat when the easy-en-
try/exit feature is activated.
To cancel seat/steering wheel movement,
do one of the following:

Press seat adjustment switch
(page 319).


Move steering column stalk
(page 330).


Press one of the memory position but-
tons or the memory button M
(page 337).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.


329 Controls in detailSeats
With the easy-entry/exit feature activated,
the steering wheel and driver’s seat will re-
turn to their last set memory position or a
factory-set maximum forward position
when you:

close the driver’s door with the ignition
switched on


insert the SmartKey into the starter
switch or press the KEYLESS-GO*
start/stop button (
page 317) once
with the driver’s door closed. With the easy-entry/exit feature activated
the steering wheel tilts upwards and the
driver’s seat moves a few inches to the
rear when you:


remove the SmartKey from the starter
switch,
or


open the driver’s door with the
SmartKey in starter switch position 0
or 1 or the KEYLESS-GO* start/stop
button (
page 317) in position 1.
!
Do not activate the easy-entry/exit feature
if the seat backrest is in an excessively reclined
position. Doing so could cause damage to front
or rear seats.
First move the seat backrest to an upright posi-
tion.
i
For safety reasons, the driver’s seat will not
return to its last set position with the easy-en-
try/exit feature activated if the system recogniz-
es the last set position as an extreme forward
position. Instead, the driver’s seat will remain at
or move to a factory-set maximum forward posi-
tion. To again fully return the driver’s seat toyour last set position or to memory position, ad-
just the seat to the desired position or press and
hold the respective memory position button
(
page 337).
i
The last set driver’s seat and steering wheel
positions are stored when


the ignition is switched off


the position is stored in memory
(page 336)
i
If the current position for the steering wheel
is in the uppermost tilt position, the steering
wheel will no longer be able to move upward
when the easy-entry/exit feature is activated.
If the current seat position falls into a factory-set
position range and the system recognizes the
current seat position to be rearward enough for
easy entry and exit, the driver’s seat will not
move to the rear when the easy-entry/ exit fea-
ture is activated.
The adjustment procedure is briefly interrupted
when the engine is started.Warning!
G
Let the system complete the adjustment
procedure before setting the vehicle in mo-
tion. All driver’s seat and steering wheel ad-
justments must be completed before setting
the vehicle in motion. Driving off with the
driver’s seat/steering wheel still adjusting
could cause the driver to lose control of the
vehicle.
