2007 MERCEDES-BENZ S CLASS instrument panel

Contents
Introduction....................................... 13
Product information ............................. 13
Operator’s Manual ............................... 14
Service and warranty information .. 14
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 15
Maintenance .................................. 15
Roadside Assistance ...................... 16
Change of address or ownership.... 16
Operating your vehicle outside
the USA or Canada......................... 16
Where to find it .................................... 17
Symbols ............................................... 18
Operating safety .................................. 19
Proper use of the vehicle ............... 19
Problems with your vehicle .................. 20
Reporting safety defects...................... 21
Reporting safety defects ................ 21
Vehicle data recording ......................... 22
Information regarding electronic
recording devices ........................... 22
At a glance.......................................... 23
Exterior view ......................................... 24
Cockpit ................................................. 26
Instrument cluster ................................ 28
Control systems ................................... 30
Center console ..................................... 32
Upper part ...................................... 32
Lower part ...................................... 33
Automatic climate control .................... 34
Overview ......................................... 34
Automatic climate control panel,
front ................................................ 36
Overhead control panel ........................ 37
Driver’s door control panel ................... 38
Rear door control panel ........................ 39
Storage compartments ......................... 40
Rear passenger compartment .............. 42
Safety and Security........................... 43
Occupant safety ................................... 44
Air bags .......................................... 45
Occupant Classification System ..... 50
Seat belts ....................................... 55
Luxury active head restraints
(S 600 only) .................................... 59
Preventive occupant safety
(PRE-SAFE
®) ................................... 60
Children in the vehicle .................... 61
Override switch for rear
passenger compartment................. 67
Panic alarm .......................................... 68
Activating........................................ 68
Deactivating.................................... 68
Driving safety systems ......................... 69
ABS ................................................. 69
Adaptive Brake ............................... 70
Adaptive Brake Lights
(S 600 and USA only) ..................... 70
BAS ................................................. 71
BAS Plus* ....................................... 71
EBP ................................................. 71
ESP
®............................................... 72

Contents
Practical hints................................. 543
What to do if …?................................. 544
Lamps in instrument cluster ........ 544
Air bag off indicator lamp ............. 555
Vehicle status messages in the
multifunction display .................... 557
Where will I find ...? ........................... 611
First aid kit ................................... 611
Vehicle jack, vehicle tool kit,
luggage bowl, Minispare wheel .... 611
Unlocking/locking in an emergency .. 614
Unlocking the vehicle ................... 614
Locking the vehicle ...................... 615
Mechanically releasing the
electric parking brake .................. 616
Opening/closing in an emergency..... 617
Power tilt/sliding sunroof or
panorama roof with power
tilt/sliding panel* ........................ 617Resetting activated head restraints
(S 600 only) ........................................ 618
Replacing SmartKey batteries ............ 619
SmartKey/SmartKey with
KEYLESS-GO* ............................... 619
Replacing bulbs .................................. 621
Bulbs ............................................. 622
Replacing bulbs for front lamps .... 623
Replacing wiper blades....................... 627
Placing wiper arms in vertical
position ......................................... 627
Removing wiper blades ................. 628
Installing wiper blades .................. 628
Flat tire ............................................... 629
Preparing the vehicle .................... 629
Mounting the Minispare wheel ...... 629Batteries............................................. 634
Disconnecting starter battery ....... 636
Removing starter battery .............. 637
Charging battery ........................... 637
Reinstalling starter battery ........... 638
Reconnecting starter battery ........ 638
Jump starting...................................... 639
Towing the vehicle.............................. 642
Installing towing eye bolt .............. 644
Fuses.................................................. 645
Aids for replacing fuses ................ 646
Fuse boxes in engine
compartment ................................ 646
Fuse boxes in passenger
compartment ................................ 647
Emergency engine shut-down ....... 648

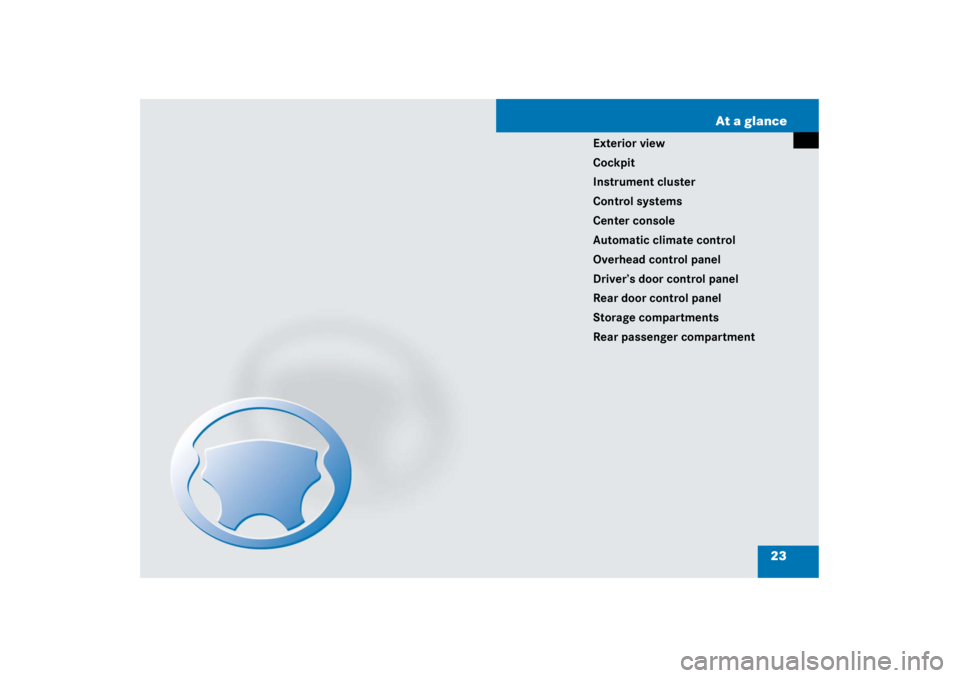

23 At a glance
Exterior view
Cockpit
Instrument cluster
Control systems
Center console
Automatic climate control
Overhead control panel
Driver’s door control panel
Rear door control panel
Storage compartments
Rear passenger compartment

27 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals


Windshield wipers


High beam


Cornering lamps
362
351
346
347
2
Lever for

Cruise control


DISTRONIC Plus*
380
385
3
Horn
4
Multifunction steering wheel
242
5
Instrument cluster
28
6
Steering wheel gearshift con-
trol
375
7
Gear selector lever for
automatic transmission
359
Item
Page
8
Control panel with

Front passenger front
air bag indicator lamp


Vehicle level control
switch


Electronic Stability Pro-
gram (ESP
®) switch


Parktronic*/Park Assist*
deactivation switch


Swivel COMAND display


COMAND/instrument
cluster illumination
53
401,
403
73
408,
408
81
378
9
COMAND display
79
a
Overhead control panel
37
b
Automatic climate control
Center console, upper part
424
32
Item
Page
c
Glove box lock
448
d
Cover of compartment with

CD changer


PCMCIA card slot
107
108
e
Center console, lower part
33
f
Starter switch
KEYLESS-GO* start/stop but-
ton
315
316
g
Steering wheel adjustment
Heated steering wheel*
330
331
h
Headlamp washer button
346
j
Parking brake
364
k
Hood lock release
492
l
Door control panel
39
m
Night View Assist*
420
n
Exterior lamp switch
342

48 Safety and SecurityOccupant safety

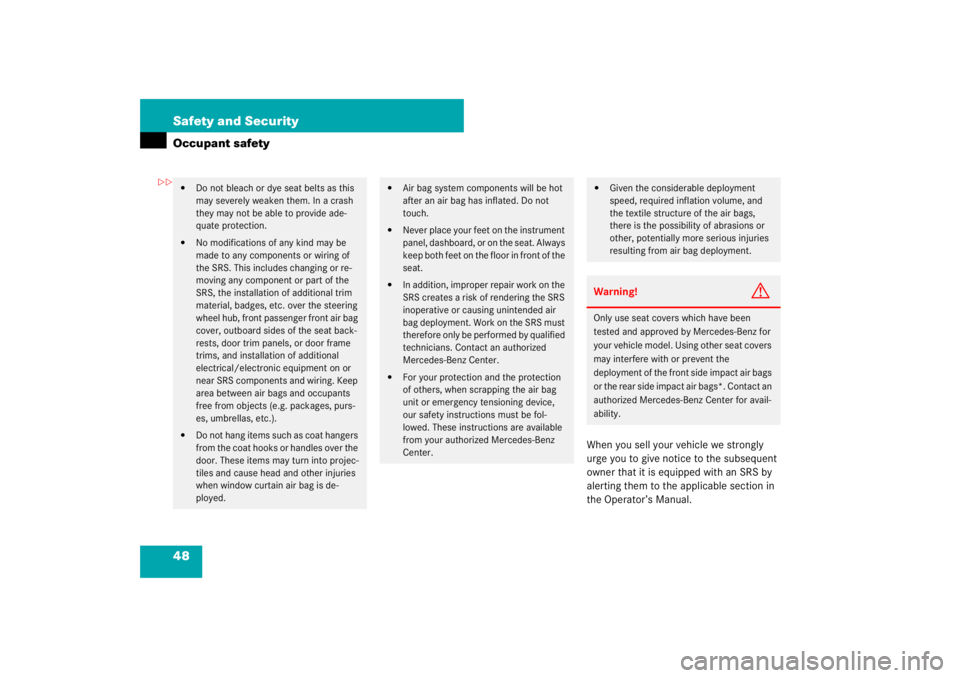

When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the seat back-
rests, door trim panels, or door frame
trims, and installation of additional
electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when window curtain air bag is de-
ployed.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.
Warning!
G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the
deployment of the front side impact air bags
or the rear side impact air bags*. Contact an
authorized Mercedes-Benz Center for avail-
ability.


57 Safety and Security
Occupant safety
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag, pas-
senger front air bag, side impact air
bags, head protection window curtain
air bags for side windows), ETD (seat
belt emergency tensioning device with
belt force limiters), and front seat knee
bolsters. The system is designed to en-
hance the protection offered to properly
belted occupants in certain frontal (front
air bags and ETD with belt force limiters)
and side (side impact and window cur-
tain air bags) impacts which exceed pre-
set deployment thresholds and in
certain rollovers (window curtain air
bags and ETD).


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck in-
juries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, SmartKeys, etc., as
these might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at time. Do not fasten a seat belt
around a person and another person or
other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.


303 Controls in detail
Locking and unlocking
Starter switch positions
Seats
Steering wheel
Mirrors
Memory function
Fastening the seat belts
Lighting
Windshield wipers
Power windowsDriving and parking
Automatic transmission
Instrument cluster
Driving systems
Automatic climate control
Trunk
Power tilt/sliding sunroof
Panorama roof with power
tilt/sliding panel*
Loading and storing
Useful features

342 Controls in detailLighting
Exterior lamp switch

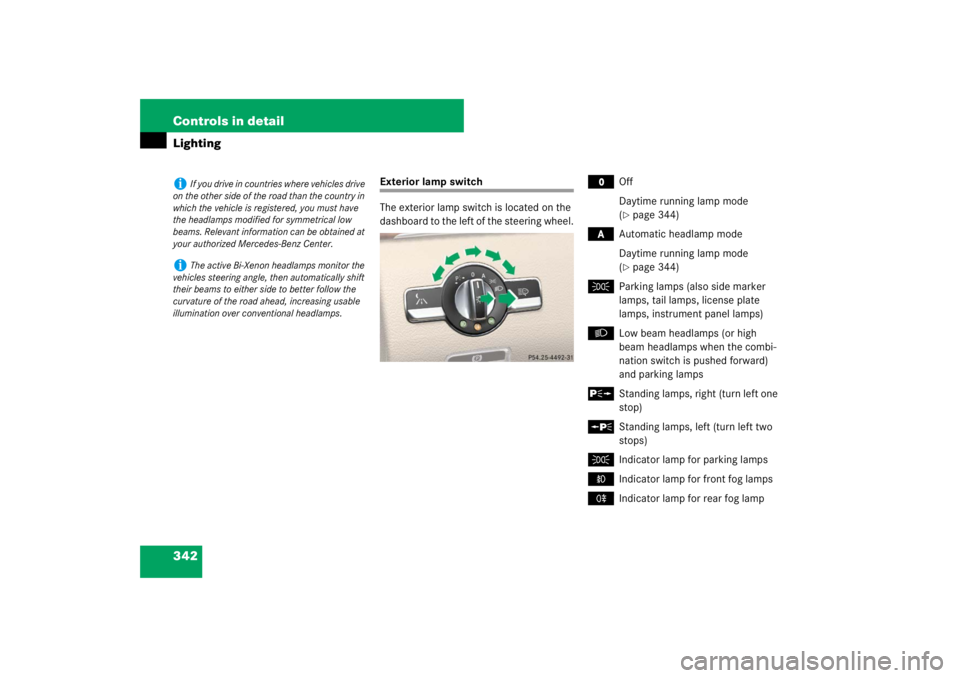

The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
M
Off
Daytime running lamp mode
(page 344)
*
Automatic headlamp mode
Daytime running lamp mode
(page 344)
C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
B
Low beam headlamps (or high
beam headlamps when the combi-
nation switch is pushed forward)
and parking lamps
ˆ
Standing lamps, right (turn left one
stop)
‚
Standing lamps, left (turn left two
stops)
C
Indicator lamp for parking lamps
‡
Indicator lamp for front fog lamps
†
Indicator lamp for rear fog lamp
i
If you drive in countries where vehicles drive
on the other side of the road than the country in
which the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
your authorized Mercedes-Benz Center.
i
The active Bi-Xenon headlamps monitor the
vehicles steering angle, then automatically shift
their beams to either side to better follow the
curvature of the road ahead, increasing usable
illumination over conventional headlamps.
