2007 MERCEDES-BENZ S CLASS TPMS

568 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Tire pressure
Check tires
The pressure has fallen significantly in one
or more tires.

Carefully bring the vehicle to a halt, avoiding abrupt steering
and braking maneuvers. Observe the traffic situation around
you.

Check and adjust tire inflation pressure as required
(page 511).

If necessary, change the wheel (
page 629).

Restart the Run Flat Indicator* after adjusting the tire infla-
tion pressure values (
page 516).
Tire pressure monitor
inoperative
The Advanced TPMS* or a wheel sensor is
malfunctioning.

Have the Advanced TPMS* checked by an authorized
Mercedes-Benz Center.
Tire pressure monitor
inoperative
No wheel sensors
The Advanced TPMS* is deactivated be-
cause wheels without proper sensors were
installed.

Have the wheel sensors installed by an authorized
Mercedes-Benz Center.
As soon as all wheels with sensors have been mounted, the
Advanced TPMS* is switched back on after driving for sever-
al minutes.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

569 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Tire pressure monitor
currently unavailable
The Advanced TPMS* is unable to monitor
the tire inflation pressure due to:

a nearby radio interference source


the on-board voltage is too low


excessive wheel sensor temperatures
As soon as the causes for the malfunction are no longer present,
the Advanced TPMS* automatically becomes active again after
a few minutes driving.
Tire pressures
displayed after driving
a few minutes
Vehicles with Advanced TPMS*:
The tire inflation pressure is being checked.

Drive the vehicle for a few minutes.
Visit workshop
without shifting gears
The automatic transmission cannot be shift-
ed out of the set position because of a mal-
function.
If the automatic transmission is shift to positionD:
Without changing the automatic transmission from
positionD, drive to an authorized Mercedes-Benz Center.
If the automatic transmission is shift to positionN, R or P:

Do not drive.

Consult an authorized Mercedes-Benz Center.

607 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Tele Aid
inoperative
One or more main functions of the Tele Aid
system are malfunctioning.

Have the Tele Aid system checked by an au-
thorized Mercedes-Benz Center.
Tire pressure
Caution, tire defect
Vehicles with Advanced TPMS*:
One or more tires are deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

If necessary, change the wheel (
page 629).
Caution
Tire defect
Vehicles with Advanced TPMS*:
One or more tires are deflating. The respec-
tive tire is shown in the multifunction dis-
play.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

If necessary, change the wheel (
page 629).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

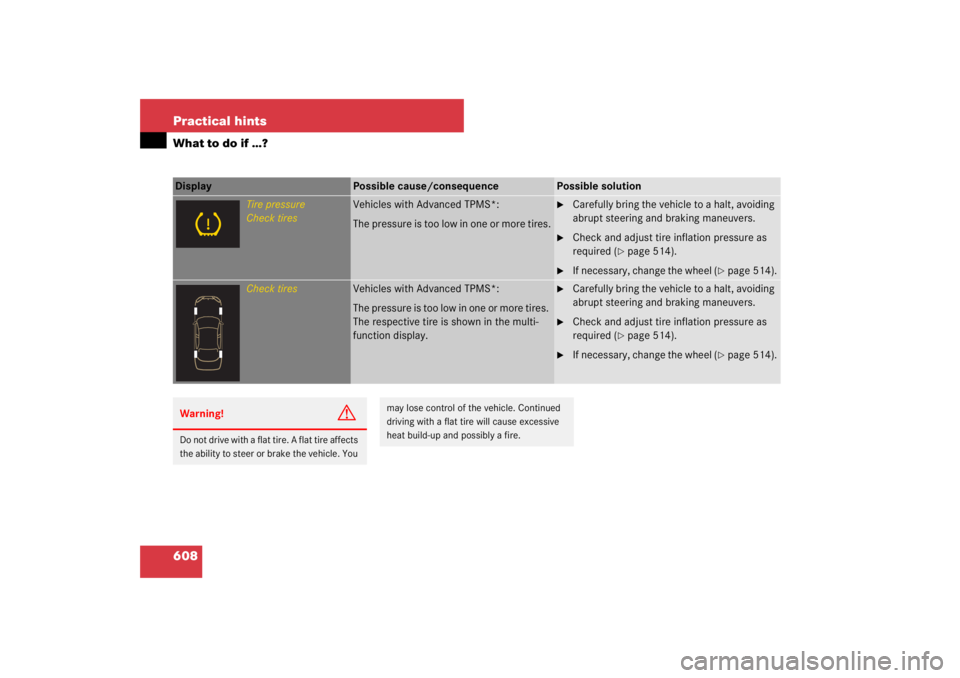

608 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Tire pressure
Check tires
Vehicles with Advanced TPMS*:
The pressure is too low in one or more tires.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

Check and adjust tire inflation pressure as
required (
page 514).

If necessary, change the wheel (
page 514).
Check tires
Vehicles with Advanced TPMS*:
The pressure is too low in one or more tires.
The respective tire is shown in the multi-
function display.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

Check and adjust tire inflation pressure as
required (
page 514).

If necessary, change the wheel (
page 514).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

609 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Wheel sensor(s)
missing
One or more sensors malfunction (e.g. bat-
tery in one or more wheel sensor is empty).
One or more wheels without wheel sensors
mounted (e.g. spare tire).
No pressure value is shown on the multi-
function display for the tire in question.

Have the Advanced TPMS* checked by an
authorized Mercedes-Benz Center.

Have the wheel sensors installed by an
authorized Mercedes-Benz Center.
The tire pressure for the respective tire is
shown in the multifunction display after a few
minutes driving.
Tire pressure
Please rectify
Vehicles with Advanced TPMS*:
The pressure is too low in one or more tires.
Or the tire pressures of the individual
wheels differ too radically from one anoth-
er.

Check and adjust tire inflation pressure as
required (
page 514).

669 Technical terms
ABC
(A
ctive B
ody C
ontrol)
Active, computer-controlled system
that hydraulically adjusts the suspen-
sion at all four wheels in response to
various driving situations.
ABS
(A
ntilock B
rake S
ystem)
Prevents the wheels from locking up
during braking so that the vehicle can
continue to be steered.
Accessory weight
(
page 526)
Adaptive Brake
Brake system that is coupled with
->ABS, ->ESP and ->BAS. Adaptive
Brake takes driver and vehicle charac-
teristics into consideration, thus
achieving an optimal braking effect.ADS
(A
daptive D
amping S
ystem)
Automatically adapts the optimum sus-
pension damping to prevailing driving
conditions.
Advanced TPMS*
(T
ire P
ressure M
onitoring S
ystem)
The Advanced TPMS monitors the tire
inflation pressure in all four tires. A
warning is issued to alert you to a de-
crease in pressure in one or more of
the tires. Tire inflation pressure inquir-
ies are made using the ->Instrument
cluster control system.
Airmatic
Automatically selects the optimum sus-
pension tuning and ride height for your
vehicle. Airmatic consists of two com-
ponents:


Adaptive Damping System


Vehicle level controlAir pressure
(
page 526)
Alignment bolt
Metal pin with thread. The centering
pin is an aid used when changing a tire
to align the wheel with the wheel hub.
A-pillar
Front connecting pillar between the
roof and the vehicle body (->B-pillar,
->C-pillar).
Aspect ratio
(page 526)
Bar
(page 526)
BAS
(Brake A
ssist S
ystem)
System for potentially reducing braking
distances in emergency braking situa-
tions. The system is activated when it
senses an emergency based on how
fast the brake is applied.

698 IndexTemperature
Outside temperature indicator 29
Setting interior temperature
(COMAND) 230
Tires 510
Tie-down hooks, Trunk 453
Tightening torque, Wheel bolts 633, 678
Tilt/sliding sunroof see Power tilt/sliding
sunroof
Time
Setting (COMAND) 213
TIN 527
Tire and Loading Information
Placard 504
Tire Identification Number see TIN
Tires 500
Advanced Tire Pressure Monitoring
System (Advanced TPMS)* 511
And Rims 655
And Wheels 500
Care and maintenance 501
Chains 531
Checking inflation pressure electroni-
cally with Advanced Tire Pressure
Monitoring System (Advanced
TPMS)* 511Checking inflation pressure electroni-
cally with Run Flat Indicator (Canada
only) 515
Cleaning 502
Cold tire inflation pressure 526
Direction of rotation 503
Driving instructions 482
Important notes on tire inflation
pressure 510
Inflation pressure 509
Information placard 504
Inspection 501
Load rating 519, 528
Load rating, Maximum 523, 527
Minispare wheel 613, 658
Ply composition and material
used 528
Problems under-/overinflation 509
Retreads 500
Rotating 529
Run Flat Indicator (Canada only) 515
Service life 501
Sizes 655
Snow 530
Speed rating 484, 520, 528
Storing 502Supplemental tire inflation pressure
information 489
Temperature 510, 525
Terminology 526
TPMS malfunction telltale 553
Traction 483, 528
Tread depth 502
Tread depth, Winter 530
Treadwear indicators 528
Vehicle maximum load on 528
Wear pattern 529
Winter 530
Tools 611
Top tether
Children in the vehicle 64
Tow-away alarm 76
Tow-away alarm (COMAND) 228
Towing eye bolt (vehicle tool kit) 611,
644
Towing the vehicle 642
Tow-start 639, 642
Traction 73, 483, 525, 528
Transmission see Automatic transmission
Traveling abroad 486
Tread 528
Tread depth, Tires 502
