2007 MERCEDES-BENZ R-Class Comand Manual

15 At a glance
Single CD operating elements
FunctionPage
1Audio menu42
2Soft keys
(multifunction keys)
3Color screen with single
CD main menu
The status bar indicates
CD status information
61
41 - 0, *
Track select
64
5Push the joystick to
g and G
Track select
Press E to confirm
64
FunctionPage
6l
Ejecting/loading a CD into
the CD drive
i
There are two l
buttons. One is on the
display unit. The other is
located left of the CD
AUDIO slot behind the
display.
53
7J
Muting
67
8Volume control35
9e Switching on and off34
ad and D
Track select
Fast forward/reverse
64
66

16 At a glance
CD changer* operating elements

CD changer* operating elements

17 At a glance
CD changer* operating elements
The CD changer* is located in the glove
box. To access, press the CDC release
button a in the glove box to lower the
changer*.
The CD changer* can accomodate up to 6
audio or MP3 CDs.
FunctionPage
1Audio menu42
2Soft keys
(multifunction keys)
3Color screen with CD
changer* main menu
The status bar indicates CD
status information
61
61
41 - 0, *
Track select
64
5Push the joystick to
H and h
Selecting an audio CD or
MP3 CD
Push the joystick to
g and G
Track select or
Selecting a CD in the
magazine menu
Press E to confirm
63
64
64
6J
Muting
67
7Volume control35
8e Switching on and off34
FunctionPageFunctionPage
9d and D
Track select
Skip track
Fast forward/reverse
64
65
66
aCDC release button
Accessing the CD
changer*
56
bCD changer* slot
cMagazine compartement
buttons
Loading CDs,
Ejecting CDs
56,
59

18 At a glance
MP3 CD operating elements

MP3 CD operating elements

19 At a glance
MP3 CD operating elements
FunctionPage
1Audio menu42
2Soft keys
(multifunction keys)
3Color screen with MP3
main menu
The status bar indicates
MP3 CD status
information
75
41 - 0, *
Track select
79
5Push the joystick to
H and h
Selecting a folder
Push the joystick to
g and G
Track select or
Activating playback mode
Selecting a folder
Press E to confirm
76
78
81
77
6l
Ejecting/loading a MP3
CD into the CD drive
i
There are two l
buttons. One is on the
display unit. The other is
located left of the CD
AUDIO slot behind the
display.
53
7J
Muting
80
8Volume control35
9e Switching on and off34
ad and D
Fast forward/reverse
80
FunctionPage

20 At a glance
Satellite radio* operating elements

Satellite radio* operating elements

21 At a glance
Satellite radio* operating elements
FunctionPage
1Satellite radio main menu
Switching satellite
operation on and off118
118
2Soft keys
(multifunction keys)
3Color screen with Satellite
radio main menu
118
41 - 0, *
Station selection via direct
channel entry
Saving stations manually
120
121
5Push the joystick to
H,h,g,G
Selecting a category,
Selecting a station
Press E to confirm
6J
Muting
119
FunctionPage
7Volume control35
8e Switching on and off34
9d and D
Previous or next channel
119

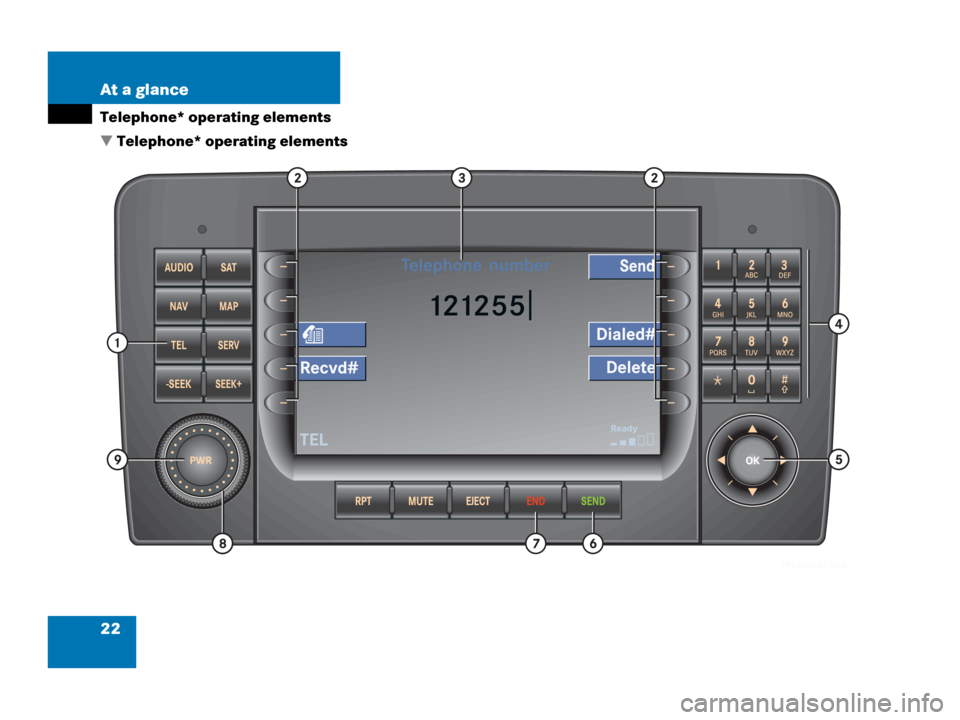

22 At a glance
Telephone* operating elements

Telephone* operating elements
