44 Getting startedAdjustingSeat adjustment
The seat adjustment switch is located on
the entry side of each front seat base.
1 Head restraint height (vehicles with
memory function)*
2Seat cushion tilt
3Seat height
4Backrest tilt
5Seat fore and aft adjustment

Switch on the ignition (
page 40).
or
Vehicles with memory function*:

Open the respective door.
The seat can be adjusted with the
respective door opened.
orVehicles without memory function*:

The seat can be adjusted within
3 minutes after either front door has
been opened.
Seat fore and aft adjustment

Press the switch forward or backward
in direction of arrow5.
Adjust the seat to a comfortable seat-
ing position that still allows you to
reach the accelerator/brake pedal
safely. The position should be as far to
the rear as possible, consistent with
ability to properly operate controls.
Seat height

Press the switch up or down in
direction of arrow3.
!
When moving the seat, make sure there are
no items in the footwell or behind the seat.
Otherwise you could damage the seat.
!
When the rear seats are folded forward, e.g.
for cargo compartment expansion (
page 284),
the front seats may not be moved to the rear-
most position. Otherwise you could damage the
front and rear seats.
!
When adjusting the seat backrest tilt and
head restraint height, make sure the sun visor is
folded up (
page 203). If the head restraint is in
the uppermost position, it could hit and damage
the sun visor.
i
The memory function* (
page 134) lets
you store the settings for the seat positions
together with the settings for the steering wheel
column and the exterior rear view mirrors.

134 Controls in detailMemory function*Prior to operating the vehicle, the driver
should check and adjust the seat height,
seat position fore and aft, and seat back-
rest angle if necessary, to ensure adequate
control, reach and comfort. The head
restraint should also be adjusted for
proper height. See also the section on
air bags (
page 71) for proper seat posi-
tioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, operation
and comfort. Both the interior and exterior
rear view mirrors should be adjusted for
adequate rear vision.
Fasten seat belts. Infants and small chil-
dren should be seated in a properly se-
cured restraint system that complies with
U.S. Federal Motor Vehicle Safety Stan-
dard 213 and 225 and Canadian Motor Ve-
hicle Safety Standards 213 and 210.2.With the memory function you can store up
to three different settings for each front
seat.
The following settings are saved for each
stored position on the entry side of the
driver’s seat:


Driver’s seat, head restraint height and
backrest position


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger-side exterior rear view
mirror position
The following settings are saved for each
stored position on the entry side of the
front passenger seat:


Front passenger seat, head restraint
height and backrest position
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

135 Controls in detail
Memory function*
The memory button and stored position
buttons are located on the entry side of
each front seat base.
MMemory button
1, 2, 3Stored position buttons
Switch on the ignition (
page 40).
or

Open the respective door.
Storing positions into memory
Adjust the seats (
page 43).

On the driver’s side, additionally adjust
the steering wheel (
page 48) and ex-
terior rear view mirrors (page 49) to
the desired positions.

Press memory buttonM.

Release memory buttonM and press
stored position1,2 or3 within
3 seconds.
All settings are stored to the selected
position.
Recalling positions from memory
Press and hold stored position
button1,2 or3 until the seat, steering
wheel and exterior rear view mirrors
have fully moved to the stored posi-
tions.
!
Do not operate the power seats using
memory buttonM if the seat backrest is in an
excessively reclined position. Doing so could
cause damage to front or rear seats.
Move seat backrest to an upright position first.
i
Releasing the stored position button stops
movement to the stored positions immediately.

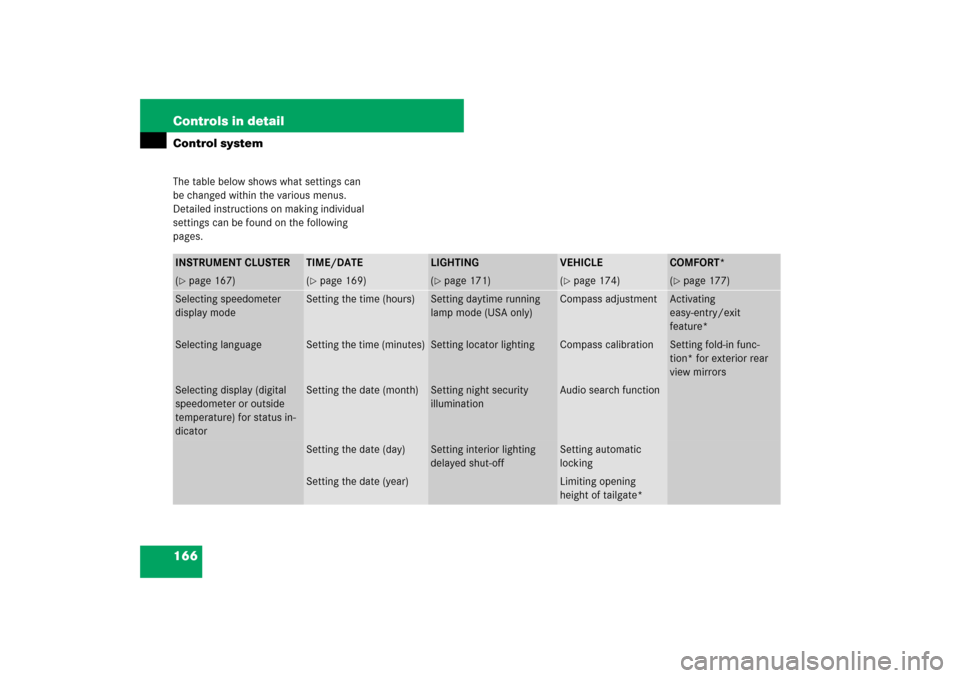

166 Controls in detailControl systemThe table below shows what settings can
be changed within the various menus.
Detailed instructions on making individual
settings can be found on the following
pages.INSTRUMENT CLUSTER
TIME/DATE
LIGHTING
VEHICLE
COMFORT*
(page 167)
(page 169)
(page 171)
(page 174)
(page 177)
Selecting speedometer
display mode
Setting the time (hours)
Setting daytime running
lamp mode (USA only)
Compass adjustment
Activating
easy-entry/exit
feature*
Selecting language
Setting the time (minutes)
Setting locator lighting
Compass calibration
Setting fold-in func-
tion* for exterior rear
view mirrors
Selecting display (digital
speedometer or outside
temperature) for status in-
dicator
Setting the date (month)
Setting night security
illumination
Audio search function
Setting the date (day)
Setting interior lighting
delayed shut-off
Setting automatic
locking
Setting the date (year)
Limiting opening
height of tailgate*

177 Controls in detail
Control system
Limiting opening height of tailgate*
Use this function to activate or deactivate
the limiting opening height of the tailgate.
Move the selection marker with
buttonæ orç to the
Vehicle
submenu.

Press buttonj ork repeatedly
until the message
Opening limiter
Tailgate
appears in the multifunction
display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
the limiting opening height of the
tailgate
On or
Off
.Comfort submenu*
Access the
Comfort
submenu via the
Settings
menu. Use the
Comfort
submenu
to change the settings for a number of con-
venience features.
The following functions are available:Activating easy-entry/exit feature*
Use this function to activate and
deactivate the easy-entry/exit feature
(
page 46).
Function
Page
Activating easy-entry/exit
feature*
177
Setting fold-in function* for
exterior rear view mirrors
178
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:

Move steering wheel adjustment stalk*
(page 48).


Press one of the memory position
buttons or the memory buttonM*
(page 135).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

178 Controls in detailControl system
Move the selection marker with
buttonæ orç to the
Comfort
submenu.

Press buttonj ork repeatedly
until the message
Easy-entry feature

appears in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
the easy-entry/exit feature
On or
Off
.Setting fold-in function* for exterior
rear view mirrors
Using this function, you can set the
exterior rear view mirrors to be automati-
cally folded in when you lock your vehicle.

Move the selection marker with
buttonæ orç to the
Comfort

submenu.

Press buttonj ork repeatedly
until the message
Fold in mirrors
when locking
appears in the multi-
function display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
function
On or
Off
.
Vehicle configuration
The following functions are available:
i
With this function set to
On and the exterior
rear view mirrors folded in using the button on
the door control panel (
page 202), the exterior
rear view mirrors will not fold out when you
switch on the ignition. You will then have to fold
out the exterior rear view mirrors using the
button on the door control panel (
page 202).
Make sure both exterior rear view mirrors are
folded out completely before driving off.
Function
Page
Distance warning function*
on/off
179
DSR set speed
179

200 Controls in detailGood visibilityFor information on the windshield wipers,
see “Windshield wipers” (
page 60).
Headlamp cleaning system*
The button is located on the left side of the
dashboard.
1Headlamp washer button

Switch on the ignition (
page 40).

Press button1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer
reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system*” (
page 363).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 49).
Interior rear view mirror, antiglare
position
1Lever

Tilt the mirror to the antiglare position
by moving lever1 towards the wind-
shield.
The interior rear view mirror is dimmed.
i
The headlamps will automatically be
cleaned when you have


switched on the headlamps
and


operated the windshield wipers with wind-
shield washer fluid fifteen times
When you switch off the ignition, the counter
resets.

201 Controls in detail
Good visibility
Auto-dimming rear view mirrors*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when

the ignition is switched on
and


incoming light from headlamps falls on
the sensor in the interior rear view
mirror
The rear view mirror will not react if


the automatic transmission is set to
positionR


the interior lighting is turned on
Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, when transporting cargo
which covers the rear window.
Light hitting the mirror(s) at certain angles
(incident light) could blind you. As a result,
you may not be able to observe traffic con-
ditions and could cause an accident.Warning!
G
In case of an accident, liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!
Electrolyte liquid coming into contact with
the vehicle paint finish can be completely
removed only while in the liquid state and by
applying plenty of water.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
