222 Controls in detail3-zone automatic climate control*
1
Temperature control, left
2
Air distribution and air volume
(automatic, manual)
3
Air distribution, driver’s side
4
Front defroster
0USA only
PCanada only
5
Increasing air volume
6
Rear window defroster
1USA only
FCanada only
7
Air distribution, passenger side
8
Rear automatic climate control
on/off
>USA only
™Canada only
9
Temperature control, right
a
Automatic climate control on/off
b
Air distribution, passenger side
c
Air distribution, passenger side
d
AC cooling on/off
Residual heat/ventilation
e
Display
f
Decreasing air volume
g
Air recirculation
h
Air distribution, driver’s side
j
Air distribution, driver’s side
k
Interior temperature sensor
l
Adopting driver’s side settings for all
zones

223 Controls in detail
3-zone automatic climate control*
The automatic climate control is a 3-zone
intelligent automatic climate control sys-
tem. Your vehicle interior is divided into
3 zones.With the help of a sun sensor, the automat-
ic climate control determines the relation
of the sun to the vehicle and automatically
adjusts the inside temperature for every
individual zone.
The automatic climate control is operation-
al whenever the engine is running. It cools
the vehicle’s interior according to the an-
gle and intensity of the sun’s rays, the out-
side temperature and the selected
temperature. You can operate the auto-
matic climate control in either the auto-
matic or manual mode.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 222).
Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents can be very
hot or very cold (depending on the set tem-
perature). This may cause burns or frostbite
to unprotected skin in the immediate area of
the air vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
controls (
page 222) to direct the air to air
vents in the vehicle interior that are not in
the immediate area of unprotected skin.

238 Controls in detailPower windowsFully opening the door windows
(Express-open)
Press switch1, 2, 3, or4
(page 236) past the resistance point
and release.
The corresponding door window opens
completely.
Fully closing the door windows
(Express-close)

Pull switch1, 2, 3, or4
(page 236) past the resistance point
and release.
The corresponding door window closes
completely.If the upward movement of a door window
is blocked during the closing procedure,
the door window will stop and open slight-
ly.

Remove the obstruction.

Pull the respective power window
switch past the resistance point again
and release.
Stopping door windows during
Express-operation

Press or pull respective power window
switch again.
Synchronizing the door windows
The door windows must be resynchronized

after the battery was disconnected


if the door windows cannot be fully
opened (Express-open) or closed
(Express-close)

Close all doors.

Switch on the ignition (
page 40).

Pull and hold power window switch1,
2,3, or4 (
page 236).
Once a door window is closed com-
pletely, hold the respective switch for
approximately 3 seconds.
The door window is synchronized.
Warning!
G
Driver’s door only:
If within 5 seconds switch is again pulled
past the resistance point and released, the
automatic reversal will not function.
i
If the door window still does not close when
there is no obstruction, pull and hold the respec-
tive power window switch. The door window will
then close without the obstruction sensor
function.
i
Each door window must be resynchronized
separately.

250 Controls in detailDriving systems
Briefly press the cruise control lever
down past the resistance point in direc-
tion of arrow2 (
page 246).

Release the cruise control lever.
The vehicle speed decreases in incre-
ments of 5 mph (Canada: 10 km/h).Setting to last stored speed
(“Resume” function)

Briefly pull the cruise control lever in di-
rection of arrow4 (
page 246).
The cruise control resumes to the last
set speed, or if no speed is stored, it
will set and store the current speed.

Remove your foot from the accelerator
pedal.
The last set speed appears in the multi-
function display for approximately
5 seconds.
Distronic*
When activated, the Distronic adaptive
cruise control system increases the driving
convenience afforded by the cruise control
while traveling on expressways and other
major roadways.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at your
preset following distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as standard cruise control
(page 245).
i
The new speed is set and the vehicle will
decelerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.
Warning!
G
The set speed stored in memory should only
be set again if prevailing road conditions
permit. Possible acceleration or decelera-
tion differences arising from returning to the
preset speed could cause an accident
and/or serious injury to you and others.

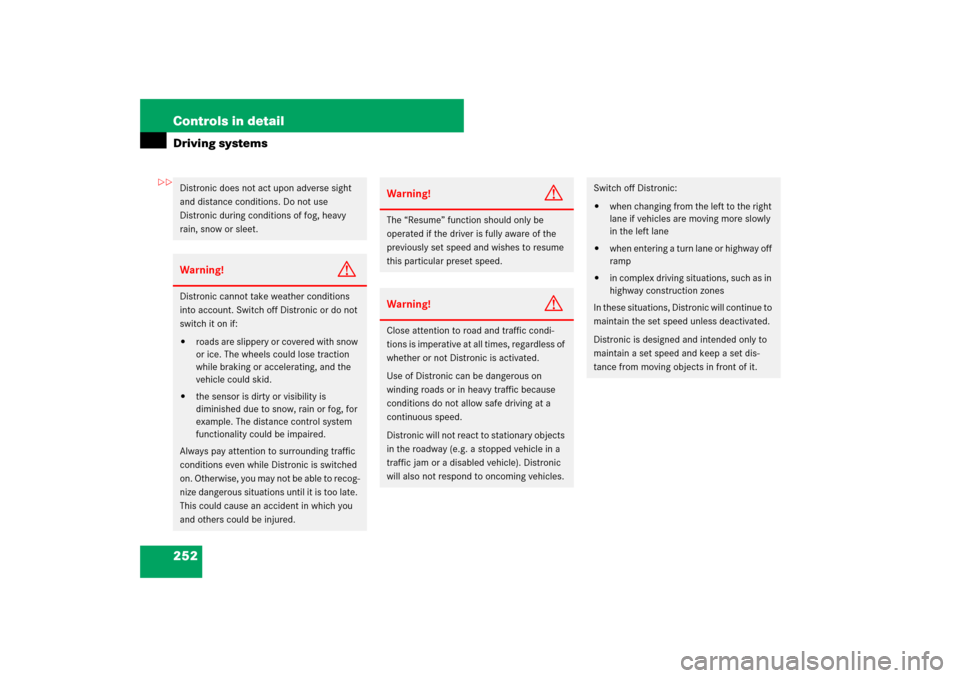

252 Controls in detailDriving systemsDistronic does not act upon adverse sight
and distance conditions. Do not use
Distronic during conditions of fog, heavy
rain, snow or sleet.Warning!
G
Distronic cannot take weather conditions
into account. Switch off Distronic or do not
switch it on if:

roads are slippery or covered with snow
or ice. The wheels could lose traction
while braking or accelerating, and the
vehicle could skid.


the sensor is dirty or visibility is
diminished due to snow, rain or fog, for
example. The distance control system
functionality could be impaired.
Always pay attention to surrounding traffic
conditions even while Distronic is switched
on. Otherwise, you may not be able to recog-
nize dangerous situations until it is too late.
This could cause an accident in which you
and others could be injured.
Warning!
G
The “Resume” function should only be
operated if the driver is fully aware of the
previously set speed and wishes to resume
this particular preset speed.Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on
winding roads or in heavy traffic because
conditions do not allow safe driving at a
continuous speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.


253 Controls in detail
Driving systems
Distronic displays in the speedometer
dial
1Set speed
If Distronic is activated, one or two cruise
control speed segments come on around
the set speed.1Set speed
2Cruise control speed segments
3Speed of the vehicle ahead
If Distronic detects a vehicle directly
ahead, the cruise control speed
segments2, which represents the differ-
ence from the speed of the preceding
vehicle3 to the driver’s selected set
speed1, appear in the speedometer.
i
USA only: This device has been approved by
the FCC as a “Vehicular Radar System”. The ra-
dar sensor is intended for use in an automotive
radar system only. Removal, tampering, or alter-
ing of the device will void any warranties, and is
not permitted by the FCC. Do not tamper with,
alter, or use in any non-approved way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Removal, tampering, or altering of the device will
void any warranties, and is not permitted. Do not
tamper with, alter, or use in any non-approved
way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
The vehicle speed displayed on the speed-
ometer can briefly vary from the speed setting
on the Distronic system.

261 Controls in detail
Driving systems
Decreasing distance
Decreasing the distance setting tells
Distronic to maintain a smaller following
distance to the preceding vehicle.
Turn distance setting switch1 in
direction of arrow2.
Driving with Distronic
This section describes a number of driving
situations where special precaution is re-
quired on the part of the driver. Be pre-
pared to brake in such situations. Braking
will deactivate the Distronic system.The most likely cause for a malfunctioning
system is a dirty sensor (located behind
the hood grille), especially at times of snow
and ice or heavy rain. In such a case,
Distronic will switch off, and the message
DISTRONIC currently unavailable
– See
Operator’s Manual
appears in the multi-
function display.
For cleaning and care of the Distronic sen-
sor, see “Cleaning the Distronic* system
sensor cover” (
page 408).
Warning!
G
Distronic works to maintain the speed se-
lected by the driver unless a moving obsta-
cle proceeding directly ahead of it in the
same travel direction is detected (e.g. fol-
lowing another vehicle ahead of you at your
set distance).
This means that:

Your vehicle can pass another vehicle
after you have changed lanes.


While in a sharp turn or if the preceding
vehicle is in a sharp turn, Distronic could
lose sight of the preceding vehicle. Your
vehicle could then accelerate to the
previously selected speed.
Distronic regulates only the distance be-
tween your vehicle and those directly ahead
of it, but does not register stationary objects
in the road, e.g.:


a stopped vehicle in a traffic jam


a disabled vehicle


an oncoming vehicle
The driver must always be alert, observe all
traffic and intercede as required by means
of steering or braking the vehicle.
Warning!
G
Distronic should not be used in snowy or icy
road conditions.
i
If the message
DISTRONIC available
again
appears during driving the dirt (e.g.
slush) has dissolved; Distronic works again, if
you reactivate it (
page 256).

274 Controls in detailDriving systemsWhen the highway level is reached, indica-
tor lamp2 (
page 271) goes out. and
the following message appears in the mul-
tifunction display for 5 seconds:
Parktronic system*
i
The message can be cleared by pressing
theèÿk or buttonj on the
multifunction steering wheel.
i
The vehicle is lowered automatically to the
highway level if:


the vehicle speed is above 55 mph
(88 km/h)


the speed stays between 40 mph (64 km/h)
and 55 mph (88 km/h) for approximately
20 seconds
Warning!
G
Parktronic is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always rests with the driver.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts, or road
curbs). Such objects may not be detected by
the system and can damage the vehicle.
The operational function of the Parktronic
system can be affected by dirty sensors,
especially at times of snow and ice. See
“Cleaning the Parktronic system sensors”
(page 408).
Interference caused by other ultrasonic
signals (e.g. working jackhammers, car
wash, or the air brakes of trucks) can cause
the system to send erratic indications, and
should be taken into consideration.
Warning!
G
Make sure no persons or animals are in the
area in which you are maneuvering. You
could otherwise injure them.
