133 Navigation*
Destination input
To cancel the compass screen in vehicles
with Navigation
Press any soft key, then press the Back
soft key.
or
Press b or c.
To cancel the Compass screen in vehicles
without Navigation
Press the A, B, a or C
buttons.Compass screen
1Pointer shows the steering angle on a
half circle scale in degrees
2Steering icon shows the position of the
vehicle wheels
3Dynamic compass displays the driving
direction at the top of the screen, the
white arrow always points to North
If your vehicle is equipped with Navigation
4Height indication, the scale scrolls as
the the vehicle's altitude changes
5Status bar shows GPS coordinates,
height above sea level and the number
of currently received satellites
i
Compass screen is activated during
route guidance:
COMAND continues to provide route
guidance via voice instructions
(
page 136). The Navigation screens
are visible in the instrument cluster
multifunction display.
i
Keep in mind, steering angle 1 and the
steering icon 2 are approximations.

134 Navigation*
Destination input
Additional information for 1, 3 and 4
IndicationRemarks and
value range
1 Steering angle Pointer shows to the
left
-35° to 0°
Pointer shows to the
right
0° to +35°
3 Dynamic
compass card 0° to 360°
4 Height above
the sea level i
The white indicator
is fixed, the scale
scrolls as vehicle
altitude changes
Scale range:
The display unit is
set to miles
-328 ft to 19680 ft
The display unit is
set to km
-100 m to 6000 m
IndicationRemarks and
value rangei
Using the control system, the display
unit can be changed between km or
miles (see your vehicle’s Operator’s
Manual).
When the instrument cluster
multifunction display is set to miles,
the COMAND will indicate
distances in miles (mi) or feet (ft)
When the instrument cluster
multifunction display is set to
kilometers, the COMAND will
indicate distances in kilometers
(km) or meters (m)

135 Navigation*
Route guidance

Route guidance
Route guidance can be started if the
destination input is complete and
Start
route guidance
is displayed at the
bottom of the main area.
Start route guidance menu
1Destination address
2Arrow indicates the direction to the
destination and the distance to the
destination (as the crow flies)
Press E.
Route calculation and route guidance
begins.
1Routing mode
Setting the routing mode (
page 116)
2Arrow indicate the direction of the
destination, the distance to destination
and
CALC RTE indication
3The road you are currently driving onRoute calculation can take some time,
depending on the distance to the
destination and the routing mode.
During route calculation, an arrow pointing
towards the destination, the distance to
the destination (as the crow flies) and
CALC RTE are displayed.
Route guidance begins when route
calculation is complete.
The system will calculate a new route
during active route guidance if the driver
does not follow the route guidance.
Starting route guidance
Route calculation
Recalculating an existing route

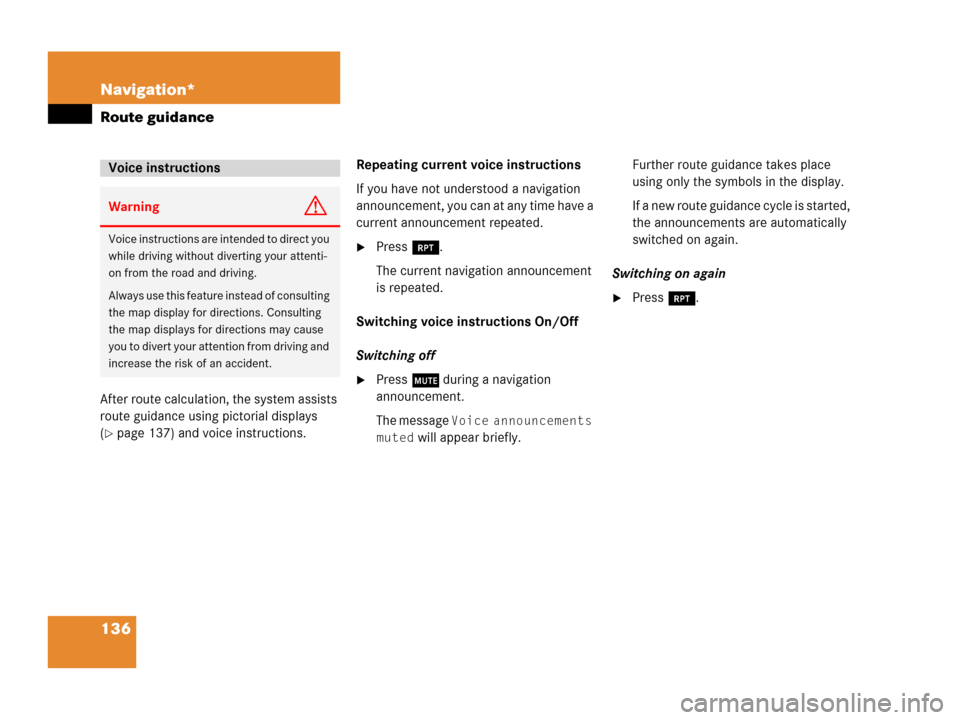

136 Navigation*
Route guidance
After route calculation, the system assists
route guidance using pictorial displays
(
page 137) and voice instructions. Repeating current voice instructions
If you have not understood a navigation
announcement, you can at any time have a
current announcement repeated.
Press j.
The current navigation announcement
is repeated.
Switching voice instructions On/Off
Switching off
Press J during a navigation
announcement.
The message
Voice announcements
muted
will appear briefly. Further route guidance takes place
using only the symbols in the display.
If a new route guidance cycle is started,
the announcements are automatically
switched on again.
Switching on again
Press j.
Voice instructions
WarningG
Voice instructions are intended to direct you
while driving without diverting your attenti-
on from the road and driving.
Always use this feature instead of consulting
the map display for directions. Consulting
the map displays for directions may cause
you to divert your attention from driving and
increase the risk of an accident.

137 Navigation*
Route guidance
The navigation displays are only visible
while route guidance is active.
To switch to the navigation display from
another display, e.g. from CD operation:
Press b or c.
Two examples are shown below:
Display example 1:The road you are currently driving on is
shown on the status bar, in this case
EAST I-90. The indication 571 mi is the
distance to the next driving maneuver.Important map symbols:Current vehicle location and direction
of travel y
If the map orientation
Heading Up
(page 155) is chosen, the arrow will
always point upward.
The remaining route section is
highlighted in blue color.
Navigation displays
i
Using the control system, the display
unit can be changed between km or
miles (see your vehicle’s Operator’s
Manual).
When the instrument cluster
multifunction display is set to miles,
the COMAND will indicate
distances in miles (mi) or feet (ft).
When the instrument cluster
multifunction display is set to
kilometers, the COMAND will
indicate distances in kilometers
(km) or meters (m).
i
The colored highlight only appears
when the system has completed the
route calculation.

138 Navigation*
Route guidance
Display example 2:
1Current vehicle location and direction
of travel y, remaining route section
2Name of the road you are to turn onto
3Symbol for the next driving maneuver,
distance bar and distance to the next
driving maneuver
4The road you are currently driving on
In the right half of the display, the symbol
for the next driving maneuver is indicated
(here: right turn).On the very right side of the display next to
the turn symbol is the distance bar. It
indicates the distance to the next driving
maneuver (here: 800 ft).
The status bar shows the name of the
street after the driving maneuver, if
available, here:
MAIN ST
The destination is marked with a flag $ on
the map, an intermediate destination is
marked with a flag showing the letter
S.
Press any soft key.
The soft key displays appear.
i
If full view of map is displayed:
Status bar 4 indicates one of the
following depending on which option is
selected in the Display in Map screen
(
page 156)
the estimated time of arrival and
distance to destination
GPS coordinates of the current
position or
the road you are currently driving
on
i
Using the control system, the display
unit can be changed between km or
miles (see your vehicle’s Operator’s
Manual).
When the instrument cluster
multifunction display is set to miles,
the COMAND will indicate
distances in miles (mi) or feet (ft).
When the instrument cluster
multifunction display is set to
kilometers, the COMAND will
indicate distances in kilometers
(km) or meters (m).
i
If no other action is taken within
approx. 8 seconds, the soft key
displays will disappear again.

139 Navigation*
Route guidance
Altering the map scale
The current map scale is indicated on the
left side of the status bar.
Press the + or ) soft key.
The map section is zoomed in or
zoomed out. A bar indicating the map
scale appears on the status bar.
Selecting map orientation
A symbol is shown on the bottom left side
of the status bar.
Heading Up <:
Dynamic map alignment, map is
displayed facing driving direction
pointing up
or
North Up Y:
Map is displayed facing northYou can select the map orientation
(
page 155).
Changing the map display
While route guidance is active, you can
switch between split view and full view.
Split view:
The map is shown on the left side and
information on the next maneuver on
the right.
or
Full view:
Full view of the map.
Press c.
The display changes with every push of
the button.
i
Depending on which option is selected
in the Display in Map screen
(
page 156), the status bat indicates
the estimated time of arrival and
distance to destination
GPS coordinates of the current
position or
the road you are currently driving
on.

140 Navigation*
Route guidance
Usually COMAND guides you through fully
digitized areas on verified roads for as long
as possible. Route guidance is conducted
in the usual manner, i.e. with navigation
announcements and route guidance dis-
plays, map or split screen.
The DVD map may contain areas that are
only partially digitized with unverified
roads although they are within a digitized
region.Verified roads
include information about the road’s
average speed, turning restrictions, or
whether it is a one-way street
are typically roads within a
metropolitan area, interstate freeways
or major roads connecting cities
enable reasonably accurate route
calculation and selection
Unverified roads
are roads which lack the expected
road’s average speed and other
attributes
could be smaller city streets and roads
either named incorrectly, have no
name or the name is shown in the
wrong location
may not enable reasonably accurate
route calculation and selection
Partially digitized areas/unverified
roads
WarningG
Due to incomplete digitization, the route
shown on the map may differ from the actual
road/traffic situation.
If you follow the route shown on the map, for
example, it is possible that you could drive
the wrong way down a one-way street, that
a street cannot be driven on or that the road
is of questionable quality.
When using route guidance on a unverified
road in a partially digitized area, you must
therefore be sure to observe all relevant
traffic regulations and the course of the
road.
Drive carefully and keep in mind that all re-
levant traffic regulations and the course of
the road always take priority over the route
shown on the map.
