2007 MERCEDES-BENZ G-Class navigation

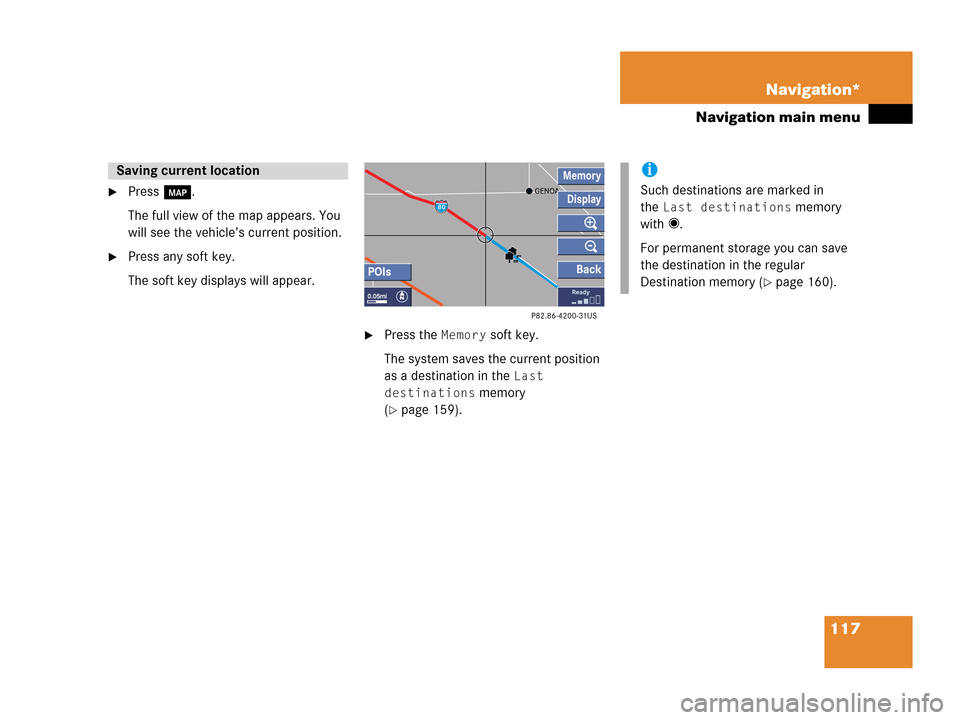

117 Navigation*
Navigation main menu
Press c.
The full view of the map appears. You
will see the vehicle’s current position.
Press any soft key.
The soft key displays will appear.
Press the Memory soft key.
The system saves the current position
as a destination in the
Last
destinations
memory
(
page 159).
Saving current locationi
Such destinations are marked in
the
Last destinations memory
with _.
For permanent storage you can save
the destination in the regular
Destination memory (
page 160).

118 Navigation*
Destination input

Destination input
Activating the Navigation main menu
(
page 114).
Push the joystick to g or G to
select the menu item
Enter
destination
.
Press E.
The Enter street menu will appear.
Enter street menu
You can use the following functions
entering a street name or accepting a
street name if already available
(
page 120).
changing the state/province
(
page 119).
or
entering a city (page 125).Available soft keys:
State soft key:
Brings you to the Select state/province
menu (
page 119).
City soft key:
Brings you to the Enter city menu
(
page 125).
List soft key:
Brings you to a list of streets beginning
with the previously input letters.
Delete soft key:
The character last entered is deleted.
Back soft key:
Returns you to the previous menu.
Activating the Enter street menu
i
The currently set state is identifed by
the state code in the middle of the
screen.
If the vehicle location is in Canada, this
soft key appears as
Province.

119 Navigation*
Destination input
Press the State soft key
in the Enter street menu
(
page 118)
in the Enter city menu (page 125).
The Select state/province menu will
appear.
Select state/province menu
Push the joystick to g or G to
select a state.
Press E.
The Enter street menu will reappear
and shows the new state code in the
middle of the screen.
Toggling between State and Province
list
You can toggle between states in the USA
and provinces in Canada.
Push the joystick to H or h.
State of Hawaii
When on the mainland, you cannot choose
destinations in Hawaii, because these are
in a database separate from the USA/
Canada. Similarly, when in Hawaii, you cannot choose mainland destinations. The
message
You must change the state
or province in order to use that
destination
will appear in this case, if
such a destination is selected from the last
destinations memory (
page 159), the
destination memory (
page 161) or as
home address (
page 131).
Choose another state or province.
The warning message
This selec-
tion will restart the system.
Last destinations may not be
available, and today’s plan
will be erased. Do you wish to
continue?
will appear.
Push the joystick to H to select Yes.
Press E to restart.
Selecting the state/province
i
Use the State list for selecting states in
the USA and the Province list for
selecting provinces in Canada.
i
If you have already calculated a route,
you can toggle to the Last list, which
contains up to 5 last selected states or
provinces.
i
After such a restart, Today’s Plan
entries are all deleted. Destinations in
the previous area (for example in Last
Destinations) are kept so that you can
access and delete them.

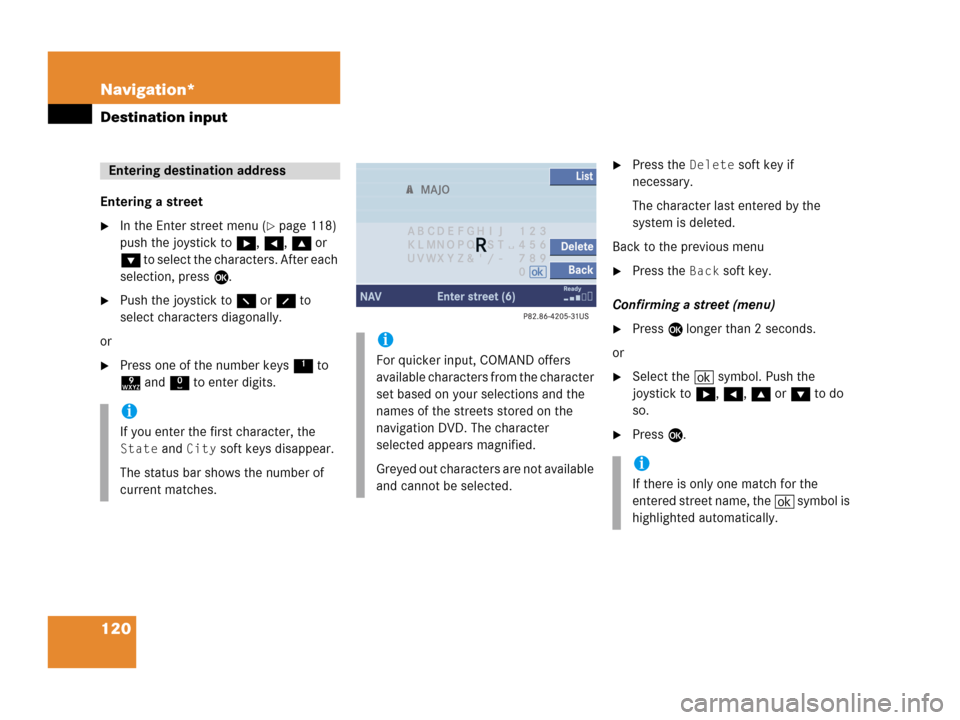

120 Navigation*
Destination input
Entering a street
In the Enter street menu (page 118)
push the joystick to h, H, g or
G to select the characters. After each
selection, press E.
Push the joystick to F or f to
select characters diagonally.
or
Press one of the number keys 1 to
9 and 0 to enter digits.
Press the Delete soft key if
necessary.
The character last entered by the
system is deleted.
Back to the previous menu
Press the Back soft key.
Confirming a street (menu)
Press E longer than 2 seconds.
or
Select the ( symbol. Push the
joystick to h, H, g or G to do
so.
Press E.
Entering destination address
i
If you enter the first character, the
State and City soft keys disappear.
The status bar shows the number of
current matches.
i
For quicker input, COMAND offers
available characters from the character
set based on your selections and the
names of the streets stored on the
navigation DVD. The character
selected appears magnified.
Greyed out characters are not available
and cannot be selected.
i
If there is only one match for the
entered street name, the ( symbol is
highlighted automatically.

121 Navigation*
Destination input
or
Press the List soft key.
The street list will appear. You can now
select a street.
Selecting a street
Select street list
Push the joystick to g or G to
select a street.
Available soft keys:
Press the Details soft key to see all
information about the street entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Confirming a street (list)
Press E to confirm your selection.
The Enter house number menu will
appear.Entering a house number
Enter house number menu
The first line shows the available house
number range.
i
You can enter an intersection instead
of the house number. You cannot enter
both.

122 Navigation*
Destination input
You can use the following functions
entering the house number
entering any house number by pressing
the
Any # soft key
selecting an intersection to that street
(
page 124).
Press the appropriate number keys
0, 1 to 9.
or
Push the joystick to h, H, g or
G to select the numbers. After each
selection, press E.
Push the joystick to F or f to
select numbers diagonally.
or
Press the Any # soft key to select the
available address range of the chosen
street.Confirming a house number
Press E longer than 2 seconds.
or
Select the ( symbol. Push the
joystick to h, H, g or G to do
so.
Press E.
The Select city list (
page 123) will
appear.
or
i
For quicker input, COMAND offers
available numbers from the number
set based on your selections and the
house numbers stored on the
navigation DVD. The number
selected appears magnified.
Greyed out numbers are not available
and cannot be selected.
i
Each option is possible as long as the
entered house number is available
from the information stored on the
DVD.
i
If there is only one match for the
entered house number, the ( symbol
is highlighted automatically.

123 Navigation*
Destination input
The Start route guidance menu
(
page 135) will appear, if the entered
address information (street name and
house number) is unique in the
selected state or province.
or
The Ent er cit y menu will a ppear if more
than 7 cities share the entered address
information (street name and house
number).
Confirming a city
Select city list
Push the joystick to g or G to
select a city.
Available soft keys:
Press the Details soft key to see all
information about the city entry.
Use the Page V and Page v soft keys
to display the next or previous page (if
available).
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Press E to confirm your selection.
The Start route guidance menu
(
page 135) will appear.
Entering a cross street
You can enter a cross street with the
previously entered street.
In the Enter house number menu
(
page 121), press the Cross st
soft key.
Push the joystick to h, H, g or
G to select the characters. After each
selection, press E.
Push the joystick to F or f to
select characters diagonally.
or
Press one of the number keys 1 to
9 and 0.
i
The status bar shows the number of
current matches.

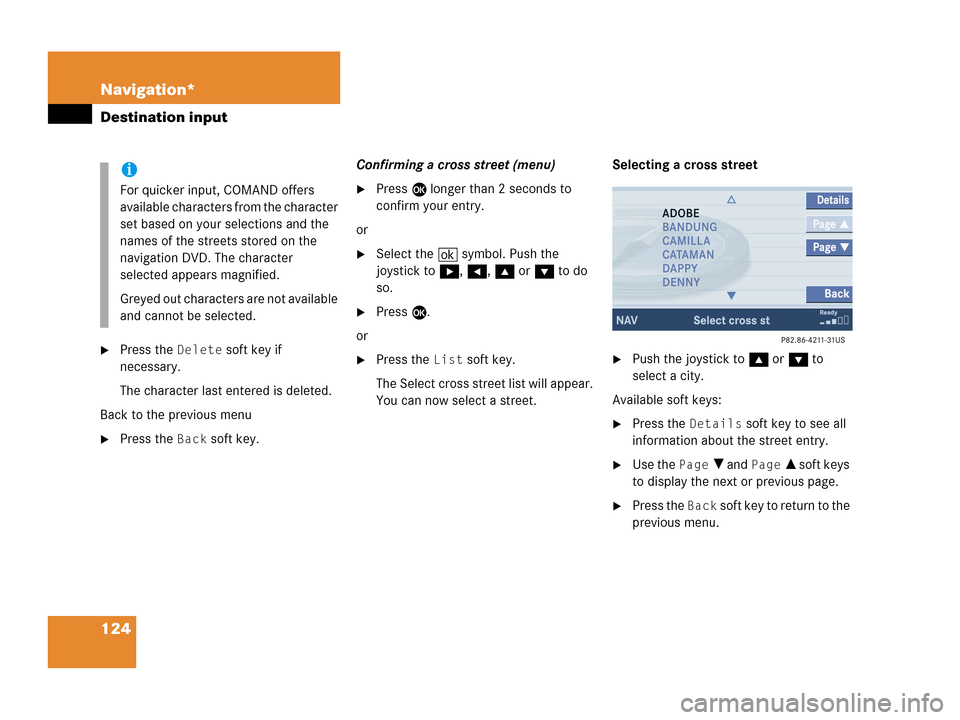

124 Navigation*
Destination input
Press the Delete soft key if
necessary.
The character last entered is deleted.
Back to the previous menu
Press the Back soft key.Confirming a cross street (menu)
Press E longer than 2 seconds to
confirm your entry.
or
Select the ( symbol. Push the
joystick to h, H, g or G to do
so.
Press E.
or
Press the List soft key.
The Select cross street list will appear.
You can now select a street.Selecting a cross streetPush the joystick to g or G to
select a city.
Available soft keys:
Press the Details soft key to see all
information about the street entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back soft key to return to the
previous menu.
i
For quicker input, COMAND offers
available characters from the character
set based on your selections and the
names of the streets stored on the
navigation DVD. The character
selected appears magnified.
Greyed out characters are not available
and cannot be selected.
