2007 MERCEDES-BENZ CLS63AMG instrument panel

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside
the USA or Canada......................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
Vehicle data recording ......................... 19
Information regarding electronic
recording devices ........................... 19
At a glance.......................................... 21
Exterior view ......................................... 22
Cockpit ................................................. 24
Instrument cluster ................................ 26
Multifunction steering wheel ................ 28
Center console ..................................... 29
Upper part ...................................... 29
Lower part ...................................... 30
Overhead control panel ........................ 31
Storage compartments ......................... 32
Door control panel................................ 34
Getting started................................... 35
Unlocking ............................................. 36
Unlocking with the SmartKey ......... 36
Unlocking with KEYLESS-GO*......... 37
Starter switch positions .................. 38
Adjusting .............................................. 41
Seats .............................................. 41
Steering wheel ................................ 44
Mirrors ............................................ 46
Driving .................................................. 48
Fastening the seat belts ................. 48
Starting the engine ......................... 51
Parking brake ................................. 53
Driving off ....................................... 53
Switching on headlamps ................. 55
Turn signals .................................... 55
Windshield wipers ........................... 56
Problems while driving.................... 58
Parking and locking .............................. 59
Parking brake ................................. 59
Switching off headlamps................. 60
Turning off engine ........................... 60
Releasing seat belts........................ 61
Locking ........................................... 61

21 At a glance
Exterior view
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Storage compartments
Door control panel

25 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals
55


Windshield wipers
56


High beam
55
2
Steering wheel gearshift
control*
179
3
Cruise control lever

Cruise control
215


Distronic*
218
4
Multifunction steering
wheel
28,
142
5
Instrument cluster
26,
138
6
Horn
Item
Page
7
Lever for Voice Control Sys-
tem*, see separate
operating instructions
8
Front Parktronic* warning
indicator
235
9
Overhead control panel
31
a
Glove box lid release, glove
box lock
244
b
Glove box
244
c
Center console
29
d
Starter switch
38
e
Steering wheel adjustment
stalk
44
Heated steering wheel
(Canada only)
252
Item
Page
f
Headlamp cleaning button*
185
g
Parking brake pedal
53, 59
h
Hood lock release
286
j
Parking brake release
53
k
Exterior lamp switch
55,128
l
Door control panel
34

68 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
Emergency Tensioning Device and
air bag
i
Air bags are designed to activate only in cer-
tain frontal impacts (front air bags, driver-side
knee bag), side impacts (side impact and window
curtain air bags) which exceed preset thresholds
and in certain rollovers (window curtain
air bags). Only during these events will they pro-
vide their supplemental protection.
The driver and passenger should always wear
their seat belts. Otherwise it is not possible for
the air bags to provide their supplemental pro-
tection.
In case of other types of impacts and impacts be-
low air bag deployment thresholds, air bags will
not be deployed. The driver and passenger will
then be protected to the extent possible by a
properly fastened seat belt. A properly fastened
seat belt is also needed to provide the best pro-
tection in a rollover.
We caution you not to rely on the presence of the
air bags in order to avoid wearing your seat belt.
It is important to your safety and that of your pas-
sengers that you replace deployed air bags and
repair any malfunctioning air bags to make sure
that the vehicle will continue to provide supple-
mental crash protection for occupants.

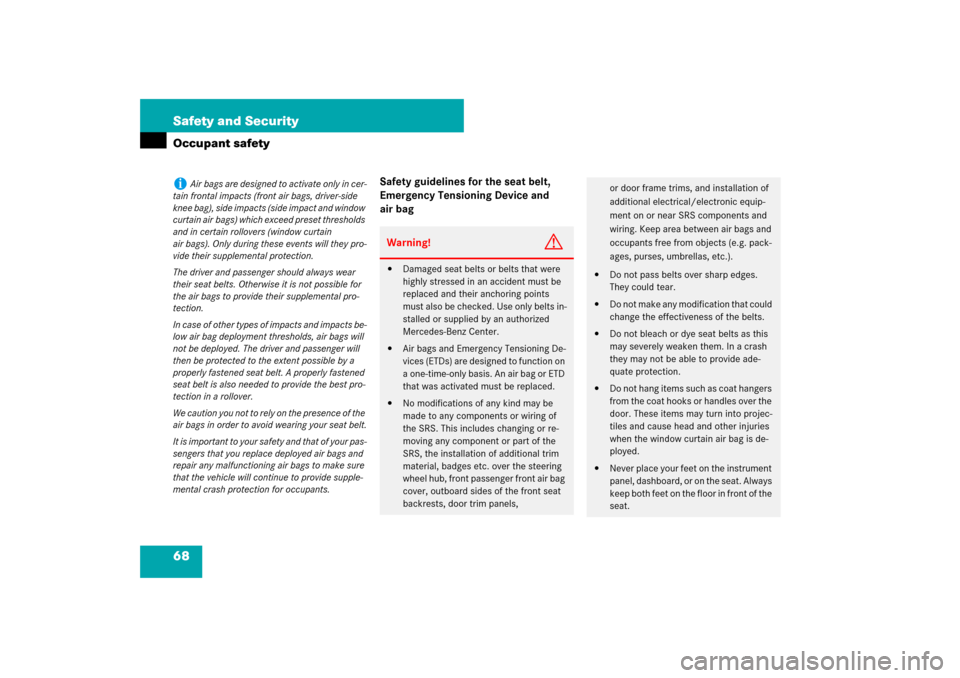

Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Use only belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Air bags and Emergency Tensioning De-
vices (ETDs) are designed to function on
a one-time-only basis. An air bag or ETD
that was activated must be replaced.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the front seat
backrests, door trim panels,
or door frame trims, and installation of
additional electrical/electronic equip-
ment on or near SRS components and
wiring. Keep area between air bags and
occupants free from objects (e.g. pack-
ages, purses, umbrellas, etc.).


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when the window curtain air bag is de-
ployed.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

70 Safety and SecurityOccupant safetyThe air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.The front passenger air bag will only be
deployed if:


the front passenger seat is occupied


the 75indicator lamp in
the center console is not lit
(page 76)


the impact exceeds a preset deploy-
ment threshold
Knee bag
The knee bag is located on the driver-side
lower instrument panel. It is designed to
operate together with the driver air bag in
certain frontal impacts exceeding a preset
threshold. The knee bag operates best in
conjunction with a properly positioned and
fastened seat belt.Side impact air bags, window curtain
air bags
1Front side impact air bags
2Window curtain air bag
3Rear side impact air bags
i
The front air bags in this vehicle have been
designed to inflate in two stages. This allows the
air bag to have different rates of inflation that are
based on the rate of vehicle deceleration as as-
sessed by the air bag control unit.
USA only:
On the front passenger side, the front air bag de-
ployment is additionally influenced by the pas-
senger’s weight category as identified by the
Occupant Classification System (OCS)
(
page 71).
USA only:
The lighter the front passenger side occupant,
the higher the vehicle deceleration rate required
for the second stage inflation of the air bag.
!
Canada only:
Do not place objects heavier than 20 lb (9 kg) on
the front passenger seat. This could cause the
front or side impact air bag on the front passen-
ger side to deploy in a crash which exceeds the
system’s deployment threshold.

80 Safety and SecurityOccupant safety
When the engine is started, the seat belt
telltale< will always illuminate
for 6 seconds to remind you and your pas-
sengers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’ s
seat belt is fastened.
The system is designed to enhance the
protection offered to properly belted oc-
cupants in certain frontal (front air bags,
driver-side knee bag and ETD) and side
(side impact and window curtain air
bags and ETD) impacts which exceed
preset deployment thresholds and in
certain rollovers (window curtain air
bags and ETD).


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck in-
juries. The seat belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.


Never wear seat belts over rigid or
breakable objects in or on your clothing,
such as eyeglasses, pens, SmartKeys
etc., as these might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the seat belt is positioned across
your abdomen, it could cause serious in-
juries in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Seat belts should not be worn twisted.
In a crash, you wouldn’t have the full
width of the seat belt to distribute im-
pact forces. The twisted seat belt
against your body could cause injuries.


Pregnant women should also always use
a lap-shoulder seat belt. The lap belt
portion should be positioned as low as
possible on the hips to avoid any possi-
ble pressure on the abdomen.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


When using a seat belt to secure infant
or toddler restraints or children in boost-
er seats, always follow the child seat
manufacturer’s instructions.


128 Controls in detailLightingFor information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 55)
and see “Turn signals” (
page 55).
Exterior lamp switchExterior lamp switch
i
If you drive in countries where vehicles drive
on the other side of the road than the country
where the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
your authorized Mercedes-Benz Center.
i
Vehicles equipped with active Bi-Xenon*
headlamps: The active Bi-Xenon headlamps
monitor your steering angle and driving speed,
then automatically shift their beams to either
side to better follow the curvature of the road
ahead, increasing usable illumination over con-
ventional headlamps.
1‚
Standing lamps, left (turn left two
stops)
2ˆ
Standing lamps, right (turn left
one stop)
3M
Off
Daytime running lamp mode
(page 130)
4U
Automatic headlamp mode
Daytime running lamp mode
(page 130)
5C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
6B
Low beam headlamps or high
beam headlamps when the com-
bination switch is pushed for-
ward. The tail lamps, license
plate lamps, side marker lamps,
parking lamps and instrument
panel lamps also come on.
7‡
Front fog lamps
8†
Rear fog lamp
i
If you hear a warning signal you have forgot-
ten to switch off the headlamps before opening
the driver’s door.
In addition the message
Switch off lights
appears in the multifunction display.
Switch off the headlamps.

465 Index
I
Identification labels 434
Identification Number, Vehicle (VIN) 435
Ignition 38, 40
Immobilizer 99
Indicator lamps see Lamps, indicator and
warning
Infant and child restraint systems see Chil-
dren in the vehicle
Inflation pressure see
Tires, Inflation pressure 301
Information button (Tele Aid) 261
Inside door handle 111
Installing
Wiper blades 411
Instrument cluster 26, 138
Coolant temperature indicator 139
Illumination brightness 138
Lamps 342
Messages in the multifunction
display 356
Multifunction display 141
Outside temperature indicator 140Instrument lighting see Instrument cluster,
Illumination brightness 138
Instrument panel see Instrument
cluster 138
Instruments and controls see
Cockpit 138
Interior lighting 135
Delayed shut-off 164
Interior rear view mirror 47, 185
Auto dimming 185
Interior storage space see Storage com-
partments
J
Jack 394
Jacking up the vehicle 414
Jump starting 423
K
Key, Mechanical 396
Loss of 110Key, SmartKey
Battery check lamp 105
Checking batteries 110
Factory setting 103
Global locking 104, 105
Global unlocking 104
Locking/unlocking 102, 105
Loss of 110
Messages in display 378
Opening and closing the power
tilt/sliding sunroof 210
Opening and closing the
windows 210
Remote control 102
Replacing batteries 402
Restoring to factory setting 105
Selective setting 104
Starter switch positions 38
Starting the engine 51, 52
Turning off the engine 60
