2007 MERCEDES-BENZ CLK550 service indicator

Contents
At the gas station .............................. 312
Refueling ...................................... 312
Check regularly
and before a long trip ................... 314
Engine compartment ......................... 315
Hood ............................................ 315
Engine oil ..................................... 317
Transmission fluid level ................ 319
Coolant ........................................ 320
Battery ......................................... 321
Windshield washer system and
headlamp cleaning system* ......... 322
Tires and wheels ................................ 323
Important guidelines .................... 323
Tire care and maintenance........... 324
Direction of rotation ..................... 326
Loading the vehicle ...................... 326
Recommended
tire inflation pressure ................... 331
Checking tire inflation pressure ... 333
MOExtended system* .................. 336
Tire labeling.................................. 337
Load identification ....................... 341
DOT,
Tire Identification Number (TIN) ... 342
Maximum tire load ....................... 343Maximum tire inflation pressure ... 344
Uniform Tire Quality Grading
Standards (U.S. vehicles) .............. 344
Tire ply material ............................ 346
Tire and loading terminology......... 347
Rotating tires ................................ 350
Winter driving ..................................... 351
Winter tires ................................... 351
Block heater (Canada only) ........... 352
Snow chains.................................. 352
Maintenance....................................... 353
Maintenance
service indicator message ............ 353
Clearing the maintenance
service indicator message ............ 354
Maintenance
service term exceeded.................. 354
Calling up the maintenance
service indicator display ............... 355
Resetting the maintenance
service indicator ........................... 355
Vehicle care........................................ 356
Cleaning and care of vehicle ......... 356
Practical hints.................................. 365
What to do if …? ................................. 366
Lamps in instrument cluster ......... 366
Lamp in center console ................ 376
Vehicle status messages
in the multifunction display .......... 378
Where will I find...? ............................. 404
First aid kit.................................... 404
TIREFIT (CLK 63 AMG only)........... 404
Vehicle tool kit.............................. 404
Minispare wheel............................ 407
Spare wheel bolts ......................... 409
Unlocking/locking in an emergency .. 410
Unlocking the vehicle ................... 410
Locking the vehicle ....................... 411
Manually unlocking
the gear selector lever .................. 412
Opening/closing in an emergency ..... 413
Operating roll bars manually ......... 413
Soft top emergency operation ...... 415
Resetting activated head restraints.... 424
Resetting activated
head restraints ............................. 424

53 Getting started
Driving
Release the parking brake by pulling on
release handle1.
The indicator lamp; (USA only)
or3 (Canada only) in the clock
goes out.
Driving
Depress the brake pedal.
Move gear selector lever to
positionDorR.
Release the brake pedal.
Carefully depress the accelerator
pedal.
After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.
iWait for the gear selection process to com-
plete before setting the vehicle in motion.
!If you hear a warning signal and the mes-
sage
Release parking brake appears in the
multifunction display when driving off, you have
forgotten to release the parking brake.
Release the parking brake (
page 52).
iAt vehicle speeds of approximately 9 mph
(15 km/h), the automatic central locking system
engages and the locking knobs drop down.
The automatic door lock feature can be deacti-
vated (
page 164).
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.
!Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
!Place the gear selector lever in positionR
orP only when the vehicle is stopped in order to
avoid damaging the transmission.
!Do not run cold engine at high engine
speeds. Running a cold engine at high engine
speeds may shorten the service life of the
engine.
CLK 63 AMG:
At low engine temperatures below +68°F
(+20°C), the engine’s maximum speed is
restricted in order to protect it from damage.
Avoid driving your vehicle at full speed when the
engine is cold to prevent premature engine wear
and/or diminished comfort.

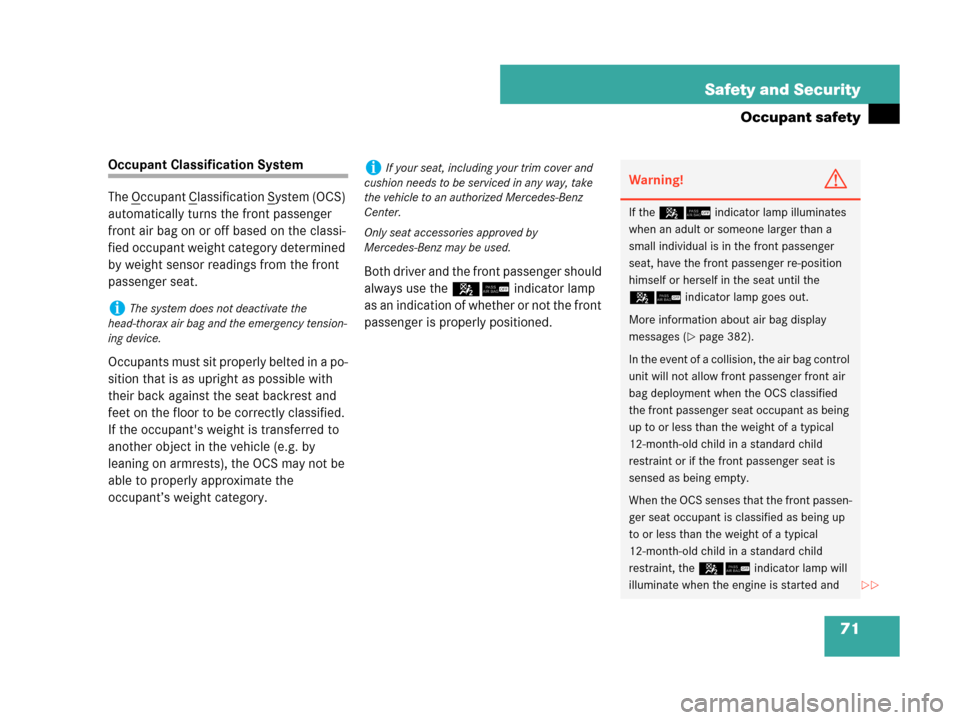

71 Safety and Security
Occupant safety
Occupant Classification System
The O
ccupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a po-
sition that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant's weight is transferred to
another object in the vehicle (e.g. by
leaning on armrests), the OCS may not be
able to properly approximate the
occupant’s weight category. Both driver and the front passenger should
always use the 56 indicator lamp
as an indication of whether or not the front
passenger is properly positioned.
iThe system does not deactivate the
head-thorax air bag and the emergency tension-
ing device.
iIf your seat, including your trim cover and
cushion needs to be serviced in any way, take
the vehicle to an authorized Mercedes-Benz
Center.
Only seat accessories approved by
Mercedes-Benz may be used. Warning!G
If the 56 indicator lamp illuminates
when an adult or someone larger than a
small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
56 indicator lamp goes out.
More information about air bag display
messages (
page 382).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child
restraint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 56 indicator lamp will
illuminate when the engine is started and


143 Controls in detail
Control system
Menus, submenus and functions
Table continued on next page.
Menu1Menu2Menu3Menu4
Commands/submenus
Standard displayAMG1
1AMG vehicles only
AUDIONAV*
(page 145)(page 145)(page 149)(page 151)
Run Flat Indicator*Engine oil temperatureSelecting radio stationShow route guidance instruc-
tions, current direction traveled
Digital speedometerVehicle supply voltageSelecting satellite radio sta-
tion* (USA only)
Call up maintenance service
displayRACETIMEROperating CD player
Overall analysis
Lap analysis

145 Controls in detail
Control system
Standard display menu
In the standard display, the outside tem-
perature and the trip odometer are shown
in the multifunction display.
1Outside temperature
2Trip odometer
If you see another display, press
buttonè orÿ repeatedly until the
standard display appears.
Press buttonk orjto select
the functions in the standard display
menu.The following functions are available:
Display digital speedometer
Press buttonj ork until the
digital speedometer appears in the
multifunction display.
The current vehicle speed is shown in
the multifunction display and the sta-
tus line appears.
1Digital Speedometer
2Status line with outside temperature
3Trip odometer
AMG menu
The main screen of the AMG menu shows
you the gear currently engaged as well as
the engine oil temperature.
Press buttonè orÿ repeatedly
until the AMG menu appears in the
multifunction display.
1Gear indicator
2Engine oil temperature
iYou can have the digital speedometer dis-
played instead of the outside temperature in the
standard display. You can select the setting in
the submenu
Instr. cluster via the function
Basic display (page 157).
FunctionPage
Run Flat Indicator334
Call up digital speedometer 145
Call up maintenance service
display355
iYou can have the digital speedometer dis-
played instead of the outside temperature in the
status line. You can select the setting in the sub-
menu
Instr. cluster via the function Status
line display
(page 157).
iThis function is only available in AMG
vehicles.


288 Controls in detail
Useful features
Emergency calls
An emergency call is initiated
automatically following an accident in
which the emergency tensioning devices
(ETDs) or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 289) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call
appears in the multifunction display and
the audio system is muted. When the
connection is established, the message
Call connected appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the
vehicle (determined by the GPS satellite
location system), vehicle model, identifica-
tion number and color are generated.A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if:

it has been activated and is
operational. Activation requires a
subscription for monitoring services,
connection and cellular air time

the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
Warning!G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button remain illuminated
constantly in red and/or message
Tele Aid inoperative is displayed in the
multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
iLocation of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.

290 Controls in detail
Useful features
Roadside Assistance button•
The Roadside Assistance button• is
located below the center armrest cover.
Press and hold the •button (for
longer than two seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The •button will flash while the call
is in progress. The message
Connecting call will appear in the
multifunction display and the audio
system is muted.
When the connection is established, the
message
Call connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for as-
sistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may
apply. Refer to the Roadside Assistance
manual for more information.
The following is only available in the USA:

Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp on the Roadside
Assistance button• remains illuminated in
red for approximately ten seconds during the
system self-check after switching on the ignition
(together with the SOS button and the Informa-
tion button¡).See system self-check (
page 287) when the
indicator lamp does not come on in red or stays
on longer than approximately ten seconds.
If the indicator lamp on the Roadside Assistance
button• is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate a Roadside Assistance call (e.g. the rele-
vant cellular phone network is not available). The
message
Call failed appears in the multi-
function display.
Roadside Assistance calls can be terminated us-
ing the tbutton on the multifunction steer-
ing wheel or the respective button for ending a
telephone call on the audio system or the
COMAND* headunit.

291 Controls in detail
Useful features
Information button¡
The Information button¡ is located be-
low the center armrest cover.
Press and hold the ¡button (for
longer than two seconds).
A call to the Customer Assistance
Center will be initiated. The
¡button will flash while the call is
in progress. The message
Connecting call will appear in the
multifunction display and the audio
system is muted.
When the connection is established, the
message
Call connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be
established. Information regarding the
operation of your vehicle, the nearest Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you
separately) to learn more (USA only).
iThe indicator lamp on the Information
button¡ remains illuminated in red for ap-
proximately ten seconds during the system
self-check after switching on ignition (together
with the SOS button and the Roadside Assis-
tance button•).
See System self-check (
page 287) when the
indicator lamp does not come on in red or stays
on longer than approximately ten seconds.If the indicator lamp on the Information
button¡ is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate an Information call (e.g. the relevant cel-
lular phone network is not available). The mes-
sage
Call failed appears in the multifunction
display.
Information calls can be terminated using
thet button on the multifunction steering
wheel or the respective button for ending a
telephone call on the audio system or the
COMAND* headunit.
!If the indicator lamps do not start flashing
after pressing one of the buttons or remain illu-
minated (in red) at any time, the Tele Aid system
has detected a malfunction or the service is not
currently active, and may not initiate a call. Visit
an Mercedes-Benz Center and have the system
checked or contact the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada) as soon as possi-
ble.
