2007 MAZDA MODEL MAZDASPEED 6 key

Black plate (93,1)
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the trunk lid, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the trunk lid
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
NOTE
lAll doors and the trunk lid cannot be
locked when any door or the trunk
lid is open and the key is in the
ignition switch.
lConfirm that all doors and the trunk
lid are locked visually or audibly by
use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the trunk lid,
press the unlock button again within 5
seconds.
NOTE
After unlocking with the transmitter, all
doors and the trunk lid will
automatically lock if one of the doors or
the trunk lid is not opened within about
30 seconds.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any
door or the trunk lid is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
Knowing Your Mazda
Doors and Locks
3-23
Mazdaspeed6_8V77-EA-06F_Edition1 Page93
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

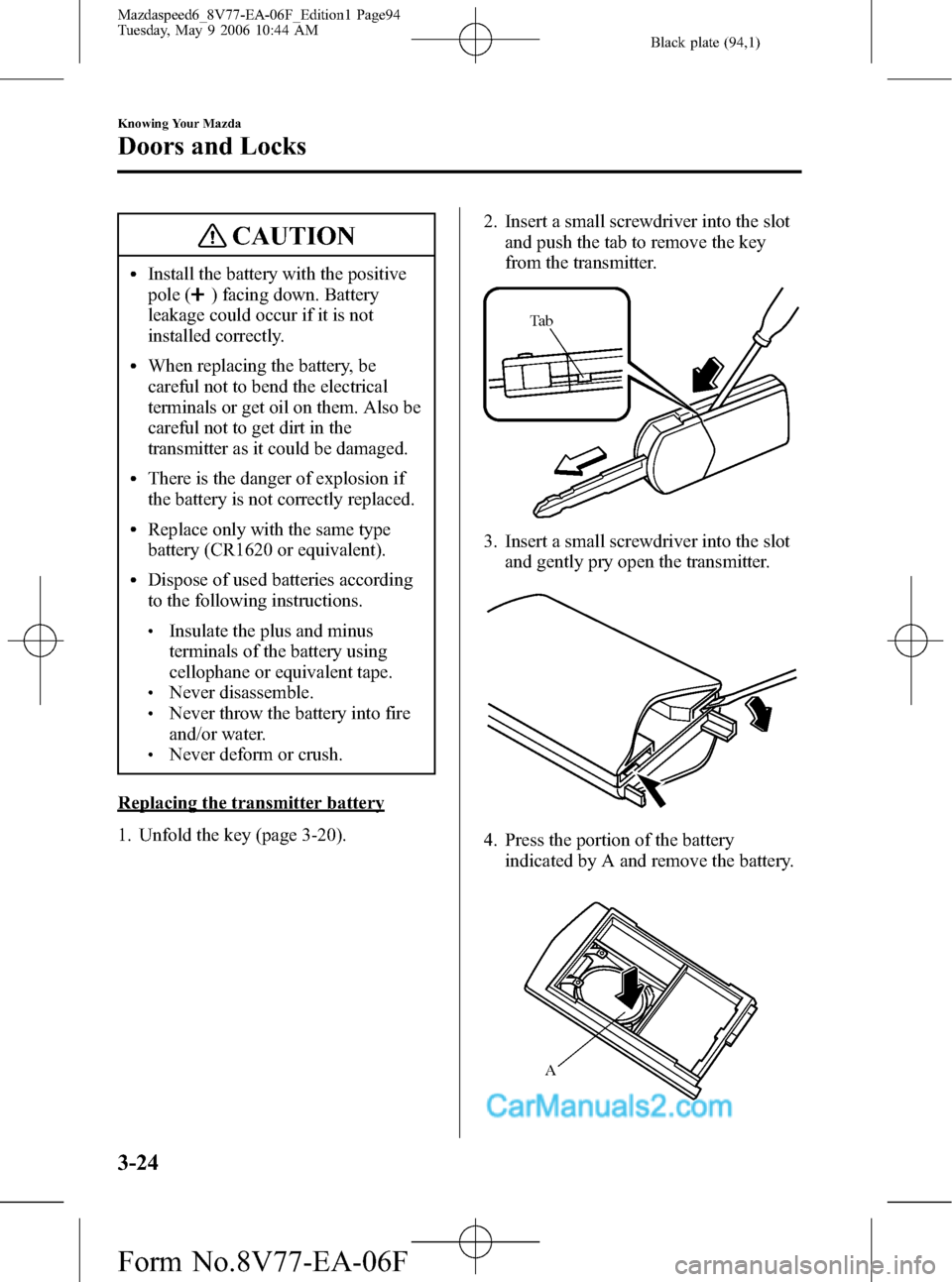

Black plate (94,1)
CAUTION
lInstall the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could be damaged.
lThere is the danger of explosion if
the battery is not correctly replaced.
lReplace only with the same type
battery (CR1620 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
and/or water.
lNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-20).2. Insert a small screwdriver into the slot
and push the tab to remove the key
from the transmitter.
Ta b
3. Insert a small screwdriver into the slot
and gently pry open the transmitter.
4. Press the portion of the battery
indicated by A and remove the battery.
A
3-24
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page94
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (95,1)
NOTE
If it is difficult to remove the battery by
pressing with a finger, use a small
screwdriver to press out the battery.
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
Knowing Your Mazda
Doors and Locks
3-25
Mazdaspeed6_8V77-EA-06F_Edition1 Page95
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (96,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Lock Unlock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-21).
3-26
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page96
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (97,1)
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, push the
door-lock knob.
To unlock, pull it out.
This does not operate the other door
locks.
UnlockLock
To lock any door with the door-lock knob
from the outside, push the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
qPower Door Locks
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors and the trunk lid
will automatically unlock if they are
locked using the power door locks with
any door or the trunk lid open.
(Without advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the trunk lid will
automatically unlock if they are locked
using the power door locks with any door
or the trunk lid open.
Locking, unlocking with key
All doors and the trunk lid lock
automatically when the driver's door is
locked with the key. All doors and the
trunk lid unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Lock Unlock
Knowing Your Mazda
Doors and Locks
3-27
Mazdaspeed6_8V77-EA-06F_Edition1 Page97
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (98,1)
NOTE
Holding the key in the unlocked
position in the driver's door lock for
about a second unlocks all doors and
the trunk lid. To unlock only the driver's
door, insert the key into the driver's
door lock and turn the key briefly to the
unlock position and then immediately
return it to the center position.
Locking, unlocking with door-lock
switch
All doors and the trunk lid lock
automatically when LOCK is pushed.
They all unlock when the unmarked part
of the door-lock switch is pushed.
LockUnlock
Locking, unlocking with request switch
(with advanced key)
All doors and the trunk lid can be locked/
unlocked by operating the request switch
while carrying the advanced key outside
the vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors and the trunk lid can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-13).
Locking, unlocking with transmitter
(with retractable type key)
All doors and the trunk lid can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-21).
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
UnlockLock
3-28
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page98
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (99,1)
Trunk Lid
WARNING
Never allow a person to ride in the
trunk:
Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously injured
or killed during sudden braking or a
collision.
Keep the trunk closed when driving:
Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death.
qLocking, Unlocking with Key
To lock the trunk lid, insert the master key
into the key slot and turn it
counterclockwise, then return it to the
center position and remove it.
Lock
Unlock
To unlock the trunk lid, insert the master
key into the key slot and turn it clockwise,
then return it to the center position and
remove it.
The trunk lid can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-27).
qLocking, Unlocking with Request
Switch (with Advanced Key)
The trunk lid can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The trunk lid can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The trunk lid can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-21).
qLocking, Unlocking with Door-
Lock Switch
The trunk lid can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-27).
Knowing Your Mazda
Doors and Locks
3-29
Mazdaspeed6_8V77-EA-06F_Edition1 Page99
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (100,1)
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to the
rear spoiler and the trunk lid.
Opening the trunk lid
Pull up on the handle.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
3-30
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page100
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F
