2007 MAZDA MODEL 5 Owners Manual

Black plate (154,1)
qWindshield Wipers
Type A (With INT position)
Turn the wipers on by pulling the lever
down.
― Mist
INT ―Intermittent
1 ― Low speed
2 ― High speed
For a single wiping cycle, push the lever
up to
.
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.
INT ring
Type B (With AUTO position)
Turn the wipers on by pulling the lever
down.
― Mist
AUTO ―Auto control
1 ― Low speed
2 ― High speed
For a single wiping cycle, push the lever
up to
.
AUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off ―intermittent ―low speed ―high
speed).
5-48
Driving Your Mazda
Switches and Controls
Mazda5_8X91-EA-07E_Edition1 Page154
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (155,1)
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards (_
) for less sensitivity
(slower response).
Switch
Higher sensitivity
Less sensitivity
Center
position
CAUTION
Ø
Do not shade the rain sensor by
adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.
Rain sensor
ØWhen the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically in
the following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Keep hands and scrapers clear of
the windshield when the ignition
switch is in the ON position as
fingers pinched or the wipers and
wiper blades damaged when they
activate automatically. If you are
going to clean the windshield, be
sure the wipers are turned off
completely - this is particularly
important when clearing ice and
snow - when it is particularly
tempting to leave the engine
running.
Driving Your Mazda
Switches and Controls
5-49
Mazda5_8X91-EA-07E_Edition1 Page155
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (156,1)
NOTElThe auto-wiper control may not operate
when the rain sensor temperature is about
_10 °C(14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (e.g. ice or matter
containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, pull the wiper
lever to the 1 or 2 position for manual
operation, or remove the ice, dirt or foreign
matter by hand to restore the auto-wiper
operation.
q Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT (Type
A)/AUTO (Type B) position, the wipers will
operate continuously until the lever is
released.
If the washer doesn't work, inspect the
fluid level (page 8-25). If it's OK, consult
an Authorized Mazda Dealer.
5-50
Driving Your Mazda
Switches and Controls
Mazda5_8X91-EA-07E_Edition1 Page156
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (157,1)

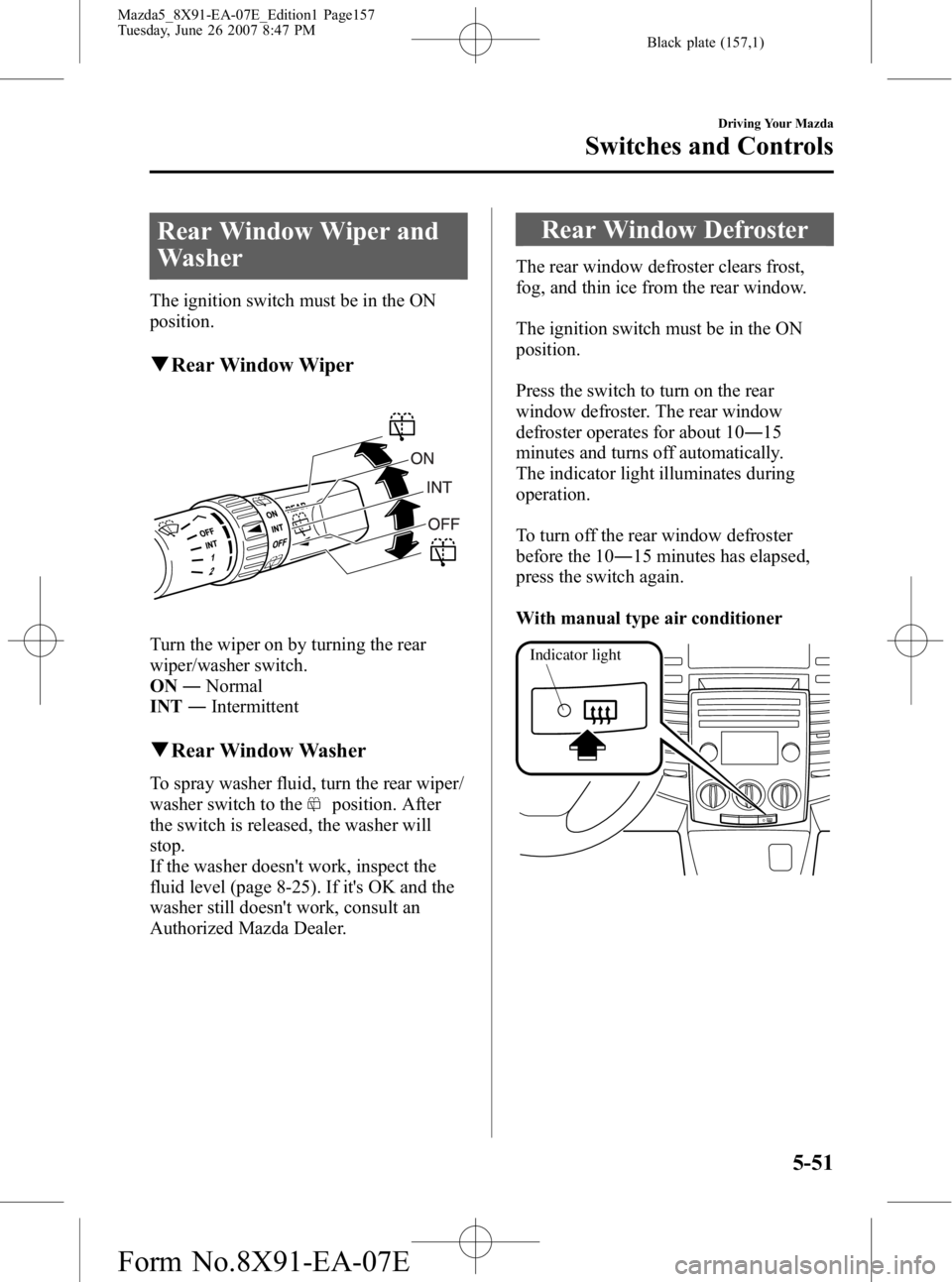

Rear Window Wiper and
Washer
The ignition switch must be in the ON
position.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON ―Normal
INT ―Intermittent
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer doesn't work, inspect the
fluid level (page 8-25). If it's OK and the
washer still doesn't work, consult an
Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 10 ―15
minutes and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 10 ―15 minutes has elapsed,
press the switch again.
With manual type air conditioner
Indicator light
Driving Your Mazda
Switches and Controls
5-51
Mazda5_8X91-EA-07E_Edition1 Page157
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (158,1)
With fully automatic type air
conditioner
Indicator light
CAUTION
Don't use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.
Horn
To sound the horn, press themark on
the steering wheel.
5-52
Driving Your Mazda
Switches and Controls
Mazda5_8X91-EA-07E_Edition1 Page158
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (159,1)
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed. They may forbid it.
Driving Your Mazda
Switches and Controls
5-53
Mazda5_8X91-EA-07E_Edition1 Page159
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (160,1)
5-54
Mazda5_8X91-EA-07E_Edition1 Page160
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (161,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí.......................................................... 6-10
Audio System ............................................................................... 6-15 Antenna ................................................................................... 6-15
Operating Tips for Audio System ........................................... 6-15
Audio Set ................................................................................ 6-25
Audio Control Switch Operation (Steering Wheel)
í............. 6-42
Safety Certification ................................................................. 6-45
Interior Equipment ..................................................................... 6-46 Sunvisors ................................................................................. 6-46
Interior Lights ......................................................................... 6-46
Information Display ................................................................ 6-48
Cup Holder .............................................................................. 6-50
Bottle Holder ........................................................................... 6-52
Storage Compartments ............................................................ 6-52
Accessory Sockets .................................................................. 6-56
6-1íSome models.
