2007 Lexus GS450h Using the hands-free system (for cellular phone) / LEXUS 2007 GS450H FROM JULY 2006 PROD. OWNER'S MANUAL (OM30A05U)

109
2-1. Driving procedures
2
When driving
■When in heavy traffic
To avoid running the hybrid battery (traction battery) down, leave the shift lever in
“D” or “S”.
■When driving with the cruise control system (or dynamic radar cruise control sys-
tem)
The engine brake will not operate in the “S” mode, even when downshifting to “5” or
“4”. ( P. 129, 132)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the power switch is turned to “ACC” or
“IG-ON” mode after driving in snow mode.
■If the shift lever cannot be shifted from “P”
 P. 4 7 2
■If the indicator does not come on even after shifting the shift lever to “S”
This may indicate a malfunction in the transmission. Have the vehicle inspected by
your Lexus dealer immediately. 
(In this situation, the vehicle will operate as if the shift lever is in “D”.)

110
2-1. Driving procedures
Turn signal lever
■Turn signals can be operated when
The power switch is in “IG-ON” mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.

111
2-1. Driving procedures
2
When driving
Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
Sets the parking brake* 
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parking
brake pedal with your left
foot while depressing the
brake pedal with your right
foot.
CanadaU.S.A.

112
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the target
region.

The following gauges, meters and display illuminate when the power
switch is in “IG-ON” mode.
Power meter
Displays the instantaneous output from the hybrid system is approximate
kilowatts.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Multi-information display
 P. 1 1 9

113
2-2. Instrument cluster
2
When drivingOdometer/trip meter and trip meter reset buttonChanges the display
Resets the trip meter driving
range to “0”.
Instrument panel light controlThe brightness of the instrument panel lights excluding the clock and out-
side temperature display, can be adjusted. Brighter
Darker
Maximum brightness
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

114
2-2. Instrument cluster
Light sensitive optitron meterTo reduce glare or reflection of th e instrument cluster, the cluster glass is
tinted automatically or manually. You can select a setting from 7 modes.
Display the present setting, then
change the mode.
To change the mode, press the but-
ton once and then again within 6
seconds.
Each time you press the button, the
mode changes in the following
order;
1. “AUTO - Norm”
2. “AUTO - Lo”
3. “AUTO - Hi”
4. “MANUAL - 1”
5. “MANUAL - 2”
6. “MANUAL - 3”
7. “ M A N U A L - 4 ”
Mode 1 to 3: The cluster glass tint
will be adjusted automatically
depending on the intensity of sun-
light in the surrounding. 
Mode 4 to 7: The cluster glass tint
will be fixed when a certain level of
sunlight is reached in the surround-
ing. 
(“Norm” to “Hi”, “1” to “4” referring
to the level of cluster glass tint.)

115
2-2. Instrument cluster
2
When driving
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediately stop the vehicle in a safe place. Check the
engine after it has cooled completely. ( P. 4 8 0 )
■To activate the light sensitivity function properly
Do not affix a sticker or window tint to the rear window glass, or put an object
behind the rear seat.

116
2-2. Instrument cluster

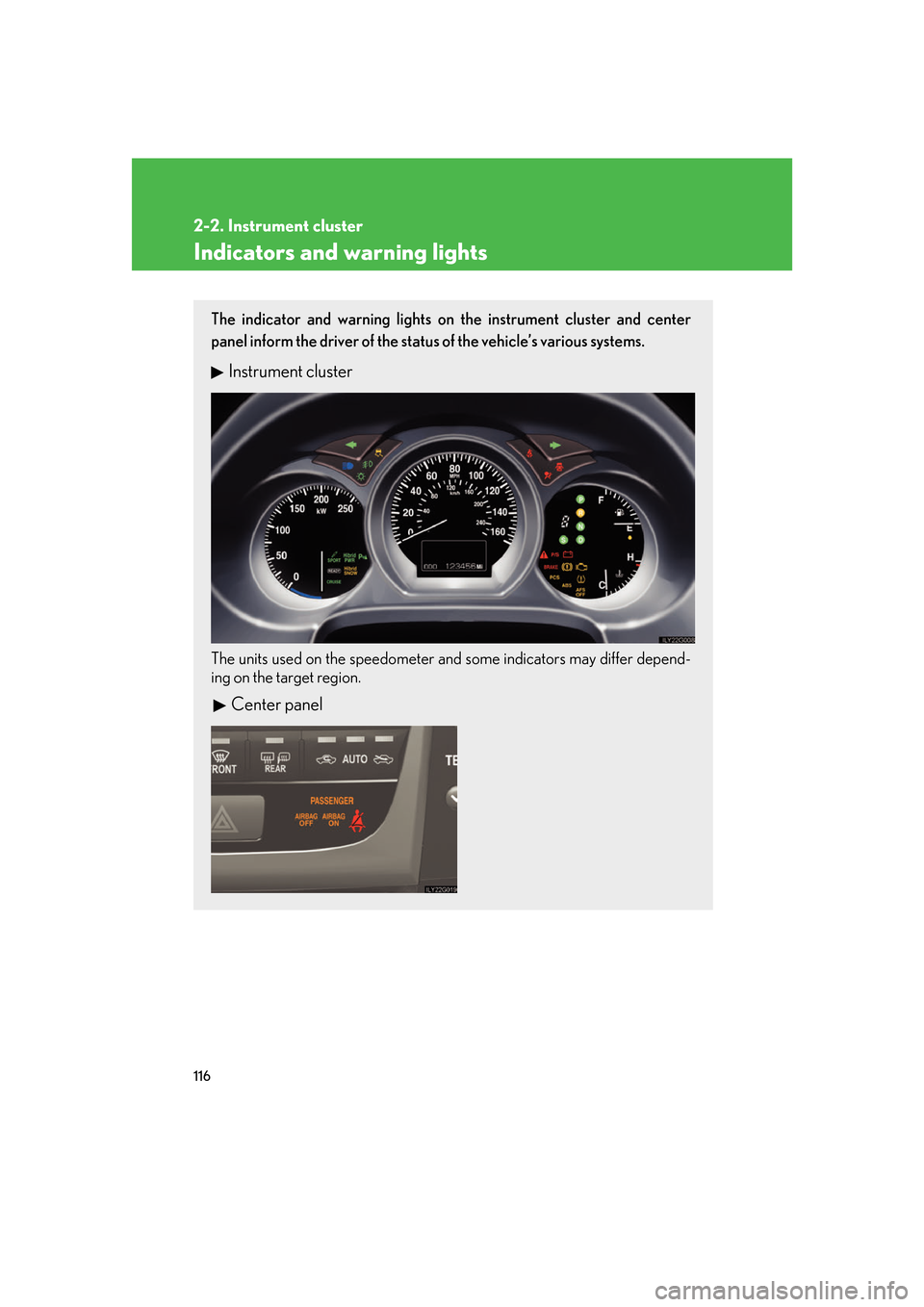

Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and some indicators may differ depend-
ing on the target region.
Center panel
