4-2. Maintenance
4
Maintenance and care
Vehicle exterior
ItemsCheck points
Doors/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Tires rotated according to the
maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■If the hybrid system is running
Turn off the hybrid system and ensure that there is adequate ventilation before per-
forming maintenance checks.

363
4
Maintenance and care
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct proce-
dure given in these sections.
ItemsPa r t s a n d t o o l s
12 volt battery condition (P. 3 7 9)
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( P. 3 7 8 )
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/inverter coolant level 
( P. 3 76 )
• “Toyota Super Long Life Coolant”
or similar high quality ethylene gly-
col based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.: 
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada: 
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding cool- ant)

364
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, inverter, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily , such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
ItemsPa r t s a n d t o o l s
Engine oil level ( P. 3 7 1 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses ( P. 4 0 3 )• Fuse with same amperage rating as
original
Headlight aim ( P. 4 1 9 )• Phillips-head screwdriver
Radiator and condenser (P. 377)
Tire inflation pressure ( P. 393)• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 3 8 2 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■When working near the electric cooling fan or radiator grille
Be sure the power switch is “OFF”.
With the power switch in “IG-ON” mode, the electric cooling fan may automati-
cally start to run if the air conditioning is on and/or the coolant temperature is high. 
(  P. 377)
■Safety glasses
Wear safety glasses to prevent flying or fall ing material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
■12 volt battery
P. 3 7 9
Engine oil level dipstick 
( P. 371)
Engine oil filler cap 
( P. 3 7 2 )
Brake fluid reservoir (P. 3 7 8 )
Fuse box ( P. 403)Washer fluid tank 
( P. 382)
Gasoline engine/inverter 
coolant reservoir ( P. 3 76 )
Electric cooling fans
Condenser ( P. 377)
Radiator ( P. 377)

370
4-3. Do-it-yourself maintenance

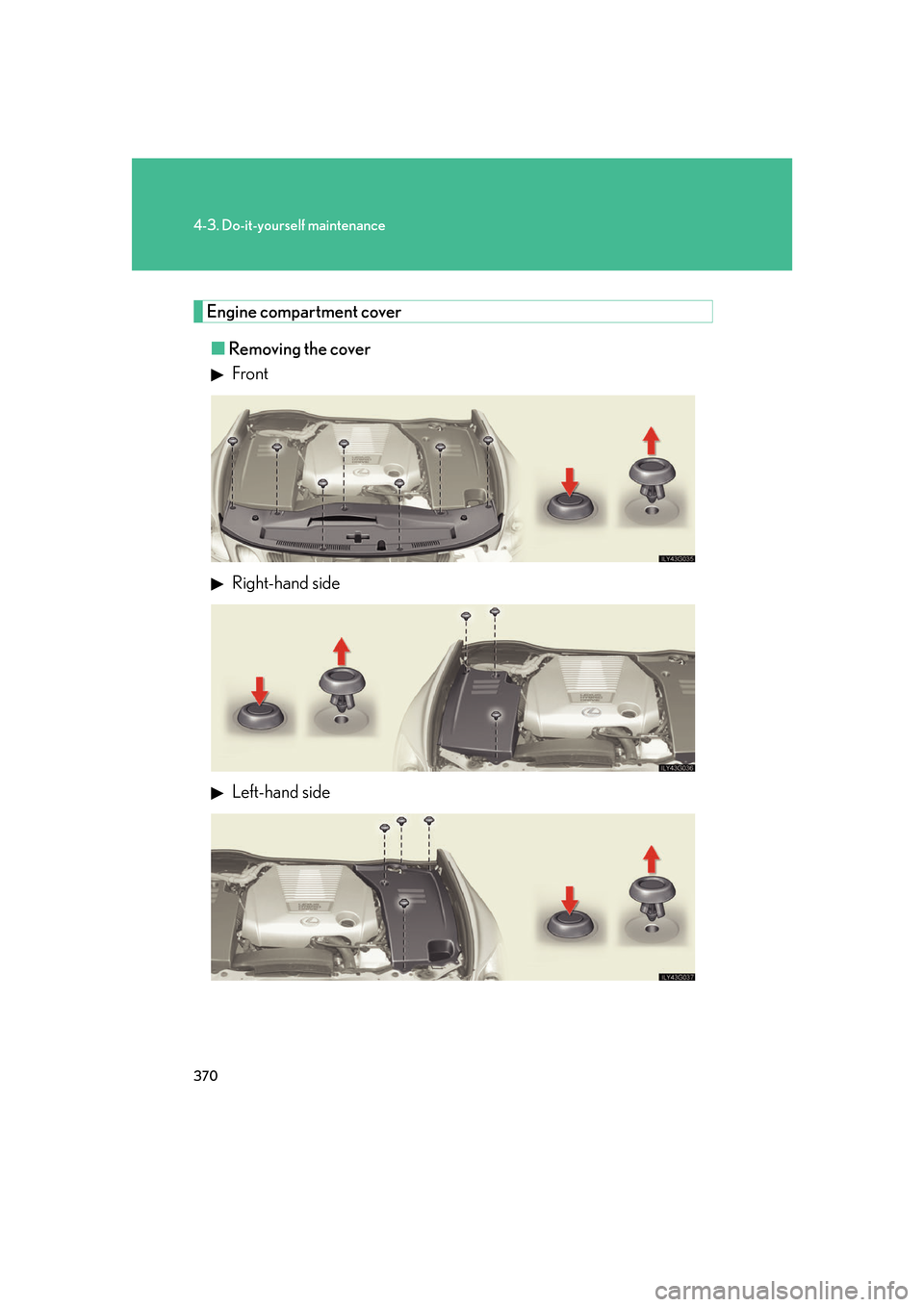

Engine compartment cover■ Removing the cover
Front
Right-hand side
Left-hand side

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Installing the clips
Push up center portion
Insert
Press
Engine oil
With the engine at operating temperat ure and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the hybrid sys-
tem, wait a few minutes for the oil to drain back into the bottom of
the engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

372
4-3. Do-it-yourself maintenance
Wipe the dipstick and reinsert it fully.Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise until you hear a click.STEP6
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
