85
1-8. Safety information
1
Before driving
While pushing the child seat down
into the rear seat, allow the shoul-
der belt to retract until the child
seat is secur

ely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward facing Convertible child seat
Place the child seat on the seat
facing the fr
ont of the vehicle.
Run the seat belt through the child
seat and inser
t the plate into the
buckle. Make sure that the belt is
not twisted.
Fully extend the shoulder strap and
then allo
w it to retract slightly into
the ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP4
STEP1
STEP2
STEP3

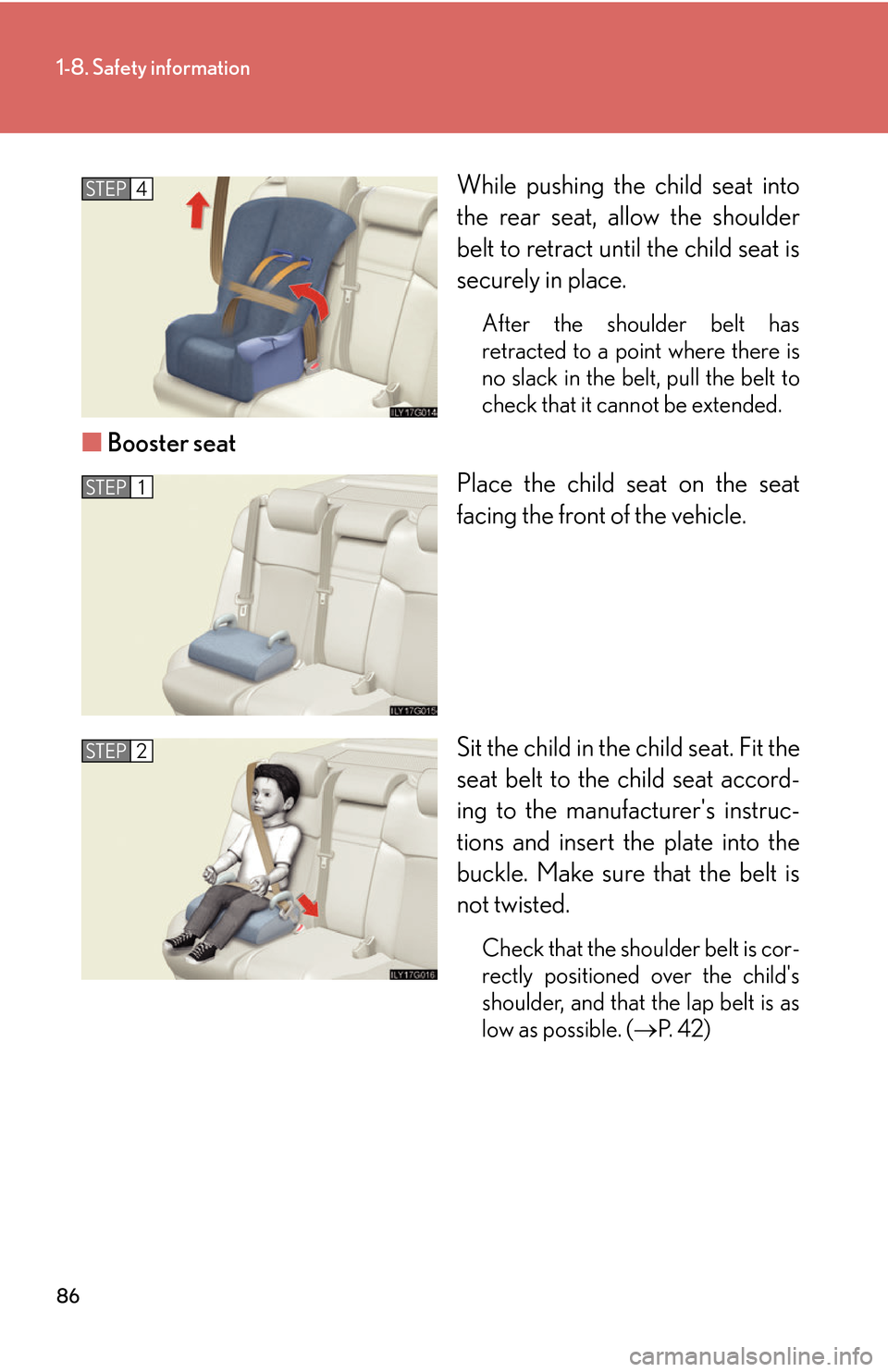

86
1-8. Safety information
While pushing the child seat into
the rear seat, allow the shoulder
belt to retract until the child seat is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Booster seat
Place the child seat on the seat
facing the fr
ont of the vehicle.
Sit the child in the child seat. Fit the
s
eat belt to the child seat accord -
ing to the manufacturer's instruc -
tions and insert the plate into the
buckle. Mak
e sure that the belt is
not twisted.
Check that the shoulder belt is cor -
rectly positioned over the child's
shoulder
, and that the lap belt is as
low as possible. ( P. 4 2 )
STEP4
STEP1
STEP2

87
1-8. Safety information
1
Before driving
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Installation with child restraint lower anchorages
Type AWiden the gap between
the seat cushion and seat-
back slightly.
Latch the hooks of the
lower straps onto the
anchor

ages.
If the child restraint has a top
strap, the top strap should be
latched onto the anchorage.
For owners in Canada: 
The symbol on a child restraint sys -
tem indicates the presence of a
lo

wer anchorage system.
Canada only
STEP1
STEP2

88
1-8. Safety information
Type BWiden the gap between
the seat cushion and seat-
back slightly.
Latch the buckles onto the
anchorages.
If the child restraint has a top
strap, the top strap should be
latched onto the anchorage.
For owners in Canada: 
The symbol on a child restraint sys -
tem indicates the presence of a
lo
wer anchorage system.
Child restraint systems with a top strap
Secure the child restraint using a
seat belt or lower anchors, and
lock the head restraint in place at
the lowest position.
Canada only
STEP1
STEP2
STEP1

89
1-8. Safety information
1
Before driving
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
STEP2
■Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2.
Child restraint systems conf orming
to FMVSS213 or CMVSS213 specifications
can be used. 
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR lock
mode: ( P. 44)
●ALR mode causes the belt to tighten only which could cause injury or discomfort
to the child.
●Do not allow the child to play with the seat belt or the child could be killed or seri-
ous injured.

90
1-8. Safety information
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child may be injured or
even killed in the event of sudden braking or an accident.
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child's sh oulder. The belt should be kept away
from the child's neck, but not so that it could fall off the child's shoulder. Failing to
do so may result in death or serious inju ry in the event of an accident or sudden
braking.
●Ensure the belt and tab are securely locked and that the seat belt is not twisted.
●Push and pull the child seat in different directions to be sure it is secure.
●Follow all installation instructions provid ed by the child restraint system manufac-
turer.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Only put a forward facing or booster child
seat on the front seat when unavoidable.
When installing a forward facing or
booster child restraint on the front passen-
ger seat, move the seat as far back as possi-
ble. Failing to do so may result in death or
serious injury if the airbags deploy (inflate).

91
1-8. Safety information
1
Before driving
CAUTION
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of a collision.
■To correctly attach a child restraint system to the anchorages
When using the lower anchorages, be sure that there are no foreign objects around
the anchorages and that the seat belt is not caught behind the child seat. Make sure
the child restraint system is securely at tached, or it may cause death or serious
injury to the child in the even t of a sudden stop or accident.

92
