4-3. Do-it-yourself maintenance
4
Maintenance and care
Wipe the dipstick and reinsert it fully.Low
Full
■ A
dding engine oil
If the oil level is below or near the lo
w level mark, add engine oil of the
same type as already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise until you hear a click.
STEP6
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
GS430GS350
STEP1
STEP2
STEP3

382
4-3. Do-it-yourself maintenance

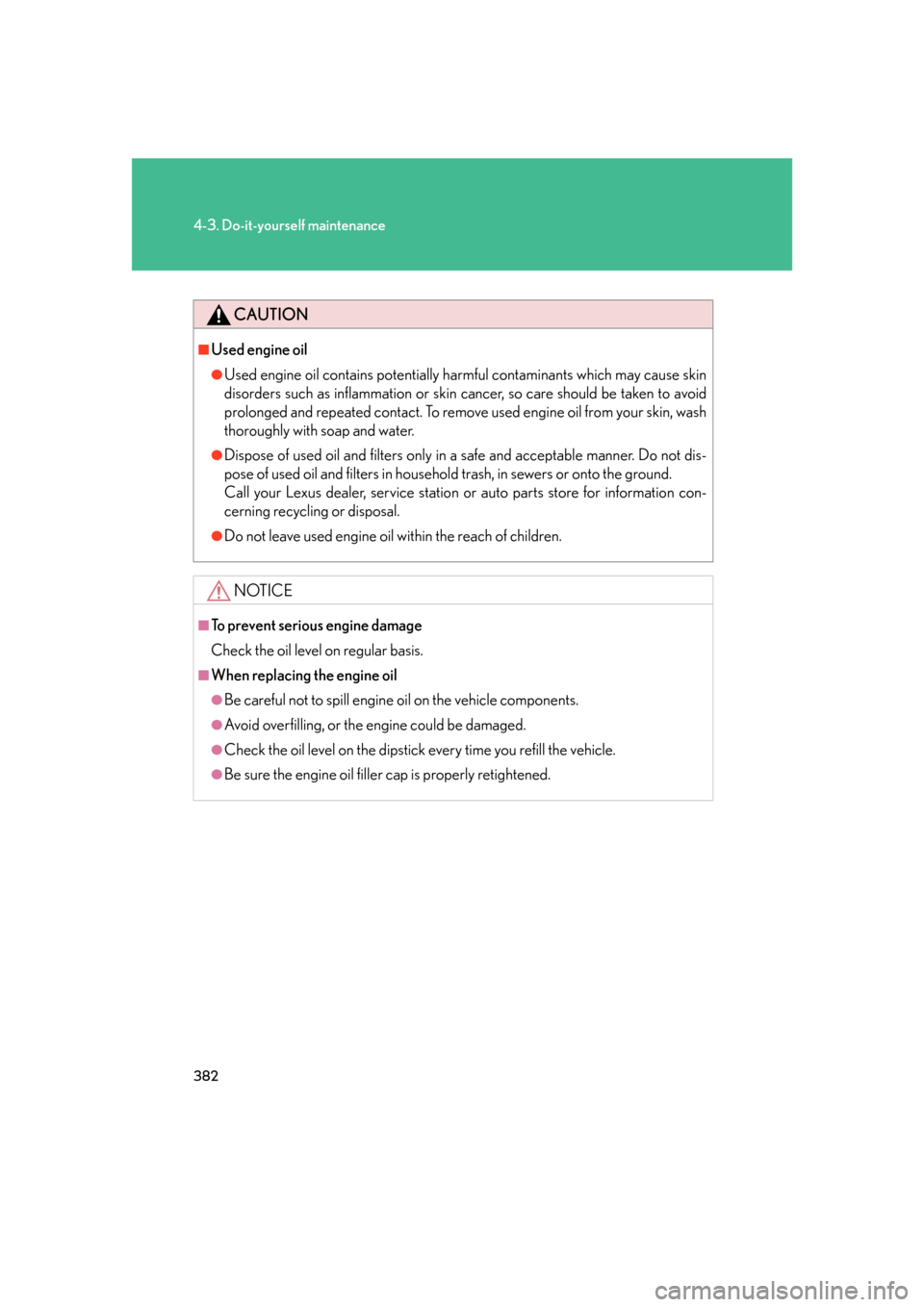

CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in househol d trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly retightened.

383
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
FULL
LOW
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, engine c ool
ant filler cap, radiator cap, drain cock
and water pump. 
If you cannot find a leak, have your Lexus dealer pressure test the cap and check for
le
aks in the cooling system.
■Coolant selection
Only use “Toyota Super Long Life Coolant” or similar hig
h quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50%
deionized water. (Enabled: -31 F [-35C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% de
ionized water. (Enabled: -44F [-42 C])
For more details about engine coolant, contact your Lexus dealer.

384
4-3. Do-it-yourself maintenance
Radiator and condenser
Check the radiator and condenser and clear any foreign objects. 
If either of the above parts are extremely dirty or you are not sure of their
condition, ha
ve your vehicle checked by your Lexus dealer.
CAUTION
■When the engine is hot
Do not remove the radiator cap. 
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing burns or other injuries.
NOTICE
■When adding the coolant
Coolant is neither plain water not straight antifreeze. The correct mixture of water
and anti freeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it damage to parts or paint.
CAUTION
■When the engine is hot
Do not remove the radiator cap. The cooling system may be under pressure and
may spray hot coolant if the cap is removed, causing burns or other injuries.

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the engine switch to “OFF” mode.
Remove the engine compartment cover if necessary.
P. 3 7 8
Open the fuse box cover.
Engine compartment (type A)
Push the tabs in and lift the lid
of
f.
Engine compartment (Type B) Push the tabs in and lift the lid
of
f.
STEP1
STEP2
STEP3

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P
. 507)
■ R
emove the engine compartment cover if necessary.
 P.
3 7 8
■ F
ront bulb locations
■Rear bulb locations
Parking light
Headlight high beam
Rear turn signal light Back-up light

5
When trouble arises
459
5-2. Steps to take in an emergency
■If the tire pressure warning system is inoperative
The system will be disabled in th
e following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis -
tered in the tire pressure warning computer.
●If the tire inflation pressure is more than 73 psi (500 kPa, 5.1 kgf/cm2 or bar).
The system may be disabled in the
following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If the tire pressure warning select switch is set to a different tire setting.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used.
●If tire chains are used.
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on af
ter blinking for 1 minute frequently
when the engine switch is turned to “IG-ON” mode, have it checked by your Lexus
dealer.
NOTICE
■Precaution when insta lling a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

5
When trouble arises
463
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure
The trunk is not fully
closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
The moon roof is not fully
closed (with the engine
switch “OFF” and the
driver’s door opened).
Close the moon roof.
(Flashing)
The parking brake is still
engaged (with the vehicle
having reached a speed
of more than 3 mph [5
km/h]).
Release the parking
brake.
The washer fluid level is
low.Add washer fluid.
The engine oil level is low.Check the engine oil level,
and add if necessary.
