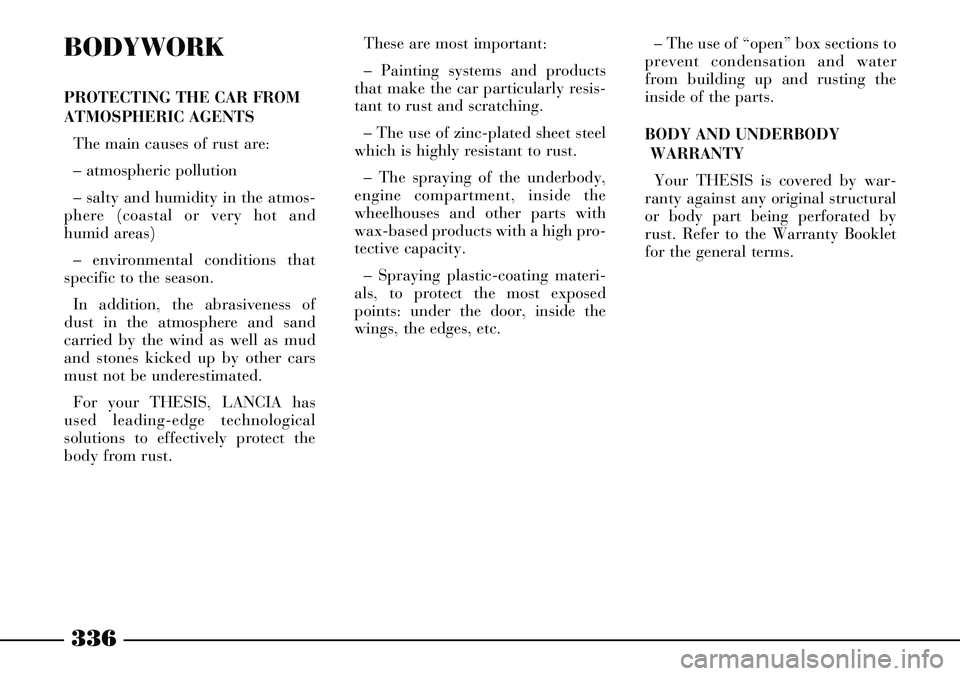

BODYWORK
PROTECTING THE CAR FROM
ATMOSPHERIC AGENTS
The main causes of rust are:
– atmospheric pollution
– salty and humidity in the atmos-
phere (coastal or very hot and
humid areas)
– environmental conditions that
specific to the season.
In addition, the abrasiveness of
dust in the atmosphere and sand
carried by the wind as well as mud
and stones kicked up by other cars
must not be underestimated.
For your THESIS, LANCIA has
used leading-edge technological
solutions to effectively protect the
body from rust.These are most important:
– Painting systems and products
that make the car particularly resis-
tant to rust and scratching.
– The use of zinc-plated sheet steel
which is highly resistant to rust.
– The spraying of the underbody,
engine compartment, inside the
wheelhouses and other parts with
wax-based products with a high pro-
tective capacity.
– Spraying plastic-coating materi-
als, to protect the most exposed
points: under the door, inside the
wings, the edges, etc.– The use of “open” box sections to
prevent condensation and water
from building up and rusting the
inside of the parts.
BODY AND UNDERBODY
WARRANTY
Your THESIS is covered by war-
ranty against any original structural
or body part being perforated by
rust. Refer to the Warranty Booklet
for the general terms.

339
Engine compartment
At the end of each winter season,
carefully clean the engine compart-
ment without directing the water jet
against electronic control units.
Have this done at a garage.
Detergents pollute water.
For this reason the car
must be washed in an
area equipped for the collection
and purification of the liquids
used while washing.
IMPORTANTThe car should
washed with the engine cold and the
ignition key at STOP. After washing
make sure that the various protec-
tions (e.g. rubber caps and various
covers) have not been damaged or
removed.INTERIORS
From time to time check that water
has not collected under the mats
(from dripping shoes, umbrellas,
etc.) which could cause the steel to
rust.
Never use inflammable
products like fuel oil
ether or rectified petrol
for cleaning inside the car. The
electrostatic discharges generat-
ed when rubbing to clean may
cause fire.
Do not keep aerosol cans
in the car. There is the
risk they might explode.
Aerosol cans must never be
exposed to a temperature above
50°C; when the weather starts to
get hot the temperature inside the
car might go well beyond that fig-
ure.
PLASTIC PARTS INSIDE
THE CAR
Use special products designed not
to alter the appearance of the com-
ponents.
IMPORTANTDo not use alcohol
or petrol to clean the instrument
panel.
CLEANING ALCANTARA
SEATS
Alcantara upholstery is easy to
clean. Follow the same instructions
provided for velvet upholstery.

341
IDENTIFICATION
DATA
CHASSIS MARKING (fig. 1)
It is printed on the passenger com-
partment floor in front of the right-
hand front seat and can be reached
by lifting the carpeting and opening
the cover.
Marking includes the following
data:
– car model
– chassis number.ENGINE MARKING
The marking is stamped on the
cylinder block and includes the
model and the chassis number.
fig. 1
L0A0296b
fig. 2
L0A0297b
TECHNICAL SPECIFICATIONS
MODEL PLATE
The plate (fig. 2) is to be found on
the left side of the boot (in the spare
wheel housing) by lifting the boot
cover. The plate bears the following
identification data (fig. 3):
A- Manufacturer’s name
B- Homologation number
C- Car model code
D- Chassis number
E- Maximum vehicle weight fully
loaded

342

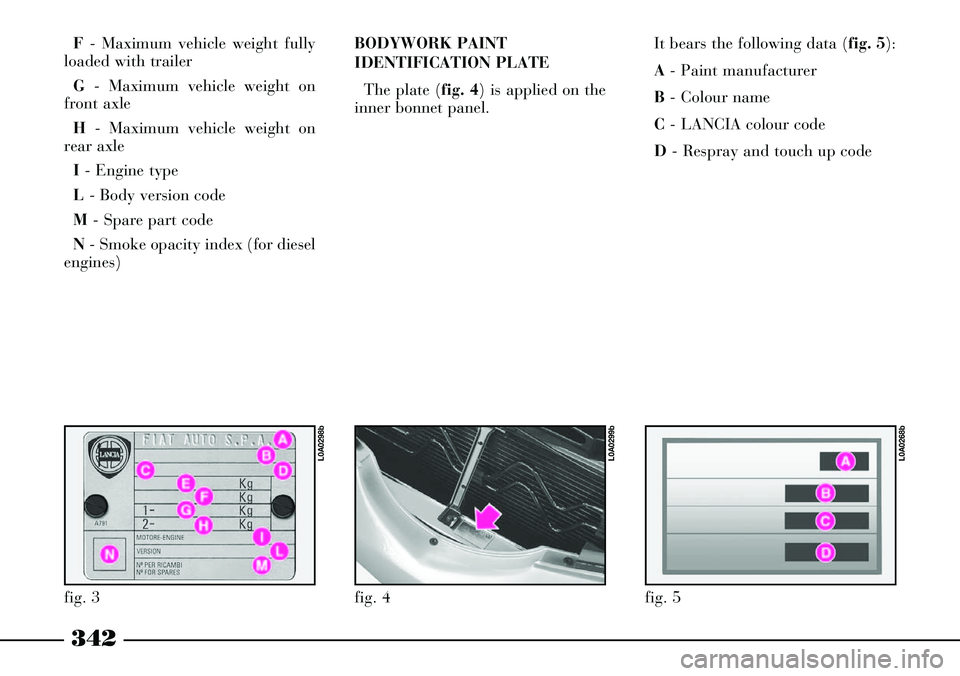

BODYWORK PAINT
IDENTIFICATION PLATE
The plate (fig. 4) is applied on the
inner bonnet panel.
fig. 4
L0A0299b
fig. 5
L0A0268b
F- Maximum vehicle weight fully
loaded with trailer
G- Maximum vehicle weight on
front axle
H- Maximum vehicle weight on
rear axle
I- Engine type
L- Body version code
M- Spare part code
N- Smoke opacity index (for diesel
engines)
fig. 3
L0A0298b
It bears the following data (fig. 5):
A- Paint manufacturer
B- Colour name
C- LANCIA colour code
D- Respray and touch up code

343
ENGINE CODES - BODYWORK VERSIONS
2.0 TB
2.4
2.4 CAE
2.4 JTD 20VCAE
3.2 V6 CAE
(*) EURO 4 version (for specific markets)
(**) Version for specific marketsEngine code
841E000
841D000
841D000
841P000
841N000 (**)
841L000Bodywork version
841AXA1B 03D
841AXA1B 03E (**)
841AXA1B 03F (*)
841AXB1B 00C
841AXB1B 00D (*)
841AXB11 04C
841AXB11 04D (*)
841AXN11 10
841AXH11 06B (**)
841AXM11 09 (**)
841AXF11 07

344
2.0 TB
841E000
Front,
transversally-mounted
Otto
5 in line
4 - Hydraulic
tappets
82 x 75.65
1,998
8.5 : 1
136
185
5,500
308
31.4
2,200
Unleaded
petrol 95 R.O.N. 2.4
841D000
Front,
transversally-mounted
Otto
5 in line
4 - Hydraulic
tappets
83 x 90.4
2,446
10.3 : 1
125
170
6,000
226
23.0
3,500
Unleaded
petrol 95 R.O.N. 2.4 CAE
841D000
Front,
transversally-mounted
Otto
5 in line
4 - Hydraulic
tappets
83 x 90.4
2,446
10.3 : 1
125
170
6,000
226
23.0
3,500
Unleaded
petrol 95 R.O.N.
ENGINE
GENERAL FEATURES
Engine code
Location
Cycle
Number and layout of cylinders
Number of valves per
cylinder
Diameter x stroke mm
Total capacity cc
Compression ratio
Maximum power (EEC): kW
HP
corresponding ratio rpm
Maximum torque (EEC): Nm
Kgm
corresponding ratio rpm
Fuel

345
3.2 V6 CAE
841L000
Front,
transversally-mounted
Otto
6 V, 60°
4 - Hydraulic
tappets
93 x 78
3,179
10 : 1
169
230
6,200
289
29
4,800
Unleaded
petrol 95 R.O.N. 2.4 JTD 20V CAE
841H000
Front,
transversally-mounted
Diesel
5 in line
4 - Hydraulic
tappets
82 x 90.4
2,387
17 : 1
136
185
4,000
330
34
1,750
Diesel fuel for
motor vehicles
GENERAL FEATURES
Engine code
Location
Cycle
Number and layout of cylinders
Number of valves per
cylinder
Diameter x stroke mm
Total capacity cc
Compression ratio
Maximum power (EEC): kW
HP
corresponding ratio rpm
Maximum torque (EEC): Nm
Kgm
corresponding ratio rpm
Fuel

CAPACITIES
Prescribed fuels
Recommended product
Unleaded petrol with a RON
not lower than 95
Diesel fuel for motor
vehicles (Specification EN590)
50-50 mixture of distilled water
and PARAFLU UP
SELENIA RACING
SELENIA WR
TUTELA CAR
TECHNYX
TUTELA CAR GI/V
TUTELA CAR GI/E
TUTELA TOP 4
Mixture of water and TUTELA
PROFESSIONAL SC 35
362
2.4
75
10
–
–
8.6
5.50
–
1.70
–
1.05
approx 1.5
4.5 2.0 TB
75
10
–
–
8.6
5.50
–
1.70
–
1.05
approx 1.5
4.52.4 CAE
75
10
–
–
8.6
5.50
–
–
7.25
1.05
approx 1.5
4.5
Fuel tank: litres– including a reserve of litres
Fuel tank: litres
– including a reserve of litres
Engine cooling system litres
Engine oil (amount for periodical change – sump and filter) litres
Engine oil (amount for periodical
change – sump and filter) litres
Manual gearbox/differential kg
Electronic automatic gearbox litres
Hydraulic power steering litres
Hydraulic brake circuit
with ABS litres
Windscreen headlight washer
reservoir litres
