ELECTRICAL-BODY AND CHASSIS 8A-193




RTW 48ASH000701

REAR FOG LIGHT
Removal
1. Remove the screws 1.
2. Remove the lens cover
2.
3. Rear fog push turn the bulb
3 counterclockwise to
disconnect it from the light housing.



Installation
Follow the removal procedure in the reverse order to install the
rear fog light.
Pay close attention to the important points mentioned in the
following paragraphs.



Bulb
Be absolutely sure that the license plate light bulb is correctly
installed.
This will prevent a poor contact and open circuit.




RTW 78ASH000401
FRONT FOG & RR FOG SWITCH



RTW 48ASH000401
Inspection
Check to see if there is any continuity between the terminals of
the leveling switch.
Replace the switch when the result of inspection is found
abnormal.

Removal
Preparation:
Disconnect the battery ground cable.
1. Ventilation grille
2. Harness connector
3. Front fog light & Rear fog light switch To remove the switch, push the lock from the back side of
the cluster assembly.
4. Remove the bulb.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-365




Connector
Ter- No.

minal No.
B23
1 Power ground
2 Cruise main
3 Charge
4 Brake
5 ABS control unit
6 Fuel consumption
7 Tachometer pulse
8 Speedometer pulse
9 Rheostat
10 Taillight relay
11 -
12 -
13 Ambient temperature sensor
14 Seat belt
15 Key remind switch
16 Engine coolant temperature sensor
17 Fuel gauge unit and sender
18 Fuel level
19 Sedimenter
20 Door ajar
21 Power drive
22 3rd start
23 Fuel filter
24 Cruise set
25 Check trans
26 SVS
27 4W D
28 4W D - L
29 A/T oil temperature
30 Check 4W D
31 CAN (+)
32 CAN (-)
33 Turn signal - LH
34 ABS
35 Glow
36 -
37 Hi – beam (+)
38 Check engine
39 Oil pressure
40 SRS control unit

Connector
Ter- No.
minal No.
B24
1 Signal ground
2 SRS ground
3 A/T shift indicator “3”
4 A/T shift indicator “D”
5 A/T shift indicator “N”
6 A/T shift indicator “R”
7 A/T shift indicator “P”
8 Ignition
9 Ambient temperature sensor
10 RR fog light
11 FRT fog light
12 A/T shift indicator “2”
13 A/T shift indicator “L”
14 Turn signal - RH
15 Door SW - driver
16 Power source



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-367

Connector No. B24 SOUTH
AFRICA SAUDI
ARABIA ISRAEL EUROPE OTHER
Terminal Connector place
4JJ1-TC HFV6 4JA1T(L) HFV6 4JJ1-TC HFV6 RHD LHD G.EXP
RHD 4JJ1-TC
C24SE
AUSTRALIAHFV6AUSTRALIA
1 Signal ground
2 SRS ground
3 A/T shift indicator
“3” ―
4 A/T shift indicator
“D” ―
5 A/T shift indicator
“N” ―
6 A/T shift indicator
“R” ―
7 A/T shift indicator
“P” ―
8 Ignition
9 Ambient
temperature sensor ―
10 RR fog light
― ― ― ― ― ―
―
― ― ―
11 FRT fog light
― ― ― ― ―
― ―
12 A/T shift indicator
“2” ―
13 A/T shift indicator
“L” ―
14 Turn signal - RH
15 Door SW - driver
16 Power source




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-606 ELECTRICAL-BODY AND CHASSIS

CONNECTOR LIST
No. Connector face No. Connector face
B1

~
B6 NOT USED B16
(
HFV6
4JH1-TC
)

White
Hazard switch
B7


Black
Rear defogger relay B16
(4JJ1-TC
4JA1T-(L))
Gray Hazard switch
B8


Black
Power window relay B17

~
B19 NOT USED
B9



NOT USED B20



White
Cigar lighter illumination
B10


White
Clock B21



WhiteCigar lighter-1
B11


White
Ash tray illumination B22



BlackCigar lighter-2
B12


NOT USED B23



White
Meter-A
B13


White
Fan switch B24



WhiteMeter-B
B14


Gray
Audio B25

~
B27 NOT USED
B15



NOT USED B28



Silver
Dash side-RH


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-607


No. Connector face No. Connector face
B29

~
B30 NOT USED B43



Black
Anti theft control unit (A)
B31


Yellow
SRS control unit B44



BlackAnti theft control unit (B)
B32


NOT USED B45



NOT USED
B33



White
Illumination control B46



WhiteRear defogger timer
B34


NOT USED B47



White
Glove box illumination
B35


Yellow
Infrator; passenger side B48



BlackG sensor
B36


Yellow
Infrator; driver side B49



NOT USED
B37

~
B40 NOT USED B50



White
Power/3rd start switch
B41


White
Acc socket B51



WhiteHeadlight levering switch
B42


White
Acc socket B52



BlackAnti theft indicator


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-609


No. Connector face No. Connector face
B74



NOT USED B85




W eld splice 7 (Ground)
B75


Black
Rear fog light C/U B86



W eld splice 8 (Ground)
B76


White
Front rear fog light switch B87



NOT USED
B77



White
Immobilizer C/U B88



W eld splice 5 (Ground)
B78


White

Key cylinder antenna coil B89

~
B94 NOT USED
B79



White
Short connector (cooler only) B95



White

Keyless entry control unit
B80


Black
Hazard relay (RH) B96



Gray PIM1
B81


Black
Hazard relay (LH) B97



WhitePIM2
B82



W eld splice 6 (Ground) B98



WhiteDoor lock C/U
B83
~
B84 NOT USED B101



White
Key inter lock


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-610 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
B102



White
Key inter lock solenoid

B103



White
Joint connector 3

B104



White
Joint connector 4

B105



Black
Rear fog light relay

B106



NOT USED

B107



Yellow
Pretensioner (Dr)

B108



Yellow
Pretensioner (As)

B109




Immobilizer control unit







BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

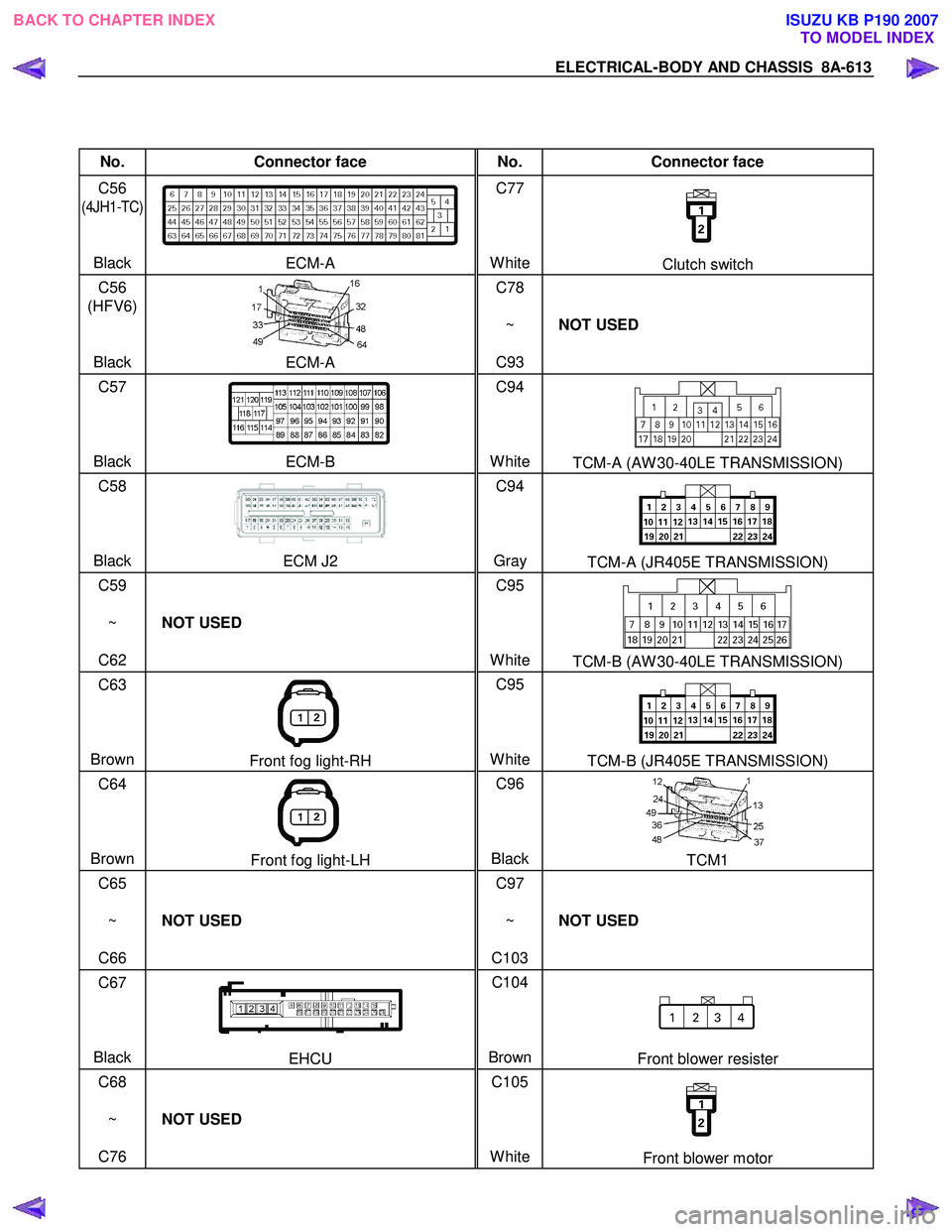

ELECTRICAL-BODY AND CHASSIS 8A-613


No. Connector face No. Connector face
C56
(4JH1-TC)


Black
ECM-A C77



WhiteClutch switch
C56
(HFV6)

Black
ECM-A C78

~
C93 NOT USED
C57



Black ECM-B C94



WhiteTCM-A (AW 30-40LE TRANSMISSION)
C58


Black ECM J2 C94



Gray TCM-A (JR405E TRANSMISSION)
C59
~
C62 NOT USED C95



White
TCM-B (AW 30-40LE TRANSMISSION)
C63


Brown
Front fog light-RH C95



WhiteTCM-B (JR405E TRANSMISSION)
C64


Brown
Front fog light-LH C96



BlackTCM1
C65
~
C66 NOT USED C97

~
C103 NOT USED
C67



Black
EHCU C104



BrownFront blower resister
C68
~
C76 NOT USED C105



White
Front blower motor
