SB-6
PRE-CRASH SEAT BELT
Revision: 2007 April2007 M35/M45

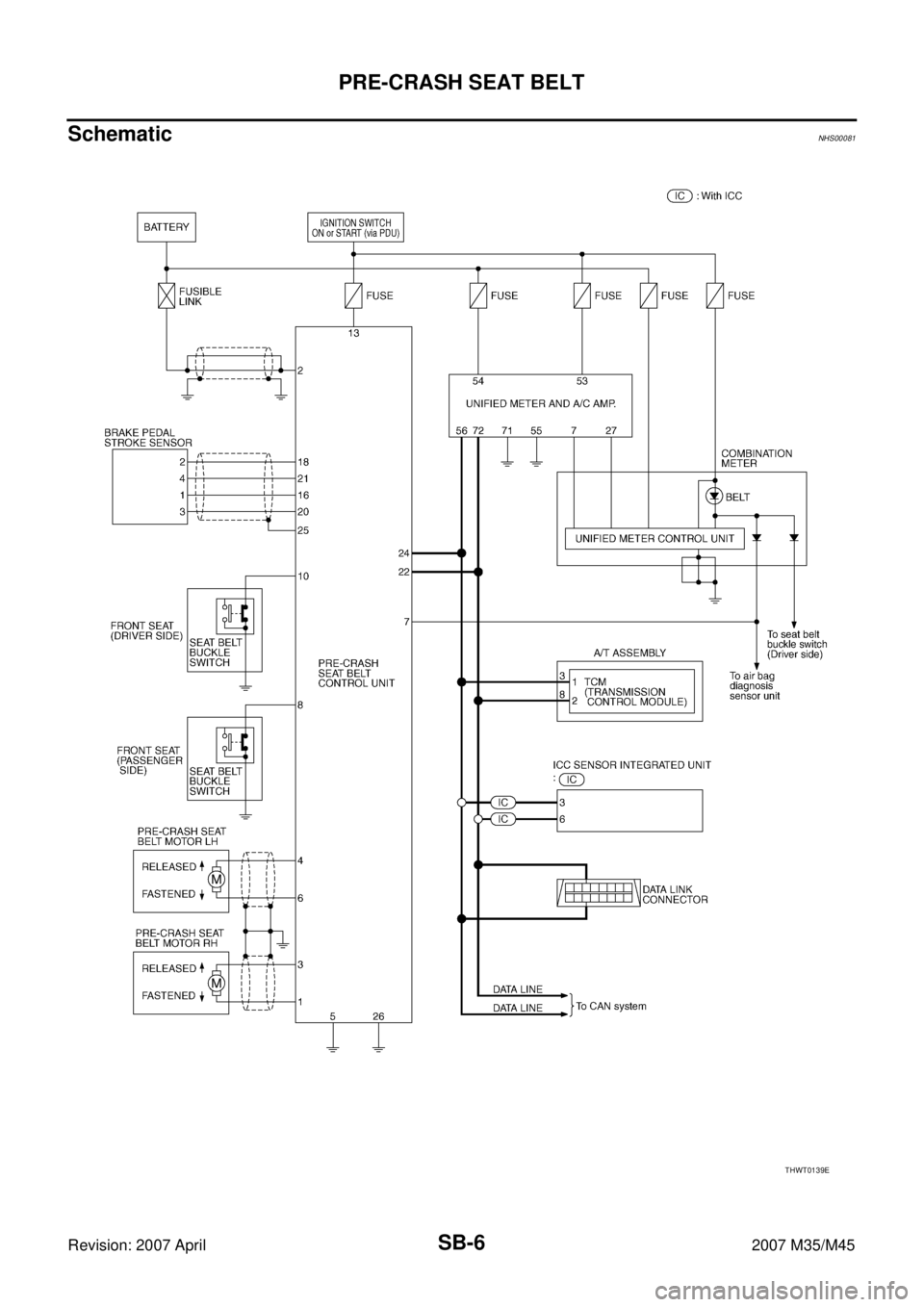

SchematicNHS00081
THWT0139E
Page 4132 of 4647
PRE-CRASH SEAT BELT
SB-7
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2007 April2007 M35/M45

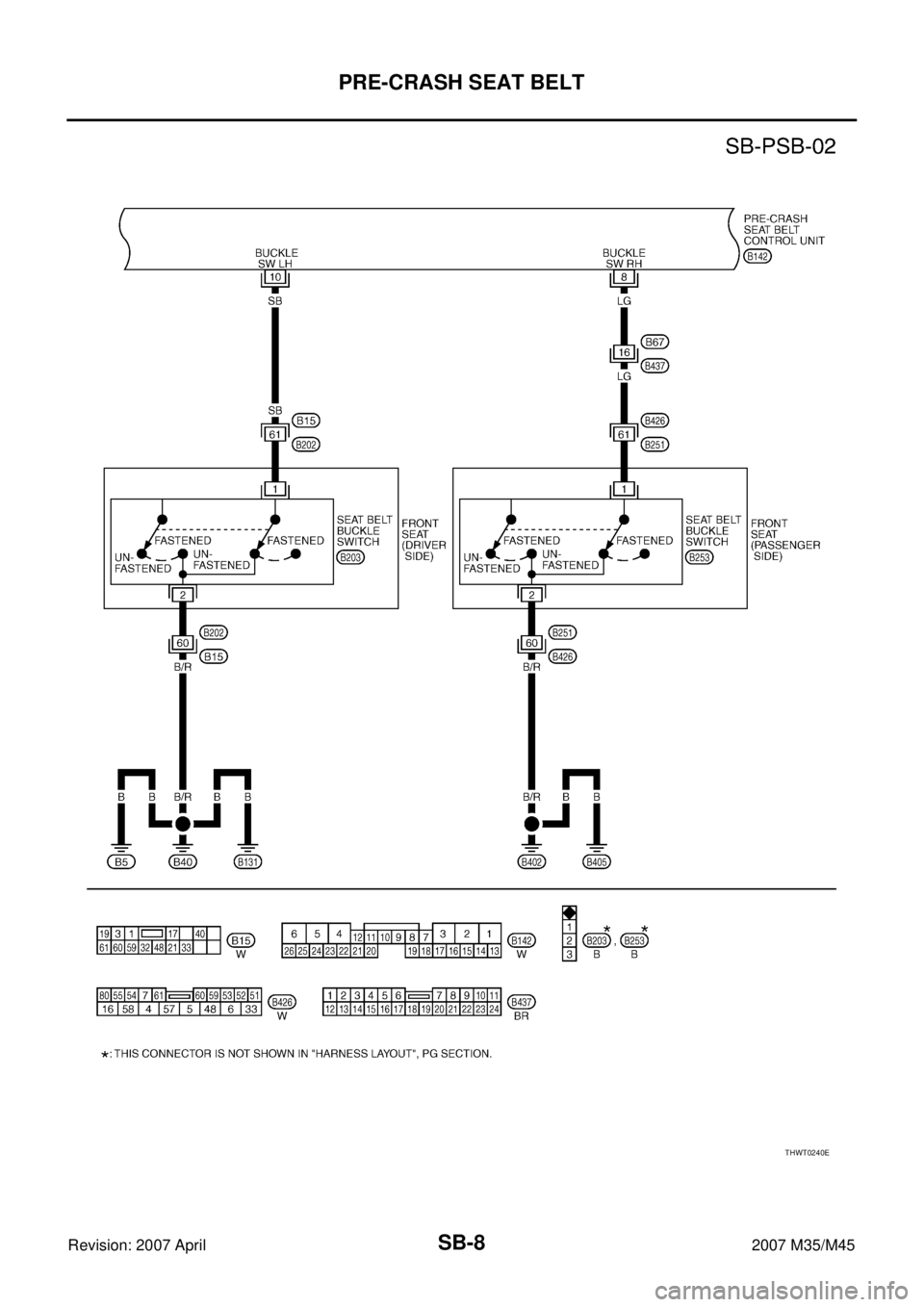

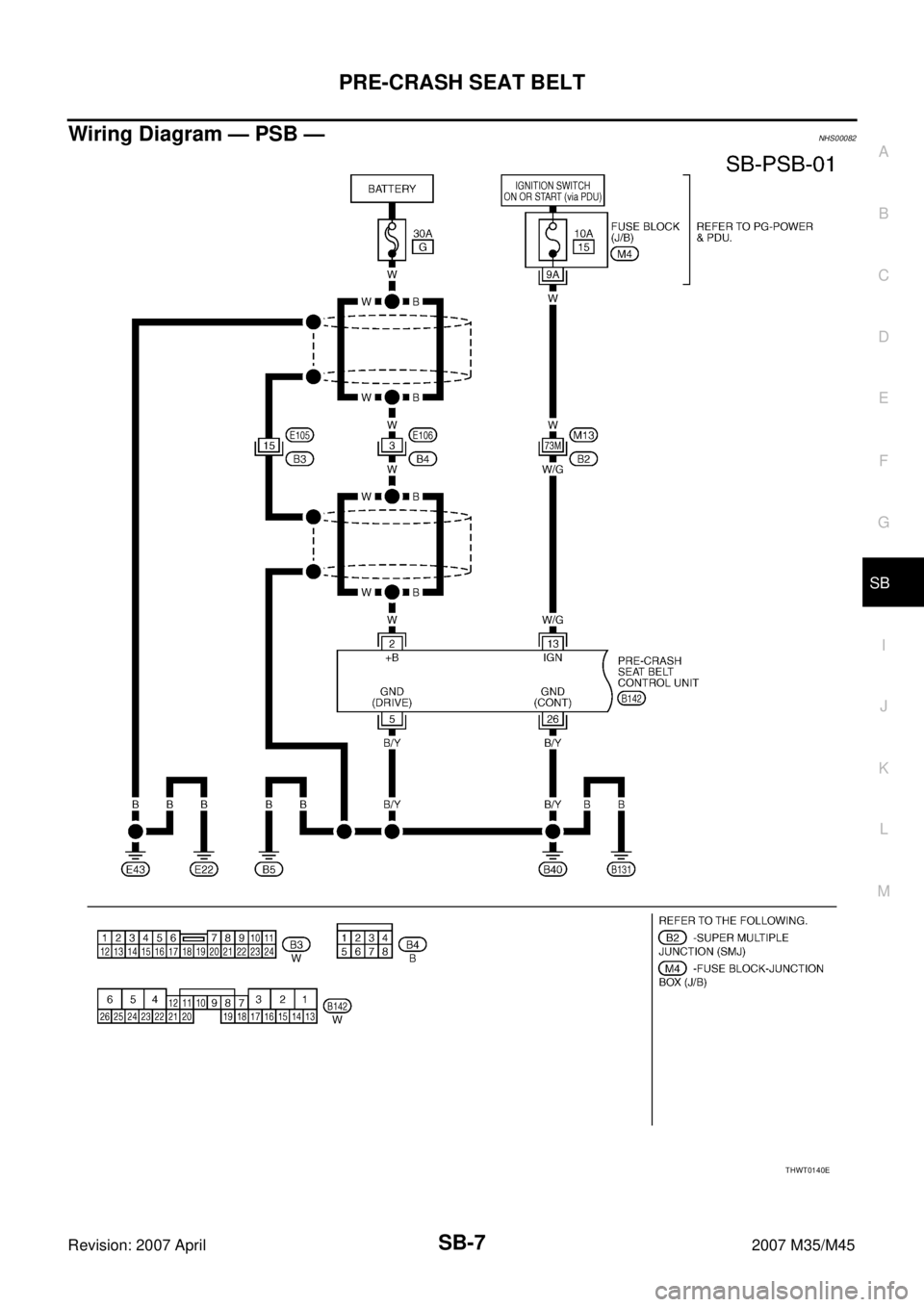

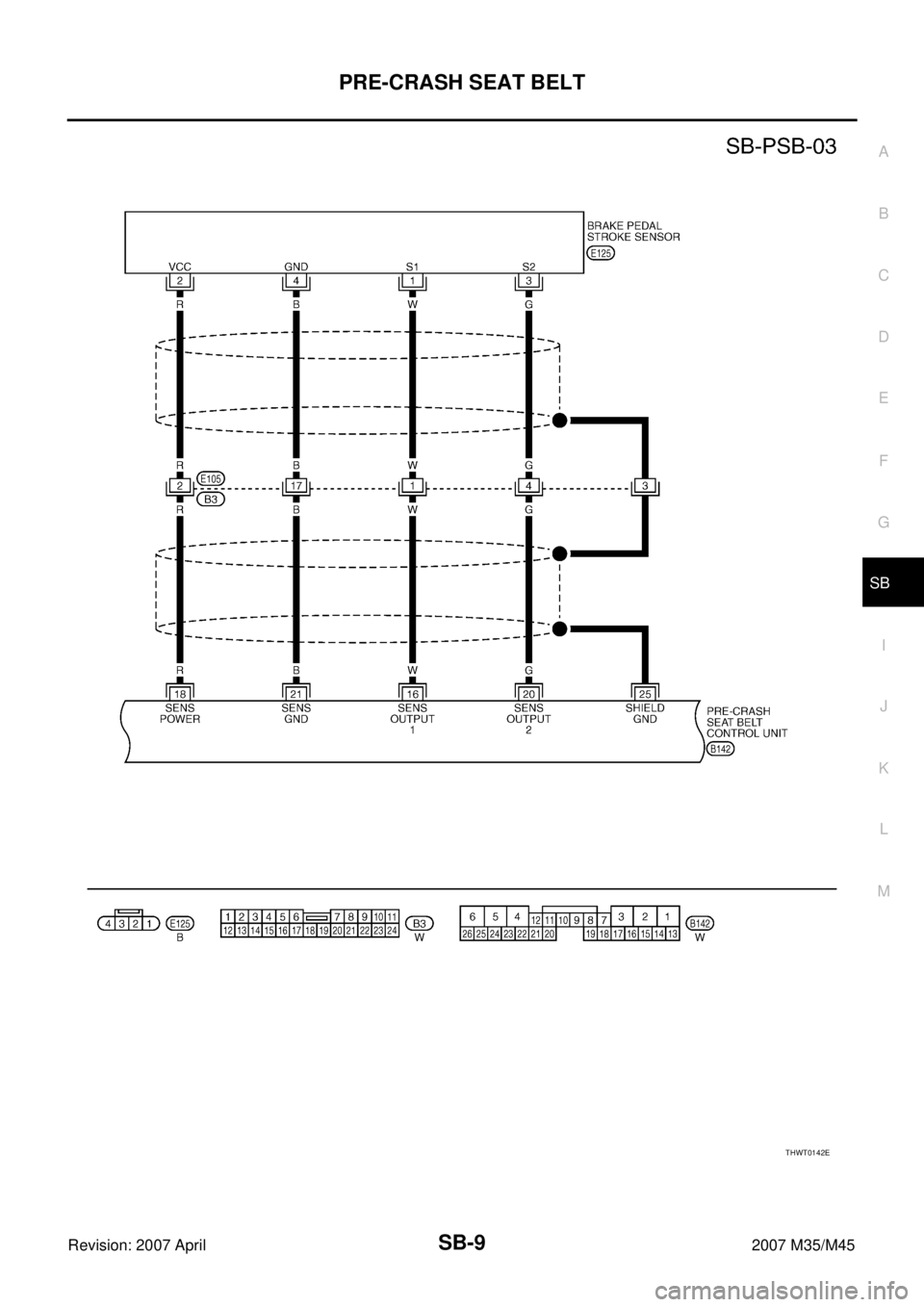

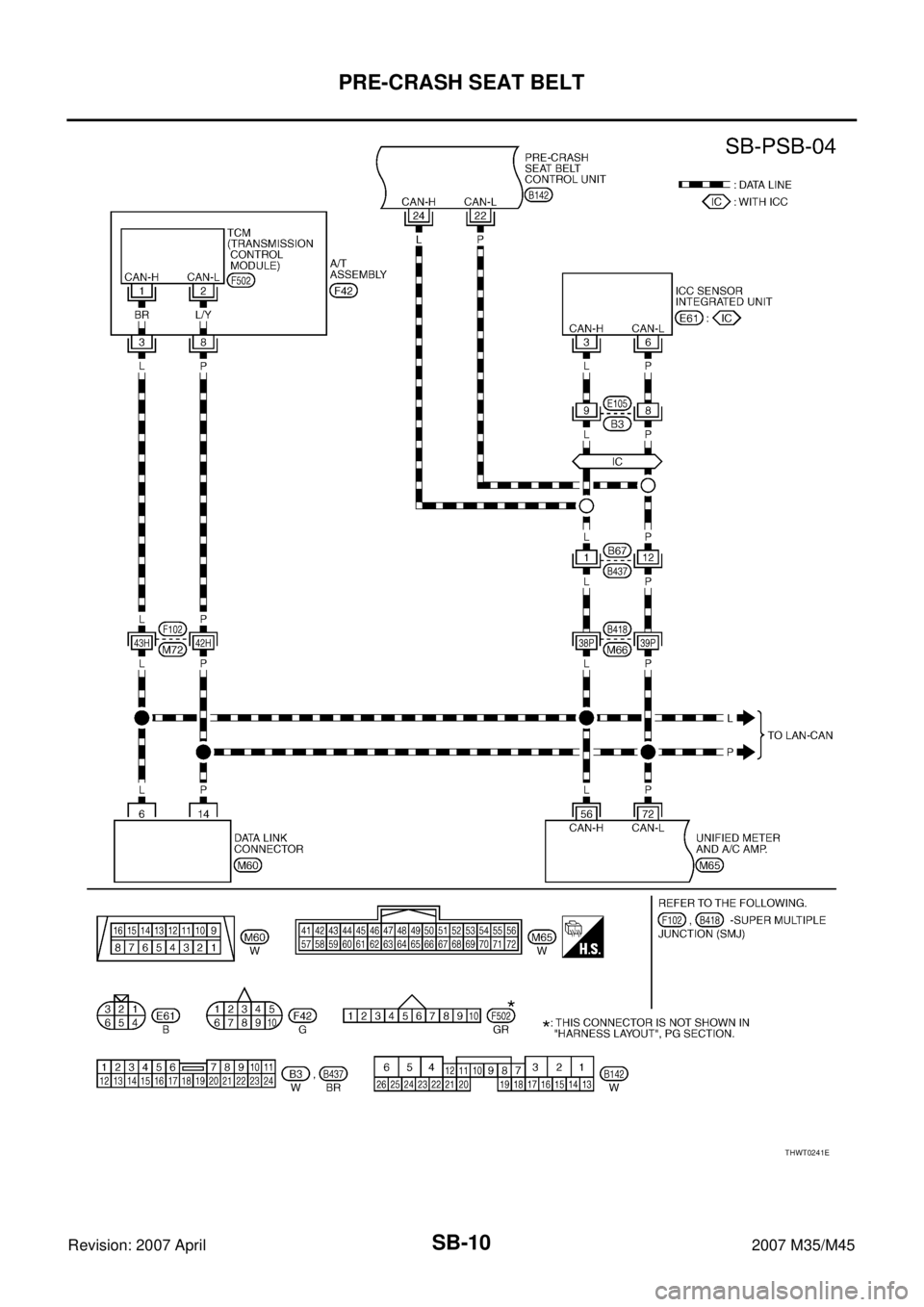

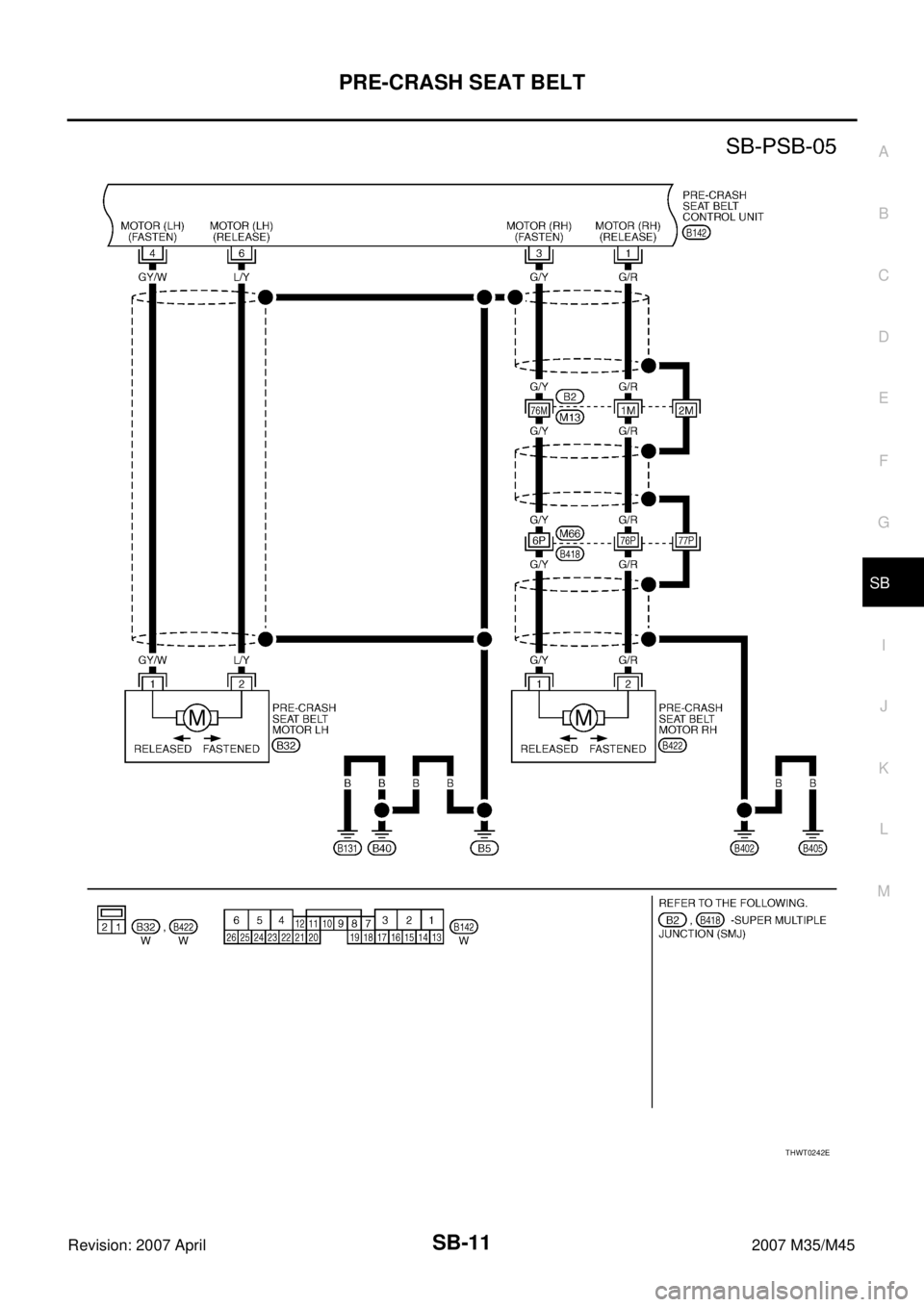

Wiring Diagram — PSB —NHS00082
THWT0140E
Page 4133 of 4647
SB-8
PRE-CRASH SEAT BELT
Revision: 2007 April2007 M35/M45
THWT0240E
Page 4134 of 4647
PRE-CRASH SEAT BELT
SB-9
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2007 April2007 M35/M45
THWT0142E
Page 4135 of 4647
SB-10
PRE-CRASH SEAT BELT
Revision: 2007 April2007 M35/M45
THWT0241E
Page 4136 of 4647
PRE-CRASH SEAT BELT
SB-11
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2007 April2007 M35/M45
THWT0242E
Page 4137 of 4647
SB-12
PRE-CRASH SEAT BELT
Revision: 2007 April2007 M35/M45
THWT0205E
Page 4138 of 4647

PRE-CRASH SEAT BELT
SB-13
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for Pre-Crash Seat Belt Control UnitNHS00083
Work FlowNHS00084
1. Check the symptom and customer's requests.
2. Understand the system description. Refer to SB-3, "
System Description" .
3. Perform the preliminary check. Refer to SB-15, "
Preliminary Check" .
4. Check the self-diagnosis, results using CONSULT-II. Refer to SB-14, "
CONSULT-II Function (PRECRASH
SEATBELT)" .
5. Based on the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SB-15,
"Diagnoses Symptom Chart" .
6. Does pre-crash seat belt system operate normally?
OK: GO TO 7.
NG: GO TO 4.
7. INSPECTION END
TerminalWire
ColorItemSignal
Input/OutputConditionVo l ta g e [V ]
(Approx.)
1G/RSeat belt motor RH release
direction signalOutputSeat belt motor RH operation Battery voltage
Other than above 0
2 W Power source (BAT) Input — Battery voltage
3G/YSeat belt motor RH fastened
direction signalOutputSeat belt motor RH operation Battery voltage
Other than above 0
4GY/WSeat belt motor LH fastened
direction signalOutputSeat belt motor LH operation Battery voltage
Other than above 0
5 B/Y Ground (Driver circuit) — — 0
6L/YSeat belt motor LH release
direction signalOutputSeat belt motor LH operation Battery voltage
Other than above 0
7 G/Y Seat belt indicator signal OutputWhen driver side seat belt is fastened Battery voltage
When driver side seat belt is un-fastened 0
When driver side seat belt is fastened and
system malfunctionBattery
voltage ⇔ 0
8 LG Seat belt buckle switch RH InputWhen seat belt is fastened 5
When seat belt is un-fastened 0
10 SB Seat belt buckle switch LH InputWhen seat belt is fastened Battery voltage
When seat belt is un-fastened 0
13 W/G Power source (IGN) Input Ignition switch ON or START Battery voltage
16 WBrake pedal stroke sensor
output signal 1OutputBrake pedal is fully released operation 1
Brake pedal is slightly depressed operation 4
18 RPower source
(Brake pedal stroke sensor)Input — 5
20 GBrake pedal stroke sensor
output signal 2OutputBrake pedal is fully released operation 4
Brake pedal is slightly depressed operation 1
21 BGround
(Brake pedal stroke sensor)—— 0
22 P CAN-L Input/Output — —
24 L CAN-H Input/Output — —
25 — Ground (Shield wire) — — 0
26 B/Y Ground (Control circuit) — — 0
