Page 1286 of 4366
DI-40
WARNING LAMPS
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — WARN —NKS0030D
TKWM4346E
Page 1299 of 4366
A/T INDICATOR DI-53
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — AT/IND —NKS0030H
TKWM4354E
Page 1307 of 4366
WARNING CHIME DI-61
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — CHIME —NKS0030O
TKWM4357E
Page 1325 of 4366
LANE DEPARTURE WARNING SYSTEM DI-79
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
System Diagram
Components Description
NOTE:
*: This indicates in a few seconds for the system check during ignition switch ON.
POWER SUPPLY AND GROUND CIRCUIT
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 12, located in the fuse block (J/B)]
to LDW camera unit terminal 1.
Ground is supplied
to LDW camera unit terminals 6 and 12
through grounds M45, M85 and M35.
SKIB1784E
Component Description
LDW camera unit Detects the lane marker by the built-in camera, gives judgement for the warning according to the
result of detection and signals from each unit, and transmits the operation signal to LDW chime and
LDW indicator lamp.
LDW switch
Selects ON/OFF of the system.
Indicates ON/OFF of the signal with LDW system ON indicator.
LDW chime Gives a warning chime according to the direction from LDW camera unit.
LDW indicator lamp Installed in combination meter, and indicates the system condition.
Blinks when LDW system is functioning to alert the driver.
Stays on when LDW system is malfunctioning.*
BCM Transmits turn indicator signal to LDW camera unit with CAN communication signal.
ABS actuator and electric unit
(control unit) Transmits vehicle speed signal to LDW camera unit with CAN communication signal.
TCM Transmits vehicle speed signal to LDW camera unit with CAN communication signal. (For detecting
incorrect speed.)
Page 1335 of 4366
LANE DEPARTURE WARNING SYSTEM DI-89
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45

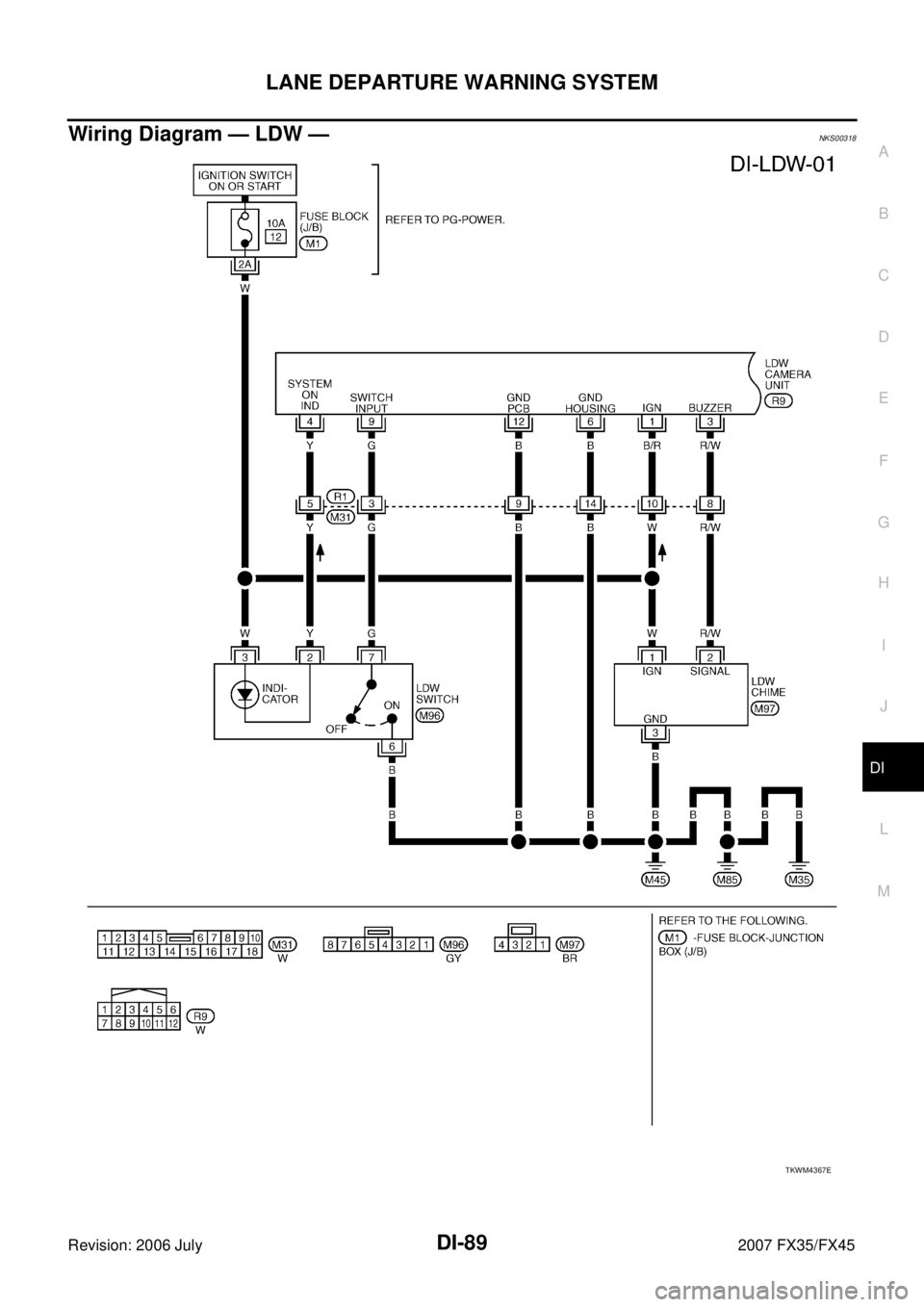

Wiring Diagram — LDW —NKS00318
TKWM4367E
Page 1355 of 4366
COMPASS DI-109
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — COMPAS —NKS003HV
TKWM4344E
Page 1357 of 4366
CLOCK DI-111
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
CLOCKPFP:25820
Wiring Diagram — CLOCK —NKS0031R
TKWM4360E
Page 1362 of 4366
DI-116
REAR VIEW MONITOR
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — R/VIEW —NKS0031W
TKWM4362E
