2007 INFINITI FX35 check engine

DTC P1217 ENGINE OVER TEMPERATURE EC-507
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Main 12 Causes of OverheatingNBS003UN
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-7, "
OVERHEATING CAUSE ANALYSIS" .
Component InspectionNBS003UO
COOLING FAN MOTORS-1 AND -2
1. Disconnect cooling fan motor harness connectors.
2. Supply cooling fan motor terminals with battery voltage and check operation.
Engine Step Inspection item Equipment Standard Reference page
OFF 1

Blocked radiator

Blocked condenser

Blocked radiator grille

Blocked bumper

Visual No blocking —
2

Coolant mixture
Coolant tester 50 - 50% coolant mixture MA-13, "Anti-Freeze
Coolant Mixture Ratio"
3
Coolant level
Visual Coolant up to MAX level
in reservoir tank and radi-
ator filler neck CO-11, "Changing
Engine Coolant"
4
Radiator cap
Pressure tester 59 - 98 kPa
(0.6 - 1.0 kg/cm2 , 9 - 14
psi) (Limit) CO-15, "
Checking Radia-
tor Cap"
ON*25
Coolant leaks
Visual No leaks
CO-11, "LEAK CHECK"
ON*26
Thermostat
Touch the upper and
lower radiator hoses Both hoses should be hot
CO-27, "WATER INLET
AND THERMOSTAT
ASSEMBLY"
ON*17
Cooling fan
CONSULT-II Operating See trouble diagnosis for
DTC P1217 ( EC-496,
"DTC P1217 ENGINE
OVER TEMPERATURE"
).
OFF 8

Combustion gas leak
Color checker chemical
tester 4 Gas analyzer Negative —
ON*
39
Coolant temperature
gauge
Visual Gauge less than 3/4 when driving —

Coolant overflow to
reservoir tank
Visual No overflow during driving and idling CO-11, "Changing
Engine Coolant"
OFF*410
Coolant return from
reservoir tank to radia-
tor
Visual Should be initial level in reservoir tank CO-11, "Changing
Engine Coolant"
OFF 11
Cylinder head
Straight gauge feeler
gauge 0.1 mm (0.004 in) Maxi-
mum distortion (warping) EM-103, "Cylinder Head
Distortion"
12
Cylinder block and pis-
tons
Visual No scuffing on cylinder walls or piston EM-123, "CYLINDER
BLOCK"
SEF734W

DTC P1421 COLD START CONTROL EC-513
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1421 COLD START CONTROLPFP:23710
DescriptionNBS006S9
ECM controls ignition timing and engine idle speed when engine is started with prewarming up condition.
This control promotes the activation of three way catalyst by heating the catalyst and reduces emissions.
On Board Diagnosis LogicNBS006SA
DTC Confirmation ProcedureNBS006SB
NOTE:

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.

If DTC P1421 is displayed with other DTC, first perform the trouble diagnosis for other DTC.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-II
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Check that the “COOLAN TEMP/S” indication is between 4 °C
(39 °F) and 36 °C (97 °F).
If “COOLAN TEMP/S” indication is within the specified value, go
to the following step.
If “COOLANT TEMP/S” indication is out of the specified value,
cool engine down or warm engine up and go to step 1.
5. Start engine and let it idle for 5 minutes.
6. If 1st trip DTC is detected, go to EC-513, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS006SC
1. PERFORM IDLE AIR VOLUME LEARNING
Perform EC-83, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Follow the instruction of Idle Air Volume Learning.
2. CHECK INTAKE SYSTEM
Check for the cause of intake air volume lacking. Refer to the following.

Crushed intake air passage

Intake air passage clogging
OK or NG
OK >> GO TO 3.
NG >> Repair or replace malfunctioning part
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1421
1421 Cold start emission reduction
strategy monitoring ECM does not control ignition timing and engine
idle speed properly when engine is started with
prewarming up condition.

Lack of intake air volume

Fuel injection system

ECM
SEF174Y

EC-518
[VQ35DE]

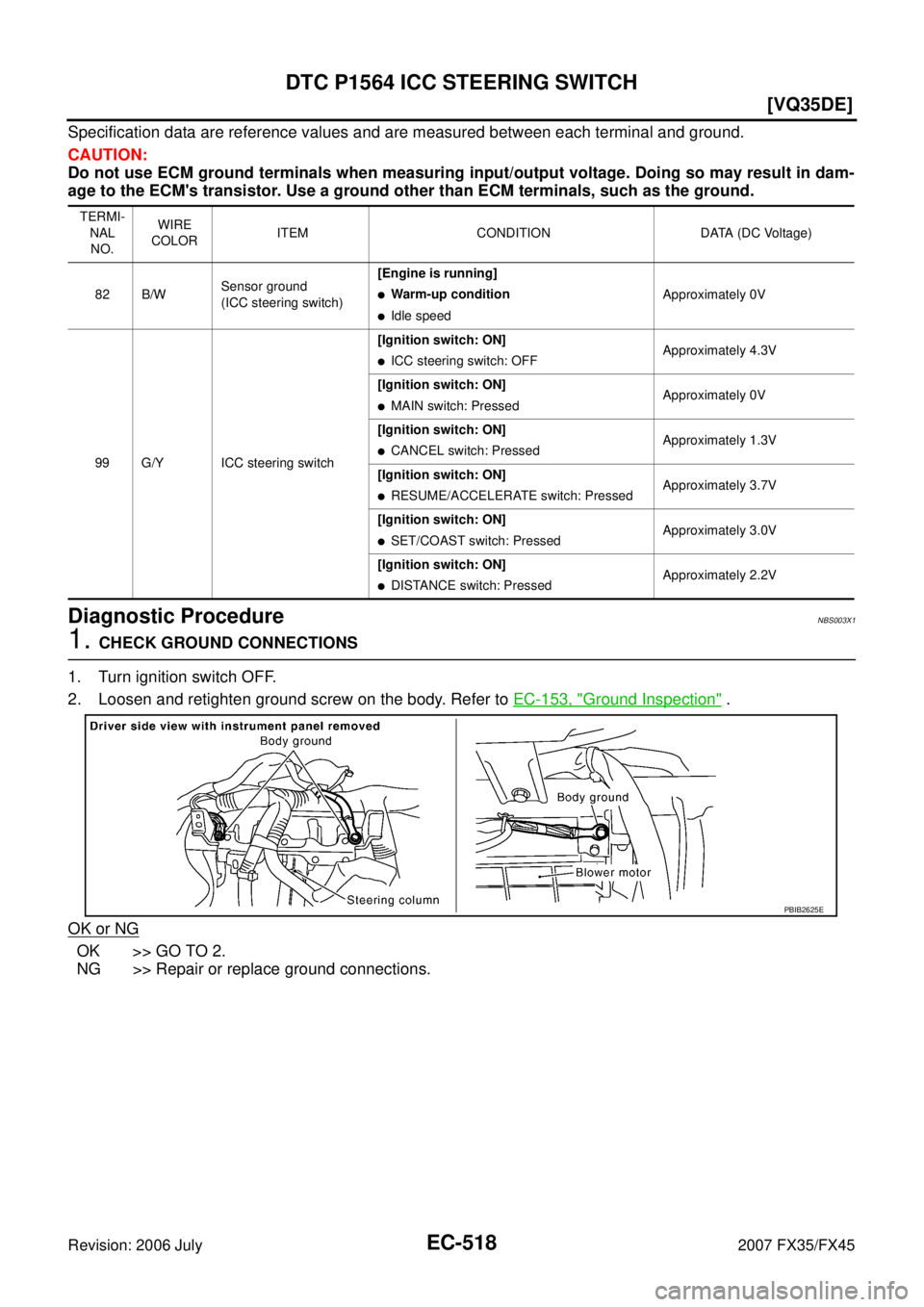

DTC P1564 ICC STEERING SWITCH
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS003X1
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-153, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
82 B/W Sensor ground
(ICC steering switch) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
99 G/Y ICC steering switch [Ignition switch: ON]

ICC steering switch: OFF
Approximately 4.3V
[Ignition switch: ON]

MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]

CANCEL switch: Pressed Approximately 1.3V
[Ignition switch: ON]

RESUME/ACCELERATE switch: Pressed Approximately 3.7V
[Ignition switch: ON]

SET/COAST switch: Pressed Approximately 3.0V
[Ignition switch: ON]

DISTANCE switch: Pressed Approximately 2.2V
PBIB2625E

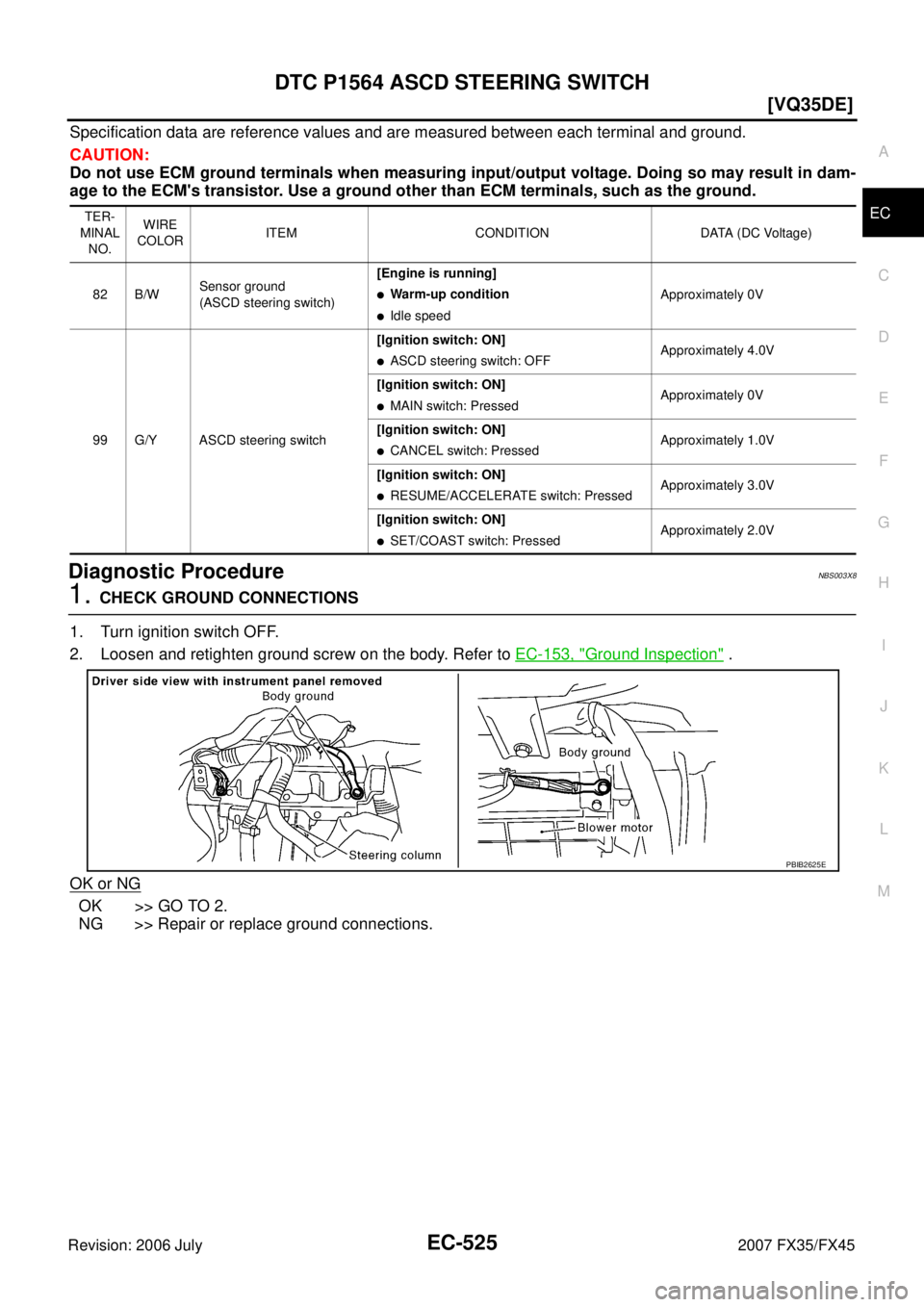

DTC P1564 ASCD STEERING SWITCH EC-525
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS003X8
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-153, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
82 B/W Sensor ground
(ASCD steering switch) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
99 G/Y ASCD steering switch [Ignition switch: ON]

ASCD steering switch: OFF
Approximately 4.0V
[Ignition switch: ON]

MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]

CANCEL switch: Pressed Approximately 1.0V
[Ignition switch: ON]

RESUME/ACCELERATE switch: Pressed Approximately 3.0V
[Ignition switch: ON]

SET/COAST switch: Pressed Approximately 2.0V
PBIB2625E

DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR) EC-551
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR)PFP:31935
DescriptionNBS004MB
ECM receives turbine revolution sensor signal from TCM through CAN communication line. ECM uses this
signal for engine control.
CONSULT-II Reference Value in Data Monitor ModeNBS004MC
Specification data are reference values.
On Board Diagnosis LogicNBS004MD
NOTE:

If DTC P1715 is displayed with DTC U1000 or U1001 first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-155, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1715 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-158, "
DTC U1010 CAN COMMUNICATION" .

If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-480, "
DTC P0605 ECM" .

If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335.
Refer to EC-360, "
DTC P0335 CKP SENSOR (POS)" .

If DTC P1715 is displayed with DTC P0340 or P0345 first perform the trouble diagnosis for DTC
P0340 or P0345. Refer to EC-367, "
DTC P0340, P0345 CMP SENSOR (PHASE)" .
The MIL will not lights up for this self-diagnosis.
Diagnostic ProcedureNBS004ME
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 4 0 , "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. REPLACE TCM
Replace TCM. Refer to AT- 4 4 , "
TROUBLE DIAGNOSIS" .
>> INSPECTION END
MONITOR ITEM CONDITION SPECIFICATION
I/P PULLY SPD

Vehicle speed: More than 20 km/h (12MPH) Almost the same speed as the
tachometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1715
1715 Input speed sensor
(Turbine revolution sen-
sor)
(TCM output) Turbine revolution sensor signal is differ-
ent from the theoretical value calculated
by ECM from revolution sensor signal
and engine rpm signal.

Harness or connectors
(CAN communication line is open or shorted)

Harness or connectors
(Turbine revolution sensor circuit is open or
shorted)

TCM

EC-560
[VQ35DE]
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS004J3
1. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Check voltage between ECM terminal 104 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
3R Throttle control motor relay
power supply [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released 0 - 14V
5L/B Throttle control motor
(Open) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed 0 - 14V
104 L/OR Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
PBIB1104E
PBIB1105E
Voltage: Battery voltage
PBIB1171E

EC-562
[VQ35DE]
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Revision: 2006 July 2007 FX35/FX45
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E64, F65

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-147, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connectors.

DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION EC-565
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS004IV
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF
2. Loosen and retighten ground screw on the body. Refer to EC-153, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
3R Throttle control motor relay
power supply [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released 0 - 14V
5L/B Throttle control motor
(Open) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed 0 - 14V
104 L/OR Throttle control motor relay [Ignition switch: OFF] BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
PBIB1104E
PBIB1105E
PBIB2625E
