ENGINE START FUNCTION MALFUNCTION
Intelligent Key Operation Inspection
Mechanical Key Operation Inspection
WARNING CHIME FUNCTION MALFUNCTION
Before conducting the diagnosis in the following table, check “key reminder function” with power door lock sys-
tem.
Symptom Diagnoses service procedure Refer to page
Ignition knob can not turn
KEY warning lamp on combination meter
lights up in red when ignition knob is
pressed. (door lock functions normal) 1. Intelligent Key battery inspection
BL-147
2. Check inside key antennaBL-138
3. Replace Intelligent Key unitBL-146
KEY warning lamp on combination meter
lights up in green when ignition knob is
pressed. 1. Check ignition knob switch
BL-1272. Check steering lock unitBL-139
3. Check Intelligent Key unit power supply and ground circuitBL-124
4. Replace Intelligent Key unitBL-146
Ignition knob turns even without both Intelli-
gent Key and mechanical key. Replace steering lock unit —
Security indicator will still flash when igni-
tion knob is pressed. 1. Check key switch (Intelligent Key unit input)
BL-125
2. Replace Intelligent Key unitBL-146
Security indicator does not flash with igni-
tion knob released at LOCK position. (push
switch OFF) 1. CAN communication system
BL-124
2. Ignition knob switch systemBL-127
3. Intelligent Key unit power supply and ground circuitBL-124
Starter motor does not cranking.
(Ignition knob can turn) 1. Check detention switch
BL-1422. Check stop lamp switchBL-141
3. Replace Intelligent Key unitBL-146
Symptom Diagnoses service procedure Refer to page
Ignition knob can not turn
Security indicator remains flashing with
mechanical key inserted. 1. Check key switch (BCM input)
BL-126
2. Replace Intelligent Key unitBL-146
KEY indicator and security indicator does
not flashing with mechanical key inserted. 1. Check stop lamp switch
BL-141
2. Replace Intelligent Key unitBL-146
Starter motor does not cranking.
(Ignition knob can turn) 1. Check detention switch
BL-1422. Check stop lamp switchBL-141
3. Replace Intelligent Key unitBL-146
Symptom Diagnoses service procedure Refer to page
Ignition key warning chime is inoperative.
(When mechanical key used) 1. Check CAN communication
BL-124
2. Check key switch (Intelligent Key unit input)BL-125
3. Check door switchBL-129
4. Inspect combination meter (warning) DI-5
5. Replace Intelligent Key unitBL-146
Ignition knob OFF position warning
chime (for inside vehicle) does not
sound.
(Ignition key warning chime operates) 1. Check CAN communication
BL-1242. Check ignition knob switchBL-127
3. Check key switch (Intelligent Key unit input)BL-125
4. Replace Intelligent Key unitBL-146

BR-6
BRAKE PEDAL
Revision: 2006 July 2007 FX35/FX45
BRAKE PEDALPFP:46501
Inspection and AdjustmentNFS000LS
Play and clearance between brake pedal and floor panel with pedal depressed

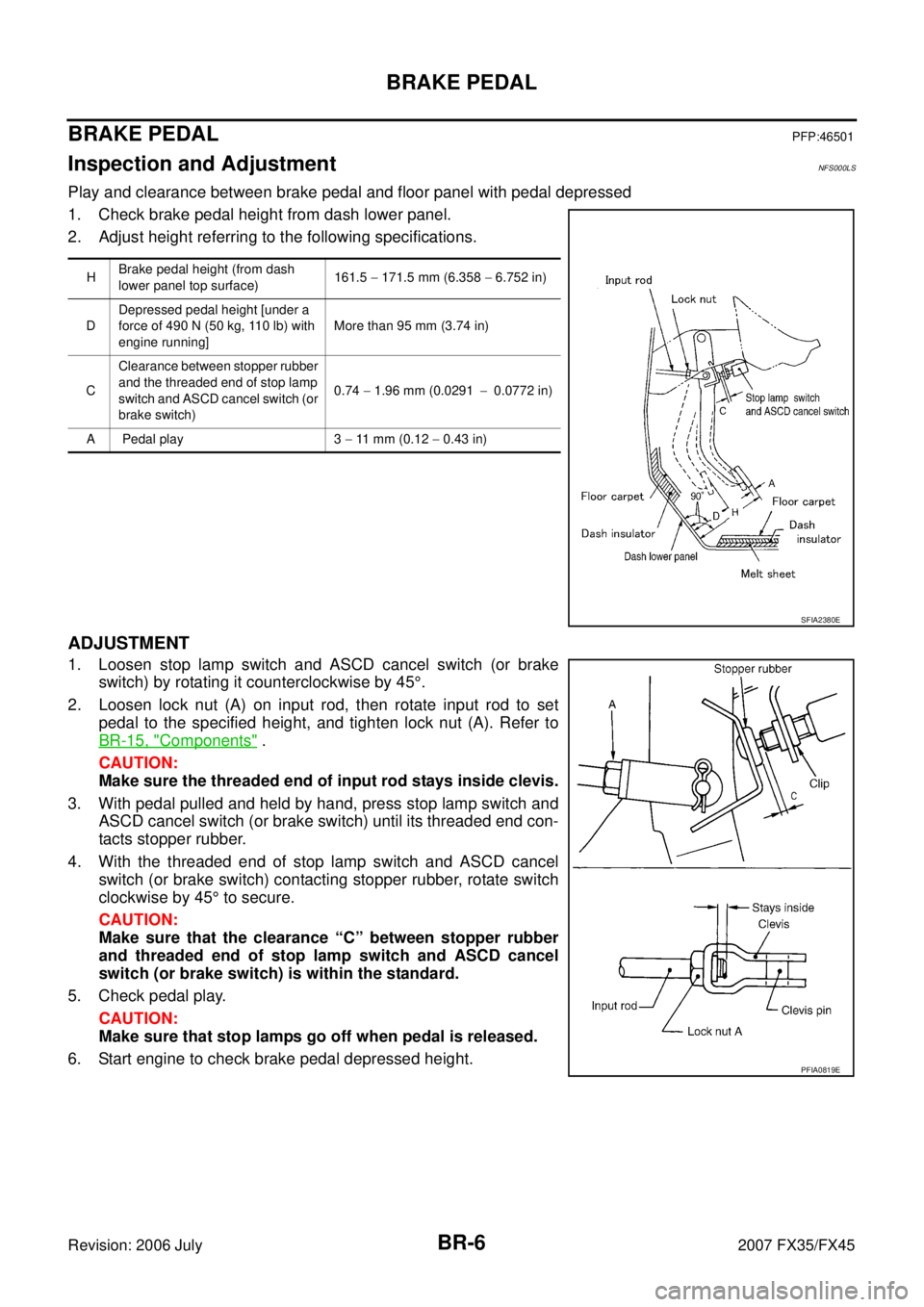

1. Check brake pedal height from dash lower panel.
2. Adjust height referring to the following specifications.
ADJUSTMENT
1. Loosen stop lamp switch and ASCD cancel switch (or brake switch) by rotating it counterclockwise by 45 °.
2. Loosen lock nut (A) on input rod, then rotate input rod to set pedal to the specified height, and tighten lock nut (A). Refer to
BR-15, "
Components" .
CAUTION:
Make sure the threaded end of input rod stays inside clevis.
3. With pedal pulled and held by hand, press stop lamp switch and ASCD cancel switch (or brake switch) until its threaded end con-
tacts stopper rubber.
4. With the threaded end of stop lamp switch and ASCD cancel switch (or brake switch) contacting stopper rubber, rotate switch
clockwise by 45 ° to secure.
CAUTION:
Make sure that the clearance “C” between stopper rubber
and threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) is within the standard.
5. Check pedal play. CAUTION:
Make sure that stop lamps go off when pedal is released.
6. Start engine to check brake pedal depressed height.
H Brake pedal height (from dash
lower panel top surface) 161.5
− 171.5 mm (6.358 − 6.752 in)
D Depressed pedal height [under a
force of 490 N (50 kg, 110 lb) with
engine running] More than 95 mm (3.74 in)
C Clearance between stopper rubber
and the threaded end of stop lamp
switch and ASCD cancel switch (or
brake switch) 0.74
− 1.96 mm (0.0291 −0.0772 in)
A Pedal play 3 − 11 mm (0.12 − 0.43 in)
SFIA2380E
PFIA0819E

BRAKE BOOSTER BR-15
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45
BRAKE BOOSTERPFP:47200
On-Vehicle ServiceNFS000M5

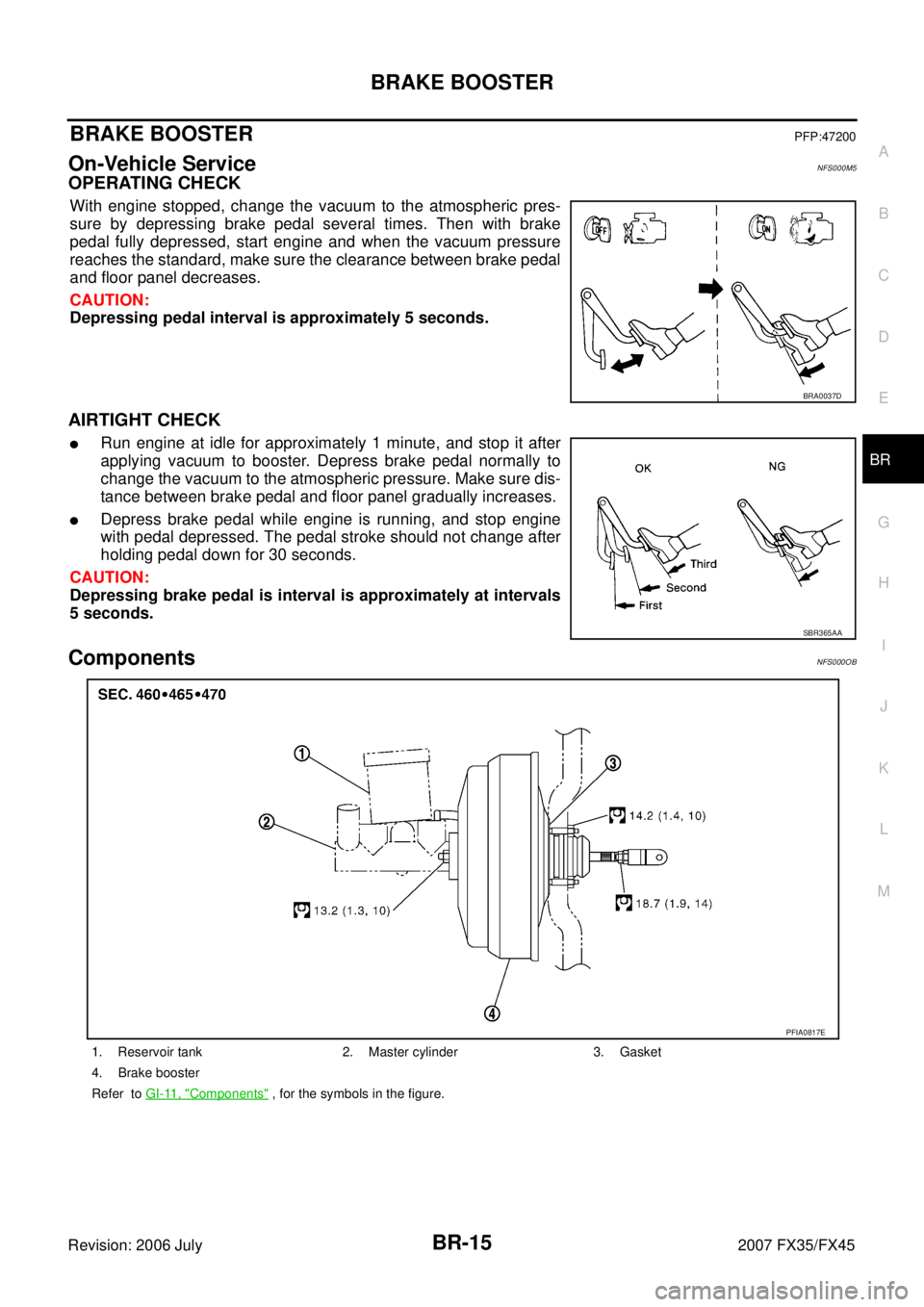

OPERATING CHECK
With engine stopped, change the vacuum to the atmospheric pres-
sure by depressing brake pedal several times. Then with brake
pedal fully depressed, start engine and when the vacuum pressure
reaches the standard, make sure the clearance between brake pedal
and floor panel decreases.
CAUTION:
Depressing pedal interval is approximately 5 seconds.
AIRTIGHT CHECK

Run engine at idle for approximately 1 minute, and stop it after
applying vacuum to booster. Depress brake pedal normally to
change the vacuum to the atmospheric pressure. Make sure dis-
tance between brake pedal and floor panel gradually increases.

Depress brake pedal while engine is running, and stop engine
with pedal depressed. The pedal stroke should not change after
holding pedal down for 30 seconds.
CAUTION:
Depressing brake pedal is interval is approximately at intervals
5 seconds.
ComponentsNFS000OB
BRA0037D
SBR365AA
1. Reservoir tank 2. Master cylinder 3. Gasket
4. Brake booster
Refer to GI-11, "
Components" , for the symbols in the figure.
PFIA0817E

PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000MW
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemNFS000MX

Recommended fluid is brake fluid “DOT 3”. Refer to MA-12, "RECOMMENDED FLUIDS AND LUBRI-
CANTS" .

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.

Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.

Using a flare nut crowfoot and torque wrench, securely tighten
brake tube flare nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect electri-
cal connectors of ABS actuator and electric unit (control unit) or
battery negative terminal.

When installing brake piping, be sure to check torque.
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with
a dust collector.
Precautions for Brake ControlNFS000MY

During VDC/TCS/ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This
is normal.

Just after starting vehicle after turning ignition switch ON, brake pedal may vibrate or motor operating
noise may be heard from engine room. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
fluid leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.
SBR686C

BRC-6
[VDC/TCS/ABS]
ON-VEHICLE SERVICE
Revision: 2006 July 2007 FX35/FX45
ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionNFS000N1
In case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sen-
sor before running vehicle.
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT-II.
(Adjustment can not be done without CONSULT-II.)
1. Stop vehicle with front wheels in straight-ahead position.
2. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Touch “ABS”, “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” on CONSULT-II screen in this order.
4. Touch “START”. CAUTION:
Do not touch steering wheel while adjusting steering angle
sensor.
5. After approximately 10 seconds, touch “END”. (After approxi- mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again. CAUTION:
Be sure to perform above operation.
7. Run vehicle with front wheels in straight-ahead position, then stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and “STR ANGLE SIG” on CONSULT-II screen. Then make sure “STR ANGLE SIG” is within 0 ± 3.5 deg. If value is more than specification, repeat steps
3 to 7.
9. Erase memory of ABS actuator and electric unit (control unit) and ECM.
10. Turn ignition switch OFF.
Situation Adjustment of Steering Angle Sensor Neutral Position
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit) ×
Removing/Installing steering angle sensor ×
Removing/Installing steering components ×
Removing/Installing suspension components ×
Change 4 tires to new ones —
Tire rotation —
Adjusting wheel alignment ×
SFIA0371E

ON-VEHICLE SERVICE BRC-7
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Calibration of Decel G Sensor (AWD Models)NFS000N2
NOTE:
After removing/installing or replacing yaw rate/side/decel G sensor, ABS actuator and electric unit (control
unit), suspension components, or after adjusting wheel alignment, make sure to calibration of decel G sensor
before running vehicle.
CAUTION:
To calibrate decel G sensor, make sure to use CONSULT-II. (Adjustment can not be done without CON-
SULT-II.)
1. Stop vehicle with front wheels in straight-ahead position. CAUTION:

The work should be done at a horizontal place when vehicle is in the unloaded vehicle condi-
tion.

Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure
value.
2. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Touch “ABS”, “WORK SUPPORT” and “DECEL G-SEN CALIBRATION” on CONSULT-II screen in this order.

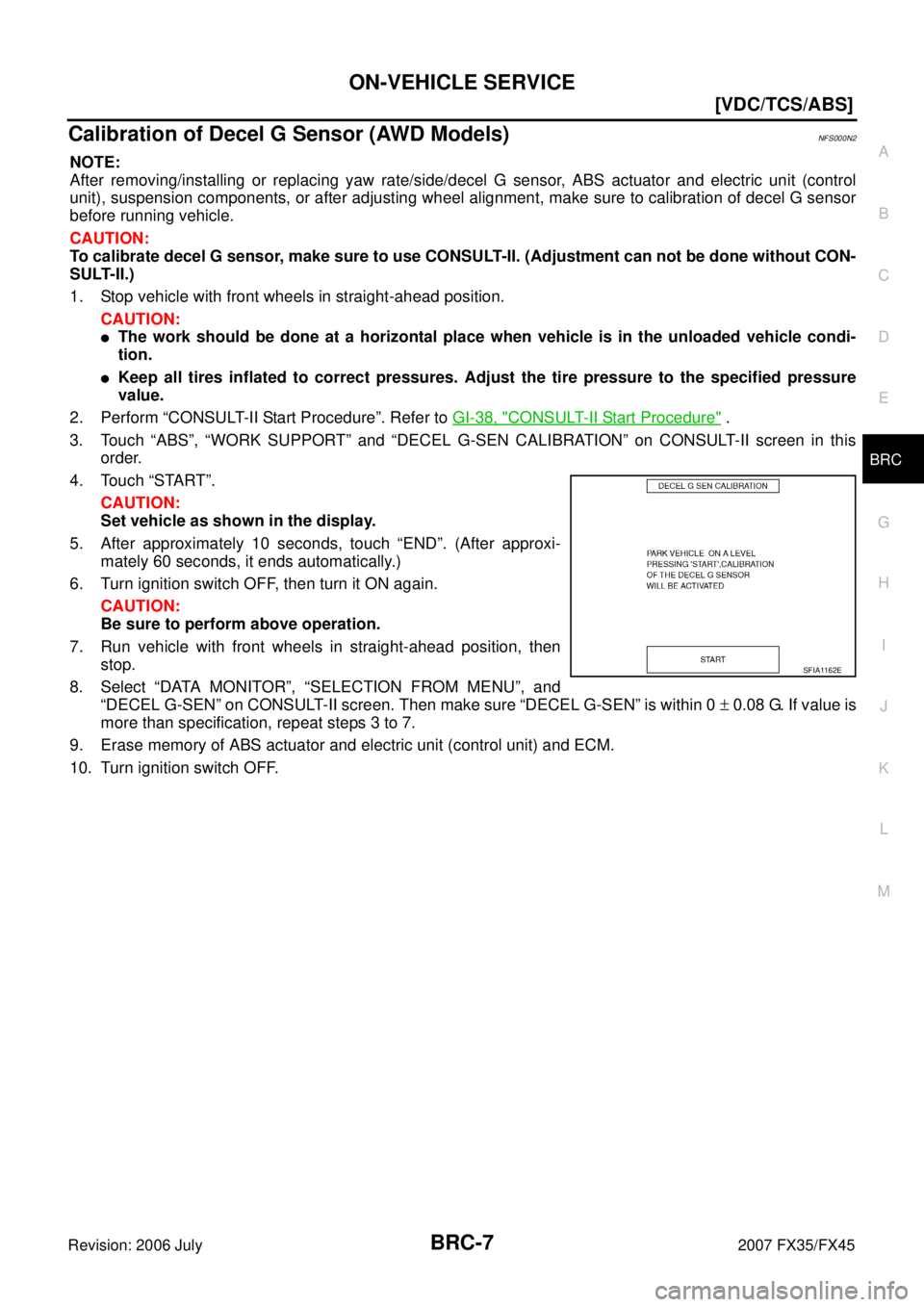

4. Touch “START”. CAUTION:
Set vehicle as shown in the display.
5. After approximately 10 seconds, touch “END”. (After approxi- mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to perform above operation.
7. Run vehicle with front wheels in straight-ahead position, then stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and “DECEL G-SEN” on CONSULT-II screen. Then make sure “DECEL G-SEN” is within 0 ± 0.08 G. If value is
more than specification, repeat steps 3 to 7.
9. Erase memory of ABS actuator and electric unit (control unit) and ECM.
10. Turn ignition switch OFF.
SFIA1162E

SYSTEM DESCRIPTION BRC-9
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
ABS

The Anti-Lock Braking System is a function that detects wheel revolution while braking, and it improves
handling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.

If the electrical system malfunctions, then the fail-safe function starts, the ABS becomes inoperative, and
ABS warning lamp turns on.

Electrical system diagnosis by CONSULT-II is available.

During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
EBD

The Electronic Brake Distribution is a function that detects subtle slippages between front and rear wheels
during braking, and it improves handling stability by electronically controlling the brake fluid pressure
which results in reduced rear wheel slippage.

In case of electrical system malfunction, the fail-safe function is activated, EBD and ABS becomes inoper-
ative, and ABS warning lamp and brake warning lamp are turned on.

Electrical system diagnosis by CONSULT-II is available.

During EBD operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without EBD when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
Fail-Safe FunctionNFS000N8
VDC / TCS SYSTEM
In case of malfunction in the VDC/TCS system, VDC OFF indicator lamp and SLIP indicator lamp are turned
on, and the condition of vehicle is the same as the condition of vehicles without VDC/TCS system. In case of
malfunction in the VDC/TCS system, the ABS control continues to operate normally without VDC/TCS control.
CAUTION:
If the fail-safe function is activated, then perform the self-diagnosis for VDC/TCS/ABS control system.
ABS, EBD SYSTEM
In case of electrical malfunctions with the ABS, ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp will turn on. In case of electrical malfunctions with the EBD, brake warning lamp, ABS warning lamp,
VDC OFF indicator lamp and SLIP indicator lamp will turn on. Simultaneously, the VDC/TCS/ABS become one
of the following conditions of the fail-safe function.

For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of
vehicles without TCS/ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as
the condition of vehicles without TCS/ABS, EBD system.

TROUBLE DIAGNOSIS BRC-25
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Self-DiagnosisNFS000OI
DESCRIPTION

If an error is detected in the system, ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp
on the combination meter turn on. In this case, perform self-diagnosis as follows:

While CONSULT-II is used, ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp may be
turned on in a case of no malfunctioning.
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping vehicle, with the engine running, touch “ABS”, “SELF-DIAG RESULTS” in order on the CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on the
ignition switch, “ABS” might not be displayed in the “SELECT SYSTEM” screen. In this case,
repeat the operation from step 1. If it can not be shown after several attempts, ABS actuator and
electric unit (control unit) may have malfunctioned.
6. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by touching “PRINT”.)

When “NO FAILURE” is displayed, check ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp.
7. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning component.
8. Drive the vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute. CAUTION:
In a case that a wheel sensor is malfunctioning, ABS warning lamp, VDC OFF indicator lamp, SLIP
indicator lamp will turn on. If vehicle is not driven at approximately 30 km/h (19 MPH) or more for
at least approximately 1 minute after repair of the wheel sensor system, ABS warning lamp, VDC
OFF indicator lamp and SLIP indicator lamp may not turn off even if everything is normal. Check
again to make sure that there is no malfunction on other parts.
ERASE MEMORY
1. Turn ignition switch OFF.
2. Start the engine and touch “ABS”, “SELF-DIAG RESULTS”, “ERASE MEMORY” in order on the CON- SULT-II screen to erase the error memory.
CAUTION:
If the error memory is not erased, re-conduct the operation from step 4.
3. Perform self-diagnosis again, and make sure that diagnostic memory is erased.
4. Drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp turn off.
NOTE:
VDC OFF switch should not stay “ON” position.
